        CC-TAON01 51306519-175

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

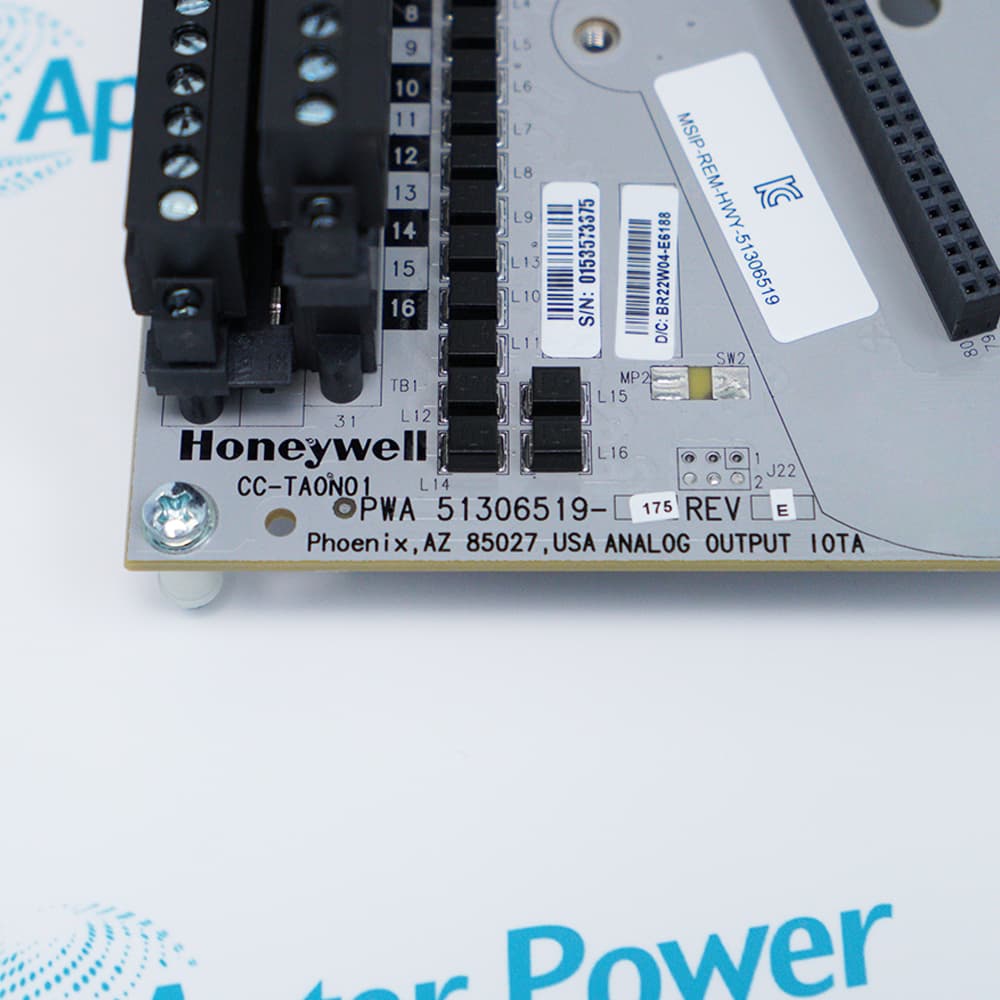

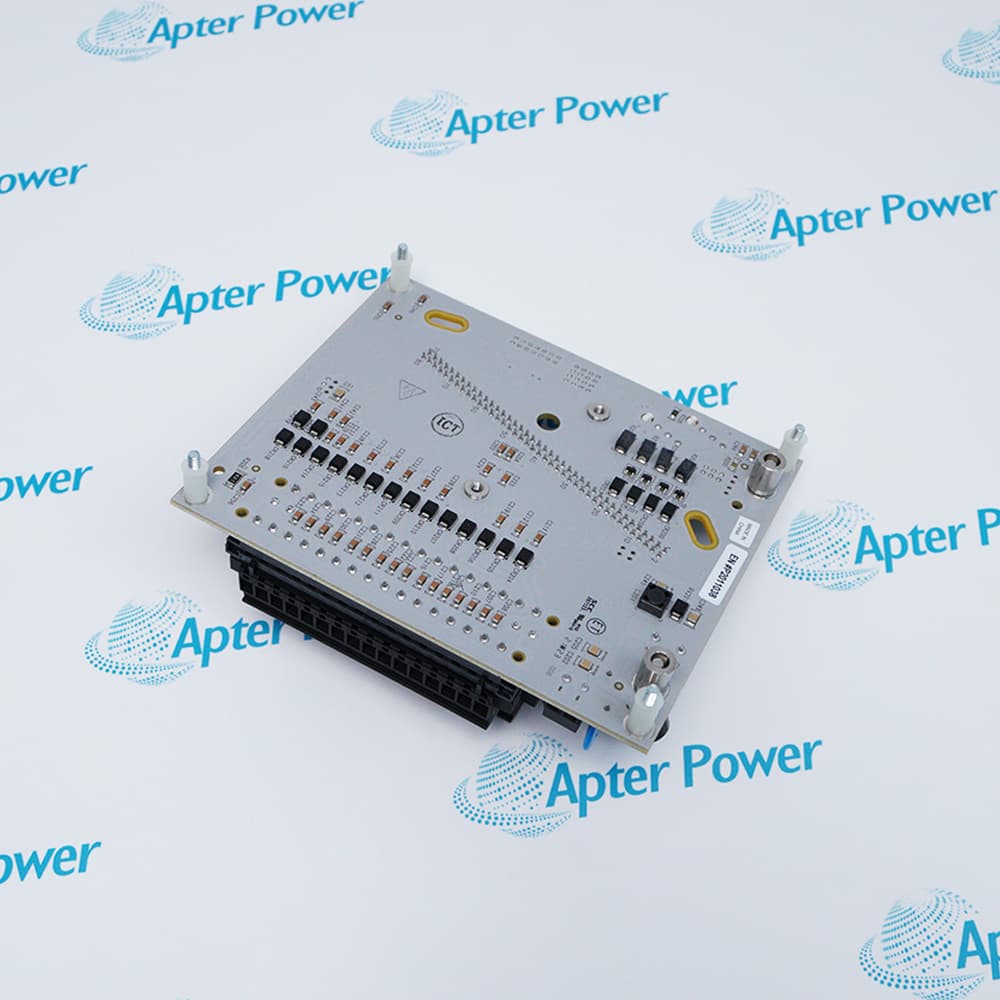

        The Honeywell CC-TAON01 51306519-175 is a high-performance Analog Output IOTA (Termination Board) designed for the Experion PKS C300 C Series. It converts digital commands from the controller into precise 4-20mA signals to reliably drive valves, actuators, and other field devices.
        Get a quick price for CC-TAON01 51306519-175
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for CC-TAON01 51306519-175

        • Manufacturer:
          Honeywell
        • Part Number:
          CC-TAON01 51306519-175
        • Product Family:
          Honeywell Experion PKS ( C200, C300 )
        • Product Type:
          high-performance Analog Output IOTA
        • Number of Channels:
          16 points per module
        • Signal Type:
          4-20 mA (Standard)
        • Output Range (Settable):
          0 mA, 2.9 mA to 21.1 mA
        • Resolution:
          16 bits
        • Load Resistance (Max):
          800 Ω (at 24V supply)
        • Calibrated Accuracy:
          ±0.35% of Full Scale (at 25°C)
        • Response Time:
          Settles within 1% of final value within 80 ms
        • Redundancy Support:
          Yes (Redundant IOTA: CC-TAON11)
        • Isolation:
          1500 VAC RMS or ±1500 VDC
        • Operating Temp.:
          -40°C to +70°C (-40°F to +158°F)
        • Storage Temp.:
          -40°C to +85°C (-40°F to +185°F)
        • Dimensions (Non-Red):
          6 inch (152mm)
        • Dimensions (Redundant):
          12 inch (304mm)
        • Weight:
          0.3 kg
        • Estimated shipping dimensions:
          18.5x15x7.5cm
        • Tariff Code:
          8471499100
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Communication & Connectivity Performance & Efficiency Applications

        Features:

        • High Precision Loop Control
        • "Fuse-less" Short Circuit Protection
        • Advanced Diagnostics & Redundancy
        Equipped with 16-bit resolution and ±0.35% full-scale accuracy, the Honeywell CC-TAON01 ensures smooth and accurate positioning of valves and actuators. It supports programmable fail-safe states (FAILOPT) to either hold last value or shed to a safe value upon system fault.

        Unlike traditional modules requiring fuse replacement, the CC-TAON01 features electronic current limiting. If an output is shorted, the channel automatically removes power until the short is cleared, eliminating maintenance downtime and spare parts costs for fuses.

        The module includes open-wire detection and output read-back alarming to verify that the field device received the correct signal. It supports 1:1 redundancy on the IOTA without external cabling, providing bumpless (0 ms gap) switchover for critical loops.

        The CC-TAON01 51306519-175 Honeywellhigh-performance Analog Output IOTA may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Honeywell CC-TAON01 51306519-175 high-performance Analog Output IOTA Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Honeywell CC-TAON01 51306519-175 high-performance Analog Output IOTA

        General

        • Manufacturer Honeywell
        • Model CC-TAON01 51306519-175
        • Condition New Original ready stock
        • Product Family CC-TAON11,CC-TAOX51,CC-TAOX61
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Backplane Bus: Direct high-speed link to C300 Controller (non-networked I/O).
        • Field Wiring: Standard 4-20 mA twisted pair (shielded recommended).
        • System Integration: Native compatibility with Experion PKS Engineering Studio.
        • Speed: Settling time of 80 ms ensures responsive PID control.
        • Reliability: Eliminates in-line fuses, reducing cabinet space and maintenance costs.
        • Density: 16 points in a 6-inch form factor (high channel density per square inch).
        • Safety: Non-incendive field power rating for Division 2 hazardous locations.
        • Oil & Gas: Wellhead choke valve control and custody transfer skids.
        • Chemical: PID loop control for reactor temperature and distillation column reflux.
        • Power: Turbine bypass control and boiler feed-water regulation.
        • Water Treatment: Chemical dosing pumps for pH neutralization.
        View as PDF
        Description
        The Honeywell CC-TAON01 51306519-175 serves as the critical interface between the C300 controller and field actuators. It receives digital signals and converts them into high-resolution 4-20 mA analog outputs, enabling precise modulation of flow, pressure, and temperature loops.

        Designed for industrial reliability, Honeywell CC-TAON01 51306519-175 supports redundant configurations and offers a wide operating temperature range of -40°C to +70°C. By integrating open-wire detection and output read-back diagnostics, this module ensures continuous process visibility and uptime.
        Alternative Names
        CC-TAON01 51306519 175 CC TAON01 51306519-175 CC TAON01 51306519 175
        Technical notes
        The Honeywell CC-TAON01 51306519-175 is an IOTA (Termination Assembly) and requires a compatible IOM such as CC-PAON01 to form a complete analog output channel. It supports hot-swap replacement, but the corresponding I/O module should be placed in "Maintenance" state via the engineering workstation before removal.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Is this the full module or just the termination board?
        The CC-TAON01 is the IOTA (Termination Board) where field wires land. To have a working analog output channel, you need to plug the matching IOM (Electronic Module) , specifically the CC-PAON01, onto this base.
        Can I replace this module while the plant is running?
        Yes, the Honeywell CC-TAON01 supports hot-swapping. However, you must first set the corresponding channel to "Offline" or "Maintenance" mode in the Experion Control Builder software to prevent control disturbances.
        How environmentally adaptable is this module?
        This module operates in a temperature range of -40℃ to +70℃, with a storage temperature range of -40℃ to +85℃. It has an IP20 protection rating and is suitable for harsh environments such as high temperature, high humidity, and dust. Field verification has shown that it maintains stable operation even under sandstorm conditions on desert oil drilling platforms, with a significantly lower failure rate compared to traditional modules.
        How to quickly diagnose module failures?
        The module's front panel provides LED indicators: green = power normal/output ON, blue = output active, red = module failure. Additionally, detailed module diagnostic status and fault information for each channel (such as circuit break, output over-limit, etc.) can be viewed through the Experion PKS operator station (HMIWeb) or engineering station (Control Builder) to quickly locate the problematic channel.
        What happens to the output if the module loses communication?
        You can configure the FAILOPT parameter per channel. The output can either Hold Last Value (stay at the last good setting) or Shed to Safe Value (go to a user-defined safe current, typically 0 or 4 mA).
        How do I know if my field cable is broken?
        The module features Open Wire Detection. If the loop resistance becomes too high (broken wire), the system will generate a "Channel Soft Failure" alarm in Experion PKS, informing the operator immediately.
