        • Lifecycle status

          Discontinued / Obsolete by OEM
          Apter Power supplies tested Honeywell power modules to preserve system integrity and extend the service life of critical safety and control infrastructure.

        10300/1/1

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

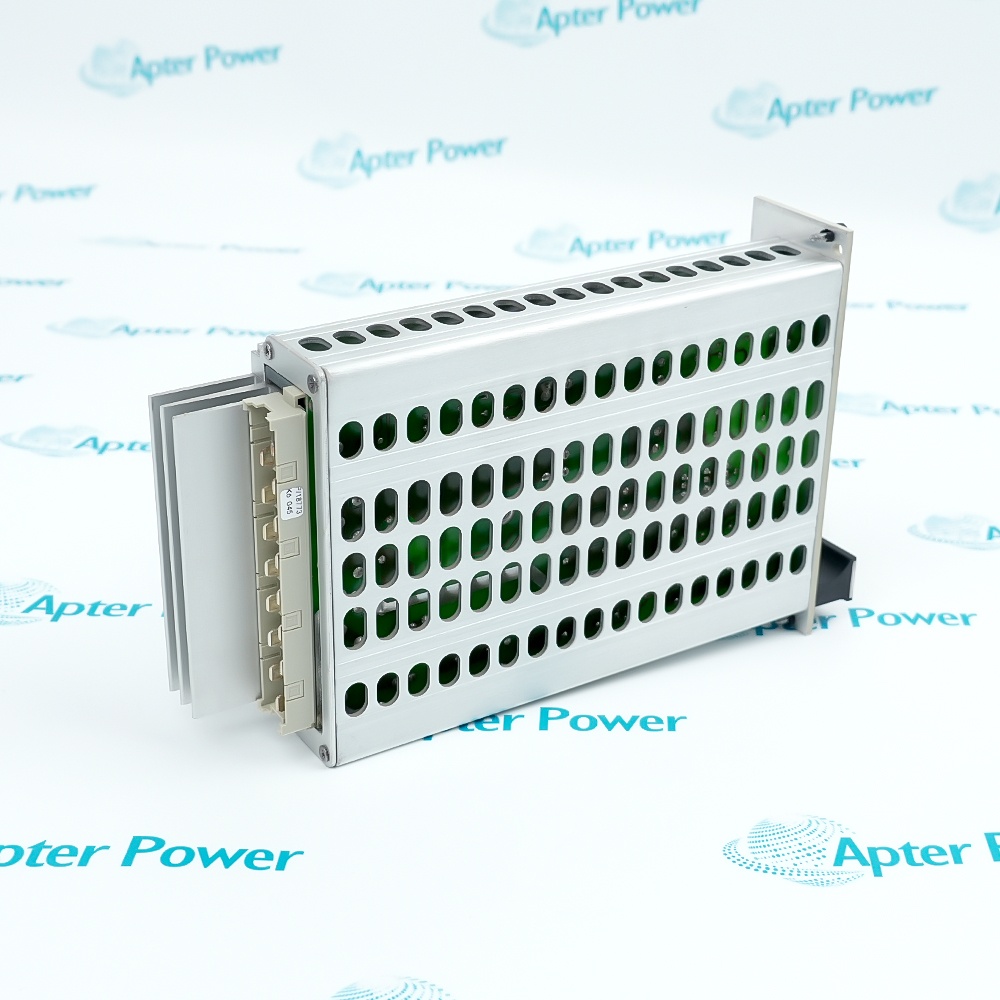

        The 10300/1/1 DC-DC converter module is designed for industrial safety control applications and is a key power conversion component in the FSC (Fail-Safe Control) system architecture.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 10300/1/1
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 10300/1/1

        • Manufacturer:
          Honeywell
        • Part Number:
          10300/1/1
        • Product Family:
          Honeywell FSC Series
        • Product Type:
          DC converter
        • Stock:
          1
        • Approvals:
          CE, TÜV, UL
        • Software versions:
          all
        • Space requirements:
          8 TE, 3 HE (= 8 HP, 3U)
        • Power Power requirements:
          current < 3.9 A at 24 Vdc
        • voltage:
          24 Vdc (–15%...+30%)
        • Inrush current:
          < 18 A
        • Weight:
          0.68 kg
        • Estimated shipping dimensions:
          4x20.8x12.8cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Communication & Connectivity Safety & Compliance

        Features:

        • Power Conversion Interface Between 24 Vdc Plant Supply and FSC Internal 5 Vdc System
        • Combines Capability of DC/DC Voltage Conversion with Galvanic Isolation Protection
        • Operates in Conjunction with FSC Safety Control Modules and System Architecture
        The HONEYWELL 10300/1/1 DC Converter module serves as the essential power conversion component within the FSC rack, providing regulated 5 Vdc power to all modules throughout the system. It continuously converts incoming 24 Vdc power from the plant's battery-backed supply system to precisely regulated 5 Vdc at 12 A capacity, distributing this isolated power through the internal backplane to support steady state operation of all FSC monitors and control modules. Seamless power continuity is inherent to the 10300/1/1 design, with the module maintaining stable output voltage to ensure uninterrupted system functionality during normal operation. The 10300/1/1 has incorporated galvanic isolation between the two supply voltages as a fundamental improvement over non-isolated power conversion approaches.

        The 10300/1/1 provides essential power functions critical to the entire FSC rack, serving as a vital component of the safety control path, directly affecting the proper, normal operation of the overall FSC monitor system. One or more 10300/1/1 DC Converter modules are required per rack depending on the specific power requirements and redundancy considerations. The 10300/1/1 occupies a dedicated slot position within the FSC rack configuration and interfaces directly with the system backplane to deliver isolated 5 Vdc power to all connected modules.

        For system maintenance and replacement procedures, the 10300/1/1 DC Converter module incorporates specific operational safeguards that technicians must observe. In addition to standard continuous operation, the 10300/1/1 performs inrush current limiting through an internal NTC resistor. When replacing or repowering the 10300/1/1, maintenance personnel must allow a minimum 30-second cooling interval after removal or power-off. Using this method, the NTC resistor sufficiently cools down to provide effective inrush limiting upon restart. If the system detects that the 10300/1/1 has been reinstalled within this critical window, the warm NTC resistor may cause supply voltage dips that could trip the system and place the FSC in a fault condition.

        The 10300/1/1 HONEYWELL DC Converter module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        HONEYWELL 10300/1/1 DC Converter module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HONEYWELL 10300/1/1 DC Converter module Specs

        General

        • Manufacturer HONEYWELL
        • Model 10300/1/1
        • Condition New Original ready stock
        • Product Family 10006/1/1,10006/2/2,10101/2/1 ,10104/1/1
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Safety Control Systems: Acts as the primary power source for internal modules in the Honeywell FSC system, supporting emergency shutdown and process safeguarding.
        • Industrial Automation: Used in high-integrity process control for Burner/Boiler Management Systems (BMS), turbine and compressor safeguarding, and fire and gas detection.
        • Field Device Support: Provides stable power for instrumentation and servo drives in both onshore and offshore applications.
        • Bus Integration: Must be placed in close proximity to the system bus (e.g., 12-SBUS) to ensure minimal voltage drop, as the 5V supply limits are extremely tight (±5%).
        • Galvanic Isolation: Provides electrical separation between the 24V DC input and 5V DC output, preventing electrical noise from impacting communication signals.
        • System Indicators: Features a front-panel output LED for visual status monitoring in redundant configurations.
        • Certifications: Certified by CE, TÜV, and UL for use in hazardous and industrial settings.
        • Integrated Protection: Includes built-in overvoltage protection (OVP) typically set at 5.75V DC and an NTC resistor to limit inrush current.
        • SIL Rating: As part of the FSC platform, it contributes to systems capable of meeting Safety Integrity Level (SIL) requirements for high-risk processes.
        Description

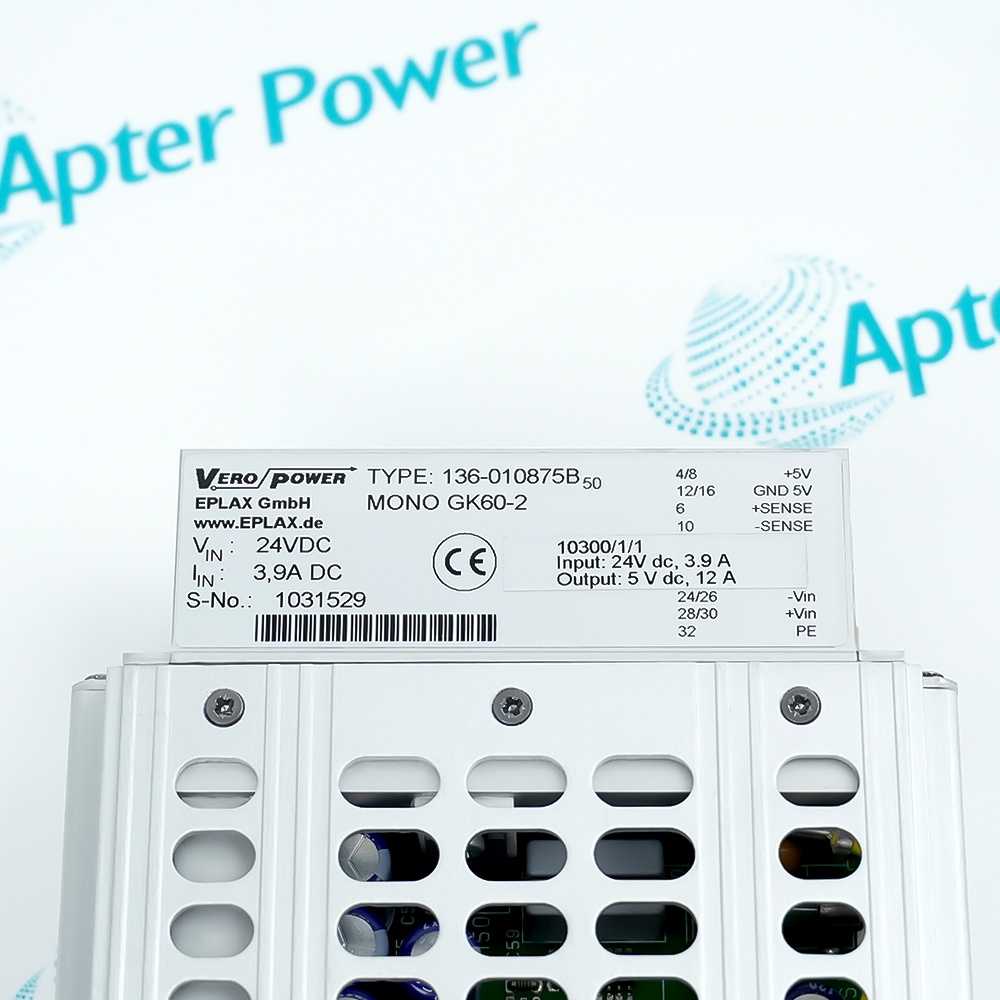

        The 10300/1/1 is a DC/DC converter module manufactured by Honeywell, specifically engineered for industrial safety control applications. This 10300/1/1 module functions as a 24 Vdc to 5 Vdc/12 A converter, serving as a critical power conversion component within the FSC (Fail Safe Control) system architecture. The 10300/1/1 is designed to address the challenge of voltage level conversion while maintaining system integrity through galvanic isolation between the external 24 Vdc plant supply and the internal 5 Vdc required by FSC modules.

        The 10300/1/1 DC converter plays an essential role in power management for safety-critical industrial environments. This 10300/1/1 module enables the FSC system to utilize the facility's standard 24 Vdc power infrastructure, which typically includes battery backup capabilities, while internally distributing the regulated 5 Vdc necessary for module operation. The galvanic isolation feature of the 10300/1/1 ensures electrical separation between the two voltage domains, protecting sensitive control electronics from potential ground loops and transient disturbances present in plant power systems.

        The 10300/1/1 incorporates specific operational characteristics that maintenance personnel must consider during service procedures. Each 10300/1/1 module utilizes an NTC resistor as an inrush current limiter to protect the system during startup. When replacing or repowering the 10300/1/1, technicians must observe a minimum 30-second waiting period after removal or power-off to allow the NTC resistor sufficient cooling time. Failure to adhere to this interval when reinstalling the 10300/1/1 may result in supply voltage dips that could trigger system trips, as the inrush limiting function will not be fully effective with a warm NTC resistor.
        Alternative Names
        10006/1/1 10006/2/1 10006/2/2 10101/1/1 10101/2/1 10104/1/1 10104/2/1
        Technical notes
        The Honeywell 10300/1/1 DC/DC power converter module is designed to provide stable power with a peak-to-peak ripple of less than 40 mV at full load. It can deliver up to 12 A of output current at ambient temperatures up to 45°C and safely reduces the output current to 8 A at high temperatures up to 60°C.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What is the Honeywell 10300/1/1 module?
        The Honeywell 10300/1/1 is a DC/DC converter designed for industrial safety control systems. It converts 24 Vdc input power into a regulated 5 Vdc output with a current capacity of 12 A, making it a key power supply component within FSC (Fail Safe Control) architectures.
        In what environments is the HONEYWELL 10300/1/1 typically used?
        The Honeywell 10300/1/1 is commonly used in industrial safety systems such as process control, oil and gas, chemical plants, and other applications where reliable and isolated power conversion is essential.
        What maintenance considerations should be followed for the HONEYWELL 10300/1/1?
        When servicing the Honeywell 10300/1/1, technicians must wait at least 30 seconds after power-off or removal before reinstalling it. This allows the NTC resistor to cool down and ensures proper inrush current limiting during restart.
        What will happen to the HONEYWELL 10300/1/1 if wait times are not observed?
        If the Honeywell 10300/1/1 is re-energized too quickly, the NTC resistor may still be warm and ineffective, potentially causing voltage dips that can lead to unintended system trips or instability.
