9760-210

/ 4.9
1001 reviews | Need a Specific Revision?

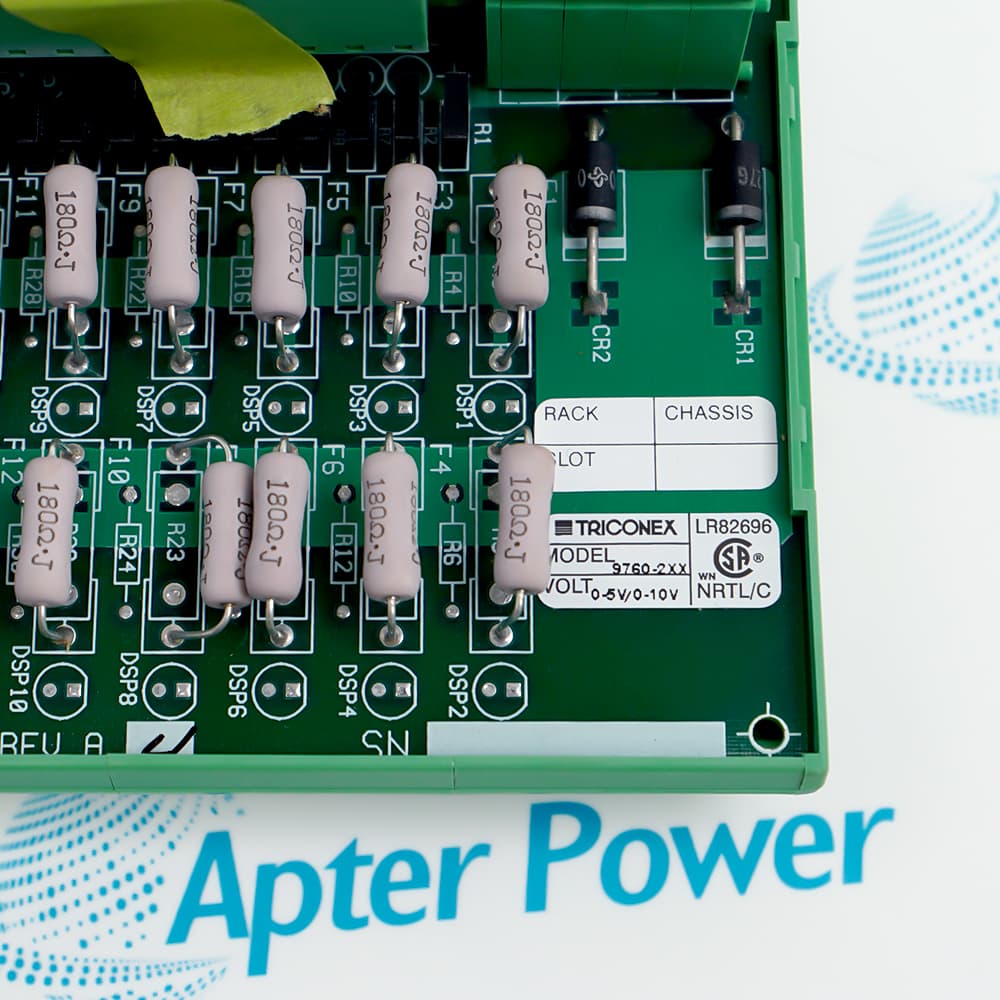

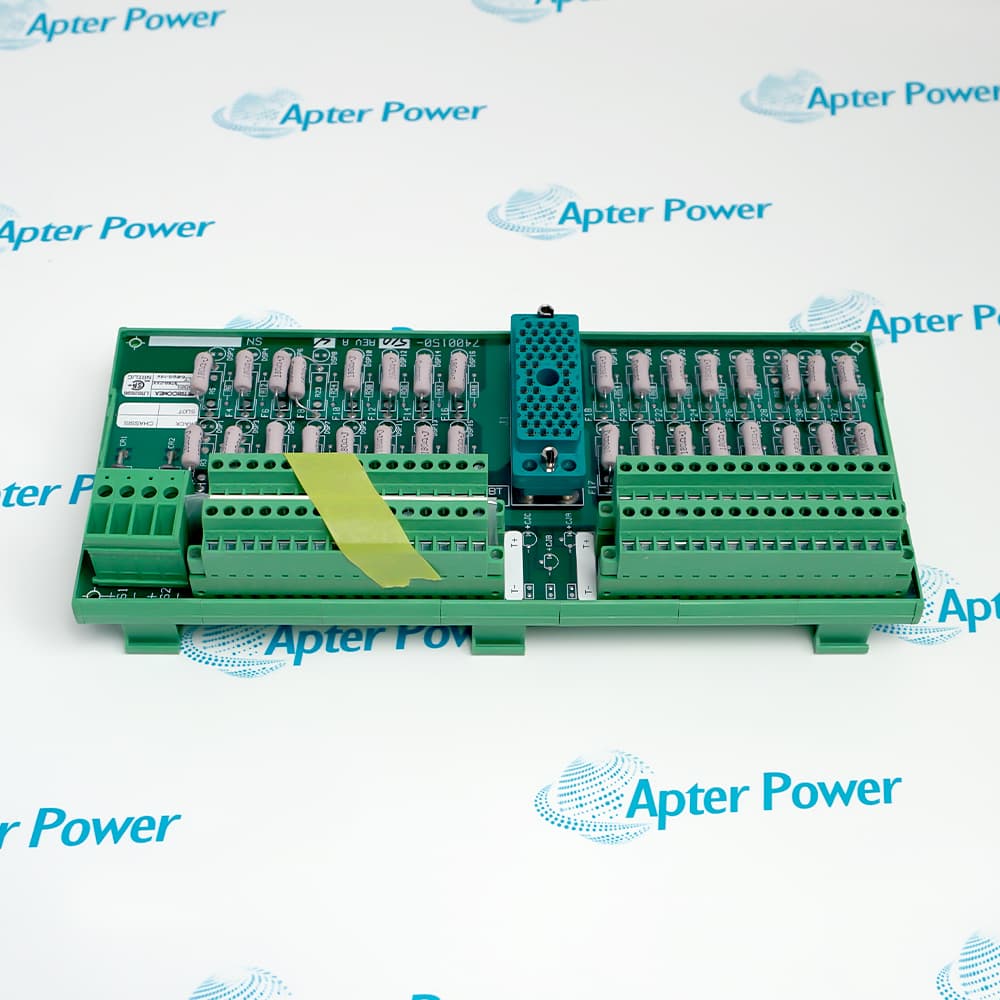

Invensys Triconex 9760-210 is a 32-point 0–5 VDC current-input termination panel for compatible Tricon analog input modules.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 9760-210
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 9760-210

  • Manufacturer:
    Invensys
  • Part Number:
    9760-210
  • Product Family:
    Triconex
  • Product Type:
    Current Input Termination Panel
  • Stock:
    1
  • Panel type:
    Current input
  • Signal range:
    0–5 VDC
  • Points:
    32
  • Positive terminals:
    32 power-output terminals (+)
  • Negative terminals:
    32 current-input terminals (−)
  • Positive-terminal series resistor:
    180 ohms
  • Current-to-voltage conversion resistor:
    Precision 250 ohms
  • Field-power inputs:
    Redundant 24 VDC with diode ORing
  • Compatible analog input modules:
    3704E; 3720
  • Panels per compatible 64-point module:
    2
  • Panel label sets:
    1–32; 33–64
  • Weight:
    0.64 kg
  • Estimated shipping dimensions:
    25.1 x 11.2 x 6 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Interface Power Architecture Module Integration Product Applications

Features:

  • Defined input role: 32-point current-input termination for 0–5 VDC module interfaces
  • Engineered signal path: series protection and precision current-to-voltage conversion resistors
  • High-density integration: coordinated two-panel allocation for compatible 64-point modules
Invensys Triconex 9760-210 is identified in the field-termination guide as a current-input panel, which separates it from voltage-input and other termination variants.

The onboard resistor network gives the panel a defined interface role instead of treating it as a passive connector strip.

Selection should begin with the installed analog input module, its configured range and the required channel-label set before cabinet wiring is changed.

Apter Power can help identify and source the Invensys Triconex 9760-210 Current Input Termination Panel; current availability and exact supply scope are confirmed at quotation.
Invensys 9760-210 Current Input Termination Panel Manuals,Datasheets,Link
Important Notice: Verify the complete product model, installed analog input module, configured signal range and required panel label set before ordering or installation.
  • Current-input terminals: 32 negative terminals accept the panel current-input connections.
  • Power-output terminals: 32 positive terminals distribute the panel field-power output.
  • Series protection: each positive terminal includes a 180-ohm series resistor.
  • Signal conversion: each input uses a precision 250-ohm current-to-voltage conversion resistor.
  • Dual supply inputs: the panel accepts two independent 24 VDC field-power sources.
  • Diode ORing: the documented power path combines the two sources without directly tying them together.
  • Architecture check: commissioning should retain the redundant supply arrangement shown in the project and manufacturer wiring information.
  • Controlled deviation: any single-source installation requires project approval before the panel is energized.
  • 3704E pairing: the guide lists 9760-210 for a 3704E configured for 0–5 VDC input.
  • 3720 pairing: the guide lists 9760-210 for the 3720 single-ended 0–5 VDC analog input module.
  • Channel capacity: each compatible module provides 64 points, while one panel terminates 32 points.
  • Panel allocation: one module uses two panels identified as channels 1–32 and 33–64.
  • Field termination for 0–5 VDC current-input loops connected to a compatible 3704E analog input module.
  • Field termination for a compatible 3720 single-ended analog input module.
  • Two-panel channel allocation for one 64-point compatible Tricon analog input module.
  • Maintenance and replacement work on Tricon v9–v10 systems where the installed documentation specifies 9760-210.
Description
9760-210 provides the field-termination interface for compatible Tricon 3704E and 3720 analog input modules. Matching the panel to the installed module and its 0–5 VDC configuration gives maintenance and procurement teams a defined basis for replacement selection.

9760-210 accepts two 24 VDC field-power sources through diode ORing, so the termination architecture preserves the redundant supply arrangement documented for the panel. Its onboard resistor network also performs the specified current-to-voltage conversion at the input interface.

9760-210 is deployed as two panels for one 64-point compatible module, using the 1–32 and 33–64 label sets. That division gives installers a clear channel-allocation boundary and lets receiving teams verify panel quantity before cabinet work begins.
Alternative Names
9760 210 9760210 Triconex 9760-210 Invensys Triconex 9760-210
Technical notes
The 9760-210 is the 0–5 VDC current-input panel; a visually similar panel for another voltage range is not equivalent. A range mismatch can invalidate the field-wiring design. Verify the installed module configuration, panel label and project drawings before release, and stop installation whenever the specified range differs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 9760-210 be selected for an installed 3704E analog input module?
Yes, when the 3704E is configured for 0–5 VDC as listed by the manufacturer. Verify the complete module model, configured range and project wiring before releasing the panel for installation.
Is 9760-210 listed for use with a Tricon 3720 module?
Yes. The manufacturer lists 9760-210 with the 3720 single-ended 0–5 VDC analog input module. Confirm the module identity and follow the documented field-wiring diagram before reconnection.
Can one 9760-210 complete the termination for a 64-point compatible module?
No. The manufacturer specifies two panels per 64-point module. Hold a full-module shipment until both panels and the 1–32 and 33–64 channel allocations are confirmed.
How should the two terminal groups on 9760-210 be treated in the wiring schedule?
Treat the 32 positive terminals as power outputs and the 32 negative terminals as current inputs. Use the manufacturer field-wiring figure and the approved project drawings for the final point-by-point connections.
May 9760-210 be commissioned when only one of the two planned 24 VDC field-power sources is ready?
The manufacturer documents redundant 24 VDC sources combined by diode ORing. Do not accept a single-source deviation automatically; stop and obtain project approval against the approved power and safety design before energizing.
What should installers do with 9760-210 on a DIN rail where shock or vibration is significant?
For 9760-210 in a high-shock, vibration or seismic location, secure the panel string with a ground terminal block at each end, as directed by the installation guide. Do not rely on the snap fit alone in that environment.
