CA-H200C

/ 4.9
1001 reviews | Need a Specific Revision?

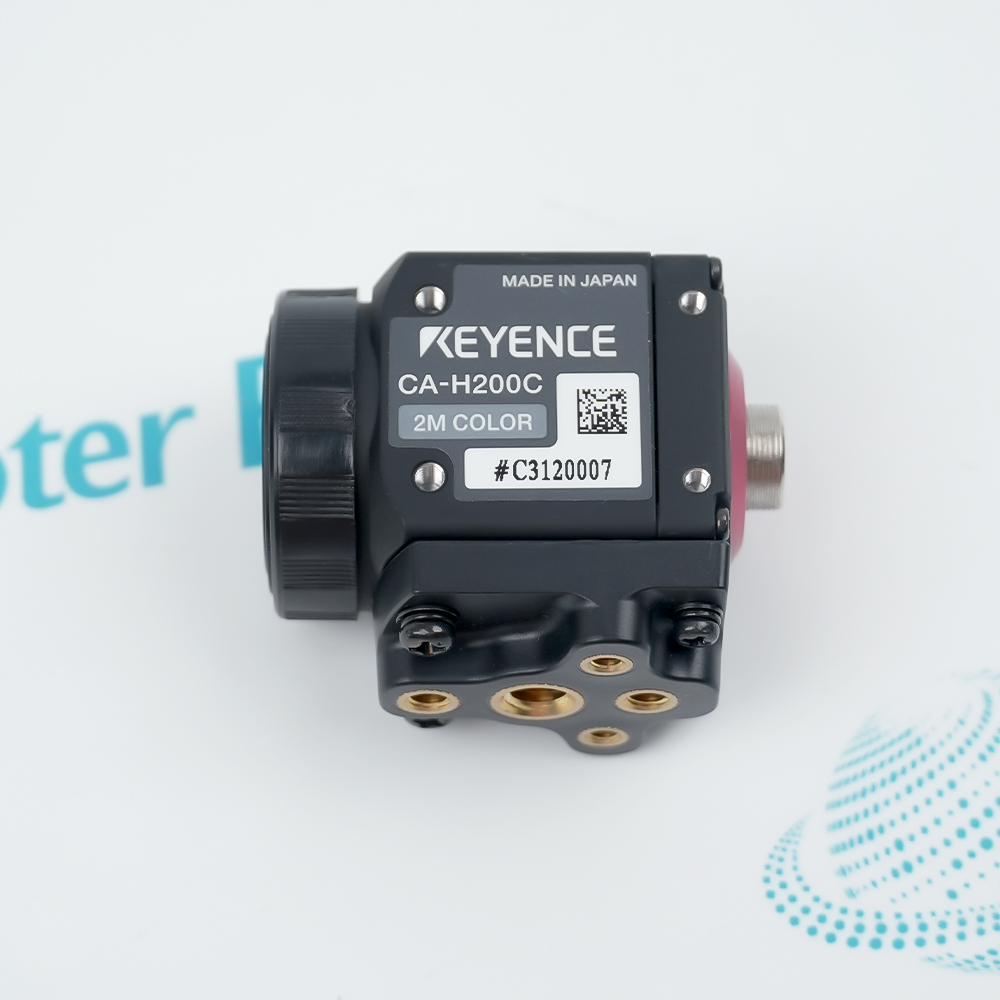

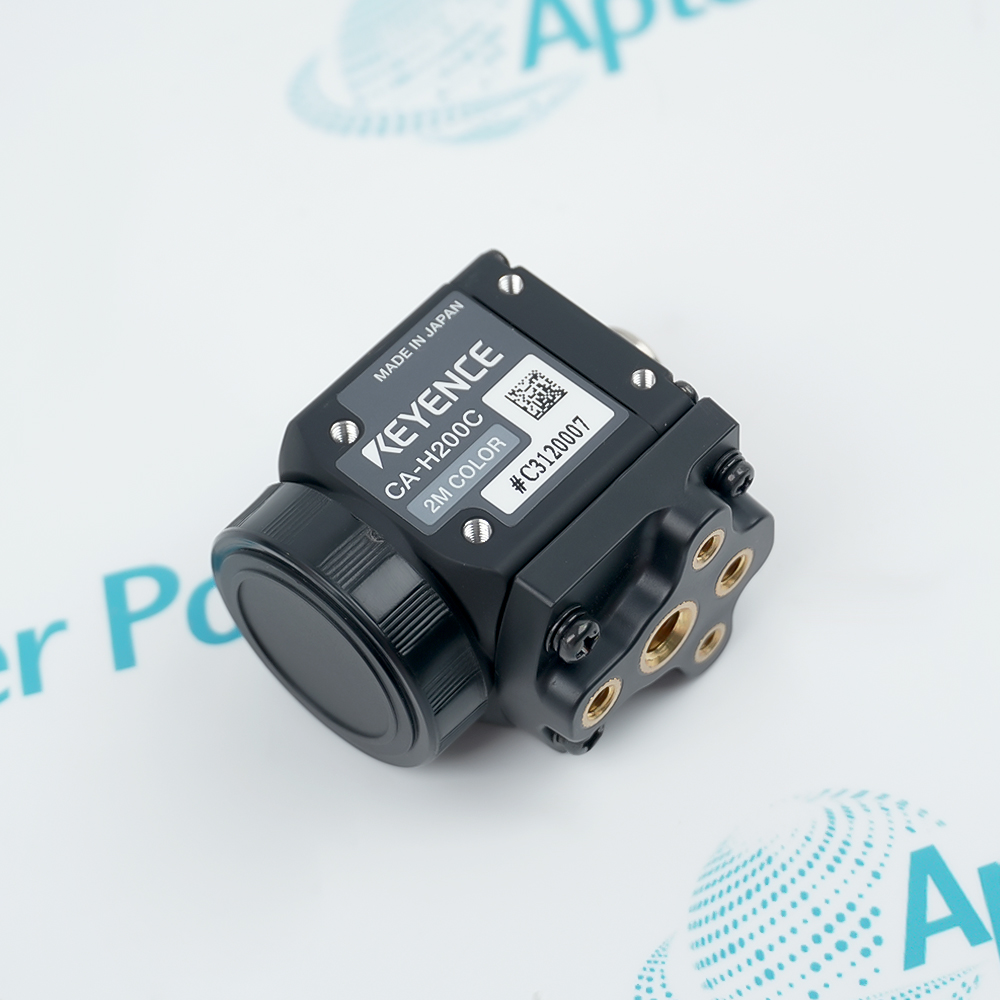

KEYENCE CA-H200C is a 2-megapixel color machine vision camera that sends progressive-scan images to a compatible vision controller for inspection processing.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CA-H200C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CA-H200C

  • Manufacturer:
    KEYENCE
  • Part Number:
    CA-H200C
  • Product Family:
    KEYENCE
  • Product Type:
    2-Megapixel Color Machine Vision Camera
  • Stock:
    1
  • Image Sensor:
    Color CMOS square-pixel sensor
  • High-Speed Modes:
    7× and 16×
  • Unit Cell Size:
    4.5 μm × 4.5 μm
  • Optical Format:
    1/1.8 inch
  • 2 MP Resolution:
    1600 × 1200 pixels
  • 1 MP Resolution:
    1024 × 960 pixels
  • Scanning Method:
    Progressive scan
  • 2 MP Scan Time:
    28.9 ms at 7×; 11.8 ms at 16×
  • 1 MP Scan Time:
    23.5 ms at 7×; 9.6 ms at 16×
  • Pixel Transfer Frequency:
    86 MHz at 7×; 198 MHz at 16×
  • Transfer System:
    Digital serial transfer
  • Electronic Shutter Range:
    0.05 to 9000 ms
  • Lens Mount:
    C-mount
  • Environmental Protection:
    IP64 with specified lens and cable
  • Operating Temperature:
    0 to 45 °C
  • Operating Humidity:
    35 to 85% RH, non-condensing
  • Certification:
    CE marking
  • Weight:
    0.165 lbs (0.075 kg)
  • Estimated shipping dimensions:
    4.8x3x4cm
  • Tariff Code:
    8525891900
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Image Strategy Timing Choice Optical Setup Cable Planning

Features:

  • Color CMOS acquisition at up to 2 megapixels
  • Selectable 7× and 16× high-speed readout
  • C-mount optics with conditional IP64 protection
KEYENCE CA-H200C captures color images for machine-vision inspection with a compatible KEYENCE controller.

Its progressive-scan sensor can operate at 1600 × 1200 or 1024 × 960 pixels, allowing image size and scan time to be balanced for the application.

The camera provides digital serial transfer and an electronic shutter range suitable for controlling exposure on moving or stationary targets.

The KEYENCE CA-H200C 2-Megapixel Color Machine Vision Camera may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
KEYENCE CA-H200C 2-Megapixel Color Machine Vision Camera Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Balance Detail and Scan Time

  • Detail Priority: Select the 1600 × 1200 mode when the inspection needs the full 2-megapixel image from KEYENCE CA-H200C.
  • Cycle Priority: The 1024 × 960 mode has the shorter documented scan times and can be evaluated when full 2-megapixel acquisition is unnecessary.
  • Color Requirement: The final C in KEYENCE CA-H200C identifies the color configuration, so confirm that the installed inspection is not monochrome.
  • Controller Load: Choose image size together with controller processing requirements instead of treating resolution as an isolated camera setting.

Coordinate Readout and Exposure

  • Readout Mode: The 7× and 16× selections change both pixel-transfer frequency and scan time on KEYENCE CA-H200C.
  • Image Size: Compare timing in the selected 2-megapixel or 1-megapixel mode because each resolution has its own scan-time pair.
  • Exposure Window: Set the electronic shutter within the available range while checking that the target remains adequately exposed.
  • System Check: Validate the chosen image size, readout mode and shutter together in the controller inspection cycle before final setup.

Complete the C-mount Assembly

  • Lens Interface: Fit a C-mount lens selected for the 1/1.8-inch sensor format used by KEYENCE CA-H200C.
  • Resolution Check: Confirm that the lens choice supports the image detail expected from the selected acquisition mode.
  • Seal Condition: IP64 applies only when KEYENCE CA-H200C is assembled with the specified IP64 lens and environment-resistant cable.
  • Incomplete Assembly: Do not treat the camera body alone as an IP64 installation when either required sealing component is absent.

Match Distance to the Camera Setup

  • Direct Route: A compatible camera cable can connect KEYENCE CA-H200C directly for a documented distance of up to 10 m.
  • Extended Route: Supported layouts reach 20 m with one repeater or 30 m with two repeaters and the required cable sections.
  • Environmental Cable: Use the specified environment-resistant cable when the KEYENCE CA-H200C installation must retain its IP64 condition.
  • Layout Review: Count every cable section and repeater before installation instead of selecting the camera from total distance alone.
Description
The CA-H200C is an environment-resistant color machine vision camera for compatible KEYENCE vision systems. Its square-pixel CMOS sensor captures inspection images for downstream processing by the controller.

The CA-H200C supports 1600 × 1200 acquisition in 2-megapixel mode and 1024 × 960 acquisition in 1-megapixel mode. The 1/1.8-inch sensor uses 4.5 μm square pixels and progressive scanning.

The CA-H200C provides 7× and 16× high-speed readout modes with digital serial transfer. The documented scan times are 28.9 ms and 11.8 ms at 2 megapixels, or 23.5 ms and 9.6 ms at 1 megapixel.

The CA-H200C uses a C-mount lens interface and operates from 0 to 45 °C at 35 to 85% relative humidity. IP64 protection applies only when the specified KEYENCE IP64 lens and environment-resistant cable are installed.
Alternative Names
CAH200C CA H200C CA H200 C KEYENCE CA-H200C KEYENCE CAH200C CA-H200C Color Camera CA-H200C 2 MP Camera KEYENCE CA-H2OOC
Technical notes
KEYENCE CA-H200C is a color CMOS camera with selectable 2-megapixel and 1-megapixel acquisition modes. IP64 requires the specified KEYENCE sealing lens and environment-resistant camera cable.
