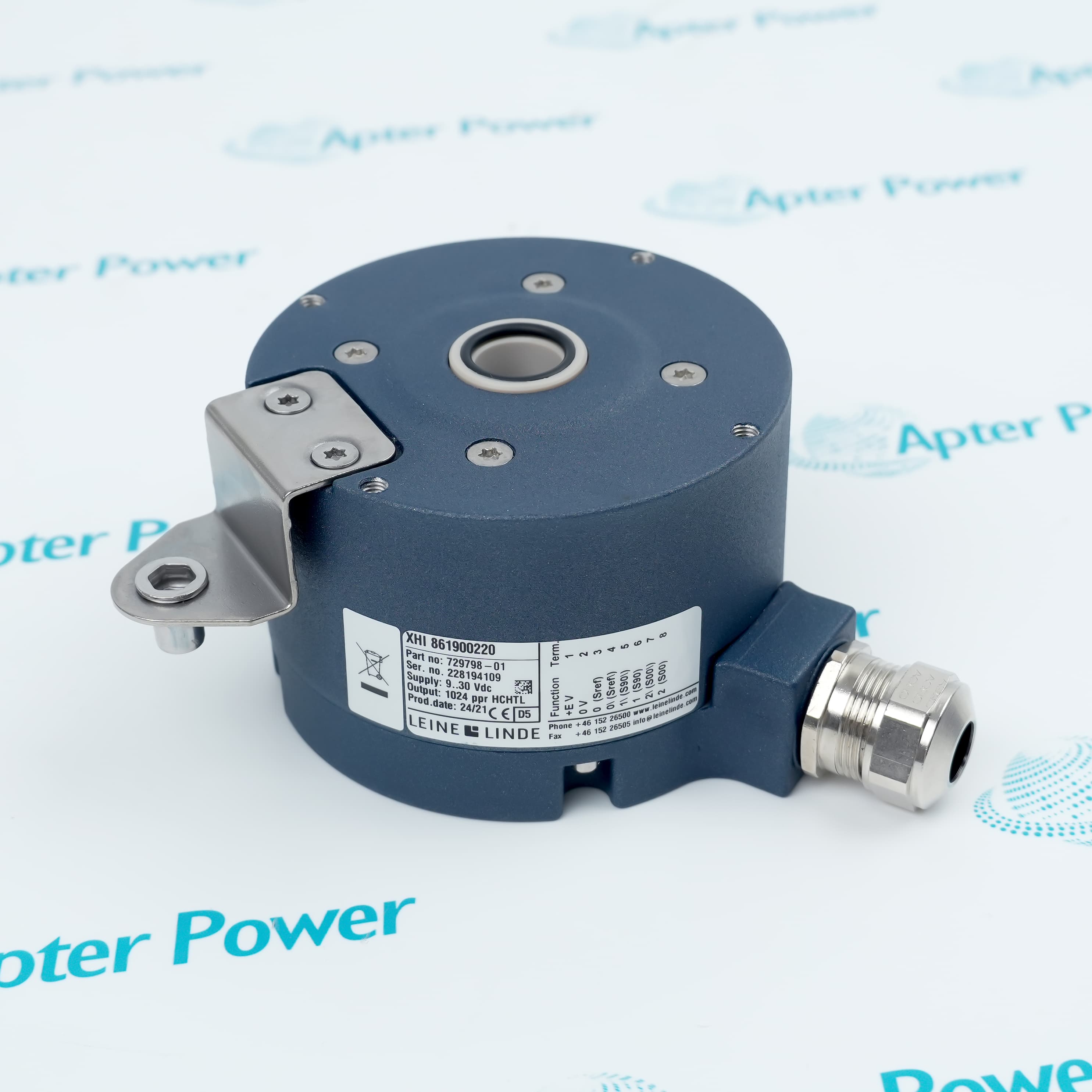

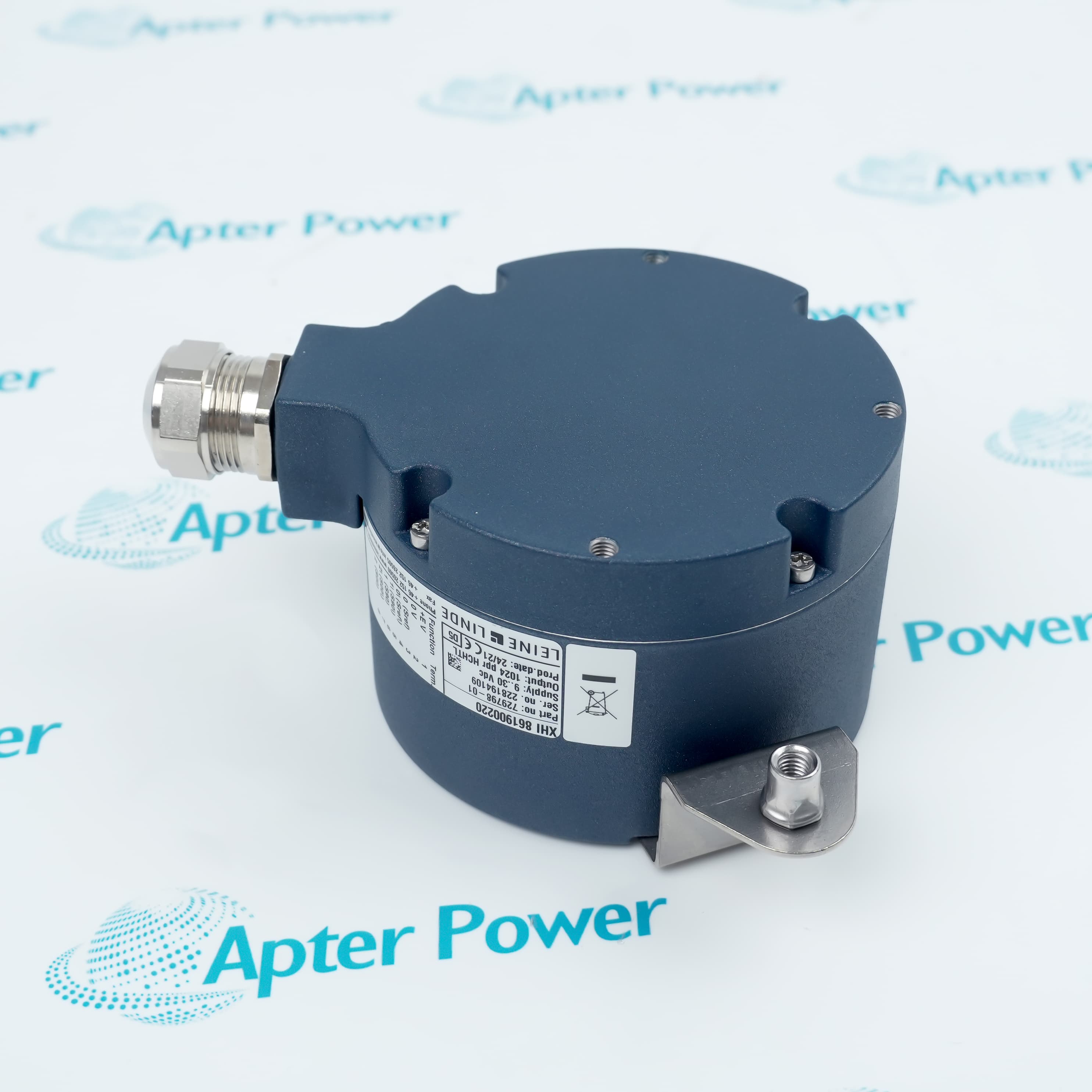

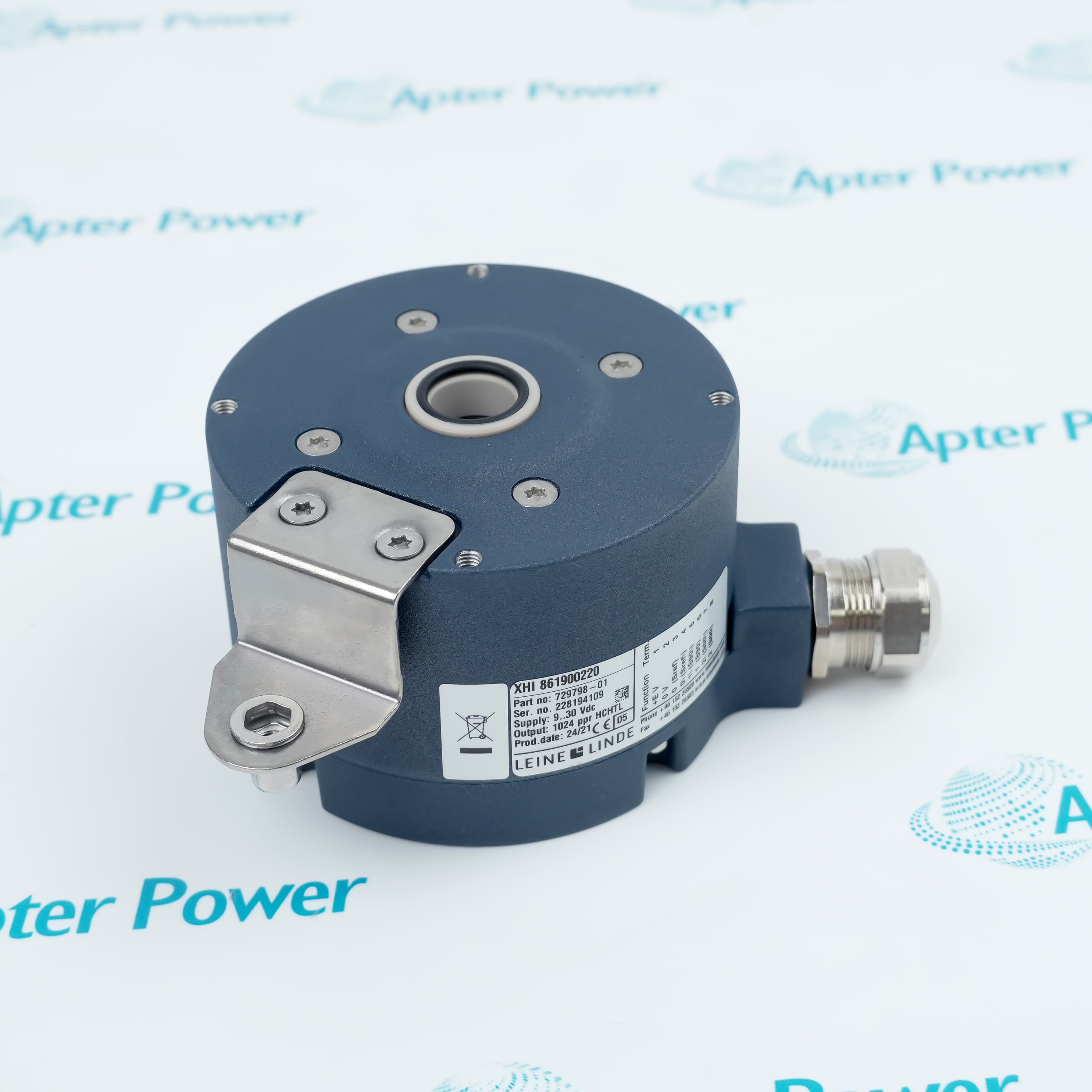

LEINE LINDE 729798-01 is a Series 800 model 861 incremental hollow-shaft encoder that provides 1024 pulses per revolution for rotary motion feedback.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 729798-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 729798-01

  • Manufacturer:
    LEINE LINDE
  • Part Number:
    729798-01
  • Product Family:
    LEINE LINDE
  • Product Type:
    Heavy-Duty Hollow-Shaft Incremental Encoder
  • Stock:
    1
  • Series:
    800
  • Model:
    861 Standard
  • Encoder Principle:
    Incremental
  • Resolution:
    1,024 ppr
  • Supply Voltage:
    9–30 VDC
  • Shaft Design:
    Ø16 mm blind hollow shaft
  • Flange:
    86 mm
  • Connection:
    Cable gland
  • Connection Direction:
    Radial
  • Signal Form:
    Incremental square wave
  • Circuit Protection:
    Short-circuit and polarity protected
  • Weight:
    2.866 lbs (1.3 kg)
  • Tariff Code:
    9031809090
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Shaft & Mounting Signal Configuration Protection Features Environmental Ratings

Features:

  • Model 861 hollow-shaft construction within the Leine Linde Series 800 platform.
  • 1,024 incremental pulses generated for each complete shaft revolution.
  • Radial cable-gland orientation for fixed wiring at the encoder housing.
The 729798-01 combines a blind hollow-shaft mechanical interface with an incremental code disc, allowing rotational feedback without a projecting solid shaft.

A 9–30 VDC input supplies 729798-01, while its standard Series 800 electronics provide square-wave feedback for the connected speed or position input.

The 86 mm flange and 16 mm shaft bore define the principal mechanical boundaries for integrating 729798-01 into an existing drive arrangement.

The LEINE LINDE 729798-01 Series 800 Incremental Encoder is available for purchase and support from Apter Power.
LEINE LINDE 729798-01 Series 800 Incremental Encoder Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Hollow-shaft mechanical interface

  • Shaft bore: The encoder accepts a 16 mm blind hollow shaft.
  • Housing model: Model 861 supplies the standard hollow-shaft mechanical format.
  • Flange size: The mounting arrangement is based on an 86 mm flange.
  • Drive coupling: Rotation is transferred through the hollow-shaft connection rather than a separate flexible coupling.

Incremental feedback arrangement

  • Pulse rate: The installed code disc provides 1,024 pulses per revolution.
  • Signal principle: Shaft movement is represented by a repeating incremental square-wave sequence.
  • Power input: The encoder electronics operate from a 9–30 VDC supply.
  • Receiving device: The connected counter or drive interprets pulse edges to derive movement and speed.

Electrical safeguarding

  • Short circuits: Standard Series 800 electronics protect the output circuit against shorting.
  • Reverse polarity: Incorrect supply polarity is covered by the standard protection arrangement.
  • Ground path: The encoder platform uses an earthing strap to direct current away from the cover.
  • Connection entry: A cable gland provides the fixed wiring path into the enclosure.

Series 800 enclosure design

  • Ingress resistance: The robust cover carries IP67 protection against dust and liquids.
  • Connection direction: The radial cable outlet keeps the lead clear of the encoder axis.
  • Mechanical exposure: Heavy-duty bearings and electronics are designed for recurring shock and vibration.
  • Electrical environment: The enclosed electronics are designed to withstand industrial electromagnetic disturbance.
Description
LEINE LINDE 729798-01 is a Series 800 model 861 incremental encoder for converting shaft rotation into electrical pulse feedback. The unit uses the standard model 861 configuration and a 1024-pulse-per-revolution code disc.

Mechanical coupling on LEINE LINDE 729798-01 is provided by a 16 mm blind hollow shaft within an 86 mm flange arrangement. The encoder mounts directly around the driven shaft, and its cable gland is oriented radially from the housing.

A 9–30 VDC supply powers LEINE LINDE 729798-01 and its incremental signal electronics. The Series 800 construction adds standard short-circuit and polarity protection, while its sealed enclosure is designed to resist dust, liquid ingress, shock, vibration, and electrical disturbance.
Alternative Names
729798-01 729798 01 72979801 LEINE LINDE 729798-01 Leine + Linde 729798-01 Series 800 729798-01 Model 861 729798-01 72979B-01
Technical notes
LEINE LINDE 729798-01 is a Series 800 model 861 encoder with a 16 mm blind hollow shaft, 1024 ppr, and 9–30 VDC supply.
