SST-DN4-104-2

/ 4.9
1001 reviews | Need a Specific Revision?

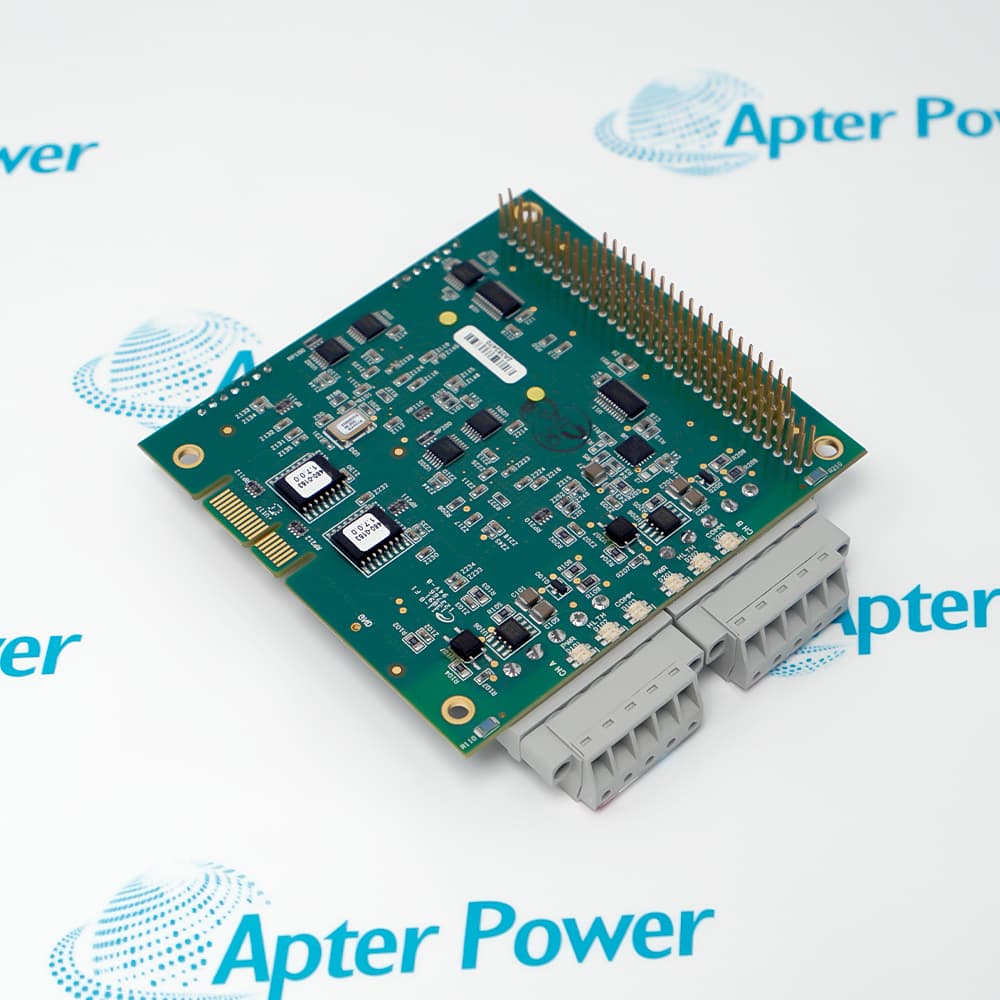

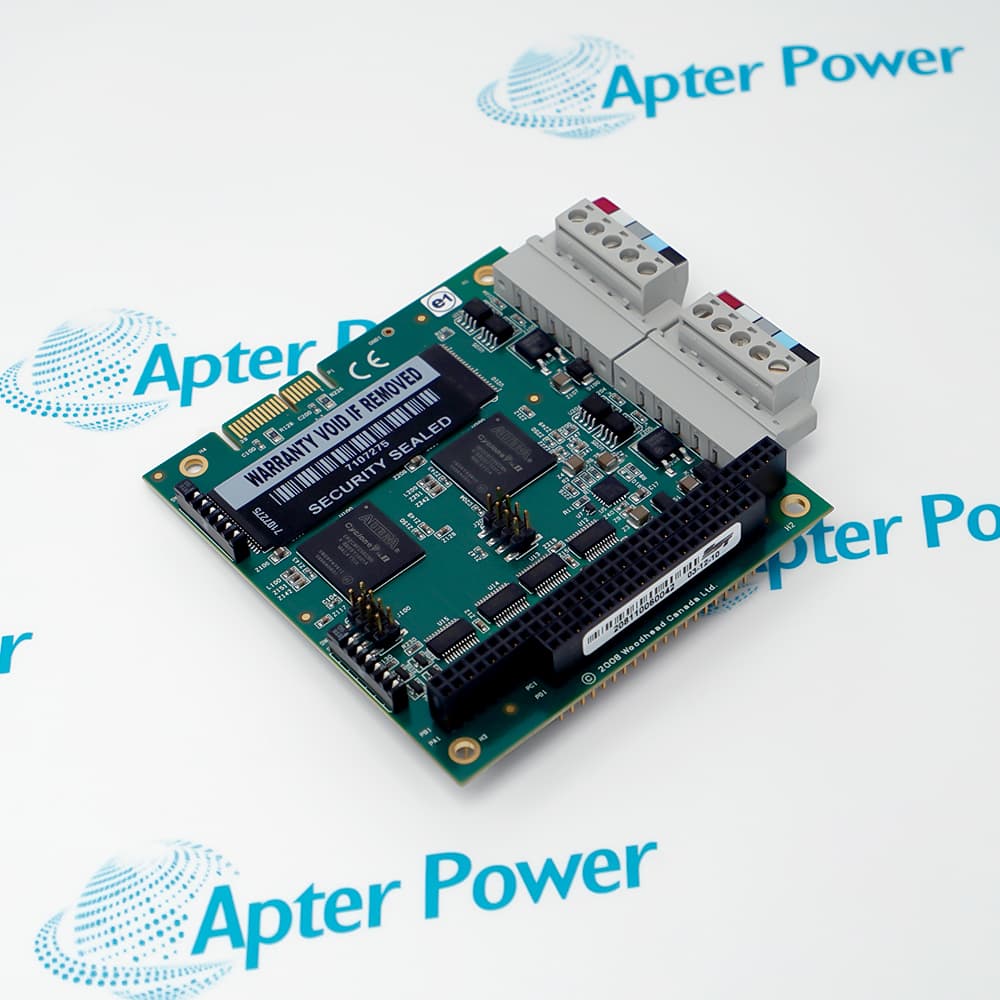

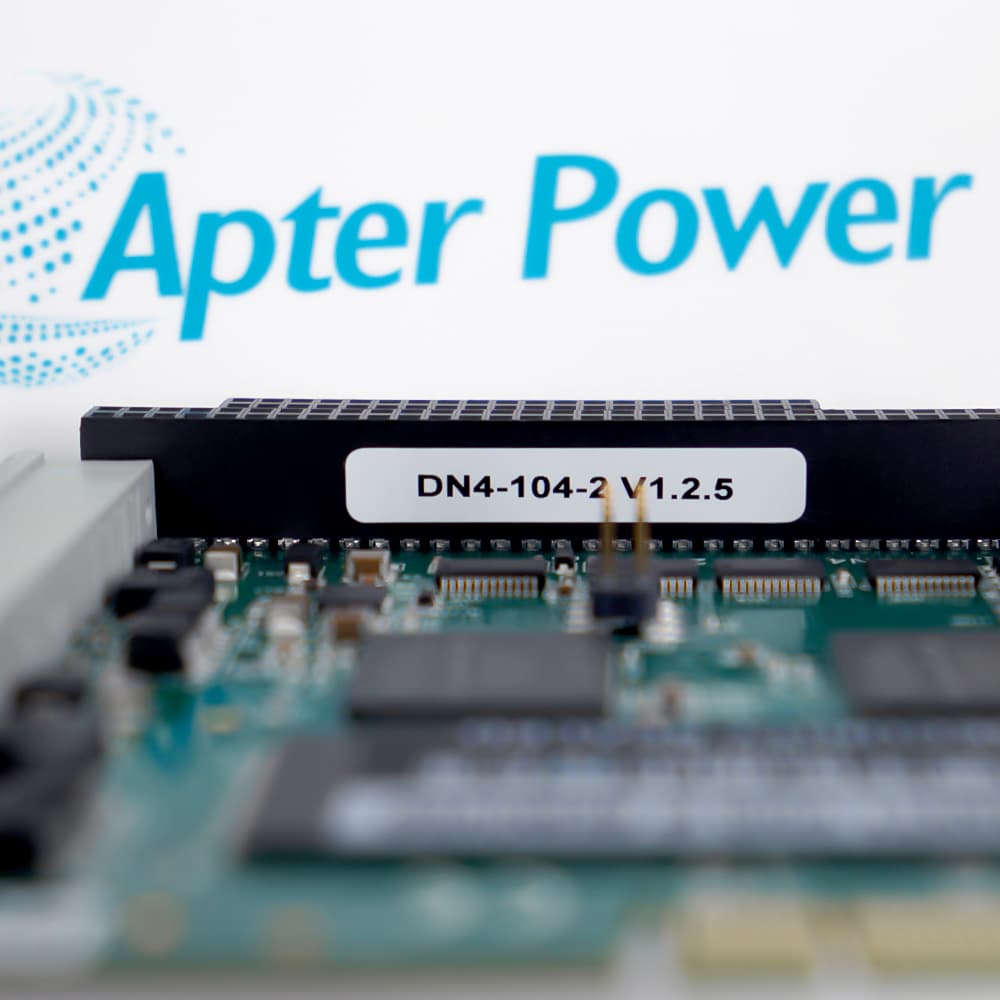

Molex Woodhead SST-DN4-104-2 is a two-channel PC/104 DeviceNet network interface card with isolated CAN channels, 256 KB shared RAM per channel and order number 112005-0048.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SST-DN4-104-2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SST-DN4-104-2

  • Manufacturer:
    Molex Woodhead
  • Part Number:
    SST-DN4-104-2
  • Product Family:
    SST DN4 DeviceNet Network Interface Cards
  • Product Type:
    DeviceNet PC/104 Interface Card
  • Stock:
    1
  • Order Number:
    112005-0048
  • Channels:
    2
  • Multi-server version:
    No
  • Host bus:
    16-bit PC/104
  • PC/104 compliance:
    Versions 2.3 and 2.4
  • Shared RAM:
    256 KB per channel
  • Memory window:
    8, 16, 32, 64, 128 or 256 KB
  • Memory address range:
    512 KB to 1 MB on an even window boundary
  • I/O allocation:
    8 bytes
  • I/O address range:
    200h-2F8h or 600h-6F8h on an even 8-bit boundary
  • Typical current draw:
    +5 V +/-5%, 600 mA for two channels
  • Operating temperature:
    0 to +55 C
  • Protocol:
    DeviceNet master/slave, CAN 2.0B
  • DeviceNet rates:
    125, 250 and 500 kbaud
  • CAN rate:
    Up to 1 Mbaud
  • External network power:
    11 to 24 VDC, 50 mA typical
  • Isolation:
    500 V
  • Connector:
    DeviceNet-compliant five-pin CAN
  • Cable:
    Shielded twisted pair
  • Weight:
    0.31 lbs (0.14 kg)
  • Estimated shipping dimensions:
    10.7 x 9.6 x 2.7 cm
  • Tariff Code:
    8517620000
  • Country of origin:
    Canada
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications DeviceNet Networking Host Interface Performance & Efficiency

Features:

  • Provides two DeviceNet channels on a 16-bit PC/104 interface card.
  • Allocates 256 KB of shared memory to each network channel.
  • Uses isolated CAN interfaces with standard five-pin DeviceNet connections.
The current ordering configuration is SST-DN4-104-2, order number 112005-0048, the two-channel PC/104 DeviceNet card without the multi-server variant.

It allows an embedded host to exchange deterministic I/O and diagnostic data with two DeviceNet networks through the DN4 firmware and software interface.

Before stacking the card, reserve conflict-free memory and I/O windows, select interrupts, verify five-volt capacity, connect network power and retain both channel configurations.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Molex Woodhead SST-DN4-104-2:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Embeds dual DeviceNet connectivity in PC/104 machine-control computers.
  • Supports real-time I/O acquisition for robotics, material handling and semiconductor equipment.
  • Provides a compact platform for DeviceNet device development and network diagnostics.
  • The card supports master Group 2 client and slave Group 2 server operation.
  • DeviceNet rates of 125, 250 and 500 kbaud are selected to match the installed network.
  • Each isolated CAN channel uses shielded twisted pair and a five-pin network connector.
  • The 16-bit PC/104 bus follows PC/104 versions 2.3 and 2.4.
  • Each channel exposes shared memory through a selectable window below the one-megabyte boundary.
  • Eight I/O bytes are placed on an allowed even boundary in the published address ranges.
  • Two channels draw 600 mA typical from the regulated five-volt host supply.
  • Separate shared-memory resources let the host exchange process data without serial polling of each device.
  • The compact 95.90 by 90.20 mm board adds networking without a full-size PCI slot.
Description
SST-DN4-104-2 is the two-channel PC/104 card in the Molex Woodhead SST DN4 DeviceNet interface family. Its 16-bit PC/104 host connection follows versions 2.3 and 2.4 and presents separate network resources for two DeviceNet channels.

Each channel provides 256 KB of shared RAM, isolated CAN signaling and a five-pin DeviceNet connector. The interface supports master Group 2 client and slave Group 2 server operation at standard DeviceNet network rates.

The compact board serves embedded control, real-time data acquisition and machine-network diagnostic applications where a stackable PC/104 form factor is required. Memory windows, I/O addresses, interrupt selection, network power and firmware must be coordinated with the host.
Alternative Names
SST-DN4-104-2 SSTDN41042 SST DN4 104 2 SST-DN4-104-2 DeviceNet PC/104 Interface Card SST-DN4-104-2 Two-Channel DeviceNet Interface Card SST-DN4-104-2 Stackable PC/104 Network Card Molex 112005-0048 HMS Anybus SST-DN4-104-2
Technical notes
SST-DN4-104-2 requires conflict-free PC/104 memory and I/O window settings; verify both channel maps before energizing the host stack.
