MBHC-FB-4R

/ 4.9
1001 reviews | Need a Specific Revision?

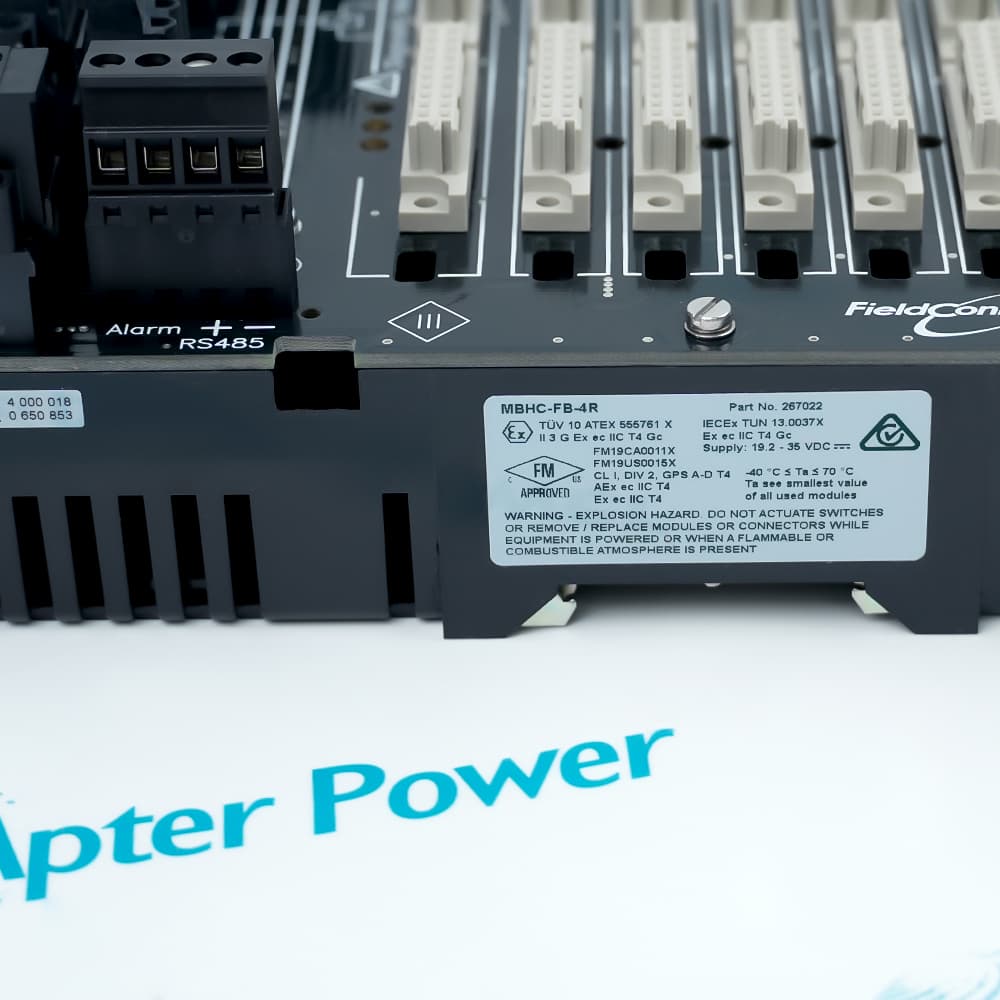

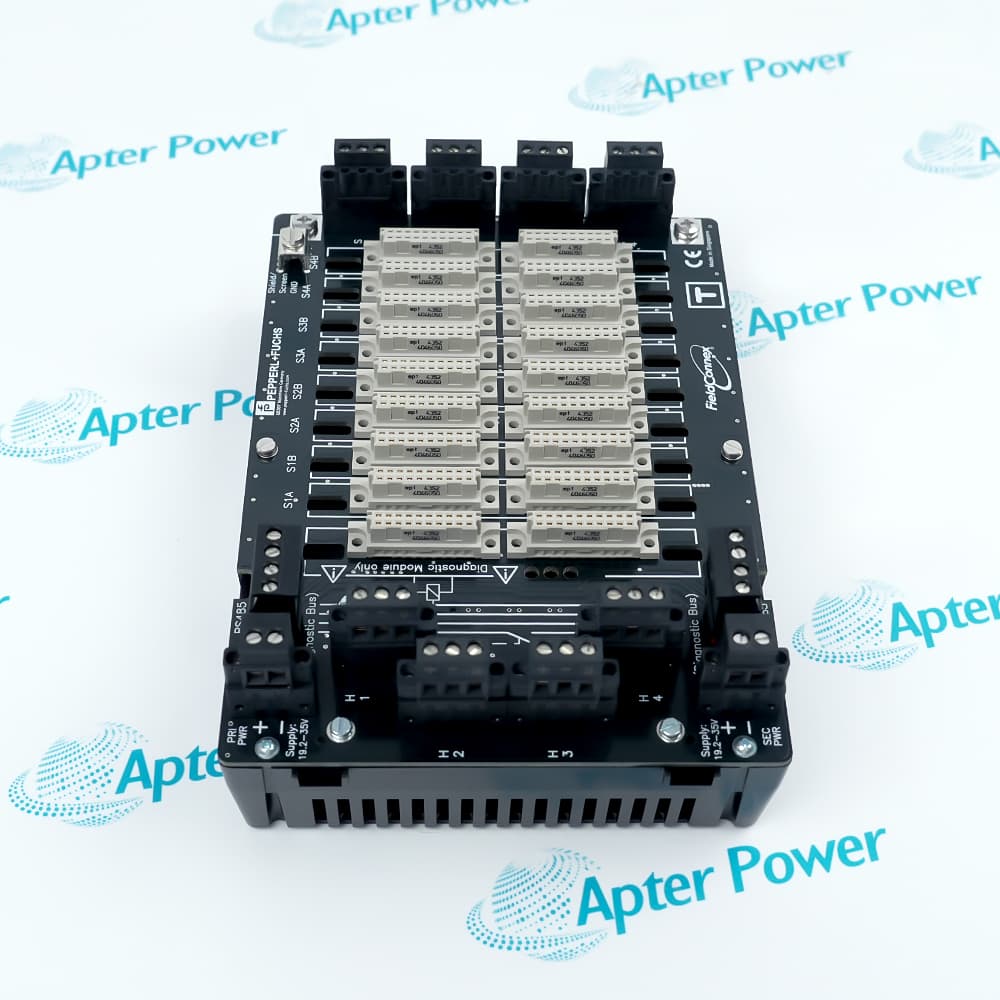

Pepperl+Fuchs MBHC-FB-4R is a FieldConnex compact motherboard for four redundant FOUNDATION Fieldbus H1 segments and common host wiring.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for MBHC-FB-4R
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MBHC-FB-4R

  • Manufacturer:
    Pepperl + Fuchs
  • Part Number:
    MBHC-FB-4R
  • Product Family:
    Fieldbus power hub
  • Product Type:
    FieldConnex Power Hub Motherboard
  • Stock:
    1
  • Interface description:
    Motherboard with common host interface
  • Design / mounting:
    Motherboard-based design
  • Segment capacity:
    4 redundant segments
  • Segment architecture:
    Individual power-supply modules per segment
  • Rated voltage:
    19.2 ... 35 V SELV/PELV
  • Rated current:
    12 A
  • Typical power dissipation:
    0.4 W per segment
  • Integrated termination:
    100 Ω terminating resistor
  • Fault signal:
    VFC alarm, 1 A / 50 V DC, normally closed
  • Segment-to-segment isolation:
    VFC alarm, 1 A / 50 V DC, normally closed
  • Conductor cross-section:
    2.5 mm²
  • Housing material:
    Polycarbonate
  • Degree of protection:
    IP20
  • Mounting method:
    DIN mounting rail
  • Ambient temperature:
    -40 ... 70 °C
  • Storage temperature:
    -40 ... 85 °C
  • Relative humidity:
    Less than 95 %, non-condensing
  • Shock resistance:
    10 g, 11 ms
  • Vibration resistance:
    1 g, 10 ... 150 Hz
  • Weight:
    0.65 kg
  • Estimated shipping dimensions:
    19.2x13.3x6.8cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Diagnostics Installation

Features:

  • Modular motherboard architecture accepts plug-in fieldbus power and diagnostic modules.
  • Common host wiring supports integration with general-purpose PLC and PCS systems.
  • Redundant segment connections are arranged for maintainable FieldConnex cabinet assemblies.
The ordered MBHC-FB-4R configuration is the redundant motherboard with removable screw-terminal connections. Power-supply and diagnostic modules are selected separately according to the required fieldbus arrangement.

The motherboard organizes host, trunk, bulk-supply, alarm, and diagnostic-bus connections for process automation cabinets using FieldConnex infrastructure.

Before replacement, confirm the host connection, terminal style, module arrangement, cabinet space, and hazardous-area installation concept. Mounting and wiring must follow the applicable Pepperl+Fuchs installation documentation.

Availability for the MBHC-FB-4R configuration is confirmed during quotation.
Pepperl+Fuchs MBHC-FB-4R Manuals, Datasheets, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • FOUNDATION Fieldbus H1 infrastructure for process automation cabinets.
  • High-power trunk installations serving field devices in hazardous areas.
  • Control-system cabinets requiring PLC or PCS host integration.
  • The compact motherboard design helps reduce cabinet space and thermal load.
  • Passive impedance supports reliable fieldbus segment operation.
  • Redundant module architecture supports continuous segment power availability.
  • The motherboard accepts the HD2-DM-B basic diagnostic module.
  • The HD2-DM-A module provides advanced physical-layer diagnostic functions.
  • The HD2-DM-A.RO option provides advanced diagnostics with relay output.
  • The motherboard is designed for DIN mounting rail installation.
  • Removable screw terminals simplify cabinet wiring and service access.
  • An optional screening and earthing kit is available for trunk shields.
Description
Pepperl+Fuchs MBHC-FB-4R is the motherboard and host-side wiring interface for a compact FieldConnex Power Hub serving four redundant FOUNDATION Fieldbus H1 segments. Its plug-in architecture centralizes segment power, host connections, alarm wiring, and diagnostic-bus connections in one cabinet assembly.

The board is intended for process automation cabinets that require redundant fieldbus power and flexible integration with PLC or PCS host systems. It supports high-power trunk arrangements, passive segment impedance, and optional physical-layer diagnostics for commissioning and online maintenance work.

For replacement or new installation, confirm the host interface, terminal arrangement, power-module selection, diagnostic option, and hazardous-area concept before ordering. DIN-rail mounting, cable preparation, grounding, and energized-circuit work must follow the applicable Pepperl+Fuchs instructions and site safety procedures.
Alternative Names
MBHC-FB-4R MBHC-FB-4R* MBHC-FB-4R.1 MBHC-FB-4R.HSC P+F Power Hub Motherboard P+F Compact Fieldbus Power Hub Motherboard P+F Power Hub Motherboard with Common Host Interface
Technical notes
For MBHC-FB-4R, each redundant segment must use two power modules of the same type, and only approved diagnostic modules may be installed in the dedicated diagnostic position. Before work in a hazardous area, follow the installation manual and IEC/EN 60079-14 isolation requirements.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can Pepperl+Fuchs MBHC-FB-4R connect to both PLC and PCS host systems?
Yes. The common host interface is intended for general-purpose PLC and PCS host connections.
Is Pepperl+Fuchs MBHC-FB-4R suitable for FOUNDATION Fieldbus H1 networks?
Yes. The motherboard is designed for FOUNDATION Fieldbus H1 power-hub installations.
Can Pepperl+Fuchs MBHC-FB-4R use advanced fieldbus diagnostics?
Yes. The motherboard accepts the HD2-DM-A advanced diagnostic module and the HD2-DM-A.RO relay-output version.
What is the difference between MBHC-FB-4R and MBHC-FB-4R.1?
MBHC-FB-4R is the screw-terminal version, while MBHC-FB-4R.1 is the official spring-terminal variant.
Which power modules are listed as compatible with Pepperl+Fuchs MBHC-FB-4R?
The official datasheet lists HCD2-FBPS-1.23.500 and HCD2-FBPS-1.500 as compatible power-supply modules.
What information should be included in an MBHC-FB-4R purchasing inquiry?
Provide the complete model, required terminal style, host-system type, power-module selection, diagnostic requirement, installation area, and requested quantity.
