WEB600 FGD-W600

/ 4.9
1001 reviews | Need a Specific Revision?

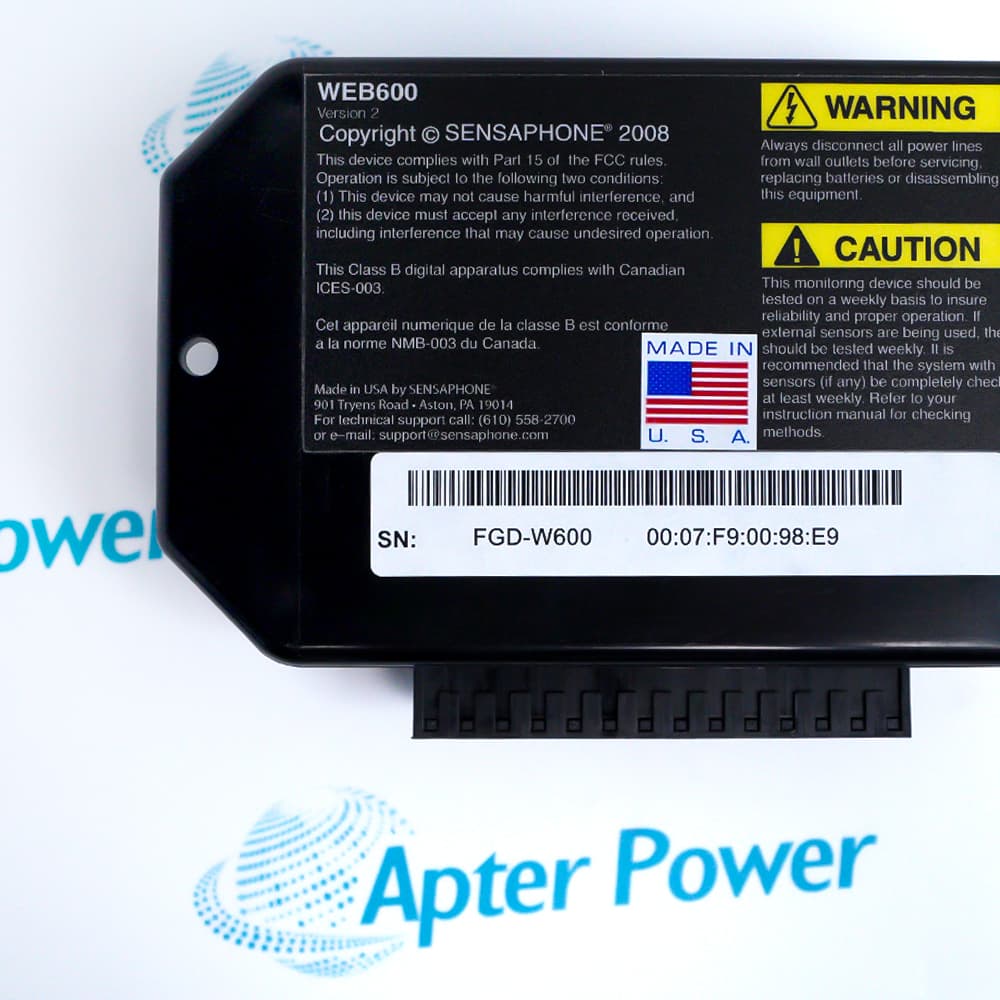

The SENSAPHONE WEB600 FGD-W600 is a cost-effective, web-based remote monitoring system designed to deliver instant email and SMS alerts for environmental anomalies, power failures.
Get a quick price for WEB600 FGD-W600
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for WEB600 FGD-W600

  • Manufacturer:
    SENSAPHONE
  • Part Number:
    WEB600 FGD-W600
  • Product Family:
    SENSAPHONE
  • Input Channels:
    6 Universal (Terminal Block)
  • Input Types:
    Dry Contact (NO/NC), 2.8K Thermistor, 10K Thermistor, 4-20mA
  • Temperature Range (2.8K):
    -109°F to 115°F (-85°C to 57°C)
  • Temperature Range (10K):
    -87°F to 168°F (-66°C to 76°C)
  • 4-20mA Range:
    -80,000.0 to 80,000.0 (Scalable)
  • A/D Resolution:
    12 bits ±2 LSB
  • Relay Output:
    1x SPST (NO), Rated 1A at 30VAC/VDC
  • Data Logging:
    100,000 samples (1 sec to 1 month interval)
  • Network:
    10/100BASE-T (RJ-45)
  • Protocols:
    HTTP, SMTP, SNMP (v1/v2c), Modbus TCP (Slave)
  • Power Supply:
    120VAC / 5VDC, 6W Wall Transformer
  • Battery Backup:
    Optional FGD-W610-B (2 hrs runtime)
  • Operating Temperature:
    32°F to 122°F (0°C to 50°C)
  • Humidity:
    0-90% RH (Non-condensing)
  • Weight:
    0.55 kg
  • Estimated shipping dimensions:
    23.5x22.3x7.3cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Environmental Ratings

Features:

  • Six-Channel Universal Input with 4-20mA Direct Support
  • Autonomous Alarm Escalation (8-Level Priority)
  • Dual-Protocol Industrial Communication (Modbus TCP & SNMP)
The SENSAPHONE WEB600 FGD-W600 eliminates the need for external signal conditioners by supporting dry contacts, thermistors, and 4-20mA current loops directly on the terminal strip. This allows integration with industrial sensors for pressure, CO2, humidity, or tank levels without additional analog converters.

Unlike basic thermostats, the SENSAPHONE WEB600 FGD-W600 features an 8-level escalation delay. If a level 1 contact (e.g., facility manager) does not acknowledge or is off-schedule, the system automatically escalates to level 2 (e.g., regional supervisor) until the alarm is cleared, ensuring critical faults are never ignored.

The SENSAPHONE WEB600 FGD-W600 acts as a slave device on industrial networks. Engineers can poll real-time zone values using Modbus TCP (Conformance Class 0 & 1) or integrate alarms directly into existing SCADA or NMS platforms via SNMP traps, providing seamless interoperability with ABB, Siemens, or Emerson systems.

The WEB600 FGD-W600 SENSAPHONE Web-Based Monitoring System may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
SENSAPHONE WEB600 FGD-W600 Web-Based Monitoring System Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SENSAPHONE WEB600 FGD-W600 Web-Based Monitoring System

General

  • Manufacturer SENSAPHONE
  • Model WEB600 FGD-W600
  • Condition New Original ready stock
  • Product Family FGD-0101,FGD-0107,FGD-0006
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Remote Telecom Shelters: Monitoring generator run states and high temperatures in cellular huts where IT staff are not permanently stationed.
  • Pharmaceutical Refrigerators: Ensuring +2°C to +8°C compliance for vaccines using the 10K thermistor probes, with SMS alerts for overnight deviations.
  • Data Center Hot Aisle Containment: Acting as a low-cost temperature tripwire for legacy server rooms that lack a full BMS (Building Management System).
  • Water/Wastewater Pump Stations: Detecting seal leaks (dry contacts) and pump overcurrent via 4-20mA transducers to prevent dry-run damage.
  • Six-Channel Data Logging: The SENSAPHONE WEB600 FGD-W600 logs 100,000 samples across all zones. Users can set "Normal" vs. "Alarm" sampling intervals.
  • Schedule-Based Suppression: Prevent false alarms during maintenance by deactivating specific zones via the weekly 30-minute interval schedule.
  • Latching Relay Output: The SPST relay can be configured in "Auto Mode" to trigger a local siren or strobe light the instant any enabled zone enters an alarm state.
  • SNMP Trap Generation: Integrates with Nagios, SolarWinds, or PRTG by sending specific traps for "High Temp" vs "Power Failure" without polling.
  • Temperature Range (Operating): Rated for 32°F to 122°F (0°C to 50°C) . For unheated warehouses, consider the optional battery backup which generates slight internal heat or relocate to a conditioned enclosure.
  • Humidity Tolerance: Functions reliably in 0-90% RH non-condensing. For cold storage rooms (high condensation), the SENSAPHONE WEB600 FGD-W600 must be mounted remotely with sensors extended via shielded cable (FGD-0010).
  • Power Conditioning: Integrated Metal Oxide Varistor (MOV) provides basic surge suppression, but for areas with lightning strikes, an external FGD-0067 surge suppressor is recommended.
  • Storage Conditions: When powered off, the unit withstands storage up to 140°F (60°C) , allowing for seasonal outdoor sheds or shipping containers without damage.
Description
The SENSAPHONE WEB600 FGD-W600 bridges the gap between legacy equipment and modern IoT alerting. Designed for IT closets, telecom shelters, and industrial remote sites, this device operates independently of a PC, using its embedded web server to provide real-time visibility into six universal input zones.

Unlike PLC-based systems that require complex programming, the SENSAPHONE WEB600 FGD-W600 offers a browser-based configuration interface that reduces commissioning time to minutes. It supports dry contacts, 2.8K/10K thermistors, and 4-20mA transducers, making it versatile for monitoring temperature, humidity, tank levels, and leak detection.

Connectivity is managed through standard 10/100 Ethernet, with alarm notifications pushed via SMTP email, SMS text messages, or SNMP traps to up to 32 recipients. For sites with unstable utility power, the optional FGD-W610-B battery backup ensures the SENSAPHONE WEB600 FGD-W600 continues monitoring during outages, logging up to 100,000 time-stamped events locally.
Alternative Names
WEB600 FGD-W600 WEB600 FGDW600
Technical notes
The SENSAPHONE WEB600 FGD-W600 operates without TLS/SSL encryption for SMTP, making it incompatible with standard Gmail or Office365 but ideal for on-premise SMTP relays. Users must configure a static IP via the Sensaphone Locator software, as DHCP fallback defaults to 192.168.1.250. Furthermore, the 4-20mA inputs are passive (require external 24VDC loop power) and offer 12-bit resolution (±2 LSB).
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does the SENSAPHONE WEB600 FGD-W600 support TLS encryption for Gmail or Office 365?
No. The SENSAPHONE WEB600 FGD-W600 does not support TLS/SSL. It requires a plain-text SMTP server (port 25 or 587 without encryption) or a local SMTP relay. For cloud notifications, it is recommended to use an on-premise SMTP gateway that handles the encryption to the external provider.
How do I wire a 3-wire 4-20mA active transmitter to the SENSAPHONE WEB600 FGD-W600?
The SENSAPHONE WEB600 FGD-W600 inputs are passive (250 Ohm to ground). You must connect an external 24VDC supply in series. Wire the +24V to the transmitter positive, transmitter negative to the Zone positive terminal, and common/ground to the Zone negative terminal. Do not apply voltage greater than 5V directly.
Is the SENSAPHONE WEB600 FGD-W600 certified for hazardous locations (ATEX/IECEx)?
No. The SENSAPHONE WEB600 FGD-W600 is rated for indoor general-purpose use (0-50°C) and is not certified for explosive atmospheres. It carries FCC Part 15 and RoHS compliance for commercial environments but lacks ATEX or API approvals.
What happens if the SENSAPHONE WEB600 FGD-W600 loses power before sending an alarm email? If the FG
If the FGD-W610-B battery backup is not installed, unsent messages are lost. With the optional battery, the SENSAPHONE WEB600 FGD-W600 runs for 2 hours, buffering alarms. If the battery drains before the network restores, the event log retains the data, but email notifications are not queued.
