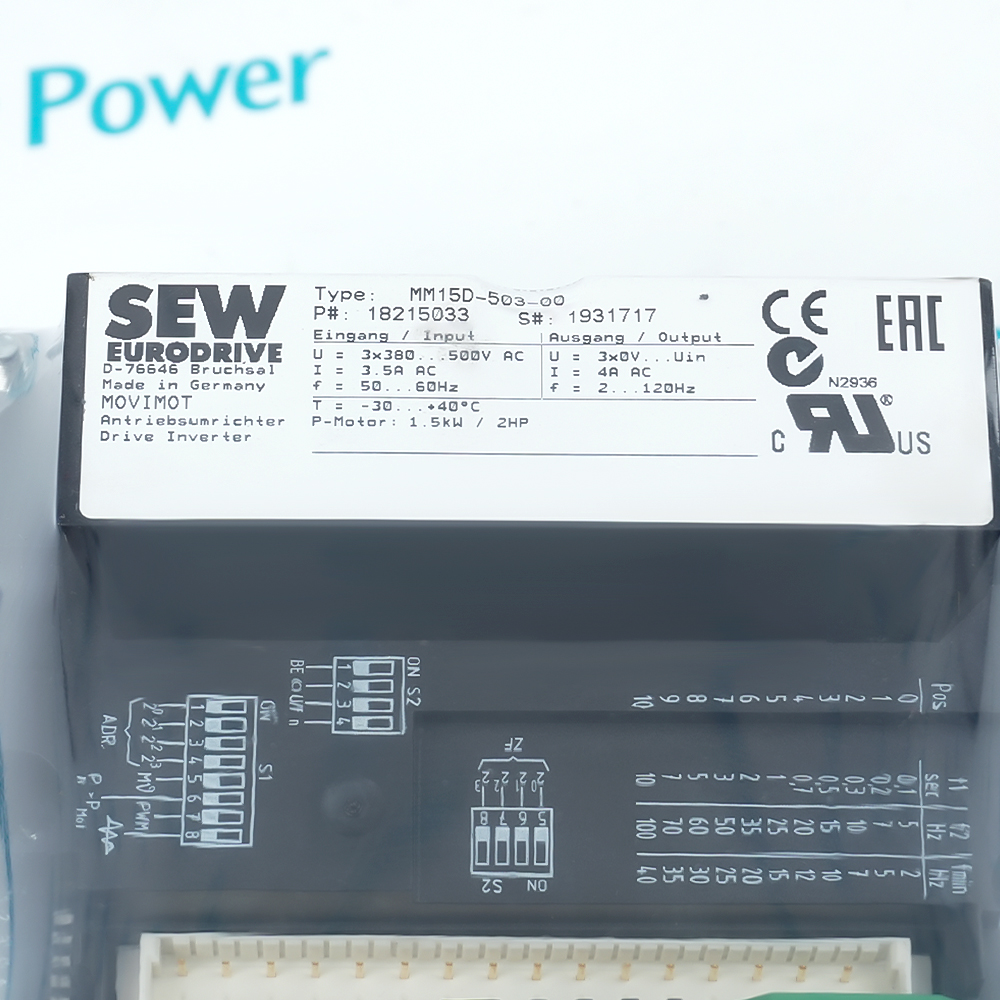

SEW-EURODRIVE MM15D-503-00 is a standard MOVIMOT D decentralized inverter for a 1.5 kW motor and a three-phase 380–500 V AC supply. It places variable-frequency motor control at or near the geared motor.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for MM15D-503-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for MM15D-503-00

  • Manufacturer:
    SEW
  • Part Number:
    MM15D-503-00
  • Product Family:
    MOVIMOT D
  • Product Type:
    Decentralized Frequency Inverter
  • Stock:
    1
  • Rated motor power:
    1.5 kW
  • Mains voltage:
    3 x 380 to 500 V AC
  • Mains frequency:
    50 to 60 Hz
  • Rated output current:
    4.0 A
  • Output frequency:
    2 to 120 Hz
  • Apparent output power:
    2.8 kVA
  • Ambient temperature:
    -30 to +40 deg C at rated operation
  • Inverter family:
    MOVIMOT D
  • Control concept:
    Motor-mounted decentralized drive electronics
  • Mass:
    1.3 kg
  • Type-code motor power:
    15 = 1.5 kW
  • Version:
    D
  • Connection voltage code:
    50 = 380 to 500 V AC
  • Connection type code:
    3 = three-phase
  • Execution code:
    00 = standard
  • Rated mains current at 460 V:
    3.0 A
  • Permitted mains range:
    380 V -10% to 500 V +10% AC
  • Remote-mount motor cable:
    Up to 15 m with SEW-EURODRIVE hybrid cable
  • Weight:
    2.866 lbs (1.3 kg)
  • Estimated shipping dimensions:
    18 x 10.5 x 13.6 cm
  • Tariff Code:
    8504409999
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Configuration Safety

Features:

  • The type key assigns 1.5 kW motor power, D-version electronics and a 380–500 V AC input class.
  • Variable-frequency output supports local motor control over a 2 to 120 Hz range.
  • The exact-match unit weighs 1.3 kg and measures 18 x 10.5 x 13.6 cm.
The supplied code ends in -00, identifying the standard inverter execution rather than an option-specific remote-mount assembly.

Its decentralized architecture converts mains power beside the machine axis and sends controlled three-phase output directly to the matched motor.

Confirm star/delta assignment, SEW motor combination, brake option, connector box and communication equipment before moving parameters to another unit.

Apter Power can support exact-model configuration review and quotation for SEW MM15D-503-00.
Verified resources for SEW MM15D-503-00: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Conveyor zones can place independent speed control at each geared motor while minimizing central cabinet cabling.
  • Packaging machines can use the inverter for controlled acceleration where mechanical shock must be reduced.
  • Materials-handling modules can be built as replaceable decentralized drive sections with locally integrated motor electronics.
  • Power electronics generate a variable-frequency output so a matched SEW motor can be started and speed-controlled close to the machine.
  • The 1.5 kW motor rating supports compact decentralized drive duties on conveyors and modular handling equipment.
  • A 50 to 60 Hz mains input allows operation on the standard industrial supply frequencies specified for this drive execution.
  • The unit combines a 1.5 kW MOVIMOT D inverter execution with a 380 to 500 V three-phase supply range.
  • Motor assignment, supply system, braking arrangement, fieldbus option and connector execution must be checked before exchange.
  • The three-phase 380 to 500 V AC input class must match the installed power network and the selected motor winding.
  • Disconnect the mains and allow the DC link to discharge fully before opening, wiring or replacing the decentralized inverter.
  • Motor, brake and protective-earth connections must follow the approved terminal assignment for the complete drive assembly.
  • Configured output limits must remain within the 4.0 A rating and the permitted 2 to 120 Hz operating range.
Description
MM15D-503-00 decodes as a MOVIMOT D inverter for 1.5 kW, the 380–500 V voltage class, three-phase connection and standard execution. By integrating power electronics close to the motor, it reduces the need for long shielded motor leads and central cabinet drive hardware.

The inverter rectifies the incoming three-phase supply and synthesizes a variable-frequency output for controlled acceleration, speed and deceleration. Its 2.8 kVA output capability, 4.0 A rated output and 2–120 Hz frequency range suit decentralized conveyor and materials-handling axes when paired with an approved SEW motor.

A replacement decision must include the complete drive nameplate, connected motor data, mounting arrangement and any fieldbus or brake components. The -00 standard execution does not by itself identify every connection-box, motor or option detail used in the finished MOVIMOT drive assembly.
Alternative Names
MM15D-503-00 MM15D 503 00 MM15D50300 SEW MM15D-503-00 SEW MM15D 503 00 MM15D-503-00 Decentralized Frequency Inverter SEW MM15D-503-00 MOVIMOT D MM15D-503-00 Catalog Number
Technical notes
MM15D-503-00 must be commissioned with the connected motor, DIP-switch assignment and braking arrangement verified; loading an unmatched motor setting can cause overheating or inadequate torque.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is the 15 in MM15D-503-00 interpreted?
The 15 code identifies the 1.5 kW motor-power class.
What does the 503 portion specify for MM15D-503-00?
It identifies the 380–500 V AC connection-voltage class and a three-phase mains connection.
Why must the motor assignment be checked with MM15D-503-00?
MOVIMOT settings and permissible combinations depend on the exact SEW motor, connection, frequency and torque requirement.
When can MM15D-503-00 be mounted away from the motor?
Use the SEW adapter and hybrid-cable arrangement; motor lead length is limited to 15 m.
Which commissioning evidence protects an MM15D-503-00 drive exchange?
Capture the complete inverter and motor nameplates, DIP-switch positions, parameter set, brake data and connector execution.
How can the surrounding MOVIMOT assembly be tied to MM15D-503-00?
Provide the full system type, serial and part numbers, motor designation, option suffixes, photographs and required quantity.
