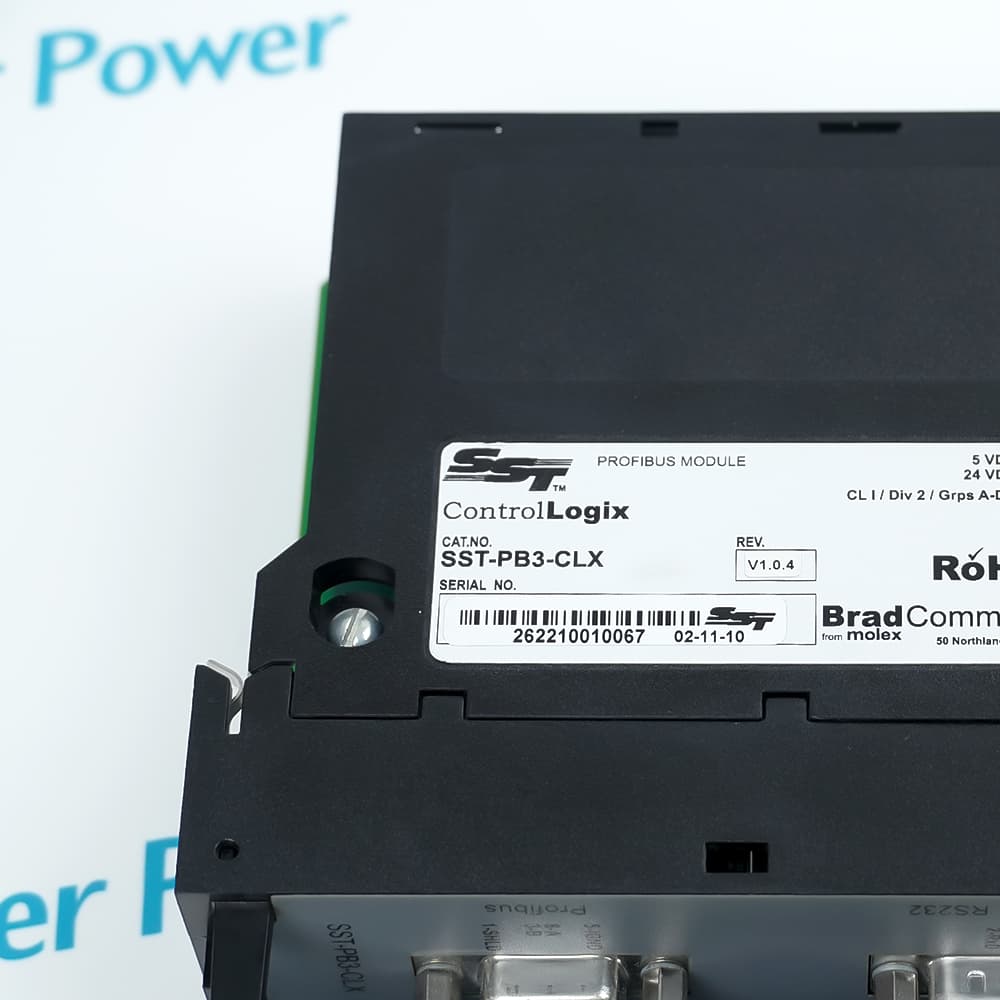

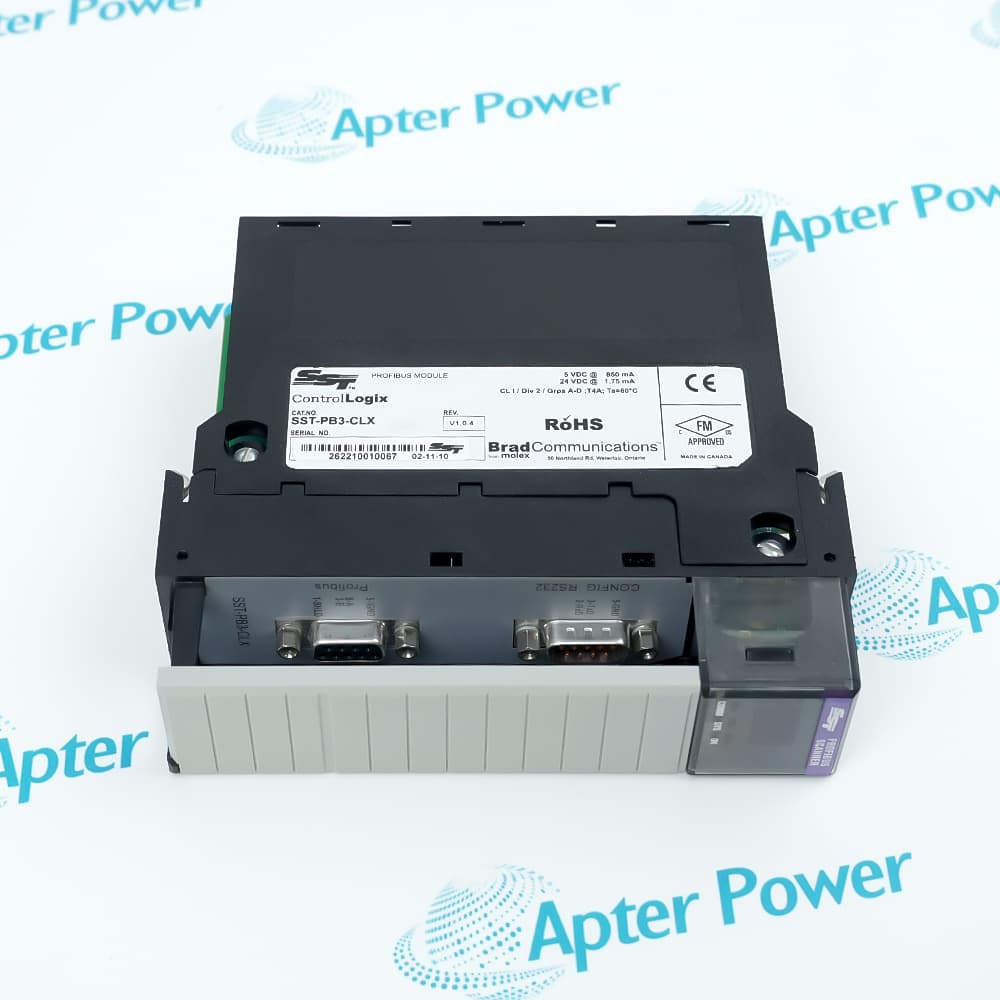

SST-PB3-CLX

/ 4.9
1001 reviews | Need a Specific Revision?
SST-PB3-CLX links Rockwell ControlLogix to PROFIBUS as a DP master or slave through the official 112016-0018 SST-PB3-CLX-RLL configuration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SST-PB3-CLX
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SST-PB3-CLX

  • Manufacturer:
    SST
  • Part Number:
    SST-PB3-CLX
  • Product Family:
    SST
  • Product Type:
    PROFIBUS DP Master/Slave Communication Module
  • Stock:
    1
  • Official order number:
    112016-0018
  • Official engineering number:
    SST-PB3-CLX-RLL
  • Control platform:
    Rockwell ControlLogix
  • PROFIBUS roles:
    Master DP-V0 Class 1/2; Master DP-V1 Class 1/2; Slave DP-V0
  • PROFIBUS interface:
    One DB9 female
  • Galvanic isolation:
    1000 V
  • Communication speed:
    9.6 kbps…12 Mbps
  • Maximum input data:
    1984 bytes
  • Maximum output data:
    1968 bytes
  • Diagnostics:
    LEDs and four-character display
  • Configuration storage:
    Auto-Boot in flash
  • Chassis support:
    Local and remote
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    3.5 x 14 x 14.5 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals ControlLogix PROFIBUS Diagnostics Product Applications

Features:

  • Exact RLL configuration: order 112016-0018 maps to SST-PB3-CLX-RLL
  • Dual PROFIBUS role: operate as documented DP master or DP-V0 slave
  • ControlLogix integration: support local or remote chassis, direct I/O mapping, diagnostics, and Auto-Boot
SST-PB3-CLX provides the ControlLogix-to-PROFIBUS boundary identified by Molex as the RLL ordering configuration.

Its engineering value comes from combining master and slave protocol roles with Logix-oriented configuration, diagnostics, and data mapping.

A dependable replacement retains engineering number, chassis location, firmware, configuration archive, node and baud plan, I/O map, cabling, and termination.
Apter Power can review SST-PB3-CLX order mapping, chassis role, PROFIBUS plan, firmware, and condition before sourcing.
SST / Molex SST-PB3-CLX PROFIBUS DP Master/Slave Communication Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Order mapping: 112016-0018 identifies the SST-PB3-CLX-RLL configuration.
  • Chassis placement: the module supports documented local and remote ControlLogix chassis use.
  • Logix workflow: the Add-On Profile and direct I/O mapping reduce custom ladder-code handling.
  • Master operation: support DP-V0 and DP-V1 master Class 1 and Class 2 functions.
  • Slave operation: expose the module as a documented DP-V0 slave when required.
  • Network rate: configure the PROFIBUS link within the 9.6 kbps…12 Mbps range.
  • Local visibility: use LEDs and the four-character display to separate system, communication, and network states.
  • Remote access: use RSLinx with the RLL configuration for documented remote configuration and diagnostics.
  • Auto-Boot: retain the approved flash configuration and verify it before returning the module to service.
  • ControlLogix PROFIBUS master: exchange cyclic data with validated PROFIBUS slave devices.
  • ControlLogix PROFIBUS slave: present a documented DP-V0 slave interface to an external master.
  • Legacy network integration: retain a proven PROFIBUS segment within a Rockwell automation architecture.
Description
SST-PB3-CLX is the SST communication module mapped by Molex to order number 112016-0018 and engineering number SST-PB3-CLX-RLL. It connects a Rockwell ControlLogix system to PROFIBUS and supports master DP-V0/DP-V1 and slave DP-V0 roles.

Within ControlLogix, SST-PB3-CLX supports local or remote chassis installation, direct I/O mapping, and Remote Link Library access through RSLinx. The module provides one isolated DB9 PROFIBUS interface, diagnostic LEDs, a four-character display, and flash-based Auto-Boot configuration storage.

Before integrating SST-PB3-CLX, confirm the RLL requirement, ControlLogix chassis arrangement, PROFIBUS role, baud rate, node plan, cyclic I/O size, termination, and configuration archive. The conformal-coated CC and CLXT order numbers remain different configurations and should not be merged with 112016-0018.
Alternative Names
112016-0018 SST-PB3-CLX-RLL SST PB3 CLX ControlLogix module PROFIBUS ControlLogix master slave module SST PB3 Remote Link Library module
Technical notes
SST-PB3-CLX maps to 112016-0018 / SST-PB3-CLX-RLL, so the RLL feature is part of the exact ordering boundary. A project built for the CC or CLXT configurations can imply different hardware construction; verify the engineering number, chassis location, PROFIBUS role, configuration file, and firmware before restoring an archive.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must 112016-0018 be verified when ordering SST-PB3-CLX?
Molex maps that order number to engineering number SST-PB3-CLX-RLL. The RLL designation separates it from CC and CLXT configurations that have different construction or attributes.
How should the PROFIBUS role be defined for SST-PB3-CLX?
Decide whether the ControlLogix application needs DP master or DP-V0 slave operation, then align baud rate, node addresses, GSD data, cyclic I/O size, diagnostics, cabling, and termination to that role.
What should be checked when SST-PB3-CLX shows a network fault after replacement?
Compare engineering number, firmware, chassis position, configuration file, baud rate, node map, DB9 wiring, shield, segment termination, and remote-device status before changing ControlLogix data mappings.
How can SST-PB3-CLX be used in a remote ControlLogix chassis?
Molex documents local and remote chassis support. Confirm the Rockwell network path, RSLinx access, slot assignment, Add-On Profile, I/O connection sizes, and latency requirements in the validated architecture.
What must be preserved before SST-PB3-CLX Auto-Boot is used?
Archive and identify the approved configuration, verify it matches the exact module and PROFIBUS segment, then confirm node addresses, cyclic data sizes, and device list before allowing flash contents to control startup.
Which details should accompany an SST-PB3-CLX RFQ?
Provide order number 112016-0018, engineering number SST-PB3-CLX-RLL, firmware, chassis location, PROFIBUS role and rate, configuration availability, condition, quantity, destination, and outage date.
