ATV320U75N4B

/ 4.9
1001 reviews | Need a Specific Revision?

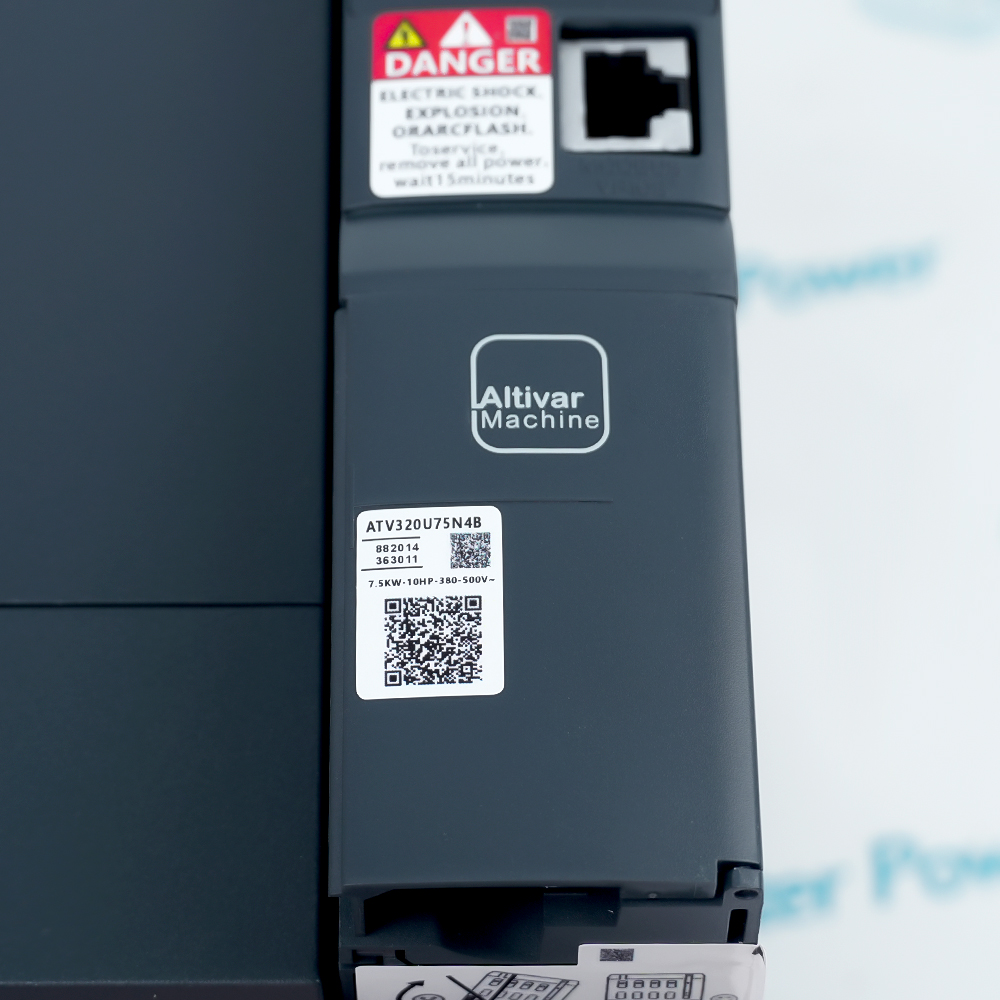

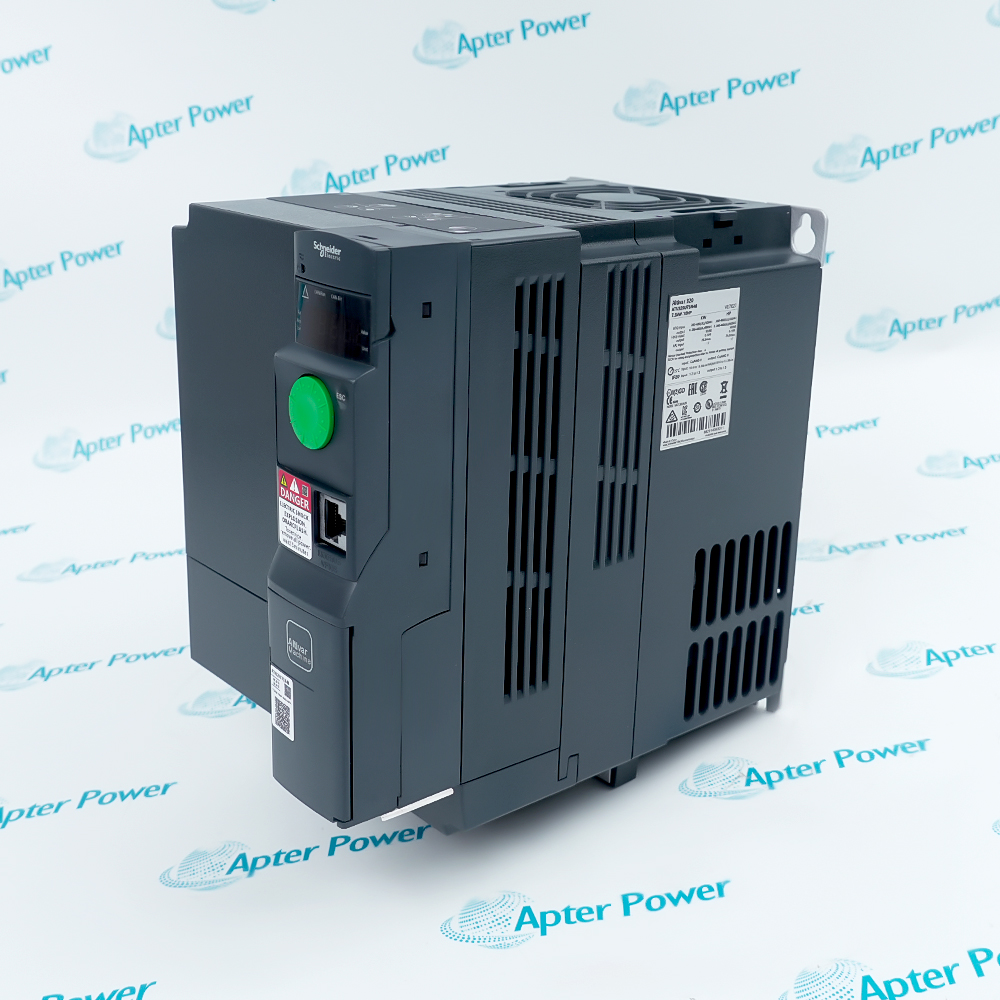

Schneider Electric ATV320U75N4B is a 7.5 kW, 380–500 V three-phase ATV320 drive with motor control, integrated safety, Modbus, and CANopen.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for ATV320U75N4B
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ATV320U75N4B

  • Manufacturer:
    Schneider Electric
  • Part Number:
    ATV320U75N4B
  • Product Family:
    Altivar Machine ATV320
  • Product Type:
    Altivar Machine Variable Speed Drive
  • Stock:
    1
  • Rated motor power:
    7.5 kW, heavy duty
  • Supply voltage:
    380...500 V AC, three-phase
  • Supply tolerance:
    -15% to +10%
  • Nominal output current:
    17.0 A
  • Mains frequency:
    50/60 Hz ±5%
  • Output frequency:
    0...599 Hz
  • Switching-frequency range:
    2...16 kHz adjustable
  • Nominal switching frequency:
    4 kHz
  • Integrated EMC filter:
    Class C2
  • Degree of protection:
    IP20
  • Digital inputs:
    7
  • Analog inputs:
    3
  • Analog outputs:
    1
  • Native communication:
    Modbus serial and CANopen
  • Motor-control capability:
    Sensorless asynchronous and synchronous motor control
  • Integrated safety functions:
    STO, SS1 and SLS
  • Braking function:
    Integrated brake chopper
  • Ambient operation:
    -10...50 °C without derating
  • Storage temperature:
    -25...70 °C
  • Mounting position:
    Vertical, ±10°
  • Weight:
    9.7 lbs (4.4 kg)
  • Estimated shipping dimensions:
    32.8x27.2x20.5cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Configuration Performance

Features:

  • The book-format drive is rated 7.5 kW for three-phase 380–500 V motor supplies.
  • Built-in Modbus serial and CANopen ports support machine-level control integration.
  • Integrated safety functions include Safe Torque Off and supported application-specific stopping functions.
Schneider Electric ATV320U75N4B is the IP20 book-style Altivar Machine ATV320 configuration with 17 A nominal output current and an internal EMC filter.

It regulates asynchronous or synchronous motors in complex industrial machines where compact cabinet mounting, flexible I/O and coordinated motion are required.

Check the supply system, motor nameplate, braking duty, enclosure ventilation and selected communication option before parameter transfer or commissioning.

Current availability is quoted for the complete ATV320U75N4B reference.
Verified resources for Schneider Electric ATV320U75N4B:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controls conveyors, packaging equipment and material-handling axes that need repeatable speed and torque response.
  • Supports compact machine cabinets where a narrow book-format variable-speed drive is preferred.
  • Operates motor-driven processes that use local I/O, serial commands or an optional industrial network interface.
  • Native Modbus serial communication is available through the drive control architecture.
  • CANopen is integrated for coordinated exchange with compatible machine controllers and devices.
  • Optional network modules must be selected against the project protocol and the drive hardware revision.
  • Motor identification and control parameters are set from the connected motor data and required operating profile.
  • Assignable digital and analog I/O can be mapped to machine commands, references and feedback signals.
  • Acceleration, deceleration and protection thresholds should be commissioned with the actual mechanical load connected.
  • The documented output-frequency range extends to 599 Hz when the selected motor and application permit it.
  • Adjustable switching frequency allows acoustic, thermal and motor-cable considerations to be balanced.
  • Integrated braking control supports dynamic deceleration when the braking resistor and duty are correctly engineered.
Description
Rated for heavy-duty machine operation, Schneider Electric ATV320U75N4B supplies 17.0 A to a 7.5 kW motor from a 380-500 V three-phase source. The book-format, wall-mounted enclosure includes a Class C2 EMC filter and an integrated braking chopper within an IP20 drive body.

The control platform operates asynchronous and synchronous motors without an encoder and supports machine functions such as ramps, PID regulation and controlled braking. Seven digital inputs, three analog inputs and one analog output provide flexible signal handling for conveyors, packaging equipment and other complex machinery.

Native Modbus serial and CANopen links can be extended through Schneider communication modules when the machine architecture requires another network. Cabinet ventilation, motor data, protective devices and the STO, SS1 or SLS safety implementation must be checked against the actual installation before commissioning or substitution.
Alternative Names
ATV320U75N4B ATV320 U75 N4B ATV320-U75N4B Schneider Electric ATV320U75N4B SE ATV320U75N4B Altivar Machine ATV320U75N4B ATV320U75N4B Variable Speed Drive ATV320U75N4B 7.5 kW Drive
Technical notes
ATV320U75N4B requires drive parameterization and safety validation for the connected motor and machine. Confirm enclosure cooling, short-circuit protection, grounding and the installed communication option before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which motor-control modes are available in Schneider Electric ATV320U75N4B?
The drive supports sensorless control of asynchronous motors and permanent-magnet synchronous motors. The selected law and motor data must be commissioned for the connected machine.
How should the safety functions of Schneider Electric ATV320U75N4B be incorporated into a machine design?
STO, SS1 and SLS are drive safety functions, but the complete safety circuit still requires a documented risk assessment, correct external wiring and validation at machine level.
What determines the network option for Schneider Electric ATV320U75N4B?
Modbus serial and CANopen are built in. EtherNet/IP, Profinet, EtherCAT, Profibus DP V1, DeviceNet or Ethernet Powerlink requires the matching Schneider option and compatible machine controller.
What must be compared before replacing another drive with Schneider Electric ATV320U75N4B?
Confirm the supply class, motor nameplate, braking arrangement, I/O logic, safety circuit, communication card, parameter set and cabinet clearances; a matching kW rating alone does not establish interchangeability.
What is the current commercial status of Schneider Electric ATV320U75N4B?
Schneider lists the product as commercialised, although stock and delivery vary by region. Apter Power can check the requested quantity and destination when preparing a quotation.
Which manuals are needed to commission Schneider Electric ATV320U75N4B correctly?
Use the exact product data sheet together with the ATV320 installation, programming and safety-function documentation applicable to the installed firmware and option modules.
