BCH2MM0813CA6C

/ 4.9
1001 reviews | Need a Specific Revision?

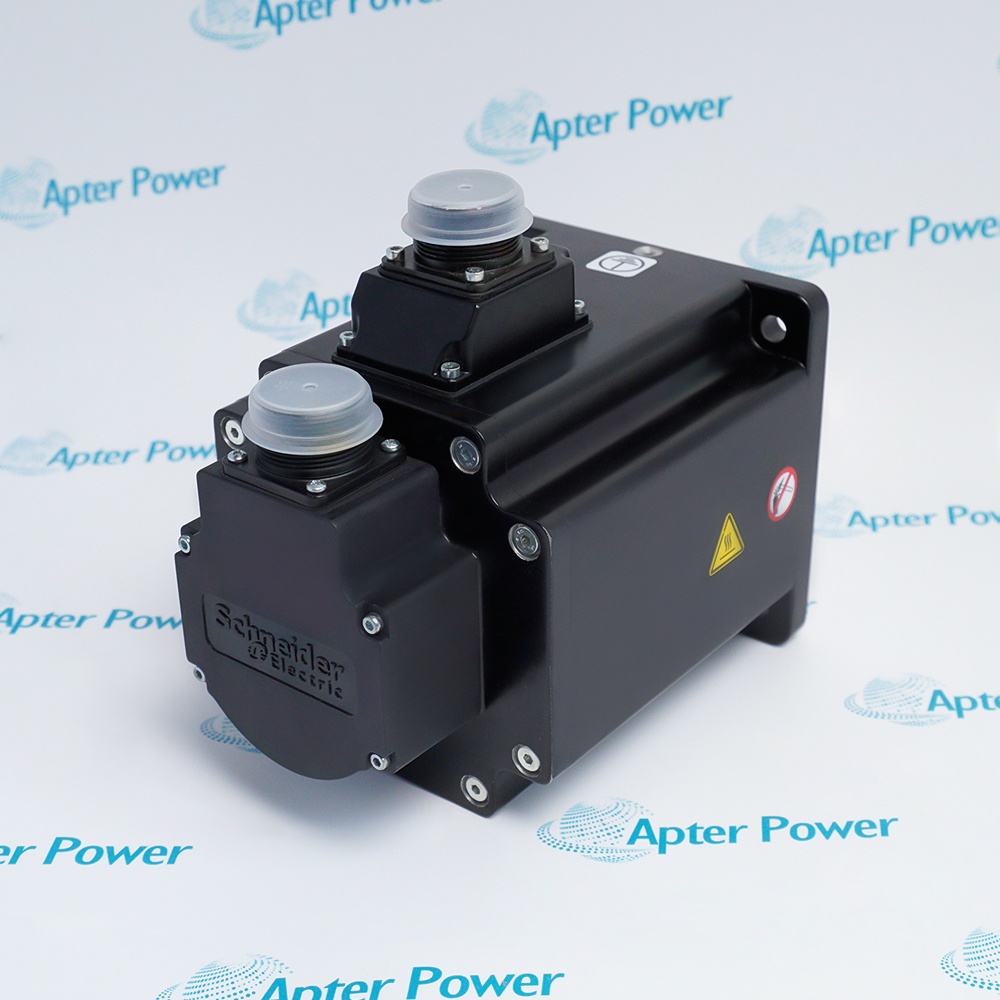

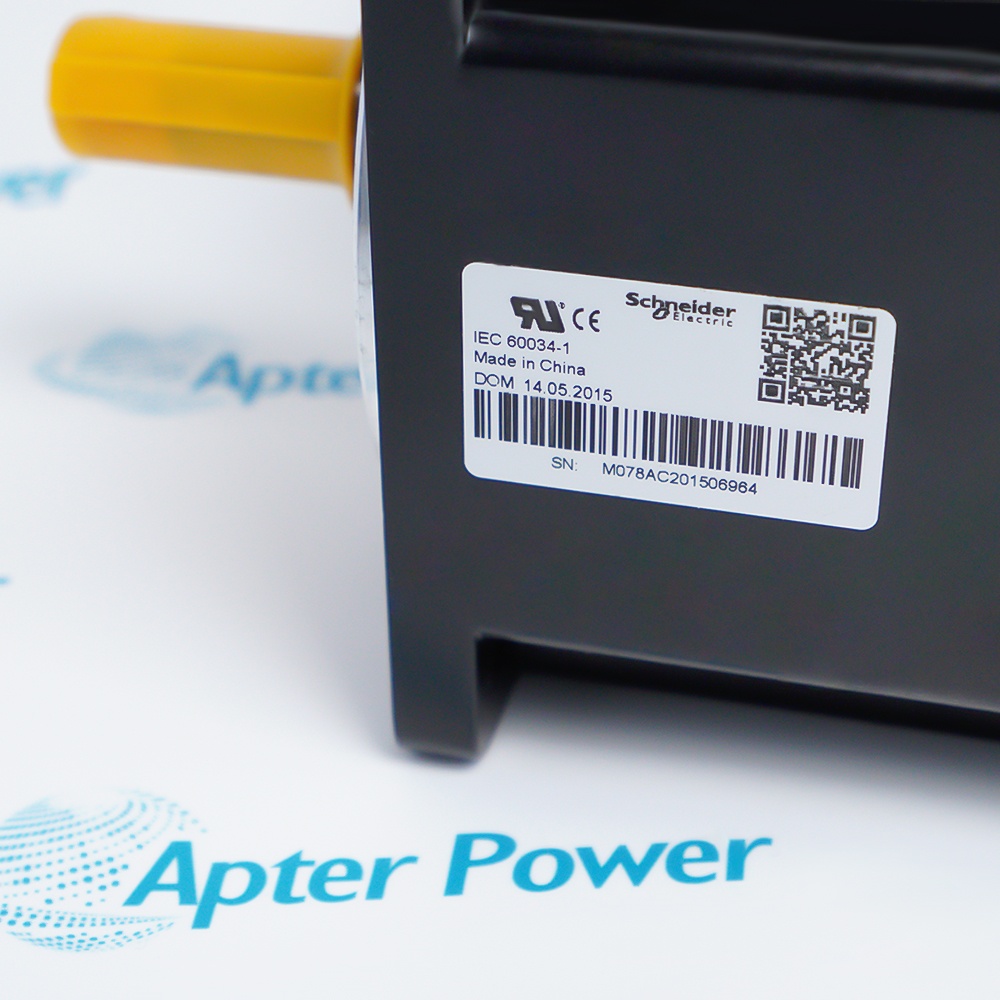

Schneider Electric BCH2MM0813CA6C is an 850 W Lexium 28 servo motor with a 130 mm flange and 20-bit absolute encoder.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for BCH2MM0813CA6C
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BCH2MM0813CA6C

  • Manufacturer:
    Schneider Electric
  • Part Number:
    BCH2MM0813CA6C
  • Product Family:
    Lexium Series
  • Product Type:
    Lexium 28 Servo Motor
  • Stock:
    1
  • Continuous power:
    850 W
  • Nominal torque:
    5.39 N·m
  • Nominal speed:
    1500 rpm
  • Maximum speed:
    3000 rpm
  • Rated supply voltage:
    220 V
  • Feedback:
    20-bit single-turn absolute encoder
  • Holding brake:
    Without
  • Shaft:
    19 mm keyed shaft, 48 mm length, 6 mm key
  • Motor flange:
    130 mm
  • Degree of protection:
    IP65 IM B5/IM V1; IP50 IM V3
  • Applicable standard:
    EN/IEC 60034-1
  • Weight:
    19.97 kg
  • Estimated shipping dimensions:
    18.1 x 23 x 36 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Motion Ratings Feedback & Shaft Installation Envelope Product Applications

Features:

  • 850 W motion output: The motor delivers 5.39 N·m nominal torque at 1500 rpm.
  • Absolute feedback: A 20-bit single-turn encoder provides shaft-position information.
  • 130 mm flange: The BCH2 mechanical format suits the documented Lexium 28 axis pairing.
The motor is rated for a 220 V, single- or three-phase Lexium drive arrangement, depending on the selected drive.

A keyed 19 mm shaft and straight MIL connector define the mechanical and electrical interface.

The configuration has no holding brake and is rated for ambient air from -20 to 40 °C.

Apter Power supports Schneider Electric BCH2MM0813CA6C Lexium 28 Servo Motor sourcing with quotation and technical documentation.
Schneider Electric BCH2MM0813CA6C Lexium 28 Servo Motor Manuals,Datasheets,Link Important Notice: Match the complete motor code, drive selection and installation conditions to Schneider documentation.
  • Continuous output: The motor delivers 850 W and 5.39 N·m at its nominal point.
  • Speed range: Nominal speed is 1500 rpm and maximum mechanical speed is 3000 rpm.
  • Peak torque: Schneider lists 13.8 N·m with the documented drive combinations.
  • Supply context: The product data covers 220 V single- and three-phase drive pairings.
  • Encoder: Position feedback uses a 20-bit single-turn absolute encoder.
  • Shaft diameter: The keyed shaft is 19 mm in diameter.
  • Shaft length: The shaft extends 48 mm from the motor face.
  • Key format: Schneider specifies a 6 mm key for the shaft interface.
  • Flange format: The motor uses a 130 mm Asian-standard flange.
  • Motor length: The no-brake configuration is 187 mm long.
  • Protection by orientation: IM B5 and IM V1 are IP65, while IM V3 is IP50.
  • Ambient boundary: The published operating-air range is -20 to 40 °C.
  • Lexium 28 servo axes: The motor pairs with documented 0.85 kW LXM26D and LXM28 drives.
  • Position-controlled machinery: Absolute single-turn feedback supports repeatable servo positioning.
  • Keyed-shaft mechanisms: The 19 mm keyed interface suits couplings designed for the published geometry.
Description
For Lexium 28 positioning axes, BCH2MM0813CA6C supplies 850 W of continuous motor power, 5.39 N·m nominal torque at 1500 rpm and a maximum speed of 3000 rpm. The 220 V motor is used with the documented 0.85 kW Lexium drive combinations.

Mechanical and feedback configuration define how BCH2MM0813CA6C fits the machine: a 130 mm flange, 19 mm keyed shaft, straight connector and 20-bit single-turn absolute encoder. This version has no holding brake.

Installation orientation changes the enclosure boundary for BCH2MM0813CA6C. Schneider lists IP65 for IM B5 and IM V1 mounting, IP50 for IM V3, and an operating-air range from -20 to 40 °C.
Alternative Names
BCH2MM0813CA6C IEC 60034-1 BCH2MM0813CA6C IEC60034-1 BCH2 MM0813 CA6C BCH2-MM0813-CA6C BCH2MMO813CA6C Schneider BCH2MM0813CA6C BCH2MM0813CA6C Servo Motor Lexium 28 BCH2MM0813CA6C
Technical notes
Schneider lists BCH2MM0813CA6C without a holding brake and with a 20-bit single-turn absolute encoder. A replacement order should retain those two configuration details because the same BCH2 frame family includes mechanically similar motors with different feedback, shaft and brake arrangements.
