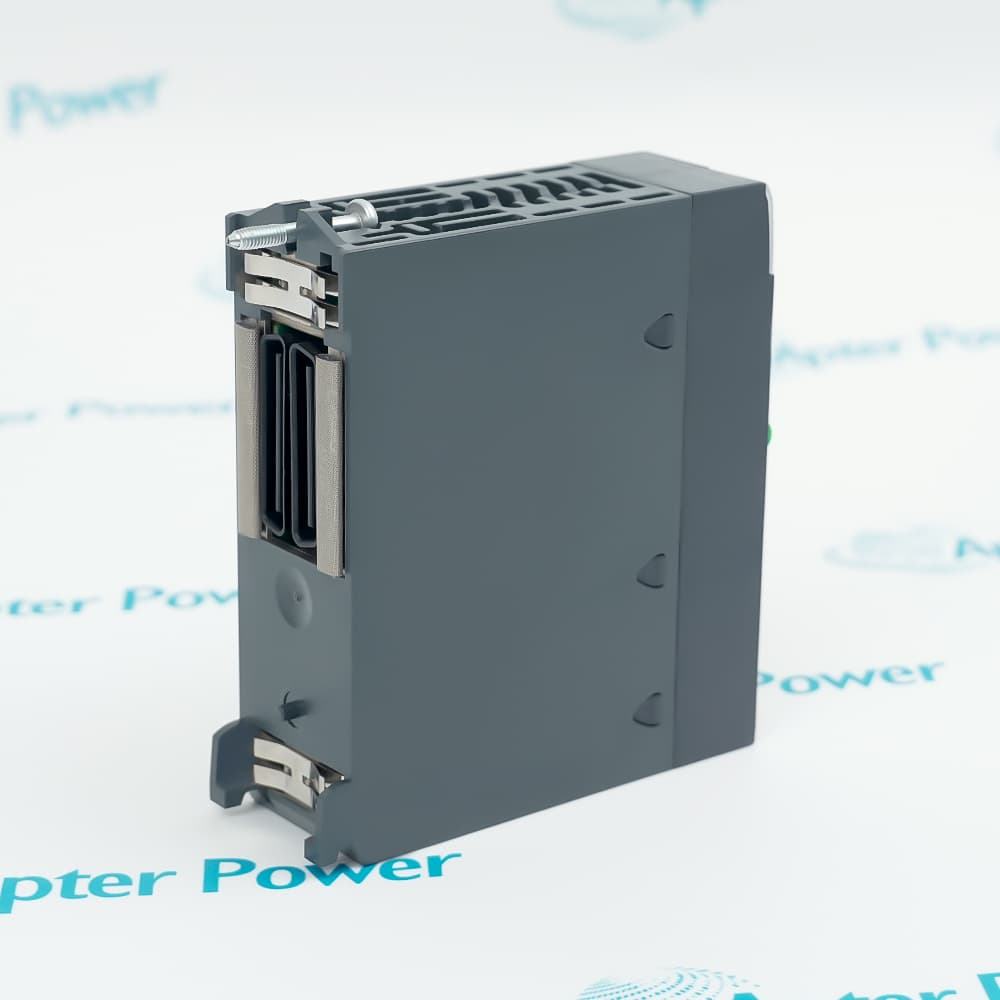

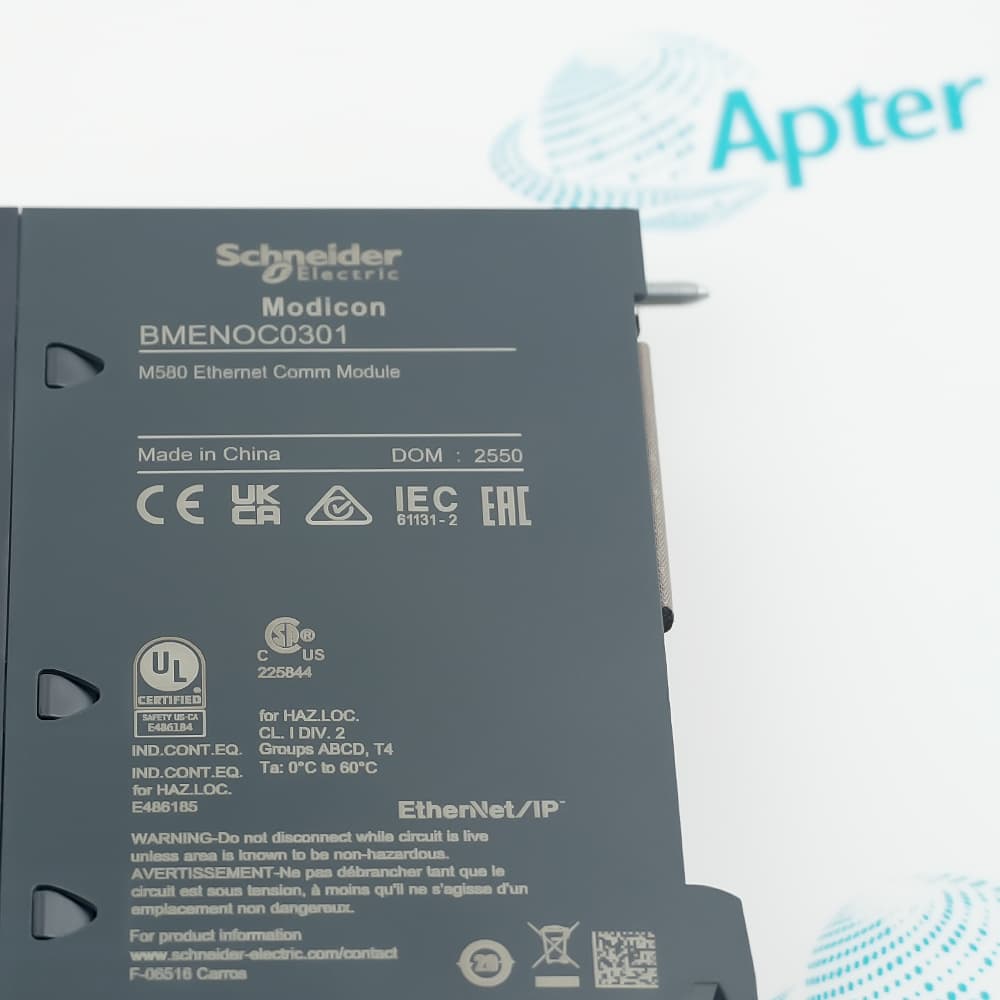

BMENOC0301

/ 4.9
1001 reviews | Need a Specific Revision?
The Schneider BMENOC0301 Ethernet Communication Module is an essential part of the Modicon M580 range, designed to integrate with Ethernet networks, offering three ports for enhanced connectivity and communication in industrial automation systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for BMENOC0301
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BMENOC0301

  • Manufacturer:
    Schneider Electric
  • Part Number:
    BMENOC0301
  • Product Family:
    Modicon M580 Series
  • Product Type:
    Ethernet Communication Module
  • Stock:
    2
  • Range of product:
    Modicon M580
  • Product compatibility:
    BMEXBP... - Ethernet + X-bus rack
  • Integrated connection type:
    3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair
  • Web server:
    Basic
  • Transmission support medium:
    Ethernet backplane
  • Port Ethernet:
    0BASE-T/100BASE-TX
  • Supply:
    Internal power supply via rack
  • Current consumption:
    555 mA at 3.3 V DC
  • Module format:
    Standard
  • Ambient Air Temperature for Operation:
    32…140 °F (0…60 °C)
  • Relative humidity:
    10…95 %
  • IP degree of protection:
    IP20
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    3.1x9.8x10.3cm
  • Tariff Code:
    8517629900
  • Country of origin:
    France
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Protection Features Upgrade Guidelines

Features:

  • Provides High-Speed Ethernet Communication for Efficient Industrial Networking
  • Equipped with 3 Ethernet Ports, Supporting 10/100 Mbit/s Transmission for Fast and Reliable Data Exchange
  • Features Integrated Web Server and Advanced Network Services for Seamless Integration and Enhanced Connectivity in Automation Systems
The Schneider BMENOC0301 Ethernet Communication Module is designed to facilitate reliable and high-speed communication within Modicon M580 control systems. Equipped with three Ethernet ports using RJ45 connectors, it supports 10BASE-T and 100BASE-TX transmission speeds, making it ideal for industrial automation applications requiring robust networking.

This module offers advanced communication features, including Modbus TCP I/O scanner, EtherNet/IP I/O scanner, and embedded messaging. With support for FDR server, bandwidth management, and RSTP for redundancy, the BMENOC0301 ensures uninterrupted operation and fault tolerance in complex networked environments.

Operating with an internal power supply via the rack, the BMENOC0301 draws 555 mA at 3.3 V DC and offers IP20 protection. Designed to work in environments with ambient temperatures from 0°C to 60°C (32°F to 140°F), it is built for durability and ease of installation, featuring a web server for remote management and diagnostics.

The BMENOC0301 Schneider Ethernet Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Schneider BMENOC0301 Ethernet Communication Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Schneider BMENOC0301 Ethernet Communication Module Specs

General

  • Manufacturer Schneider
  • Model BMENOC0301
  • Condition New Original ready stock
  • Product Family BMXXBP0400,BMXXBP0600H,BMXXBP1200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Water and Wastewater Treatment: Managing distributed pumping stations, flow control, and chemical dosing systems via reliable Ethernet/IP or Modbus TCP loops.
  • Oil & Gas (Upstream/Midstream): Facilitating secure communication between local Wellhead Control Panels (WHCP) and central SCADA systems.
  • Power Generation & Utilities: Integrating distributed Energy Management Systems (EMS) and monitoring electrical sub-stations.
  • Food & Beverage (Batch Processing): Connecting high-speed packaging lines, sorting systems, and ingredient-blending PLCs requiring deterministic I/O scanning.
  • Built-in Web Server (HTTP/HTTPS): Allows maintenance teams to read module status, network statistics (bandwidth usage, packet loss), and port states remotely via a standard web browser.
  • LED Status Visual Indicators: Instant local hardware troubleshooting via front-panel LEDs (RUN, ERR, ETH STS, and dedicated Link/Activity lights for each port).
  • SNMP (Simple Network Management Protocol): Integrates into IT-level Network Management Systems (NMS) for automated infrastructure monitoring and health alerts.
  • Syslog Protocol Support: Centralizes system event and error logs, enabling security information and event management (SIEM) integration.
  • Slot Assignment: The BMENOC0301 must be installed on a Modicon X80 Ethernet+X-Bus backplane (e.g., BMEXBPxxxx). It cannot be inserted into an older, X-Bus-only M340 rack.
  • Hot Swapping (RIUP): Supports Removal and Insertion Under Power (RIUP). You can replace a failed module without cutting power to the rest of the rack or stopping the entire process, minimizing downtime.
  • Grounding: Ensure the X80 backplane is securely grounded to the panel DIN rail via the mandatory grounding strap to guarantee proper noise immunity.
Description
The Schneider BMENOC0301 Ethernet Communication Module is a crucial component of the Modicon M580 range, offering advanced connectivity options for Programmable Automation Controllers (PAC) and Programmable Logic Controllers (PLC). This module provides three Ethernet ports, each equipped with RJ45 connectors for reliable network integration. It supports 10BASE-T/100BASE-TX communication, ensuring seamless data transmission at speeds of 10/100 Mbit/s using double shielded twisted pair (STP) cabling.

Built to meet the demanding needs of industrial environments, the BMENOC0301 module is designed for Modicon M580 Ethernet + X-bus racks, ensuring full compatibility within the M580 series. The module provides a broad range of communication services, including bandwidth management, FDR server, Modbus TCP I/O scanner, EtherNet/IP I/O scanner, and embedded messaging capabilities. Additionally, it features an embedded 4-port switch for easier network management, RSTP support for redundancy, and SNMP network administration for efficient monitoring and control.

Operating with an internal power supply via the rack, the BMENOC0301 module ensures stable performance even in environments with temperature fluctuations, with an operating range of 0…60 °C (32…140 °F) and humidity levels between 10…95%. The module’s IP20 protection degree ensures adequate protection against dust and other contaminants, making it suitable for various industrial applications.
Alternative Names
BMXFCW301S BMENOC0200 BMENOC0301H BMENOC0301C BMENOC0311 BMENOC0321 BMENOC0302 BMENOC0401
Technical notes
The Schneider Electric BMENOC0301 is a Modicon M580 Ethernet Communication Module designed for the Modicon M580 ePAC (Ethernet Programmable Automation Controller) platform.
