TSXP574634M

/ 4.9
1001 reviews | Need a Specific Revision?

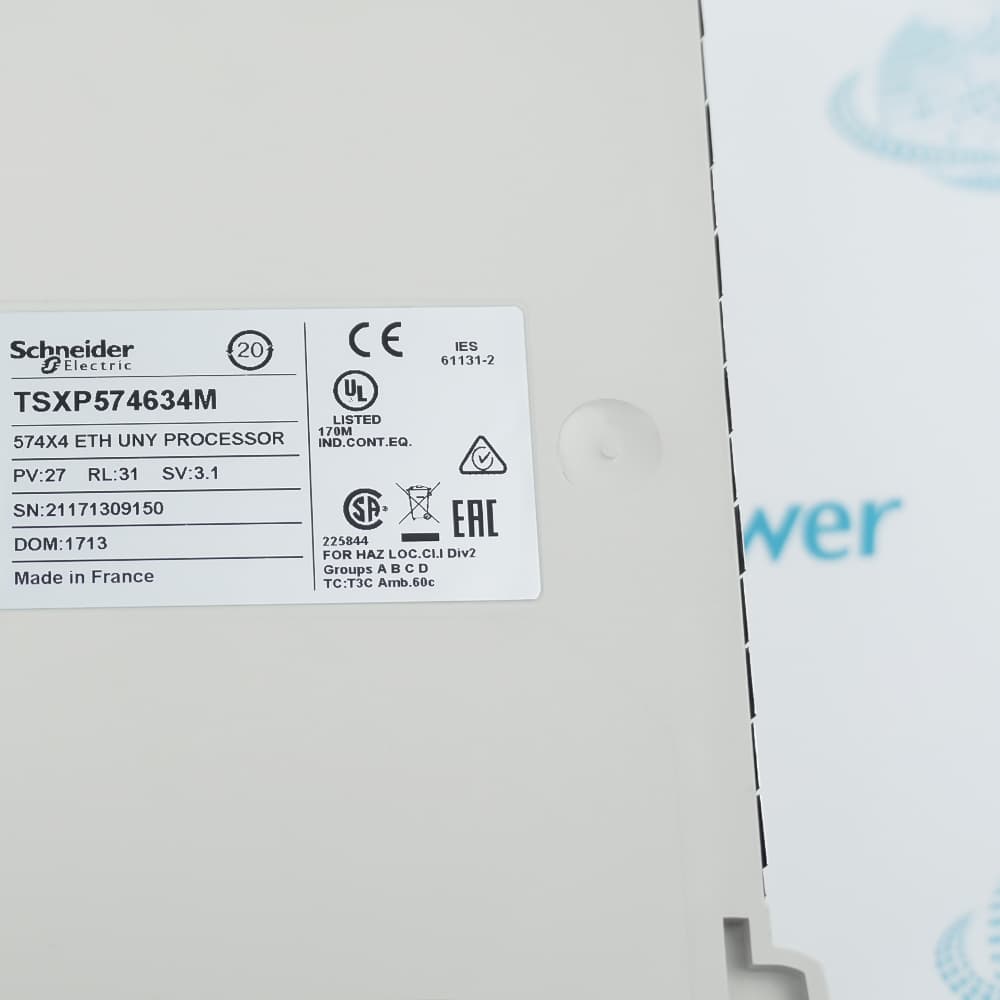

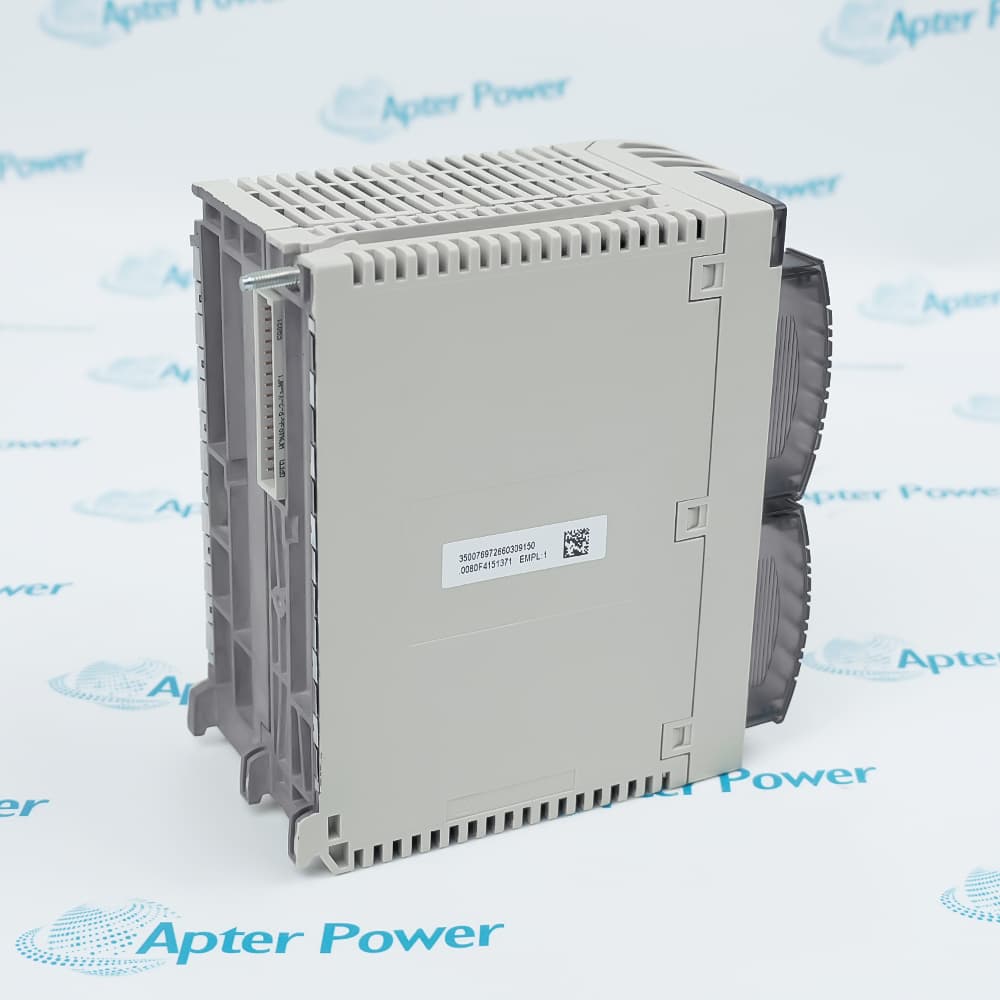

Schneider Electric TSXP574634M is a Modicon Premium Unity processor supporting large rack configurations with integrated Ethernet, Fipio, and application-specific channels.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TSXP574634M
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TSXP574634M

  • Manufacturer:
    Schneider Electric
  • Part Number:
    TSXP574634M
  • Product Family:
    Modicon Premium
  • Product Type:
    Modicon Premium Unity Processor
  • Stock:
    1
  • Automation platform:
    Modicon Premium
  • Programming software:
    Unity Pro
  • Rack capacity:
    8 racks with 12 slots; 16 racks with 4/6/8 slots
  • Discrete I/O capacity:
    2040 I/O
  • Analog I/O capacity:
    256 I/O
  • Application-specific channels:
    Up to 64
  • Integrated communication:
    Ethernet TCP/IP and Fipio
  • Internal RAM:
    440 KB
  • Maximum program with PCMCIA:
    2048 KB
  • Current consumption:
    1880 mA at 5 V DC
  • Operating temperature:
    0…60 °C
  • Weight:
    0.61 kg
  • Estimated shipping dimensions:
    26x18x9.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    France
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Ethernet & Fipio Memory & Tasks Migration Boundary Product Applications

Features:

  • Multi-rack processing: supports the documented Premium chassis limits
  • Integrated Ethernet and Fipio: combines plant and field communication roles
  • Expandable application memory: uses matched PCMCIA storage for larger Unity projects
TSXP574634M is a high-capacity Modicon Premium processor intended to coordinate a broad installed rack and fieldbus footprint.

Its value is the combination of controller resources with built-in Ethernet and Fipio roles.

Because the product is discontinued, a useful asset record must describe the complete architecture that depends on it.
Apter Power can review TSXP574634M project identity, rack and network scope, official records, condition, and quotation requirements.
Schneider Electric TSXP574634M Modicon Premium Unity Processor Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Ethernet record: retain addresses, supervisory clients, and controller-message paths
  • Fipio inventory: map every field device, address, and application dependency
  • Cutover order: restore processor access before validating dependent network exchanges
  • Internal RAM: separate resident program and data use within the documented capacity
  • PCMCIA content: identify card type, application image, and stored files
  • Task structure: preserve master, fast, and event execution requirements during conversion
  • Rack topology: document chassis count, slot layout, and 5 V DC loading
  • Specialty channels: list motion, communication, counting, or process functions that need new interfaces
  • Successor review: compare software, networks, I/O adapters, cables, and commissioning work—not only processor speed
  • Large modular machines: coordinate extensive Premium rack I/O from a Unity project
  • Distributed process control: combine Ethernet supervision with supported Fipio field devices
  • Legacy plant modernization: preserve the installed Premium architecture while planning a controlled migration
Description
Large Modicon Premium architectures use TSXP574634M as a Unity processor for multi-rack control. Schneider Electric specifies eight 12-slot racks or sixteen 4/6/8-slot racks, with integrated Ethernet TCP/IP and Fipio communication roles.

The resource envelope of TSXP574634M supports as many as 2040 discrete I/O, 256 analog I/O, and 64 application-specific channels within the documented configuration. Internal memory can be extended by a matched PCMCIA card for a larger program while retaining the processor's task structure.

Migration or replacement of TSXP574634M should begin with the Unity Pro project, rack topology, Fipio devices, Ethernet addressing, PCMCIA content, and application-specific channels. Schneider Electric lists the product as discontinued, so any successor path requires a full architecture review rather than a CPU-only exchange.
Alternative Names
TSXP574634M Unity Processor TSX P57 4634M Modicon Premium Ethernet Fipio CPU Premium Unity PLC Processor
Technical notes
TSXP574634M draws 1880 mA from the 5 V DC rack supply while coordinating multi-rack Ethernet and Fipio resources. A migration that checks processor memory but ignores the Premium power budget, PCMCIA data, or application-specific channels can leave the project incomplete; preserve all four records before selecting a successor.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is a processor-only swap risky when replacing TSXP574634M?
The installed function can depend on Fipio devices, Ethernet paths, PCMCIA data, specialty channels, and rack topology. A successor CPU must be assessed with that complete architecture.
What should be extracted from the PCMCIA card before TSXP574634M is removed?
Preserve the card reference, application image, data or file storage, and the Unity project version. Do not assume the card content is duplicated in the engineering workstation.
How can an Ethernet issue be separated from a CPU problem on TSXP574634M?
Check processor state and local project access first, then test address configuration, switch port, supervisory clients, and controller message paths individually. Network loss alone does not identify failed logic execution.
What makes Fipio important in a TSXP574634M migration?
Fipio device addresses and supported adapters are part of the live field architecture. Removing that built-in role may require new communication hardware, wiring, configuration, and acceptance testing.
Which rack-power evidence should accompany an order for TSXP574634M?
Provide the full chassis module list, selected power supplies, 5 V DC load calculation, slot map, PCMCIA card, quantity, condition, destination, and clear processor-label photographs.
Is the Schneider replacement reference for TSXP574634M a drop-in exchange?
No automatic drop-in equivalence is established. The documented successor still requires review of software conversion, rack and I/O hardware, fieldbuses, memory, cables, and outage commissioning.
