6ED1052-1HB08-0BA1

/ 4.9
1001 reviews | Need a Specific Revision?

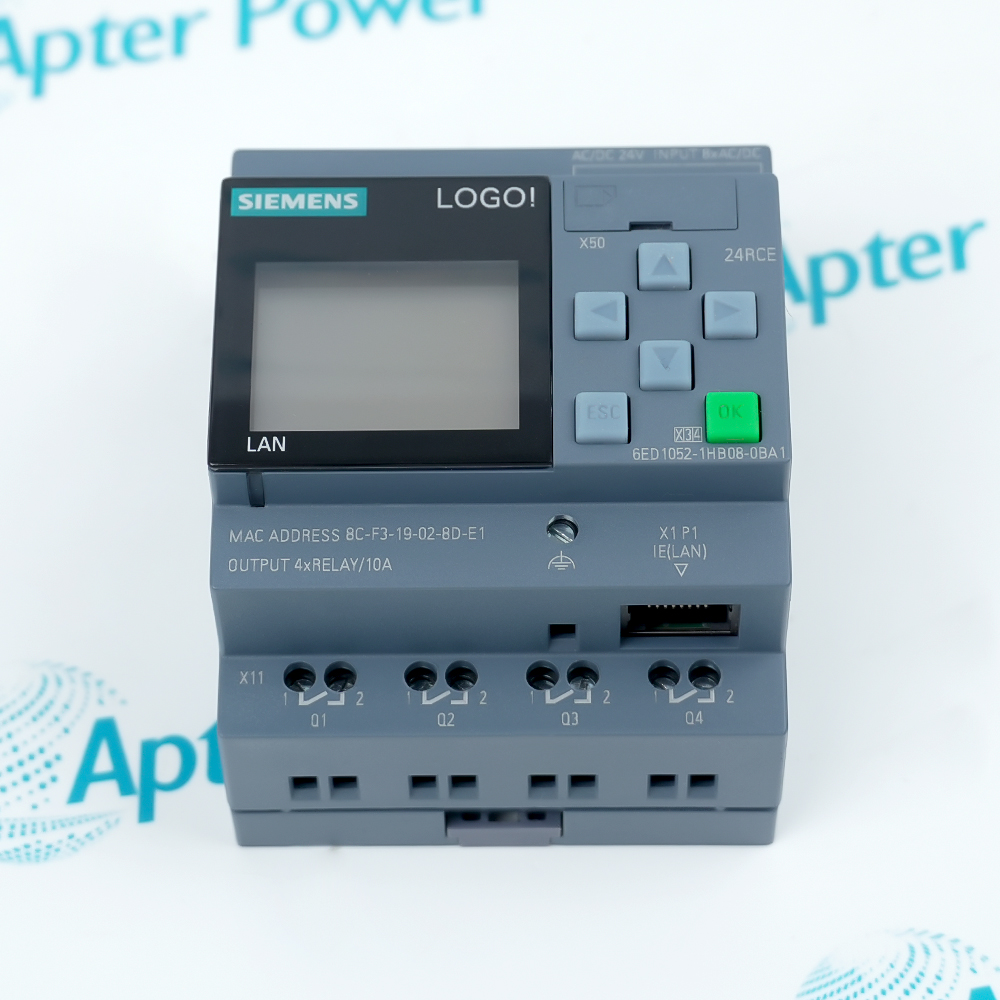

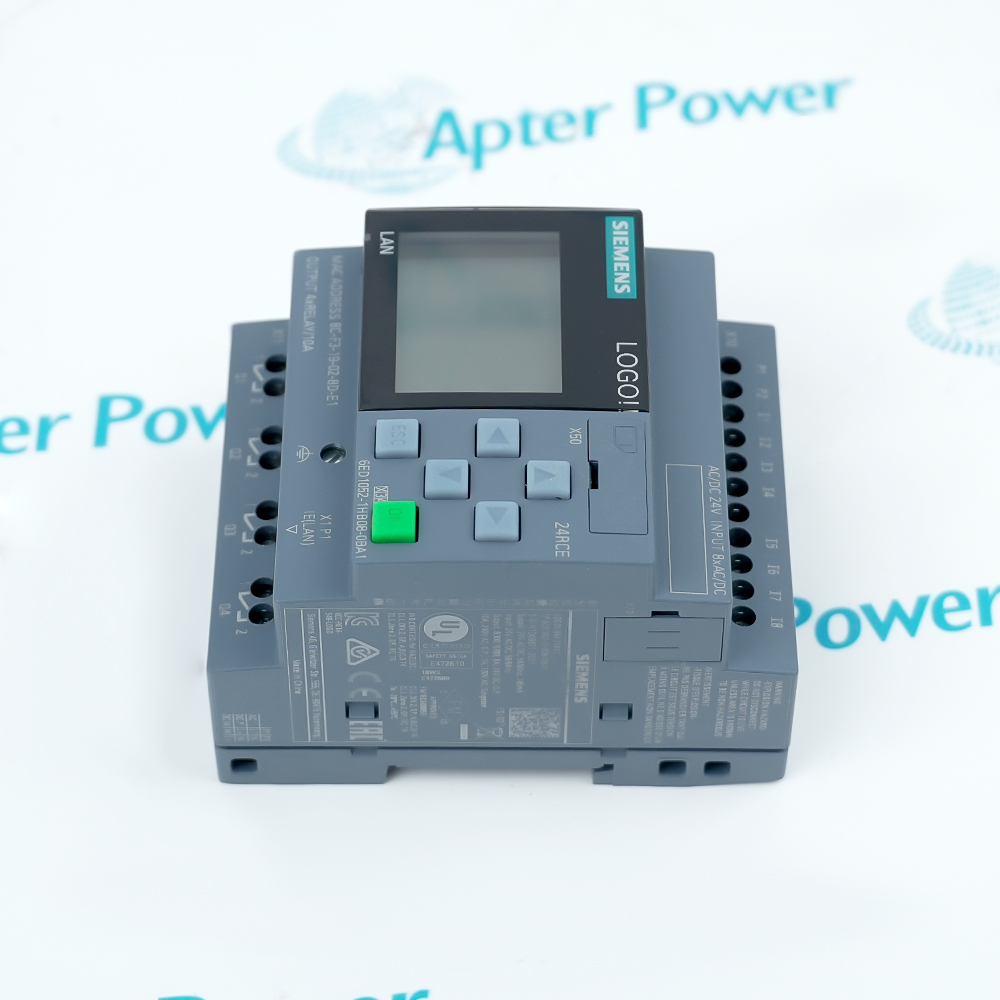

Siemens 6ED1052-1HB08-0BA1 is a LOGO! 24RCE logic module with eight 24 V AC/DC inputs, four relay outputs, an onboard display and Ethernet. It is intended for compact machine and building-control tasks.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ED1052-1HB08-0BA1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ED1052-1HB08-0BA1

  • Manufacturer:
    Siemens
  • Part Number:
    6ED1052-1HB08-0BA1
  • Product Family:
    Siemens LOGO
  • Product Type:
    LOGO! 24RCE Logic Module
  • Stock:
    1
  • Rated supply:
    24 V AC/DC
  • Permitted DC supply range:
    20.4 to 28.8 V DC
  • AC supply frequency:
    47 to 63 Hz
  • Digital inputs:
    8
  • Relay outputs:
    4
  • Resistive relay load:
    10 A maximum
  • Inductive relay load:
    3 A maximum
  • Program capacity:
    400 function blocks
  • Engineering software:
    LOGO! Soft Comfort V8.3 or higher
  • Memory medium:
    Standard microSD card
  • Integrated interface:
    Ethernet
  • Web functions:
    Integrated web server and user-defined web pages
  • Operating temperature:
    -20 to +55 °C
  • Storage temperature:
    -40 to +70 °C
  • Module dimensions:
    71.5 x 90 x 60 mm
  • Weight:
    0.591 lbs (0.268 kg)
  • Estimated shipping dimensions:
    8.10 x 9.30 x 7.00 cm
  • Tariff Code:
    85371091
  • Country of origin:
    China
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Programming Communication & Connectivity Protection

Features:

  • Combines eight 24 V AC/DC inputs with four relay outputs.
  • Includes Ethernet, a local display and integrated web functions.
  • Stores control programs containing up to 400 function blocks.
This order code identifies the 24RCE base unit with relay outputs and the documented 24 V AC/DC supply arrangement.

The module executes compact logic, timing and switching functions while also providing browser-based monitoring for suitable applications.

Match the expansion layout, relay-load protection and engineering-software version to the existing LOGO! installation before exchange.

This discontinued article is sourced subject to exact revision and condition confirmation.
Verified resources for Siemens 6ED1052-1HB08-0BA1:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Coordinate pumps, fans, lighting or small machine sequences with local logic.
  • Replace relay-based timing and interlocking circuits in compact control panels.
  • Expose selected operating values through the integrated web-server functions.
  • LOGO! Soft Comfort V8.3 or later supports the documented programming functions.
  • The controller stores as many as 400 function blocks in the user program.
  • A standard microSD card can be used for the supported program and data functions.
  • The integrated Ethernet interface provides the engineering and network connection.
  • The built-in web server presents approved variables to connected clients.
  • User-defined web pages can be created for model-supported visualization tasks.
  • Each relay output switches its connected circuit without electronic short-circuit protection.
  • Resistive and inductive loads must remain within their separately documented contact ratings.
  • External fusing and suppression must be selected for the actual field device.
Description
6ED1052-1HB08-0BA1 combines the LOGO! controller, local display and a 24 V AC/DC power interface in one compact module. Eight digital inputs and four relay outputs provide a practical hardware base for small autonomous automation tasks.

Its integrated Ethernet port supports engineering access, communication and the onboard web-server functions documented for LOGO! 8. Program capacity reaches 400 function blocks, while data logging and user-defined web pages extend the module beyond simple relay replacement.

Expansion planning must follow the permitted LOGO! module arrangement and the available current budget. The standard microSD card, LOGO! Soft Comfort release and existing relay-load protection should all be checked before commissioning or replacing an earlier unit.
Alternative Names
6ED1052-1HB08-0BA1 6ED1052 1HB08 0BA1 6ED10521HB080BA1 Siemens 6ED1052-1HB08-0BA1 LOGO! 24RCE 6ED1052-1HB08-0BA1 Siemens LOGO 24RCE Siemens LOGO! 8 24RCE
Technical notes
6ED1052-1HB08-0BA1 relay outputs require suitable external protection for the connected load; confirm supply class and LOGO! Soft Comfort compatibility before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which LOGO! engineering release is required for Siemens 6ED1052-1HB08-0BA1?
Siemens specifies LOGO! Soft Comfort V8.3 or higher for the documented functions of this hardware version.
How do the relay outputs on Siemens 6ED1052-1HB08-0BA1 affect load selection?
The contacts have separate resistive and inductive limits and need external protection because the outputs are not electronically short-circuit protected.
Can Siemens 6ED1052-1HB08-0BA1 publish operating data without an extra display panel?
Its Ethernet interface and integrated web server support browser-based visualization when the application is engineered for that purpose.
Why is the exact expansion plan important when sourcing Siemens 6ED1052-1HB08-0BA1?
The permitted LOGO! expansion arrangement and available current must accommodate every attached module; a base-unit match alone is not sufficient.
What lifecycle evidence applies to Siemens 6ED1052-1HB08-0BA1?
Siemens records the article as discontinued from 22 April 2024 and identifies 6ED1052-1HB08-0BA2 as the successor.
Which files should accompany an enquiry for Siemens 6ED1052-1HB08-0BA1?
Send the full nameplate, program-software version, expansion-module list, required quantity and destination so the correct LOGO! execution can be checked.
