Features:
- Direct plug-in attachment to MICROMASTER 420/430/440 inverters—no cables, no external power.
- 4-character alphanumeric LED display for parameter numbers, values, and diagnostic codes.
- Local start/stop and speed control via keypad, plus parameter read/write capability.

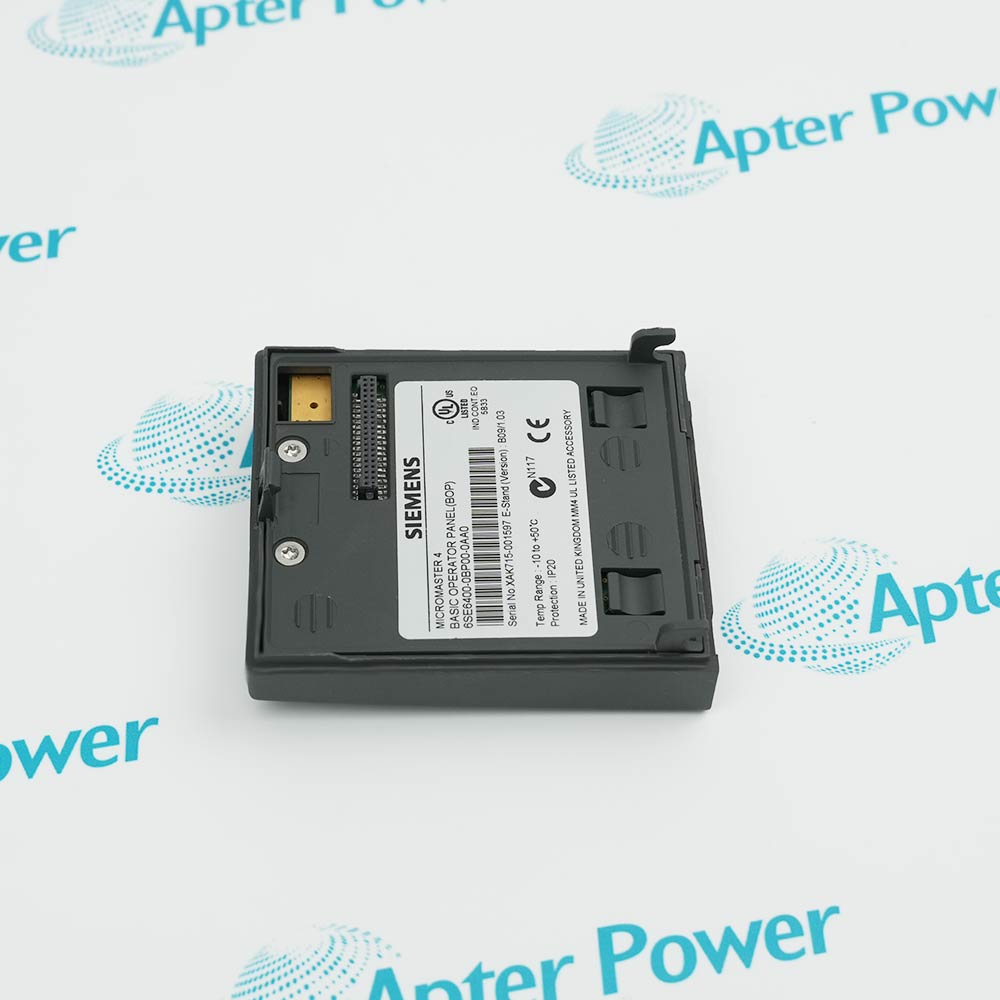

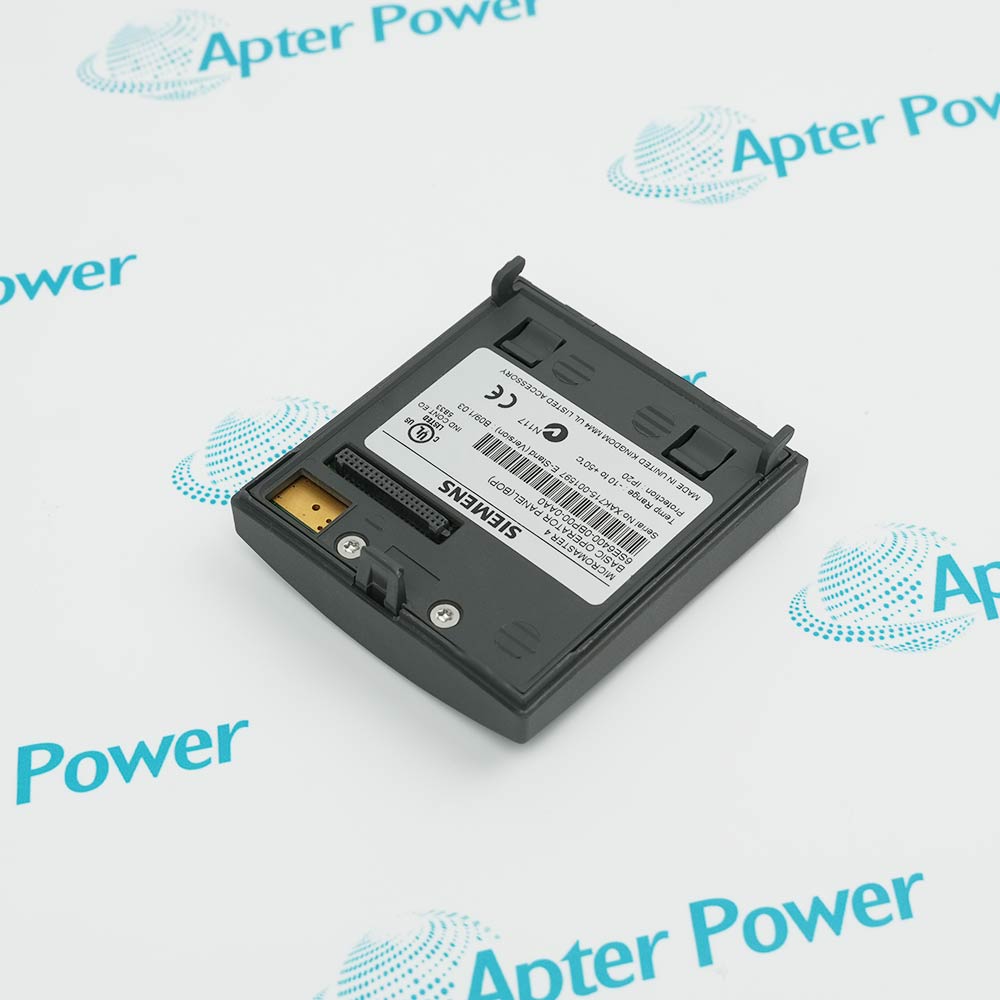

The 6SE6400-0BP00-0AA0 is the most affordable way to access drive parameters and control a MICROMASTER inverter locally. It plugs directly into the front panel of MM420, MM430, and MM440 inverters—no mounting hardware, no cables, no external power supply. The 4-character LED display shows parameter numbers, values, fault codes, and actual values (frequency, current, voltage). For facilities with many drives, having a single BOP that can be moved from drive to drive reduces spare parts inventory. For OEMs, the BOP can be used during commissioning and then removed, leaving the drive in remote control mode.
With the 6SE6400-0BP00-0AA0, maintenance personnel can perform basic drive functions without a laptop, software, or communication cable. Start and stop the drive using the dedicated buttons. Adjust speed setpoints using the up/down arrows. Monitor actual frequency, motor current, DC link voltage, or other parameters by scrolling through the parameter list. When a fault occurs, the BOP displays the fault code instantly, allowing rapid diagnosis.
The 6SE6400-0BP00-0AA0 works with all MICROMASTER 420, 430, and 440 inverters, regardless of power rating (0.12 kW to 250 kW). It is a variant-independent option, meaning the same BOP serves every drive in your facility. It can be used alongside other options: the BOP attaches to the front panel, while communication modules (PROFIBUS, DeviceNet, CANopen) connect to the side of the inverter. For pulse encoder evaluation, the BOP can coexist with that module as well.
The 6SE6400-0BP00-0AA0 SIEMENS Basic Operator Panel may still be available for purchase and support from Apter Power beyond
End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6SE6400-0BP00-0AA0 Basic Operator Panel Manuals,
Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
SIEMENS 6SE6400-0BP00-0AA0 Basic Operator Panel Specs
General
- Manufacturer SIEMENS
- Model 6SE6400-0BP00-0AA0
- Condition New Original ready stock
- Product Family
6SE6400-0BE00-0AA0,6SE6400-0AP00-0AA1,6SE6400-0AP00-0AB0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not
included with this equipment unless listed in the above stock item description. All prices are
shown in USD.
- Industrial Production Control: Used for rapid setup and parameter adjustment of various motor drives in manufacturing processes.
- HVAC Systems: Enables efficiency optimization and speed control of fans and pumps in the HVAC field.
- Material Conveying and Lifting: Assists in the on-site operation and monitoring of conveyor belt systems, automatic doors, and light lifting equipment.
- Direct Parameter Access: Users can directly read and modify internal inverter parameters without a computer, reducing on-site commissioning time.
- Real-time Feedback and Monitoring: Equipped with a 5-digit LCD display, it can display the current frequency, current, or fault codes in real time, facilitating quick operator response to abnormal operating conditions.
- Ease of Operation: Integrates start, stop, forward/reverse, and jog control buttons, making manual operation of the standalone drive more intuitive.
- Compact and Modular Design: Utilizes a tool-less installation design, allowing direct embedding in the front of the inverter or remote cabinet installation via an option kit.
- Protection Rating (IP Rating): IP20. This means it can prevent the ingress of fingers or solid foreign objects with a diameter greater than 12mm, but it is not waterproof or resistant to strong moisture.
- Installation Requirements: It is recommended to install it in a controlled industrial cabinet to avoid dust accumulation or direct liquid splashes.
- Note: An upgraded version, 6SE6400-0BP00-0AA1, is available for this model. Compatibility should be checked first when procuring spare parts.
