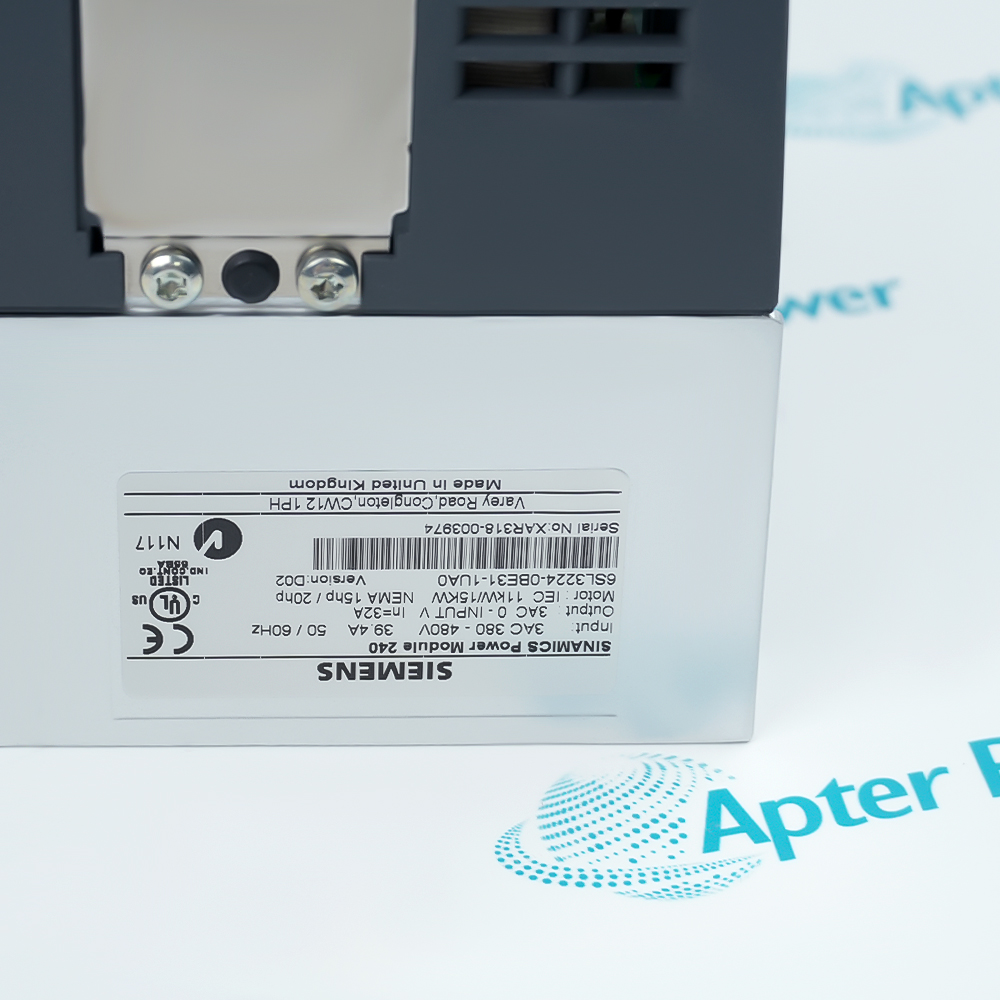

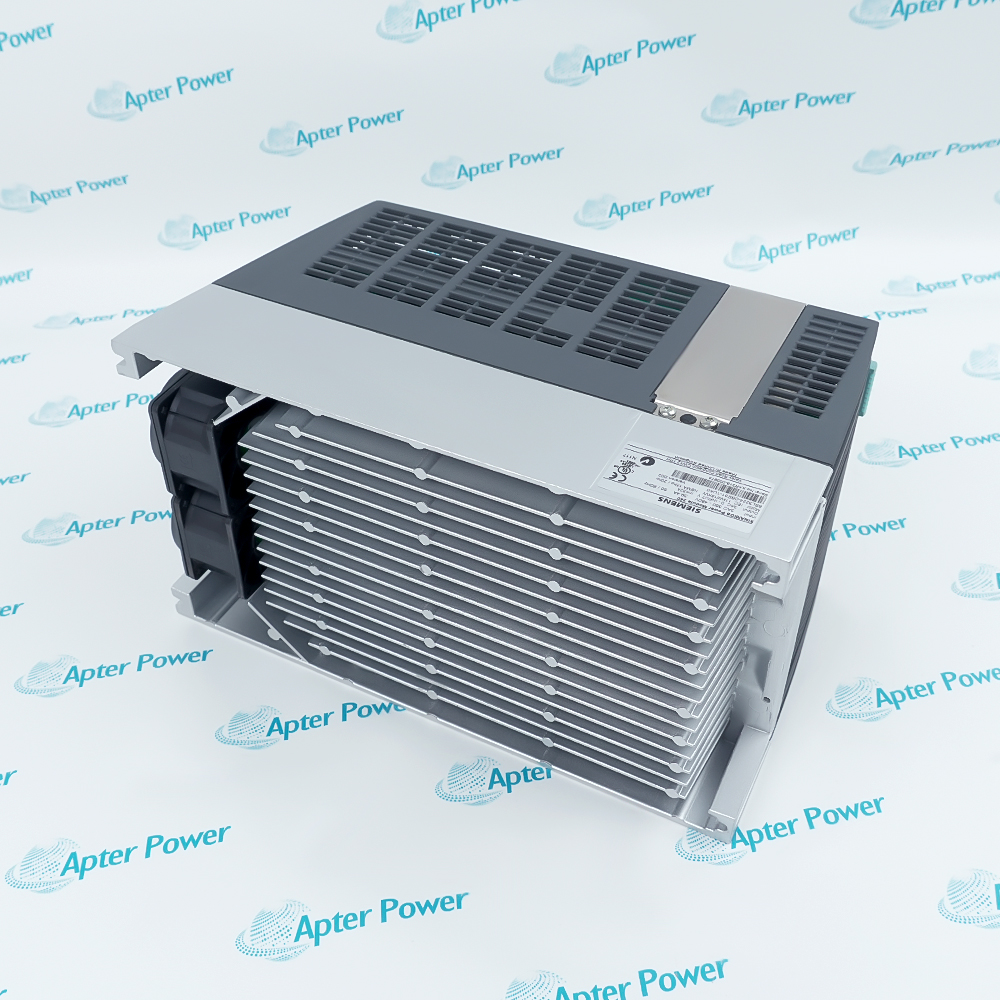

Siemens 6SL3224-0BE31-1UA0 is an unfiltered SINAMICS G120 PM240 for 380–480 V motor drives, with frame-size C construction and an integrated braking chopper.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6SL3224-0BE31-1UA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3224-0BE31-1UA0

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3224-0BE31-1UA0
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    Power Module
  • Stock:
    1
  • Power-module family:
    SINAMICS G120 PM240
  • Input phases:
    3 AC
  • Line voltage:
    380–480 V ±10%
  • Line frequency:
    47–63 Hz
  • Rated current with line reactor:
    33.00 A
  • Rated current without line reactor:
    39.00 A
  • Low-overload rated power:
    15.00 kW
  • Low-overload rated current:
    32.00 A
  • High-overload rated power:
    11.00 kW
  • High-overload rated current:
    26.00 A
  • Maximum output current:
    52.00 A
  • Pulse frequency:
    4 kHz
  • Vector-control output range:
    0–200 Hz
  • V/f-control output range:
    0–550 Hz
  • Power factor:
    0.85
  • Offset factor cos φ:
    0.95
  • Efficiency:
    0.97
  • Sound pressure level at 1 m:
    60 dB
  • Power loss:
    0.40 kW
  • Integrated line filter:
    No
  • Integrated braking chopper:
    Yes
  • Degree of protection:
    IP20 / UL open type
  • Frame size:
    FSC
  • Cooling:
    Internal air cooling
  • Weight:
    15.4324 lbs (7 kg)
  • Estimated shipping dimensions:
    25.5x39x22cm
  • Tariff Code:
    85044086
  • Country of origin:
    Great Britain
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Performance Monitoring Ratings

Features:

  • Accepts three-phase 380–480 V input for SINAMICS G120 motor-control systems.
  • Integrated braking chopper supports an externally selected braking resistor.
  • Frame-size C power stage provides separate low- and high-overload duty ratings.
The current PM240 configuration is unfiltered and rated 15 kW in low-overload service or 11 kW in high-overload service. Its IP20 / UL open-type construction is intended for installation inside a protected control enclosure.

The power module converts the incoming supply for variable-frequency motor control and supports vector as well as V/f operation. The braking chopper provides the switching function needed when the application dissipates regenerative energy externally.

Drive selection should match the control unit, motor current, overload profile, braking duty and cable arrangement. Cabinet designers must also provide the required cooling, EMC measures and touch protection.

Availability should be checked against the exact phase-out order number and required duty rating.
Verified resources for Siemens 6SL3224-0BE31-1UA0:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controls pumps, fans and conveyors that require adjustable motor speed from a 400 V-class supply.
  • Handles machine axes with braking demand when an appropriately sized external resistor is installed.
  • Supports maintenance of existing SINAMICS G120 cabinets built around a frame-size C PM240 stage.
  • Low-overload operation provides 15 kW and 32 A for variable-torque or moderate-duty loads.
  • High-overload operation provides 11 kW and 26 A for applications with stronger transient demand.
  • The power stage reaches a documented efficiency of 0.97 at the specified operating point.
  • The selected control unit determines command sources, motor-control functions and diagnostic access.
  • Drive monitoring covers line, DC-bus, overload and temperature conditions through the SINAMICS control architecture.
  • Braking behavior must be commissioned with motor data and the external resistor parameters used by the application.
  • IP20 / UL open-type protection requires mounting inside a suitable industrial enclosure.
  • Internal air cooling needs unobstructed cabinet airflow and the documented clearance conditions.
  • The technical data defines operation up to 50 °C in high-overload service and storage down to -25 °C.
Description
Siemens 6SL3224-0BE31-1UA0 is a SINAMICS G120 PM240 power module for three-phase 380–480 V supplies. The frame-size C assembly delivers 15 kW in low-overload duty or 11 kW in high-overload duty and uses an IP20 / UL open-type construction for protected cabinet installation.

An integrated braking chopper provides the switching path needed for an external braking resistor, while the unfiltered input configuration leaves EMC filtering to the surrounding system design. The module supports both vector and V/f motor-control ranges and is intended to operate with the matching SINAMICS G120 control architecture.

Selection must account for duty class, line reactor choice, motor-cable length, cooling airflow and the cabinet protection concept. The exact order number is in phase-out, so a replacement plan should verify mechanical fit, control unit compatibility and terminal functions rather than comparing power alone.
Alternative Names
Siemens 6SL3224-0BE31-1UA0 6SL3224-0BE31-1UA0 PM240 6SL32240BE311UA0 6SL 3224-0BE31-1UA0 SINAMICS G120 PM240 FSC Siemens PM240 15 kW 400 V PM240 380-480 V 32 A SINAMICS 6SL3224-0BE31-1UA0
Technical notes
Siemens 6SL3224-0BE31-1UA0 is an unfiltered IP20 power module and requires cabinet-level EMC and touch protection. Verify line voltage, duty class, control-unit compatibility and external braking-resistor sizing before energization.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which duty ratings define Siemens 6SL3224-0BE31-1UA0 selection?
The exact PM240 configuration is rated 15 kW for low-overload duty and 11 kW for high-overload duty. Choose the duty class from the motor load profile, not from nominal power alone.
Can Siemens 6SL3224-0BE31-1UA0 operate without an external braking resistor?
The module includes a braking chopper, but whether a resistor is required depends on regenerative energy and deceleration demand. Resistor sizing must follow the drive application.
Why is the unfiltered design of Siemens 6SL3224-0BE31-1UA0 important?
It means the surrounding installation must provide the required EMC measures. Verify line filtering, cable routing and enclosure bonding for the destination standard.
How should a replacement for Siemens 6SL3224-0BE31-1UA0 be evaluated?
Compare supply range, frame size, overload duty, control unit, terminals, braking arrangement and cabinet clearances. A newer PM240 variant is not automatically a direct mechanical or electrical substitute.
Where can the official limits for Siemens 6SL3224-0BE31-1UA0 be checked?
Use the model-specific Siemens technical data in the Manuals tab, which covers ratings, ambient conditions, connections, dimensions and compliance data.
What should accompany an inquiry for Siemens 6SL3224-0BE31-1UA0?
Provide the motor rating, load duty, control-unit type, braking requirement, destination and required quantity so the offered configuration can be checked before quotation.
