6SL3246-0BA22-1PA0 V4.7

/ 4.9
1001 reviews | Need a Specific Revision?

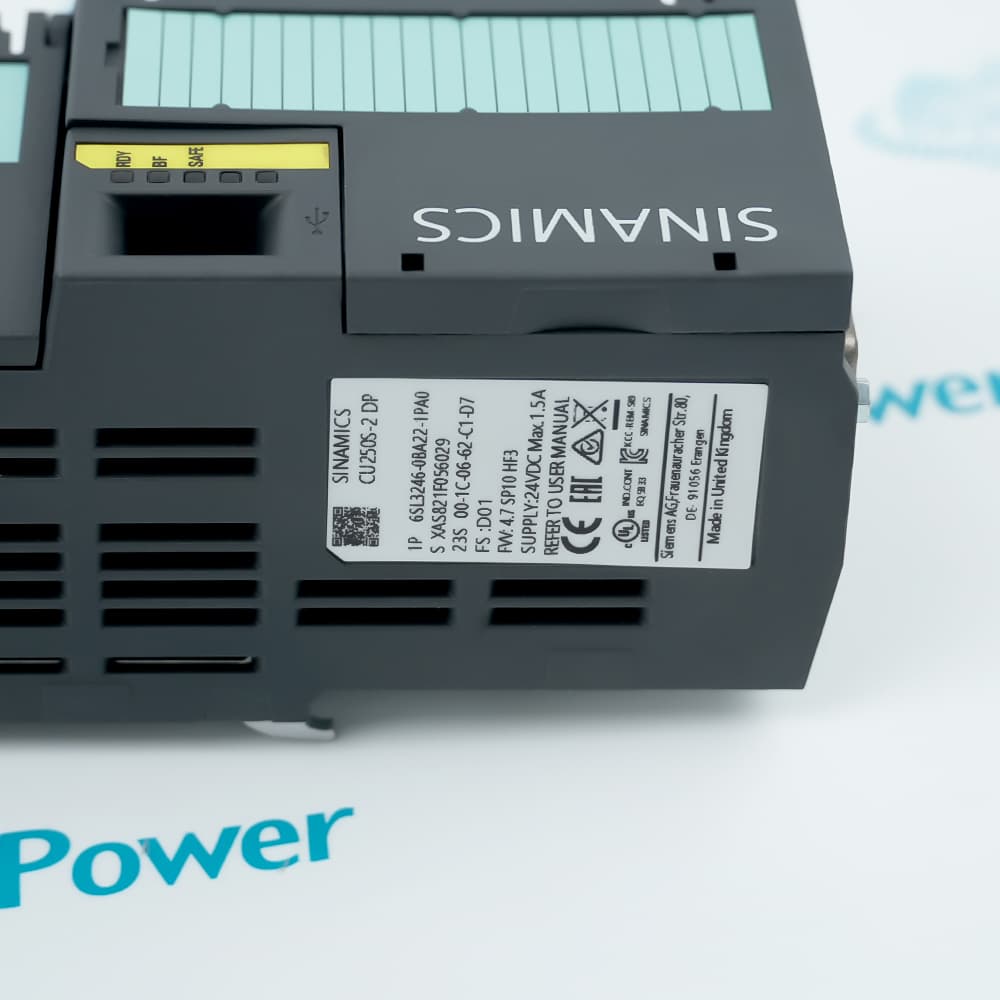

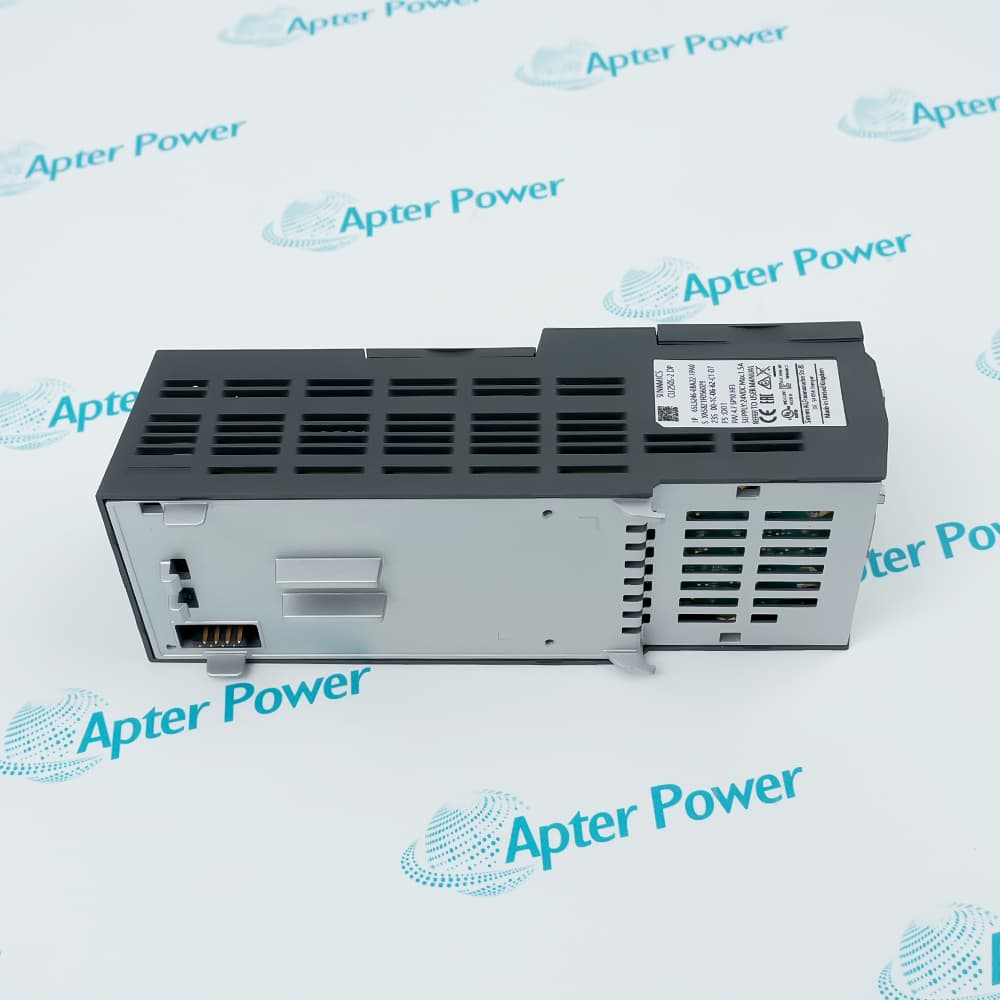

Siemens 6SL3246-0BA22-1PA0 V4.7 is a SINAMICS G120 CU250S-2 DP control unit with PROFIBUS, encoder interfaces and integrated safety functions.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6SL3246-0BA22-1PA0 V4.7
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6SL3246-0BA22-1PA0 V4.7

  • Manufacturer:
    Siemens
  • Part Number:
    6SL3246-0BA22-1PA0 V4.7
  • Product Family:
    Siemens SINAMICS
  • Product Type:
    SINAMICS G120 CU250S-2 DP Control Unit
  • Stock:
    1
  • Communication:
    PROFIBUS DP
  • Supply via Power Module:
    24 VDC
  • External Supply:
    20 to 29 VDC
  • Degree of Protection:
    IP20 / UL open type
  • Weight:
    0.61 kg
  • Estimated shipping dimensions:
    9.3 x 24.0 x 6.8 cm
  • Tariff Code:
    85049090
  • Country of origin:
    Great Britain
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Drive Interface Motion Functions Safety Context Applications

Features:

  • PROFIBUS drive control: CU250S-2 DP links the SINAMICS G120 drive to a PROFIBUS automation system.
  • Positioning and encoder support: Documented interfaces support D-CLiQ and selected incremental, absolute or resolver feedback arrangements.
  • Safety-capable control: Integrated safety functions are available within the stated hardware and licensed-function boundary.
6SL3246-0BA22-1PA0 V4.7 is the site display identity for a CU250S-2 DP hardware article used in a V4.7 firmware context.

Its defining interfaces are PROFIBUS DP, configurable I/O, encoder connections and Safety Integrated functions.

A successful exchange depends on project, firmware and license continuity as well as the physical control-unit fit.

Apter Power can help confirm the Siemens 6SL3246-0BA22-1PA0 V4.7 SINAMICS G120 CU250S-2 DP Control Unit, firmware context and drive-system fit before quotation.
Siemens 6SL3246-0BA22-1PA0 V4.7 SINAMICS G120 CU250S-2 DP Control Unit Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • PROFIBUS DP link: The control unit exchanges commands, setpoints and status with the automation system.
  • Power Module supply: The CU can receive its 24 V operating power through the compatible drive power section.
  • External supply option: A documented 20 to 29 VDC source supports commissioning and control requirements.
  • Configurable I/O: Digital and analog channels support drive-side signals within the engineered project.
  • Vector control: Sensorless and encoder-based techniques support demanding speed and torque applications.
  • Easy Positioning: EPOS functionality belongs to the extended-function license boundary.
  • Encoder interfaces: D-CLiQ and documented terminal feedback types must match the installed motor system.
  • Project dependency: Motor data, control mode and feedback settings are restored from the verified drive project.
  • Basic safety functions: STO, SBC and SS1 are part of the documented control-unit capability.
  • Extended safety: Further functions depend on the corresponding extended safety license.
  • Commissioning records: Safety parameters and acceptance results are preserved before replacement.
  • Controlled restart: Motion remains inhibited until PROFIBUS, feedback and safety channels all pass their tests.
  • PROFIBUS machines: Controls compatible SINAMICS G120 drives on established DP networks.
  • Closed-loop motion: Supports speed, torque and positioning tasks that use a matched encoder arrangement.
  • Safety-related axes: Integrates documented drive safety functions into an engineered machine concept.
  • Firmware-controlled spares: Serves installations that must retain the recorded V4.7 project and license context.
Description
6SL3246-0BA22-1PA0 V4.7 identifies a SINAMICS G120 CU250S-2 DP control unit in the requested V4.7 context. The hardware provides PROFIBUS DP communication, vector-control capability, encoder connections and configurable I/O for drive applications that require more than basic speed control.

The official hardware record for 6SL3246-0BA22-1PA0 V4.7 is anchored to article number 6SL3246-0BA22-1PA0. V4.7 should be treated as the installed firmware context, so replacement planning must preserve the drive project, licensed functions and compatibility with the Power Module and memory media.
Alternative Names
6SL32460BA221PA0 6SL3246-0BA22-1PA0
Technical notes
Keep the complete display name 6SL3246-0BA22-1PA0 V4.7 for this page, but use 6SL3246-0BA22-1PA0 as the Siemens hardware article number. Before replacement, preserve the drive project, parameter set, firmware context and extended-function licenses. Confirm PROFIBUS addressing, encoder type, Safety Integrated commissioning and Power Module compatibility before enabling motion.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the page name 6SL3246-0BA22-1PA0 V4.7 include a version when the Siemens article number ends at 1PA0?
The hardware article is 6SL3246-0BA22-1PA0; V4.7 records the requested firmware context. Keep both identities during sourcing and confirm that the replacement can run the saved project and licenses.
A replacement 6SL3246-0BA22-1PA0 V4.7 powers up but does not join PROFIBUS. What should be restored first?
Compare the DP address, telegram configuration and drive project with the backup, then inspect the bus connector and termination. Power-up alone does not restore network identity.
Can extended positioning be assumed on every 6SL3246-0BA22-1PA0 V4.7 control unit?
No. Easy Positioning is tied to the extended-function license. Verify the installed license and memory media instead of relying only on the hardware label.
The machine uses an encoder. Which 6SL3246-0BA22-1PA0 V4.7 detail must be matched before commissioning?
Match the actual D-CLiQ, HTL, TTL, SSI or resolver arrangement and its project settings. An incorrect feedback interface can prevent control or create unsafe motion behavior.
Can a parameter backup from another axis be loaded into 6SL3246-0BA22-1PA0 V4.7 to speed recovery?
Only after confirming the same motor, Power Module, encoder, I/O, network and safety design. A convenient backup from another axis can carry hazardous mismatched parameters.
What should receiving request with 6SL3246-0BA22-1PA0 V4.7 besides the control unit hardware?
Request documented firmware, licenses, memory media and the exact supplied scope. Those items determine whether the spare can reproduce the installed drive functions.
