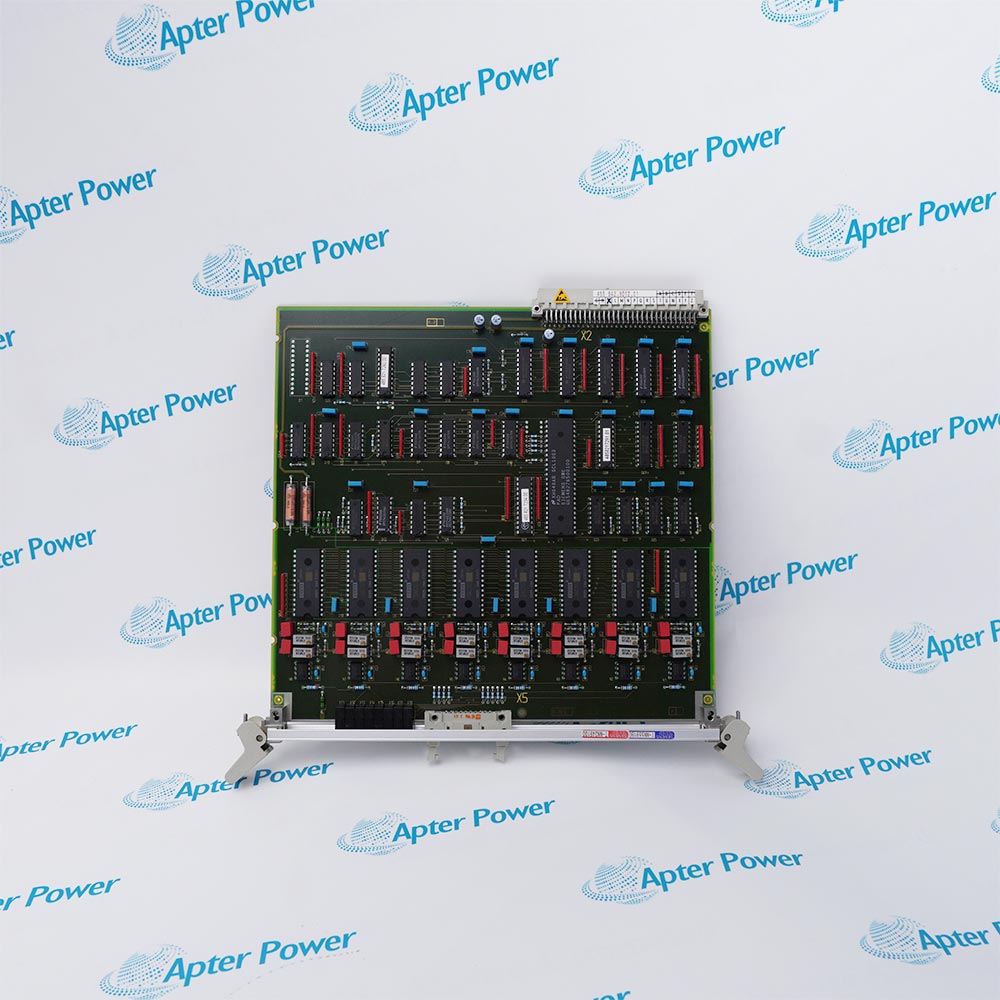

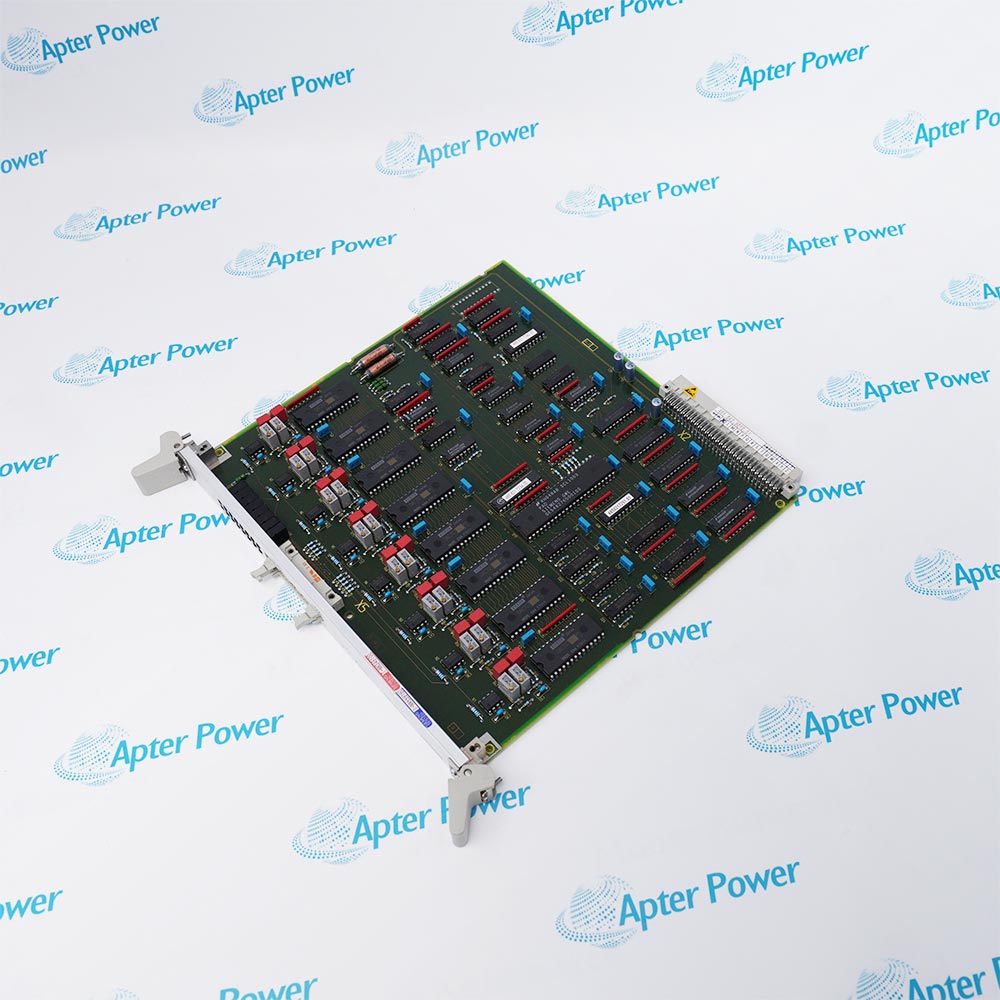

The Siemens 6DD1642-0BC0 I/O module EA12 is designed for integration into SIMADYN D control systems and facilitates the connection of measuring devices during system startup and commissioning.
Get a quick price for 6DD1642-0BC0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6DD1642-0BC0

  • Manufacturer:
    Siemens
  • Part Number:
    6DD1642-0BC0
  • Product Family:
    Siemens Simadyn
  • Output voltage, min.:
    - 10 V
  • Output voltage, max.:
    + 10 V
  • Output current:
    +/- 10 mA max.
  • Output current:
    (at +/- 10 V) +/- 5 mA (recommended to suppress noise)
  • Resolution:
    13 bits + sign (corresponds to 1 mV)
  • Accuracy:
    14 bits (corresponds to 1 mV)
  • Short-circuit protection to ground:
    With 56 Ohm resistor
  • Short-circuit duration:
    120 s
  • Weight:
    0.38 kg
  • Estimated shipping dimensions:
    2x26.1x26.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Firmware & Updates Safety & Compliance

Features:

  • Connection Between the SIMADYN D Control System and External Analog Devices
  • Integration of 8-Channel Voltage Output Capability with Field-Adjustable Calibration Support
  • Designed for Seamless Operation with SIMADYN D Processors and Standard Industrial Equipment
The SIEMENS 6DD1642-0BC0 I/O module EA12 serves as the dedicated analog output interface within a SIMADYN D rack, delivering precise voltage signals to all connected field devices throughout the system. It consistently generates 8 analog outputs (0-10 V range) with 10 mA per-channel load capacity and transmits these signals through the 20-pin front connector to maintain continuous operation of drives, valves, and positioning systems. Built-in short-circuit protection is inherent to the 6DD1642-0BC0, while the front-mounted test socket pairs enable direct connection of measuring equipment for streamlined commissioning and diagnostic verification. The 6DD1642-0BC0 introduces enhanced flexibility compared to earlier analog output modules, particularly through its user-accessible offset and gain adjustment mechanism tailored for varying ambient temperature conditions.

The 6DD1642-0BC0 fulfills essential signal conversion requirements across the entire control architecture, functioning as a vital element of the output path that directly influences accurate, stable performance of the overall automation system. One or several 6DD1642-0BC0 modules may be installed per rack based on specific application demands for analog output channels. The 6DD1642-0BC0 occupies a single slot position and maintains communication with the central controller through the integrated L bus connection.

For Applications Requiring Precision Calibration, the 6DD1642-0BC0 I/O module necessitates a warm-up period of approximately 2 minutes prior to any adjustment activity. Beyond routine signal generation, the calibration functionality permits real-time output refinement. The 6DD1642-0BC0 dual-potentiometer system implements fine-tuning through independent offset and gain controls located on the module faceplate. Through this approach, the adjustment mechanism actively responds to thermal variations within the operational environment. Should output accuracy deviate from specified parameters due to temperature fluctuations (characterized by maximum drift of ±240 µV per ±1° C change), technicians can perform corrective calibration via the unsealed potentiometers without interrupting system operation or replacing the 6DD1642-0BC0 module.

The 6DD1642-0BC0 SIEMENS I/O module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6DD1642-0BC0 I/O module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
SIEMENS 6DD1642-0BC0 I/O module Specs

General

  • Manufacturer SIEMENS
  • Model 6DD1642-0BC0
  • Condition New Original ready stock
  • Product Family 6DD1600-0AJ0,6DD1645-0AE0,6DD1606-4AB0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Closed-Loop Drive Control: Providing setpoint values for speed or torque in high-performance motor drives.
  • Motion Control: Executing fast arithmetic tasks for complex machinery movements.
  • Signal Interfacing: Outputting analog voltages to secondary devices like valves, actuators, or chart recorders via its 20-way ribbon cable (X5) or front-plate test sockets.
  • Configuration Software: The module is configured using STEP 7 combined with the D7-SYS add-on, utilizing Continuous Function Charts (CFC) for programming.
  • Update Status: There are no standalone firmware "updates" for the EA12 itself, as it is a hardware output interface. For system-level security or performance, users must maintain the latest compatible version of the SIMATIC D7-SYS software.
  • Environmental Compliance: The product is not RoHS-compliant.
  • Short-Circuit Protection: Outputs are protected against short circuits for up to 120 seconds.
  • Load Limits: The total signal load for each channel must not exceed 10 mA.
  • Installation Personnel: Only qualified personnel who understand electrical safety and ESD (Electrostatic Discharge) protocols should handle or install this unit to prevent personal injury or hardware damage.
Description
The SIEMENS 6DD1642-0BC0 I/O Module EA12 is an analog output module designed for integration within SIMADYN D control systems. This 6DD1642-0BC0 module provides 8 analog outputs, making it suitable for applications requiring precise voltage control signals. The 6DD1642-0BC0 features a 20-pin connector for the analog outputs, ensuring reliable connectivity in industrial environments. Additionally, the 6DD1642-0BC0 is equipped with 8 test socket pairs (2.3 mm) located on the front panel, which allow for convenient connection of measuring equipment during system start-up and commissioning procedures.

The 6DD1642-0BC0 I/O Module EA12 is specifically engineered to address the challenges of precise analog signal generation in industrial automation processes. This 6DD1642-0BC0 module is ideal for applications such as drive control, process automation, and closed-loop control systems where accurate analog voltage outputs are critical for controlling external devices like variable frequency drives, proportional valves, and positioning systems. The 6DD1642-0BC0 solves the problem of signal drift and temperature-induced inaccuracies that commonly affect analog control systems, ensuring consistent and reliable performance across varying operational conditions.

The 6DD1642-0BC0 I/O Module EA12 incorporates an L bus connection for seamless integration into the SIMADYN D system architecture. Users should note that the switch-mode power supply of the 6DD1642-0BC0 may cause voltage spikes up to 100 mV on the ground cable. These disturbances can be effectively suppressed through smoothing at the load input or by utilizing low-ohmic loads, ensuring clean signal transmission in sensitive control applications where the 6DD1642-0BC0 is deployed.
Alternative Names
6DD1641-0AC0 6DD1606-4AB0 6DD1606-3AC0 6DD1601-0AH0 6DD1642 0BC0
Technical notes
SIEMENS 6DD1642-0BC0 I/O module includes an L bus connection, enabling seamless integration into the SIMADYN D system architecture for coordinated control and communication.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the SIEMENS 6DD1642-0BC0 EA12 module?
The SIEMENS 6DD1642-0BC0 EA12 is an analog output module developed by Siemens for the SIMADYN D control system. It is designed to provide precise voltage output signals for industrial automation applications.
Are there any considerations regarding electrical noise?
The internal switch-mode power supply may introduce voltage spikes of up to 100 mV on the ground line. These can be minimized by smoothing at the load input or using low-resistance loads to ensure clean signal output.
What makes the 6DD1642-0BC0 reliable for industrial use?
Its combination of precise analog output control, adjustable calibration, short-circuit protection, and robust system integration makes it a dependable solution for demanding industrial automation environments.
