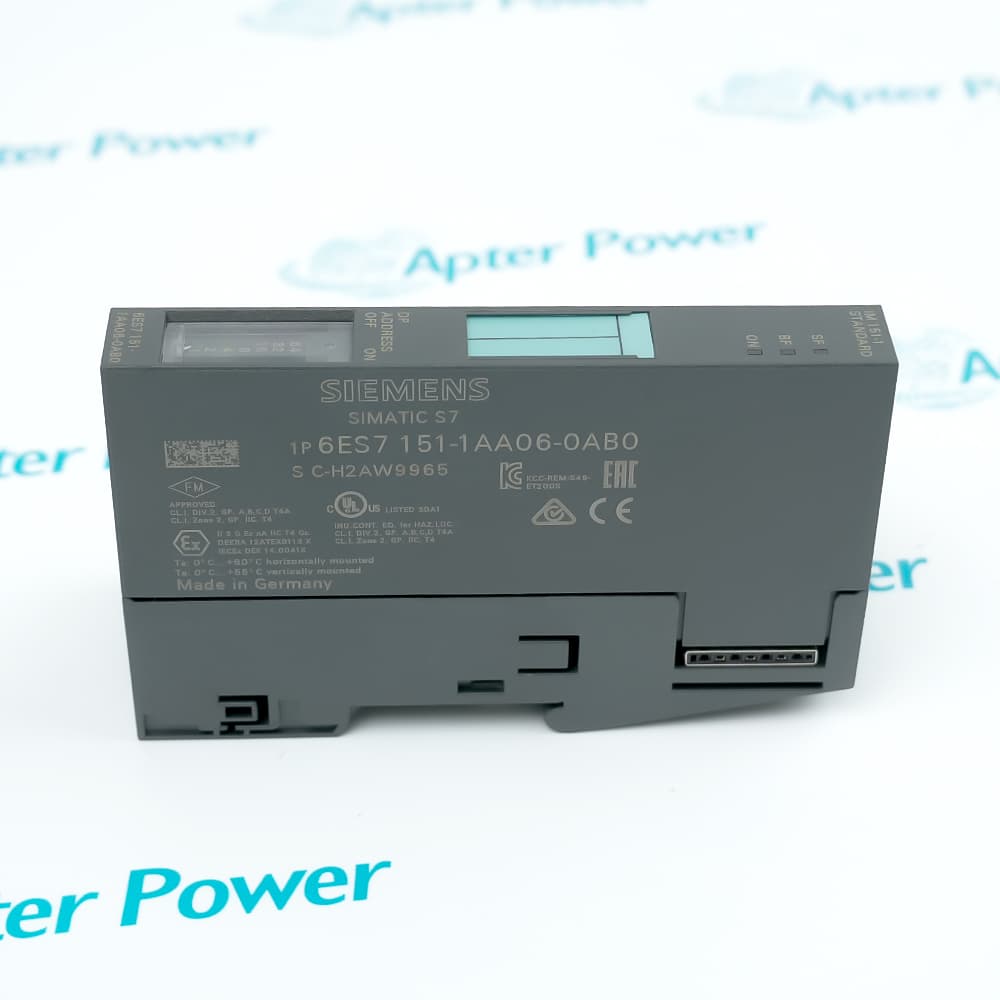

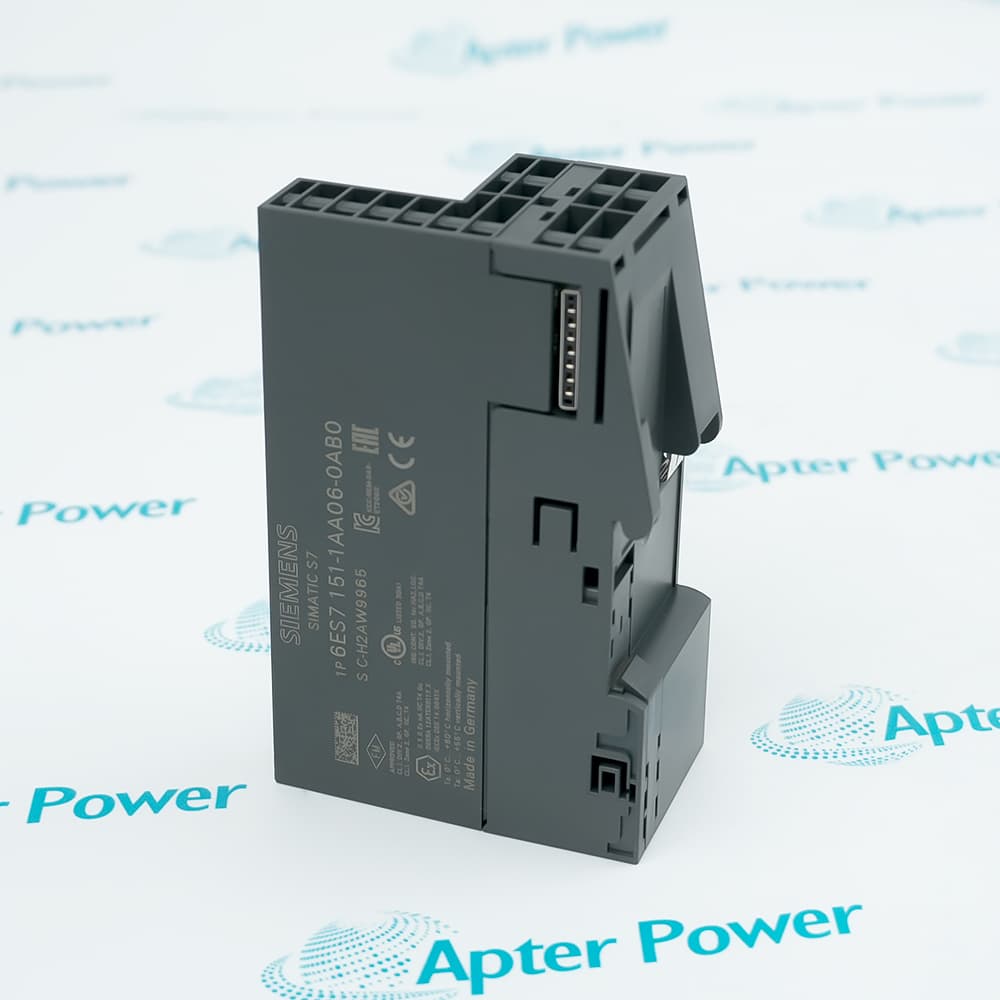

Siemens 6ES7151-1AA06-0AB0 is the IM 151-1 Standard interface that connects an ET 200S station to PROFIBUS DP through RS-485.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7151-1AA06-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7151-1AA06-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7151-1AA06-0AB0
  • Product Family:
    Siemens Simatic DP
  • Product Type:
    ET 200S IM 151-1 Standard Interface Module
  • Stock:
    1
  • Interface designation:
    IM 151-1 Standard
  • Fieldbus:
    PROFIBUS DP V0 and V1
  • Physical interface:
    RS-485, 9-pin Sub-D socket
  • Maximum transmission rate:
    12 Mbit/s
  • Maximum address volume:
    244 input bytes and 244 output bytes
  • Maximum I/O modules:
    63
  • Maximum station width:
    2 m
  • Weight:
    0.167 kg
  • Estimated shipping dimensions:
    8.3 x 12.5 x 7 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals PROFIBUS DP Role Station Capacity Commissioning Boundary Product Applications

Features:

  • PROFIBUS DP station head: RS-485 interface for ET 200S
  • Address capacity: 244 bytes each for input and output data
  • Station scale: up to 63 I/O modules across a two-meter backplane
6ES7151-1AA06-0AB0 serves as the communications boundary between ET 200S I/O and a PROFIBUS DP master.

Its DPV0 and DPV1 support covers cyclic operation as well as the acyclic services available to the Standard interface.

The included termination module closes the documented supply scope for the end of the ET 200S station.
Apter Power can review 6ES7151-1AA06-0AB0 station limits, termination-module scope, condition, and quotation requirements.
Siemens 6ES7151-1AA06-0AB0 ET 200S IM 151-1 Standard Interface Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Station function: the module operates as a PROFIBUS DP slave interface.
  • Protocol levels: Siemens lists DPV0 and DPV1 operation.
  • Physical layer: bus communication uses RS-485.
  • Connector: the fieldbus attaches through a 9-pin Sub-D socket.
  • Input addressing: up to 244 bytes are available.
  • Output addressing: up to 244 bytes are available.
  • Module count: the station supports as many as 63 I/O modules.
  • Mechanical span: total station width is limited to two meters.
  • Termination: Siemens includes the required termination module.
  • Engineering access: firmware updates can be carried over PROFIBUS DP with STEP 7.
  • Diagnostics: bus fault, group error, and 24 V supply states have dedicated LEDs.
  • Isochronous mode: the Standard interface does not support it.
  • ET 200S distributed I/O: connect a modular station to a PROFIBUS DP controller.
  • DPV1 service access: use the supported acyclic services within an S7 project.
  • Legacy station maintenance: retain the IM 151-1 Standard architecture when servicing installed nodes.
Description
At the head of an ET 200S station, 6ES7151-1AA06-0AB0 exchanges distributed I/O data with a PROFIBUS DP master. The IM 151-1 Standard supports DPV0 and DPV1 operation through a 9-pin Sub-D RS-485 connection, keeping the station within the established SIMATIC DP architecture.

A station built around 6ES7151-1AA06-0AB0 can address as many as 244 input bytes and 244 output bytes across up to 63 I/O modules. That capacity lets an existing node remain consolidated, provided the two-meter station-width and module-specific loading rules are respected.

Siemens documents 6ES7151-1AA06-0AB0 as a spare part supplied with the termination module. Its ET 200S identity is decisive: categorizing it as ET 200SP would point buyers toward a different mechanical and system platform.
Alternative Names
6ES71511AA060AB0 Siemens IM 151-1 Standard ET 200S PROFIBUS DP interface module SIMATIC DP IM151-1 ST
Technical notes
6ES7151-1AA06-0AB0 is an ET 200S PROFIBUS DP interface, not an ET 200SP component. Its station limit is 63 I/O modules and two meters, while each installed 2DO AC 24-230 V electronic module reduces the permitted count by one; recalculate the node before expanding a populated rack.
