        6ES5454-4UA13

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

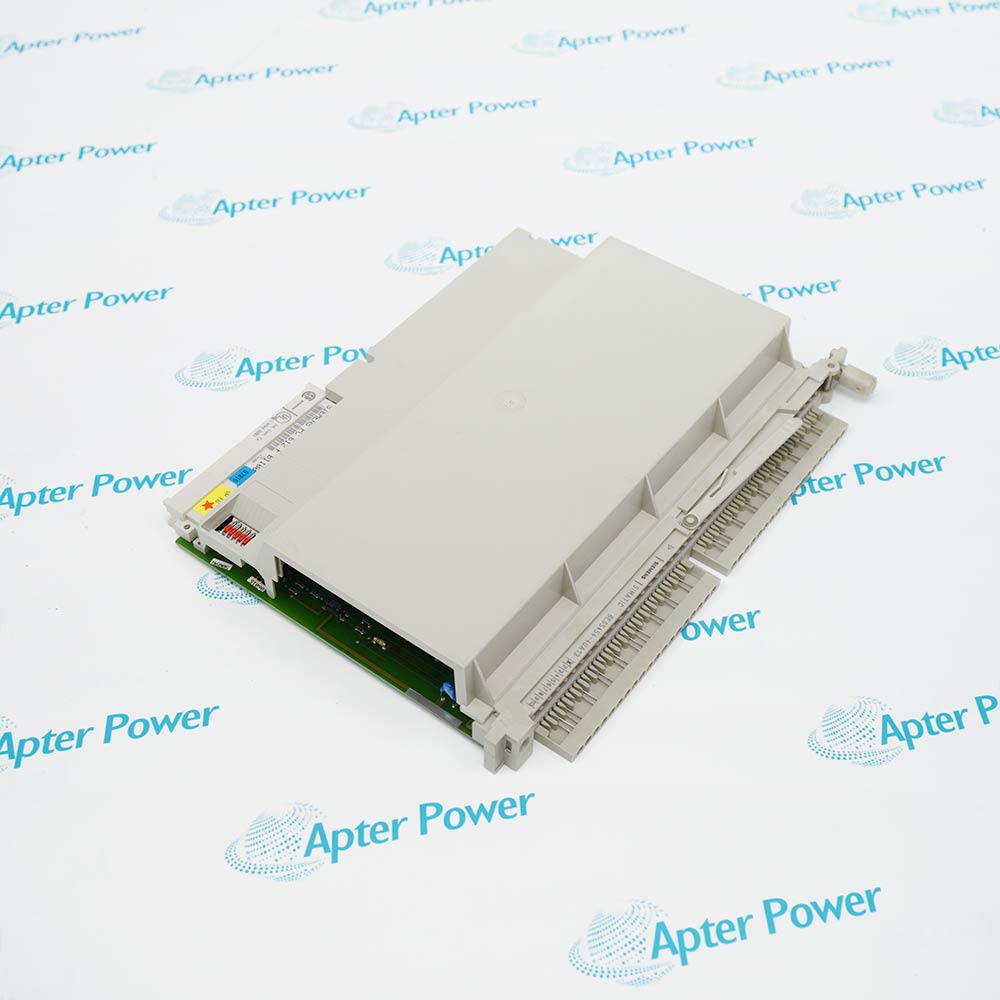

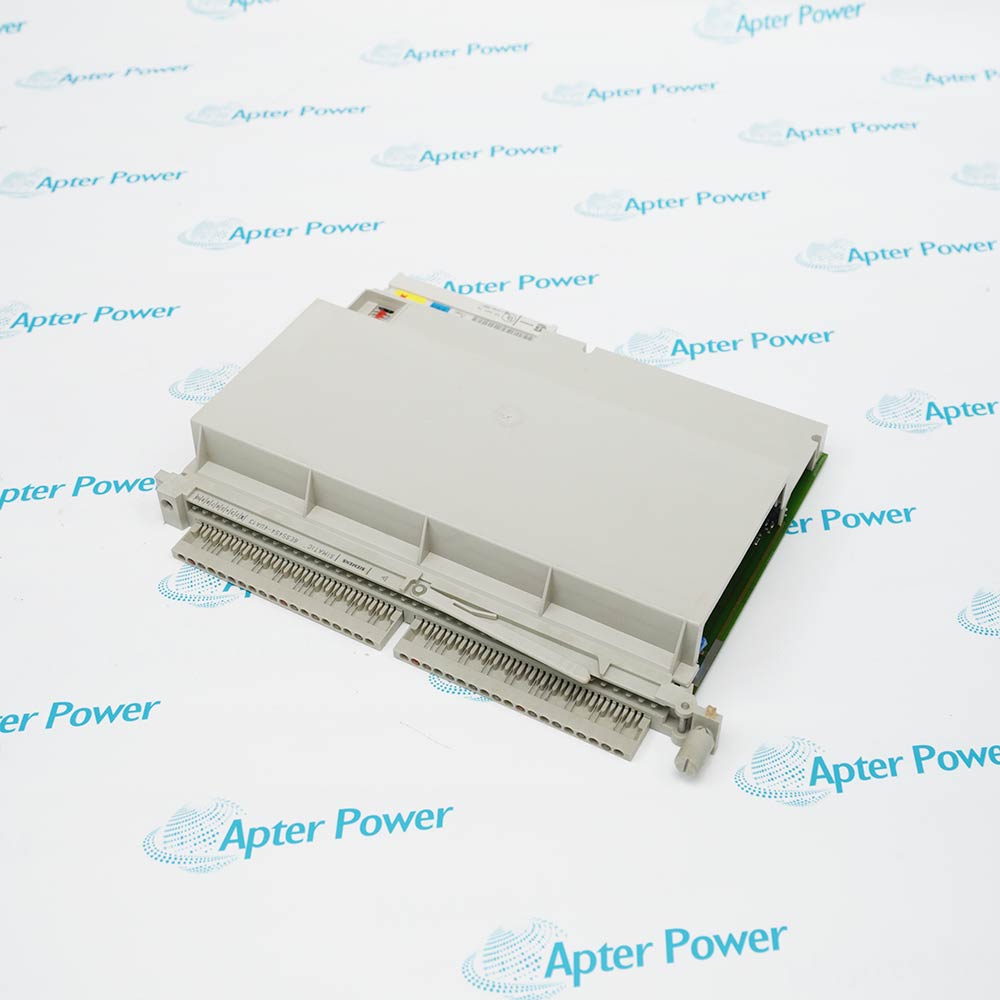

        Siemens 6ES5454-4UA13 is a SIMATIC S5 454 output module with sixteen floating 24 V DC channels rated for the documented 2 A-per-point class. It provides direct actuator control.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for 6ES5454-4UA13
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6ES5454-4UA13

        • Manufacturer:
          Siemens
        • Part Number:
          6ES5454-4UA13
        • Product Family:
          Siemens Simatic S5
        • Product Type:
          SIMATIC S5 454 digital output module
        • Stock:
          1
        • Rated supply voltage:
          24 V DC (L+)
        • Number of outputs:
          16
        • Isolation:
          Yes, 1 group of 16 outputs
        • Supply range:
          20 to 30 V DC
        • Fuse rating:
          6.3 A slow / 7 A fast, one fuse per 4 outputs
        • Logic 1 output level:
          L+ - 2 V min.
        • Logic 0 output level:
          3 V max.
        • Switching current:
          10 mA to 2 A
        • Residual current at logic 0:
          1 mA max.
        • Lamp current:
          0.45 A max. (10 W)
        • Switching frequency, resistive:
          100 Hz max.
        • Switching frequency, inductive at 1 A:
          0.2 Hz max.
        • Switching frequency, inductive at 2 A:
          0.1 Hz max.
        • Breaking voltage:
          L+ - 47 V
        • Total switching current:
          4 A max. per 4 outputs
        • Coincidence factor:
          50%
        • Digital section supply:
          5 V, 100 mA typical
        • 24 V current consumption:
          100 mA typical
        • Power dissipation:
          17.5 W
        • Enable input current:
          5 mA
        • Weight:
          1.21 lbs (0.55 kg)
        • Estimated shipping dimensions:
          40 mm x 255 mm x 195 mm
        • Tariff Code:
          85389091
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Diagnostics & Protection Integration Communication & Connectivity

        Features:

        • Sixteen floating 24 V DC outputs provide actuator control.
        • Each channel is rated for the 2 A output class of the 454 UA13 card.
        • Short-circuit monitoring is provided for the 454 output design.
        The UA13 configuration combines sixteen DC outputs with four-point fusing and 17.5 W rated dissipation.

        It serves valve, contactor, lamp, and interlock commands in a maintained SIMATIC S5 cabinet.

        Check load inductance, connector wiring, fuse selection, and the 454 slot assignment before live testing.

        Quotations are checked against the UA13 454 output variant and its current sourcing evidence.
        Product resources for Siemens 6ES5454-4UA13:
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Switches DC valves, contactors, indicators, and interlock devices.
        • Groups sixteen actuator commands at one legacy S5 module position.
        • Restores an installed 454 output station without changing the controller family.
        • Four-output protection groups make a short-circuit location visible at the module front.
        • The H+ signal provides a shared fault indication for the protected DC output channels.
        • Use the specified fuse and line-resistance conditions so the short-circuit monitor can operate correctly.
        • The sixteen outputs use one isolated field group and a 24 V DC L+ supply at the rack connector.
        • Plan the front jumper and fuse positions together with the existing S5 output address map.
        • Allow the documented lamp and contactor wiring space around the compact U-format assembly.
        • The S5 backplane carries the module logic supply while the front connector carries the DC field loads.
        • Output status is exchanged with the controller through the local rack process image rather than a network port.
        • The shared H+ indication can be brought into the cabinet alarm wiring for local fault reporting.
        Description
        Siemens 6ES5454-4UA13 is a sixteen-point 454 output module for 24 V DC actuator control, with the documented 2 A class. It provides a compact bridge between S5 logic and grouped field loads.

        The output set can drive valves, contactors, indicators, and interlock devices in legacy automation cabinets. Short-circuit monitoring and per-group protection support practical maintenance of the installed output station. Four-output groups allow the 2 A-class channels to be matched to actuator banks rather than mixed indiscriminately.

        Confirm the 454 rack slot, actuator polarity, connector conductors, fuse grouping, and inductive-load behavior before commissioning. The module uses a 40 mm × 255 mm × 195 mm mechanical format. The 6.3 A slow-fuse arrangement should be reviewed together with coil suppression and the installed 24 V DC supply capacity.
