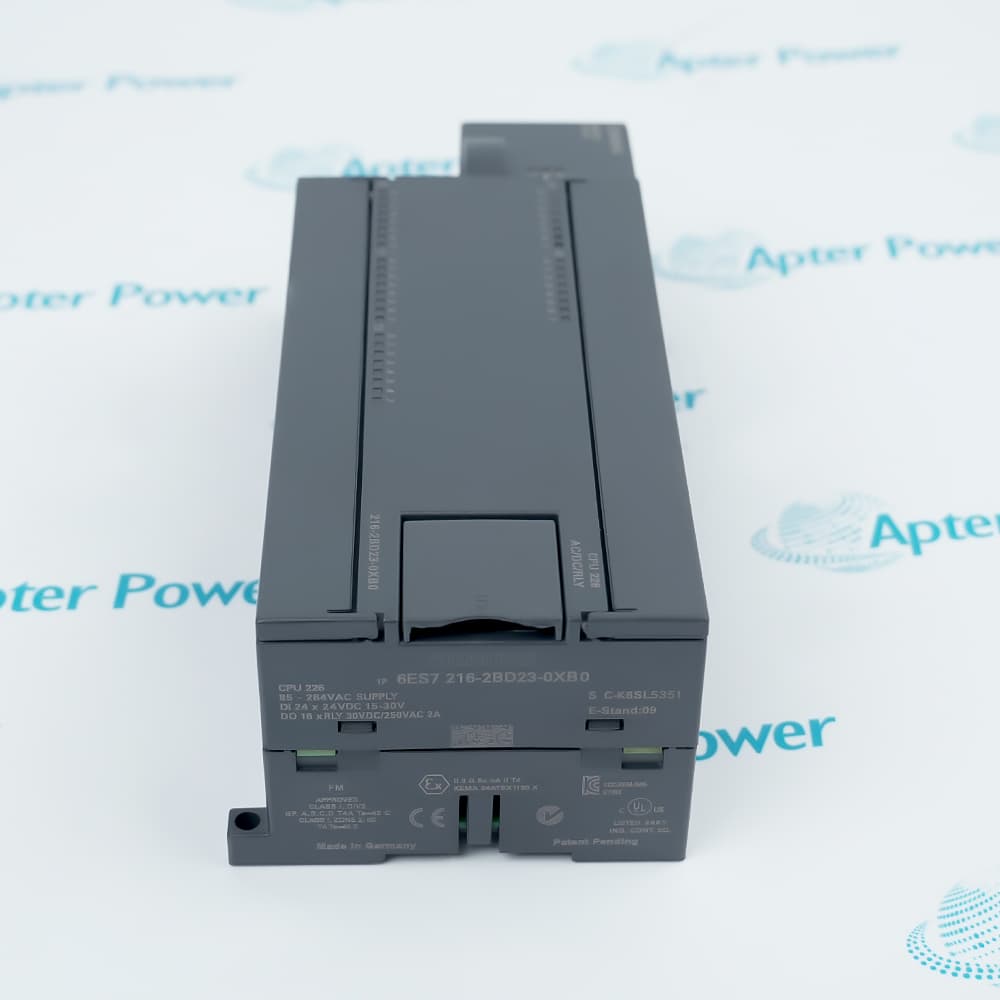

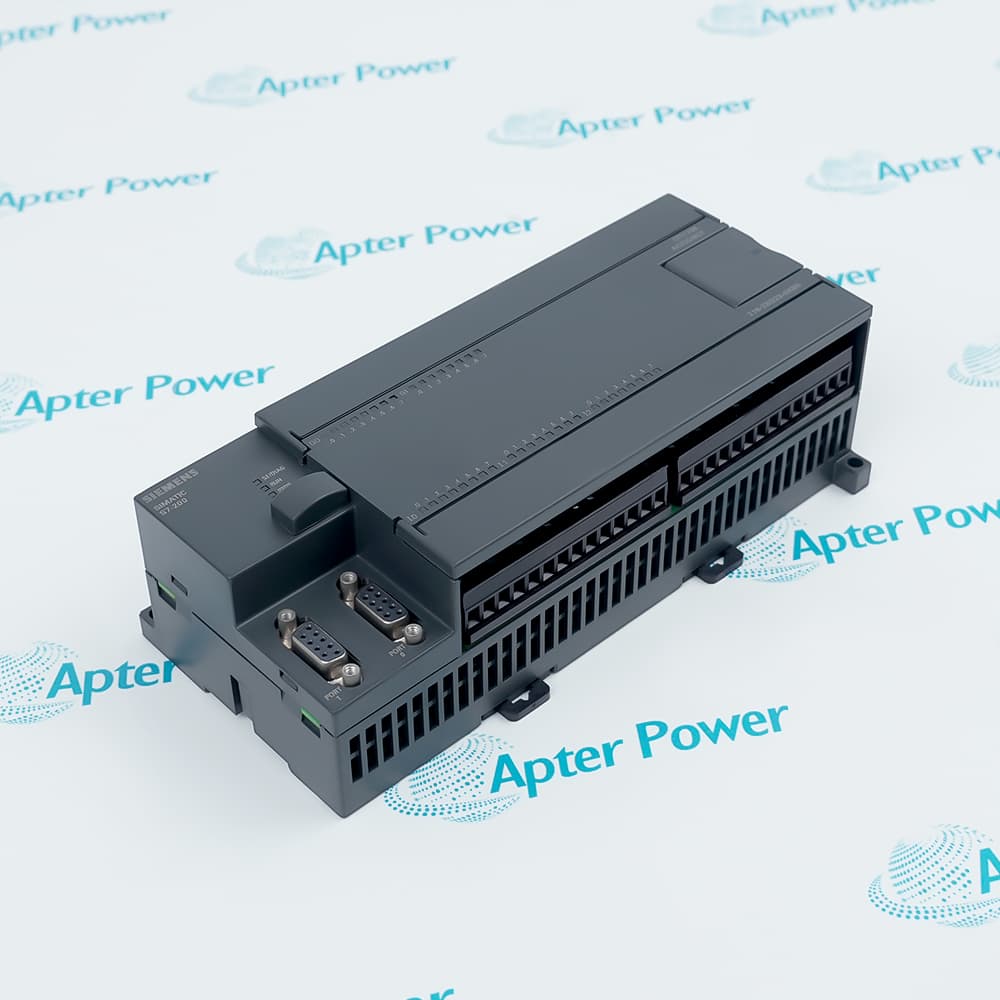

Siemens 6ES7216-2BD23-0XB0 is a SIMATIC S7-200 CPU 226 compact PLC with an AC power supply, 24 digital inputs, 16 relay outputs, and two integrated RS-485 interfaces.
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 6ES7216-2BD23-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7216-2BD23-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7216-2BD23-0XB0
  • Product Family:
    Siemens Simatic S7-200
  • Product Type:
    AC-Powered Compact PLC
  • CPU Type:
    SIMATIC S7-200 CPU 226
  • Rated / Permissible AC Supply:
    120/230 V AC / 85-264 V AC, 47-63 Hz
  • Typical Power Loss:
    17 W
  • 24 V Sensor Supply:
    400 mA max
  • Digital Inputs:
    24 x 24 V DC
  • Digital Outputs:
    16 relay outputs
  • Relay Output Current:
    2 A resistive per output
  • Output Short-Circuit Protection:
    No; external protection required
  • Program Memory:
    24 KB; 16 KB with runtime edit
  • Data Memory:
    10 KB
  • Bit Operation Time:
    0.22 µs max
  • Expansion Modules:
    7 max
  • Maximum Integrated and Expanded I/O:
    148 digital I/O; 35 analog I/O
  • Communication Interfaces:
    2 x RS-485
  • Protocols:
    PPI, MPI slave, Freeport
  • Freeport Data Rate:
    1.2-115.2 kbit/s
  • High-Speed Counters:
    6 x 30 kHz; quadrature up to 20 kHz
  • Operating Temperature:
    0-55 °C horizontal; 0-45 °C vertical
  • Protection Rating:
    IP20
  • Product Dimensions:
    196 x 80 x 62 mm
  • Weight:
    1.455 lbs (0.66 kg)
  • Estimated shipping dimensions:
    11.1 x 20.5 x 7.4 cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance & Efficiency Environmental Ratings Applications

Features:

  • Two Integrated RS-485 Communication Interfaces
  • Twenty-Four Digital Inputs and Sixteen Relay Outputs
  • Six 30 kHz High-Speed Counters
The Siemens 6ES7216-2BD23-0XB0 is the SIMATIC S7-200 CPU 226 configuration with an AC supply, 24 DC inputs, 16 relay outputs, and support for up to seven expansion modules.

Two integrated RS-485 ports support PPI, MPI slave, and Freeport communication at data rates up to 115.2 kbit/s.

Relay outputs support documented 5-30 V DC and 5-250 V AC resistive loads up to 2 A; external short-circuit protection and project-level replacement checks are required.

Apter Power can provide quotations, technical documentation, sourcing support, and S7-200 system-matching guidance for this discontinued configuration.
Verified resources for Siemens 6ES7216-2BD23-0XB0:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6ES7216-2BD23-0XB0 Compact PLC Specs

General

  • ManufacturerSiemens
  • Model6ES7216-2BD23-0XB0
  • Product FamilySIMATIC S7-200 CPU 226
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Executes bit operations in up to 0.22 µs for responsive compact-machine control.
  • Provides 24 KB of program memory and 10 KB of data memory for user logic and process values.
  • Includes six 30 kHz high-speed counters, with quadrature counting available up to 20 kHz.
  • Operates from 0 to 55 °C in horizontal installation and from 0 to 45 °C in vertical installation.
  • Carries an IP20 protection rating and is intended for installation inside a suitable control enclosure.
  • Supports 5-95% relative humidity without condensation under the documented operating conditions.
  • Runs sequence, interlock, and equipment-control logic in legacy SIMATIC S7-200 machines.
  • Switches mixed AC or DC field loads through 16 integrated relay outputs within the specified ratings.
  • Expands compact installations with up to seven modules and two serial communication interfaces.
Description
The Siemens 6ES7216-2BD23-0XB0 is a SIMATIC S7-200 CPU 226 compact controller with 24 KB of program memory, 10 KB of data memory, and a maximum bit-operation time of 0.22 µs. Its integrated EEPROM stores the user program without maintenance, while the high-performance capacitor and optional battery support retentive data backup.

It integrates 24 sink/source 24 V DC inputs and 16 relay outputs arranged in isolated groups. Each relay output supports resistive loads up to 2 A within the documented 5-30 V DC or 5-250 V AC ranges, and external short-circuit protection is required.

Two integrated RS-485 interfaces support PPI, MPI slave, and Freeport communication, including serial ASCII exchange up to 115.2 kbit/s. The CPU accepts up to seven expansion modules; confirm the STEP 7-Micro/WIN project, wiring, communications, and expansion layout before migration or replacement.
Alternative Names
6ES7216-2BD23-0XB0 6ES72162BD230XB0 6ES7216 2BD23 0XB0 Siemens 6ES7216-2BD23-0XB0 Siemens SIMATIC S7-200 CPU 226 Siemens CPU 226 AC/DC/Relay Siemens S7-200 CPU 226 24 DI 16 Relay Siemens 6ES7216 CPU 226
Technical notes
Siemens 6ES7216-2BD23-0XB0 relay outputs are not short-circuit protected; apply correctly rated external protection and confirm AC/DC load limits before wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What integrated I/O configuration does Siemens 6ES7216-2BD23-0XB0 provide?
This CPU 226 uses an AC supply and integrates 24 digital DC inputs with 16 relay outputs for mixed-load compact automation.
Which communication options are built into Siemens 6ES7216-2BD23-0XB0?
Two RS-485 interfaces support PPI, MPI slave, and Freeport communication. Native Ethernet is not integrated, so any gateway or expansion option must be checked separately.
What applications suit Siemens 6ES7216-2BD23-0XB0?
It suits legacy S7-200 machine sequencing, interlocks, relay-load switching, and compact installations that require local I/O expansion.
How should the supply status of Siemens 6ES7216-2BD23-0XB0 be handled?
The order number is a discontinued spare-part configuration. Apter Power can review sourcing channels and quote the requested quantity without implying factory availability.
Is there a drop-in replacement for Siemens 6ES7216-2BD23-0XB0?
Do not assume a drop-in replacement. Confirm the STEP 7-Micro/WIN program, wiring, expansion modules, communications, and field loads before any migration.
What details are needed for a Siemens 6ES7216-2BD23-0XB0 manual or quotation request?
Send the complete MLFB, CPU label or version, quantity, destination, and required documentation so Apter Power can check the correct configuration.
