6ES7288-0ED10-0AA0

/ 4.9
1001 reviews | Need a Specific Revision?

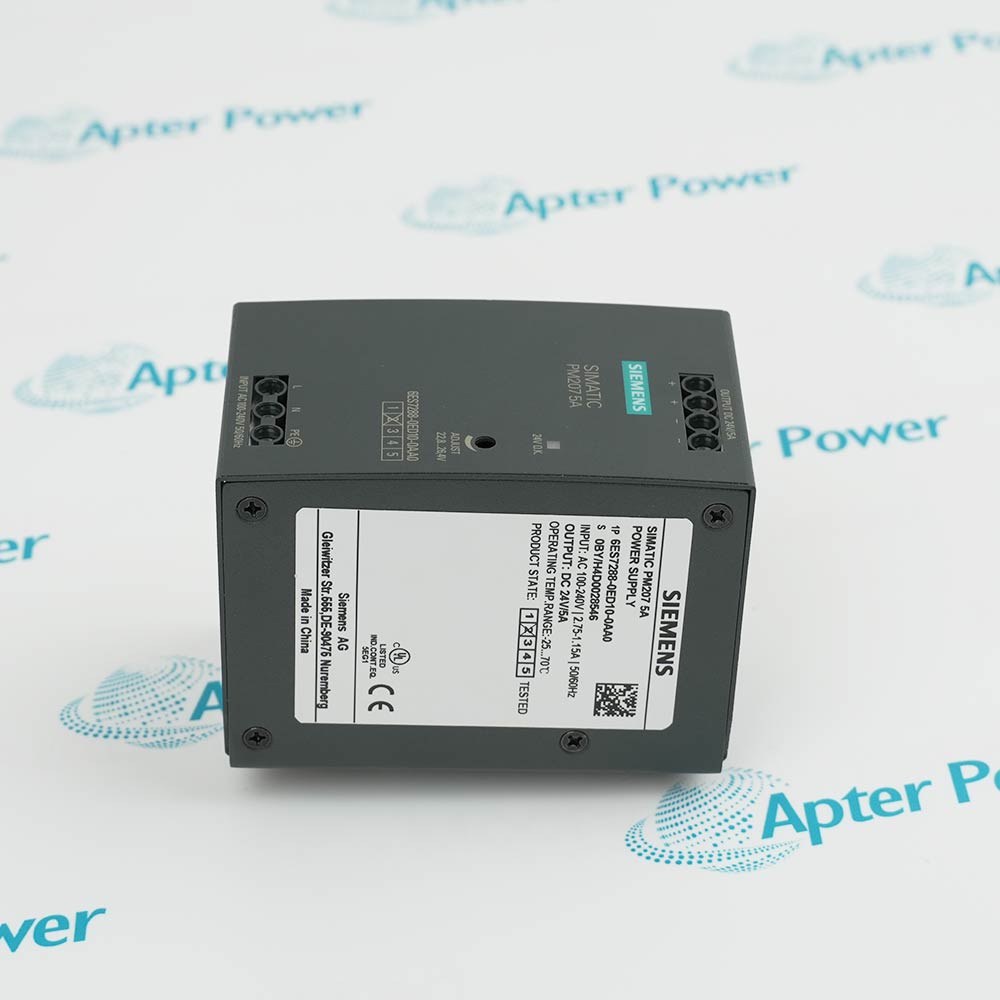

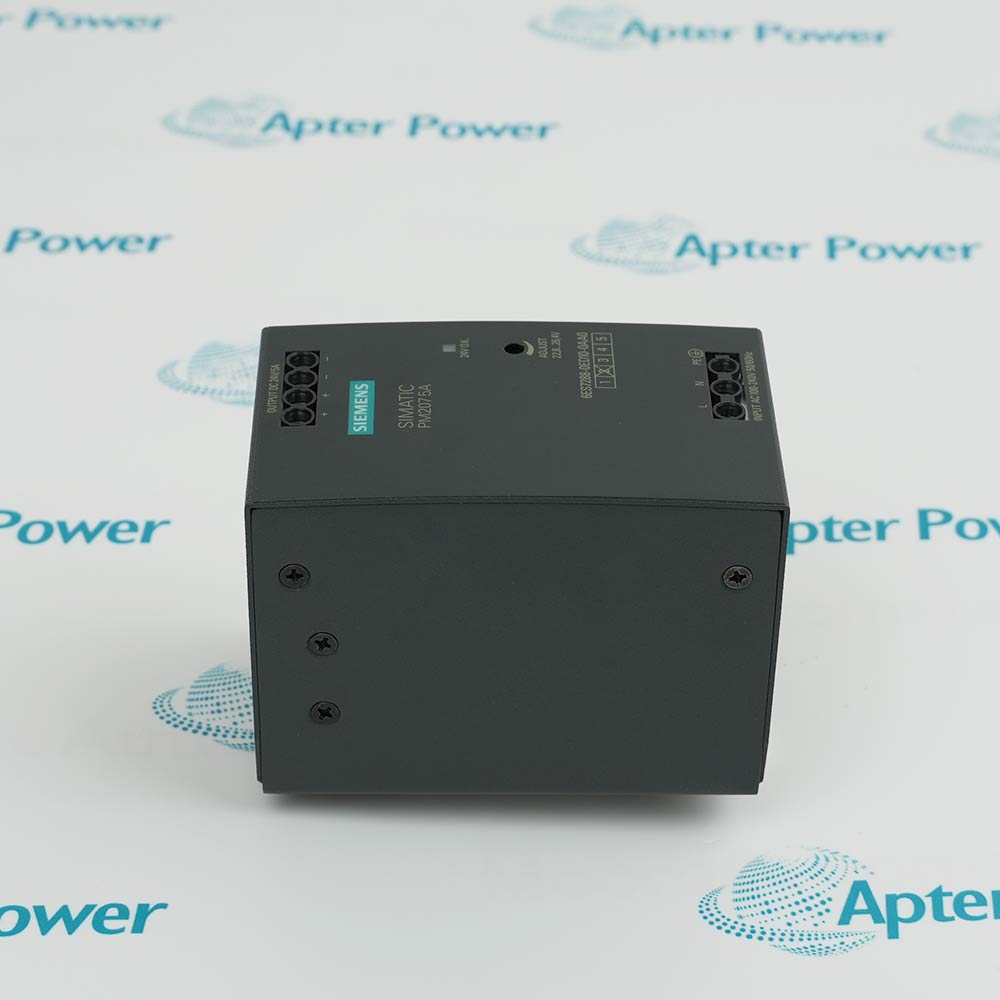

The 6ES7288-0ED10-0AA0 is a Siemens SIMATIC PM207 power supply for S7-200 SMART, accepting 100-240V AC input and providing 24V DC output at 5A, with 89% efficiency and CCC approval.
Get a quick price for 6ES7288-0ED10-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7288-0ED10-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7288-0ED10-0AA0
  • Product Family:
    Siemens Simatic S7-200
  • Product Type:
    Power Supply Module
  • Input Type:
    1-phase AC
  • Input Voltage AC (nominal):
    100-240V
  • Input Voltage AC (range):
    85-264V
  • Input Voltage DC (range):
    88-370V
  • Line Frequency:
    47-63 Hz
  • Input Current (120V):
    2.75 A
  • Input Current (230V):
    1.15 A
  • Inrush Current (max):
    30 A
  • I²t Value:
    1.5 A²·s
  • Output Voltage (nominal):
    24V DC
  • Output Voltage Adjustable:
    22.8-26.4V
  • Output Current (rated):
    5 A
  • Output Power (typ):
    120 W
  • Efficiency (typ):
    89%
  • Power Loss (typ):
    15 W
  • Output Overshoot:
    <1%
  • Response Delay (max):
    0.5 s
  • Voltage Rise Time (typ):
    50 ms
  • Overvoltage Protection:
    <28.8V
  • Weight:
    0.6 kg
  • Estimated shipping dimensions:
    6x8.2x10cm
  • Tariff Code:
    8517795000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Firmware and Updates Configuration

Features:

  • Universal AC input accepts any global mains voltage without jumpers; also accepts DC input for battery‑backed systems.
  • Constant current short-circuit protection (6.5A typ); overvoltage protection (<28.8V); 20 ms buffering time for power interruptions.
  • CE, cULus (UL 508), CCC (China), CB, BIS (India); MTBF 500,000 hours at 40°C; suitable for international machinery export.
The 6ES7288-0ED10-0AA0 is designed for global deployment. It accepts AC input from 85 to 264V, covering all standard mains voltages (100V Japan, 120V US, 230V Europe, 240V Australia) without jumper changes. This eliminates the risk of connecting to the wrong voltage and reduces spare part inventory – one power supply serves installations worldwide. Additionally, the unit accepts DC input from 88 to 370V, allowing it to be powered from battery banks, DC distribution systems, or solar installations.

The 6ES7288-0ED10-0AA0 includes comprehensive protection features to safeguard both the power supply and connected loads. Short-circuit protection uses a constant current characteristic: when the output is overloaded or shorted, the current is limited to 6-7A (6.5A typical) instead of shutting down completely. This allows the power supply to automatically recover when the fault is removed, reducing downtime. Overvoltage protection clamps the output at less than 28.8V, preventing damage to sensitive 24V PLCs and I/O modules in the event of an internal failure.

The 6ES7288-0ED10-0AA0 carries a comprehensive set of international approvals, simplifying compliance for machinery manufacturers and plant operators. It is CE marked for the European Union, cULus listed (UL 508, CSA C22.2 No. 107.1) for US and Canadian markets, CCC certified for China, CB certified for international markets, and BIS registered (R-41184349) for India. These certifications cover safety and electromagnetic compatibility, eliminating the need for separate country‑specific testing when exporting equipment. The unit also meets EN 55022 Class B for emitted interference (residential/light industrial) and EN 61000-6-2 for industrial immunity, making it suitable for both factory and environmental installations.

The 6ES7288-0ED10-0AA0 Siemens Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL)by the manufacturer (OEM).

Siemens 6ES7288-0ED10-0AA0 Power Supply Module Manuals, Datasheets,Drivers,Link Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
Siemens 6ES7288-0ED10-0AA0 Power Supply Module Specs

General

  • Manufacturer Siemens
  • Model 6ES7288-0ED10-0AA0
  • Condition New Original ready stock
  • Product Family 6ES7288-0ED00-0AA0,6ES7288-0ED20-0AA06EP1332-2BA00
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • PLC System Power Supply: Directly provides a stable power supply to the CPU module, signal expansion module, and communication module of the S7-200 SMART.
  • Peripheral Equipment Power Supply: With a 5A output current, it can also power sensors, actuators, relays, and touch screens (such as the SMART LINE series) in industrial settings.
  • Industrial Automation Applications: Commonly found in packaging machinery, machine tools, automated production lines, smart buildings, material handling systems, and control cabinets with high space requirements.
  • No firmware updates required: Unlike the CPU module, the power module does not execute program code. Therefore, it does not require firmware updates via Micro SD card or STEP 7-Micro/WIN SMART as CPUs (such as the SR20/ST20 series).
  • Maintenance Focus: The focus is on physical level maintenance, such as regularly checking whether the wiring terminals are loose and checking whether the LED status indicators are normal (green indicates normal output).
  • Plug & Play: This power module is typically not required in the hardware configuration of STEP 7-Micro/WIN SMART software. Simply install it correctly on the DIN rail and complete the electrical wiring.
  • Input Power: Supports wide voltage input (100-240V AC), handling common voltage fluctuations in industrial environments.
  • Mounting Method: Uses a standard 35mm DIN rail for mounting; its compact size (60x100x81 mm) helps save cabinet space.
Description
The 6ES7288-0ED10-0AA0 is a regulated power supply designed for SIMATIC S7-200 SMART systems. It converts 100-240V AC single-phase input (85-264V AC wide range) to a stabilized 24V DC output at 5A (120W). The unit has a wide input voltage range of 88-370V DC as well. Efficiency is 89% typical, with a power loss of 15W at rated output.

When using the 6ES7288-0ED10-0AA0, engineers benefit from a 20 ms buffering time during power failure (at Vin=170V). The output has overshoot of less than 1% on startup and a response delay of less than 0.5 seconds. Constant current short-circuit protection operates at 6-7A (6.5A typical).

The 6ES7288-0ED10-0AA0 features galvanic isolation between input and output, meeting SELV (Safety Extra Low Voltage) requirements per EN 60950-1. It has a green LED for output OK indication. Input current is 2.75A at 120V AC and 1.15A at 230V AC. Inrush current is limited to 30A maximum at 25°C.

For S7-200 SMART system expansions, the 6ES7288-0ED10-0AA0 provides a reliable regulated power supply. It carries multiple approvals: CE, cULus (UL 508), CCC, CB certificate, and BIS (R-41184349). MTBF at 40°C is 500,000 hours.
Alternative Names
6ES7288-OED10-OAAO 6ES7288-0ED00-0AA0 6ES7288-0ED20-0AA0 6EP1332-2BA00
Technical notes
The 6ES7288-0ED10-0AA0 has a wide input voltage range of 85-264V AC and also accepts 88-370V DC input. This makes it suitable for global AC mains (120V or 230V) as well as DC battery-backed systems without configuration changes.The output voltage rises to its final value in approximately 50 ms and has an overshoot of less than 1% .
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does 6ES7288-0ED10-0AA0 ride through brief power loss?
Yes. The 6ES7288-0ED10-0AA0 provides a minimum 20 ms buffering time at 170V AC input. This bridges short power interruptions, preventing CPU resets and maintaining process continuity in unstable grid conditions.
Is 6ES7288-0ED10-0AA0 short-circuit protected?
Yes. The 6ES7288-0ED10-0AA0 has constant current short-circuit protection. When overloaded, the output current is limited to 6-7A (6.5A typical). The supply recovers automatically when the fault is removed.
Can 6ES7288-0ED10-0AA0 output be adjusted?
Yes. The 6ES7288-0ED10-0AA0 has a potentiometer allowing adjustment of the output voltage from 22.8 to 26.4V DC. This compensates for voltage drop in long cables or when powering devices that require higher voltage.
What approvals does 6ES7288-0ED10-0AA0 have?
The 6ES7288-0ED10-0AA0 carries CE, cULus (UL 508), CCC (China), CB certificate, and BIS (India) approvals. This allows global use without recertification. It does not have ATEX, IECEx, or marine approvals.
