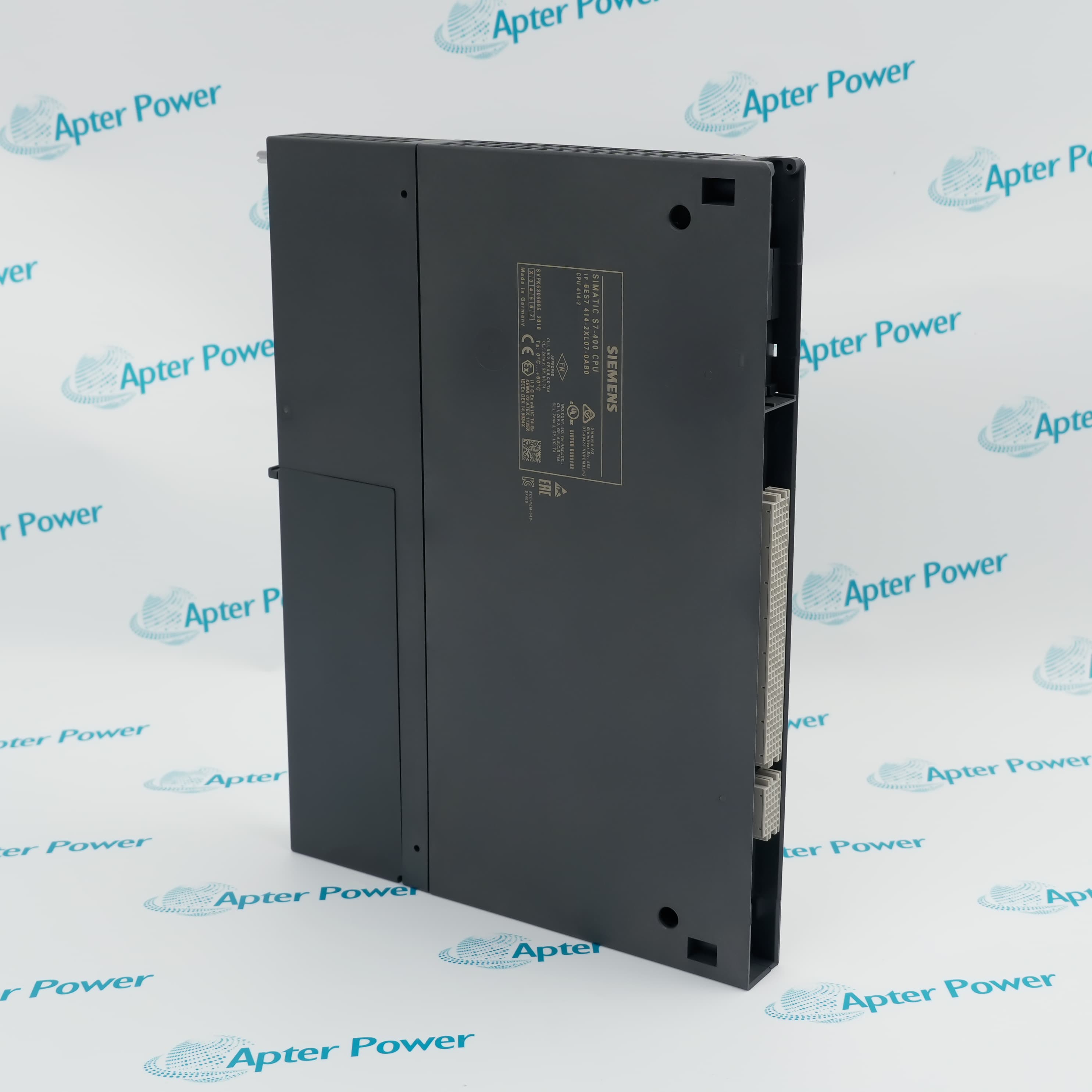

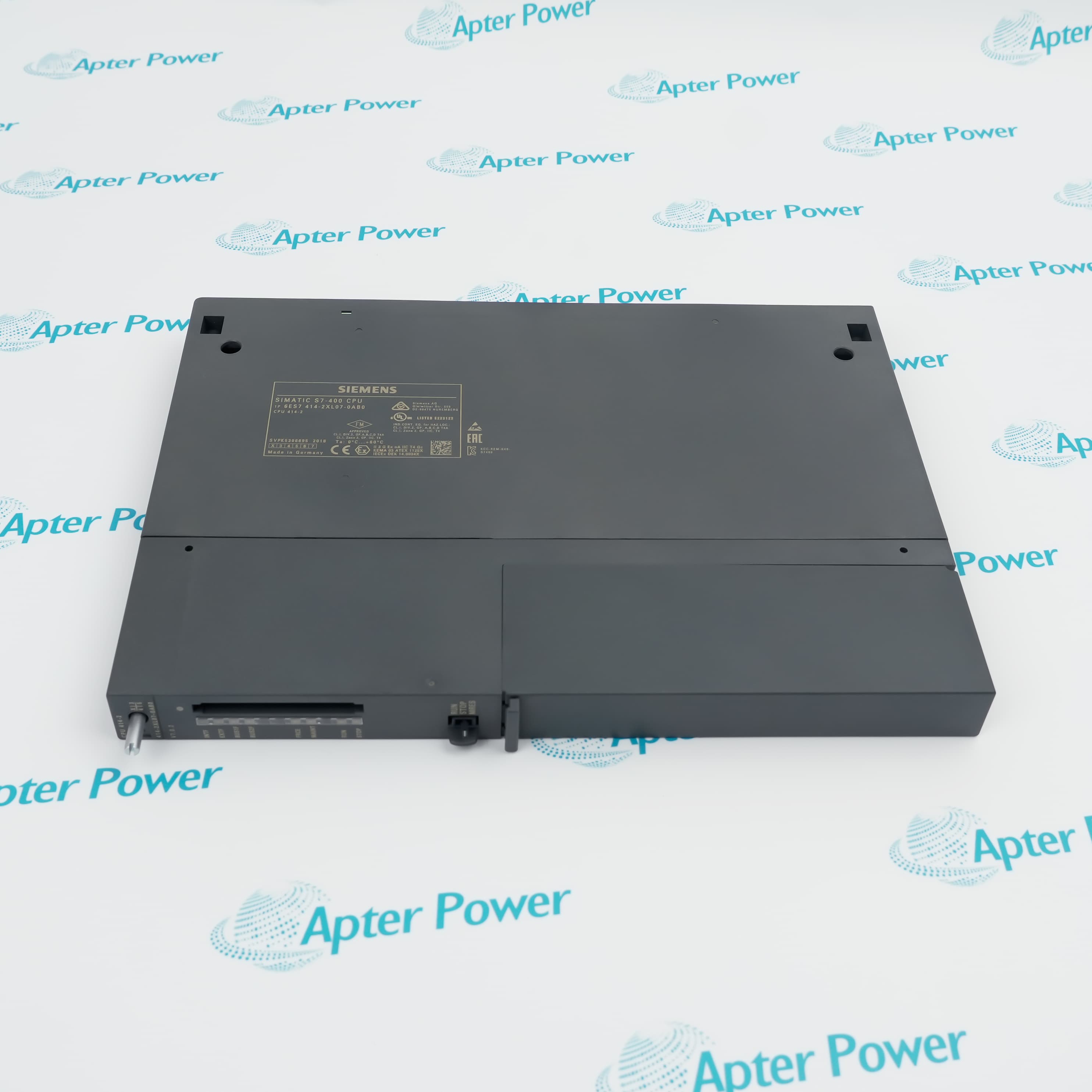

6ES7414-2XL07-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?
Siemens 6ES7414-2XL07-0AB0 is a SIMATIC S7-400 CPU 414-2 with 2 MB work memory and two PROFIBUS-capable RS-485 interfaces.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7414-2XL07-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7414-2XL07-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7414-2XL07-0AB0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    S7-400 CPU 414-2 Central Processing Unit
  • Stock:
    1
  • CPU Family:
    SIMATIC S7-400 CPU 414-2
  • Work Memory:
    2 MB; 1 MB code and 1 MB data
  • Firmware:
    V7.0
  • Engineering Software:
    STEP 7 V5.4 or higher with HSP 261
  • Slot Width:
    Single slot
  • Interface 1:
    MPI / PROFIBUS DP, RS-485
  • Interface 2:
    PROFIBUS DP, RS-485
  • Maximum Transfer Rate:
    12 Mbit/s per DP interface
  • Communication Connections:
    64
  • Diagnostic Buffer:
    3200 entries; default 120
  • Ambient Temperature:
    0°C to +60°C
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Memory Layout PROFIBUS Roles Service Access Product Applications

Features:

  • CPU 414-2 processing position for a SIMATIC S7-400 rack
  • Two-megabyte work memory split between code and data
  • Dual RS-485 interfaces for MPI and PROFIBUS DP roles
6ES7414-2XL07-0AB0 is identified by its CPU 414-2 designation, V7.0 firmware generation and balanced code/data memory allocation.

The first communication port combines MPI and DP functions, while the second expands the station with a dedicated PROFIBUS DP interface.

Selection must align the exact CPU order number with the STEP 7 hardware catalog, rack project and required DP master or slave topology.

For Siemens 6ES7414-2XL07-0AB0 S7-400 CPU 414-2 Central Processing Unit sourcing, Apter Power can help review firmware, memory and PROFIBUS project requirements.
Siemens 6ES7414-2XL07-0AB0 S7-400 CPU 414-2 Central Processing Unit Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Total work memory: The CPU provides 2 MB.
  • Code allocation: One megabyte is reserved for program code.
  • Data allocation: One megabyte is reserved for runtime data.
  • Load planning: Compare both allocations with the compiled STEP 7 project before migration.
  • First interface: Combines MPI and PROFIBUS DP operation.
  • Second interface: Provides a separate PROFIBUS DP channel.
  • Network role: Either DP interface can operate as master or slave.
  • Data rate: Each interface supports up to 12 Mbit/s.
  • Connection budget: The CPU supports 64 communication connections.
  • Diagnostic history: The buffer can hold 3200 entries with 120 as the default setting.
  • Online interface: Commissioning uses MPI/DP rather than an onboard web server.
  • Engineering catalog: Use STEP 7 V5.4 or higher with HSP 261.
  • S7-400 central control: Executes the program and data workload for an industrial controller rack.
  • MPI engineering: Supports station access through the combined first interface.
  • DP master systems: Coordinates distributed PROFIBUS devices from either supported interface.
  • DP slave integration: Lets the CPU station participate as a slave in a higher-level DP network.
Description
6ES7414-2XL07-0AB0 is the Siemens SIMATIC S7-400 CPU 414-2 with 2 MB of work memory divided equally between code and data. It occupies one rack slot and provides the central program, communications and diagnostic functions for its controller station.

6ES7414-2XL07-0AB0 includes one combined MPI/PROFIBUS DP interface and a second PROFIBUS DP interface, both using RS-485. The CPU supports DP master or slave operation, while project engineering requires the documented STEP 7 version and hardware support package.
Alternative Names
6ES74142XL070AB0 6ES7414 2XL07 0AB0 SIMATIC S7-400 CPU 414-2 CPU 414-2 2 MB
Technical notes
Before downloading a project to 6ES7414-2XL07-0AB0, confirm CPU firmware V7.0 and an engineering station with STEP 7 V5.4 or higher plus HSP 261. Match the exact CPU order number in the hardware catalog and project configuration before connecting to the target rack or changing the installed controller.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 6ES7414-2XL07-0AB0 be engineered without adding a hardware support package?
Use STEP 7 V5.4 or higher with HSP 261, the engineering prerequisite Siemens states for this CPU.
How should a migration project allocate memory for 6ES7414-2XL07-0AB0?
Keep compiled code within the 1 MB code area and runtime data within the separate 1 MB data area; total memory alone is not the acceptance test.
Why can two PROFIBUS networks have different device limits on 6ES7414-2XL07-0AB0?
The first DP interface supports up to 32 slaves, while the second supports up to 96, so assign the larger topology to the dedicated second channel.
Does 6ES7414-2XL07-0AB0 provide an onboard web server for diagnostics?
No. Use the supported MPI/PROFIBUS and STEP 7 diagnostic paths instead of planning browser-based access to the CPU.
What should be checked when the diagnostic history of 6ES7414-2XL07-0AB0 is too short?
Review the configured diagnostic-buffer depth; the CPU supports up to 3200 entries but the default setting is 120.
Can 6ES7414-2XL07-0AB0 act only as a PROFIBUS master?
No. Both DP interfaces can be configured for master or slave operation, subject to the topology and project configuration.
What connection ceiling applies when integrating 6ES7414-2XL07-0AB0?
Plan within the documented total of 64 communication connections, then distribute the required services across the configured interfaces.
