    Apter Power supports 6ES7416-2XK02-0AB0 quotations, manuals, and exact model matching.

6ES7416-2XK02-0AB0

/ 4.9
1001 reviews | Need a Specific Revision?

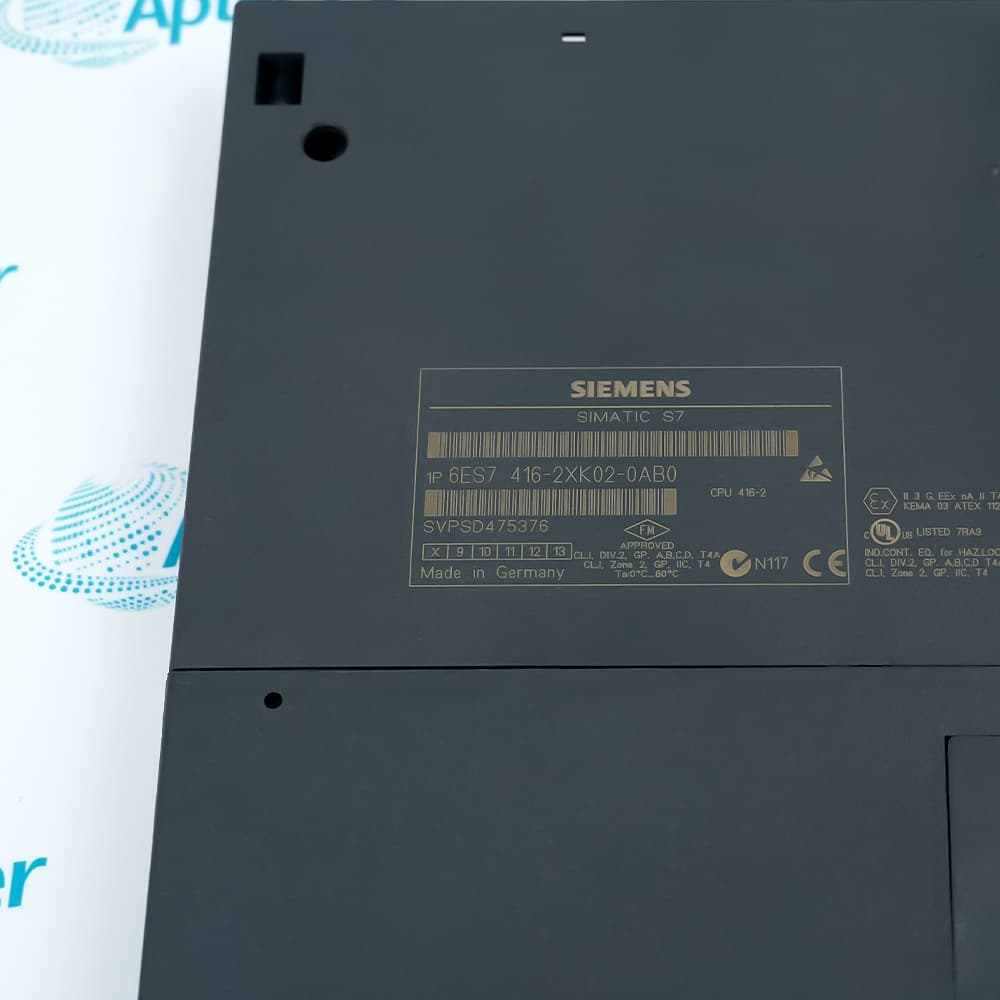

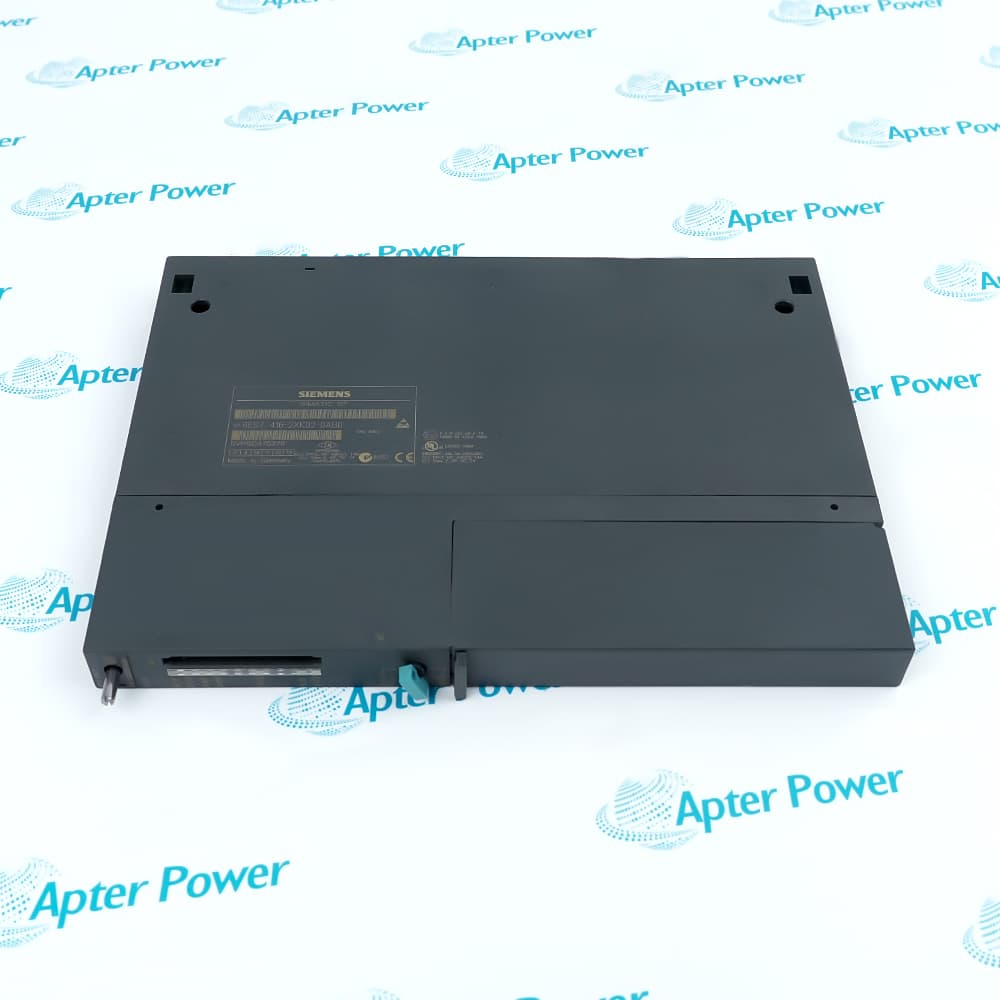

Control programs and distributed I/O coordination in an S7-400 station are handled by the Siemens 6ES7416-2XK02-0AB0 CPU 416-2 central processing unit.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7416-2XK02-0AB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7416-2XK02-0AB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7416-2XK02-0AB0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    Central Processing Unit
  • Stock:
    1
  • Firmware version:
    V3.1
  • Programming package:
    STEP 7 V5.2 or later
  • Integrated code memory:
    0.8 MB
  • Integrated data memory:
    0.8 MB
  • Integrated load memory:
    256 KB RAM
  • Flash memory-card capacity:
    Up to 64 MB
  • RAM memory-card capacity:
    Up to 64 MB
  • S7 counters:
    512
  • S7 timers:
    512
  • Total I/O address area:
    16 KB inputs / 16 KB outputs
  • Partial process images:
    8 maximum
  • First interface:
    MPI / PROFIBUS DP, up to 12 Mbit/s
  • Second interface:
    PROFIBUS DP, up to 12 Mbit/s
  • First-interface DP masters:
    32 slaves maximum
  • Second-interface DP masters:
    125 slaves maximum
  • S7 connection resources:
    64
  • Diagnostic buffer:
    3,200 entries maximum
  • Backplane current at 5 V DC:
    1.5 A typical, 1.6 A maximum
  • Power loss:
    7.5 W typical
  • Weight:
    2.2642 lbs (1.027 kg)
  • Estimated shipping dimensions:
    30.2x23.5x3.7cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Memory Architecture Interface Roles Distributed I/O Testing and Diagnostics

Features:

  • Separate 0.8 MB code and 0.8 MB data work memory
  • Integrated MPI/DP and PROFIBUS DP interfaces
  • Central and distributed I/O coordination
The Siemens 6ES7416-2XK02-0AB0 CPU 416-2 executes the user program and coordinates I/O in a modular SIMATIC S7-400 station.

Its first RS-485 interface can serve MPI or PROFIBUS DP traffic, while the second interface provides a separate PROFIBUS DP master path.

STEP 7 testing functions and a configurable diagnostic buffer expose controller variables, program status and bus events during commissioning.

The Siemens 6ES7416-2XK02-0AB0 CPU 416-2 Central Processing Unit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7416-2XK02-0AB0 CPU 416-2 Central Processing Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Program and Data Storage

  • Code area: Integrated work memory provides 0.8 MB for program code.
  • Data area: A separate 0.8 MB work-memory area stores program data.
  • Load memory: The CPU includes 256 KB of RAM load memory.
  • Expansion: Flash or RAM memory cards can extend load memory to 64 MB.

Integrated PROFIBUS Paths

  • First interface: The isolated RS-485 port can operate as MPI or as a PROFIBUS DP master or slave.
  • Second interface: The second isolated RS-485 port is assigned to PROFIBUS DP master operation.
  • Transmission rate: Both integrated interfaces support rates up to 12 Mbit/s.
  • Routing: Programming-device and operator-panel communication can be routed through the configured network.

DP Addressing Capacity

  • First DP master: Up to 32 DP slaves share a 2 KB input and 2 KB output address range.
  • Second DP master: Up to 125 DP slaves use an 8 KB input and 8 KB output address range.
  • Process image: Up to eight partial process images can divide cyclic I/O data.
  • Consistent data: A process-image access can maintain up to 244 bytes of consistent data.

Commissioning Functions

  • Variable testing: Inputs, outputs, markers, data blocks, timers and counters can be monitored or modified.
  • Forcing: Up to 512 input, output, marker or distributed-I/O variables can be forced.
  • Diagnostic buffer: The buffer can be configured for as many as 3,200 entries.
  • Program protection: Password protection restricts access to the user program.
Description
Siemens 6ES7416-2XK02-0AB0 is the CPU 416-2 central processing unit for the SIMATIC S7-400 automation system. It executes the user program with separate 0.8 MB areas for code and data while the S7-400 backplane connects the processor to central I/O and installed communication modules.

Communication through 6ES7416-2XK02-0AB0 is split between two isolated RS-485 interfaces. The first interface can operate as MPI or as a PROFIBUS DP master or slave, whereas the second interface is dedicated to PROFIBUS DP master operation for a larger distributed-I/O address range.

Program testing on 6ES7416-2XK02-0AB0 includes variable monitoring, forcing, status-block functions and a configurable diagnostic buffer. These tools operate alongside routing and S7 communication so controller state, network communication and distributed-I/O events can be examined through the configured STEP 7 project.
Alternative Names
6ES74162XK020AB0 6ES7 416-2XK02-0AB0 6ES7 416 2XK02 0AB0 Siemens 6ES7416-2XK02-0AB0 Siemens CPU 416-2 6ES7416-2XK02-0AB0 SIMATIC S7-400 CPU 416-2 6ES7416-2XK02-0AB0 central processing unit Siemens S7-400 processor 6ES7416-2XK02-0AB0
Technical notes
Siemens 6ES7416-2XK02-0AB0 requires STEP 7 V5.2 or later and separates code and data into two integrated 0.8 MB work-memory areas.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which STEP 7 version is needed to configure 6ES7416-2XK02-0AB0?
The 6ES7416-2XK02-0AB0 is associated with STEP 7 V5.2 or later.
How should the two communication ports on 6ES7416-2XK02-0AB0 be assigned?
The first 6ES7416-2XK02-0AB0 interface can be MPI or PROFIBUS DP master/slave, while the second is a PROFIBUS DP master interface.
Why can the two DP networks of 6ES7416-2XK02-0AB0 not be planned with the same slave limit?
On 6ES7416-2XK02-0AB0, the first DP master supports up to 32 slaves, whereas the second supports up to 125 slaves and a larger address area.
What memory split must a project engineer verify for 6ES7416-2XK02-0AB0?
The 6ES7416-2XK02-0AB0 provides 0.8 MB for code and a separate 0.8 MB for data, plus expandable load memory through a memory card.
Which built-in tools help diagnose a running 6ES7416-2XK02-0AB0?
The 6ES7416-2XK02-0AB0 supports variable monitoring, forcing, status-block testing and a configurable diagnostic buffer with up to 3,200 entries.
