    Apter Power supplies top-grade Vibro-Meter VM600 ABE042 204-042-100-011 replacement hardware, offering a reliable source of critical automation components for industrial facilities.

VM600 ABE042 204-042-100-011

/ 4.9
1001 reviews | Need a Specific Revision?
The VM600Mk2/ VM600 ABE040 and ABE042 systemracks are used to house hardware for the VM600Mk2/ VM600 series of machinery protection and/orcondition monitoring systems, from Parker Meggitt’svibro-meter ® product line.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for VM600 ABE042 204-042-100-011
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for VM600 ABE042 204-042-100-011

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    VM600 ABE042 204-042-100-011
  • Product Family:
    Vibro-Meter
  • Product Type:
    System Rack
  • Stock:
    1
  • Operating Temperature:
    ‑20°C to +70°C
  • Storage Temperature:
    ‑40°C to +85°C
  • Humidity:
    5–95% RH (non‑condensing)
  • EMC:
    IEC/EN 61000‑6‑2, IEC/EN 61000‑6‑4
  • Safety:
    IEC/EN 61010‑1, CE, CCSAUS, EAC, RoHS compliant
  • Product Type:
    Machinery Protection & Condition Monitoring System Rack
  • Mounting:
    19
  • Weight:
    6.7 kg
  • Estimated shipping dimensions:
    26.6x48.2x20cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Firmware Configuration

Features:

  • Robust 19-Inch 6U Aluminum Architecture
  • Integrated High-Speed VME Backplane & Bus Distribution
  • Flexible Dual-Power Redundant Design
The VM600 ABE042 is a 19-inch, 6U system rack used to house and interconnect VM600 machinery protection and condition monitoring cards, associated I/O cards, rack controllers and power supplies.

Equipped with a high-integrity backplane, the Vibro-Meter VM600 ABE042 204-042-100-011 handles critical data routing via dedicated VME, Tacho, Raw, and Open Collector buses. This enables instantaneous multi-card signal sharing and low-latency communication between processing modules and rack controllers.

The Vibro-Meter VM600 ABE042 204-042-100-011 supports dual RPS6U power supplies to deliver zero-down-time power redundancy or expanded thermal derating capabilities. A built-in dedicated check relay continuously monitors and indicates system power health status to ensure long-term operational stability.

The VM600 ABE042 204-042-100-011 Machinery Protection & Condition Monitoring System Rack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
VIBRO METER VM600 ABE042 204-042-100-011 Machinery Protection & Condition Monitoring System Rack Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
VIBRO METER VM600 ABE042 204-042-100-011 Machinery Protection & Condition Monitoring System Rack Specs

General

  • Manufacturer VIBRO METER
  • Model VM600 ABE042 204-042-100-011
  • Condition New Original ready stock
  • Product Family VM600 ABE042 204-042-100-012,VM600 ABE042 204-042-100-013, VM600 ABE042 204-042-100-014
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Mechanical Protection System (MPS): Equipped with an MPC4/MPC4Mk2 card, providing continuous vibration, position, and speed protection compliant with API 670 standards for key rotating equipment (such as steam turbines, compressors, and fans), preventing catastrophic failures.
  • Condition Monitoring System (CMS): Equipped with an XMx16/CMC16 card, acquiring high-resolution data for spectral analysis and predictive maintenance using VibroSight software.
  • Combustion Monitoring: A dedicated card (such as XMC16) is installed in the gas turbine to monitor dynamic combustion pressure, optimize operating efficiency, and protect the combustion chamber.
  • MPC4 / MPC4Mk2 (Mechanical Protection Card): Responsible for secure trip logic. Firmware updates typically involve optimization of the secure chain logic or compatibility with newer I/O card versions.
  • AMC8 / XMC16 / CMC16 (Status Monitoring Card): Responsible for dynamic data acquisition. Firmware updates are usually to support more advanced spectral analysis algorithms or improve data transmission efficiency.
  • AMC8 / XMC16 / CMC16 (Status Monitoring Card): Responsible for dynamic data acquisition. Firmware updates are usually to support more advanced spectral analysis algorithms or improve data transmission efficiency.
  • VME Bus: Data transmission backbone, used for configuration data exchange between function cards and the CPUM.
  • Tacho Bus: Distributes speed signals (from the speed sensor) to all protection cards in the rack for synchronous acquisition.
  • Raw Bus: Allows modules to share raw sensor signals (such as vibration signals), enabling signal redundancy or multi-module synchronous analysis.
Description
The Vibro-Meter VM600 ABE042 204-042-100-011 serves as the structural and communication backbone for high-integrity Turbine Supervisory Instrumentation (TSI) and condition monitoring systems. Built around a rigid extruded aluminum frame, this 19-inch 6U rack configuration is precision-engineered for permanent, heavy-duty deployment within industrial control cabinets and panel mounts. Its unique layout positions mounting brackets at the rear, ensuring optimal physical clearance and weight distribution in complex, space-constrained plant engineering environments.

At the core of the Vibro-Meter VM600 ABE042 204-042-100-011 lies an advanced, integrated VME bus backplane that orchestrates high-speed data exchange and power distribution across all installed modules. The system features front-loading card slots dedicated to high-performance processing modules (such as MPC4Mk2, AMC10Mk2, and XMx16) alongside CPUx rack controllers, paired with dedicated rear-loading slots for input/output (I/O) modules and relay cards. This systematic backplane architecture guarantees secure signal integrity, low-latency communication, and deterministic fault responses for critical rotating machinery.

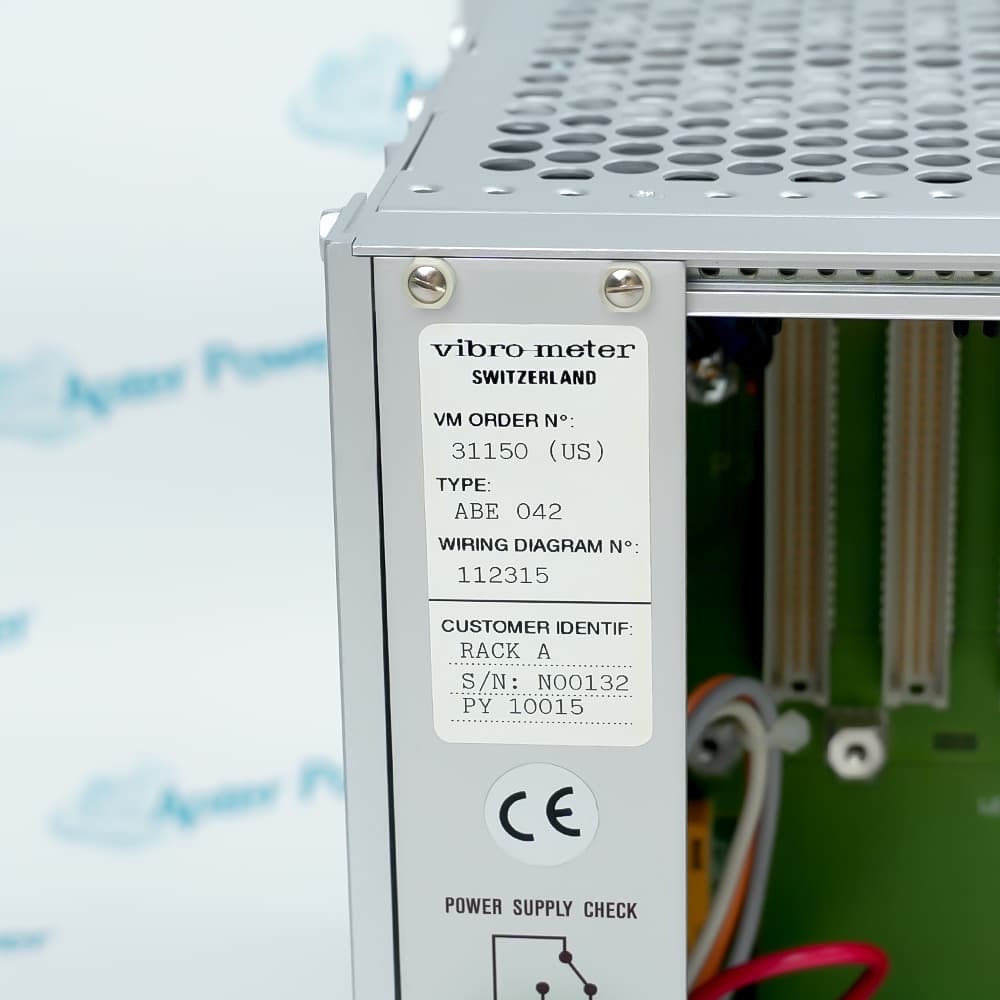

Designed with operational reliability as a priority, the Vibro-Meter VM600 ABE042 204-042-100-011 fully supports flexible power configurations utilizing one or two RPS6U rack power supplies (330W variants). Facilities can deploy dual power supplies to achieve absolute power redundancy—ensuring uninterrupted 100% system operation even if an individual power supply unit fails. Additionally, a built-in power supply check relay located at the rear of the rack continuously monitors operational health, offering immediate relay feedback to external DCS or PLC platforms.

Fully compatible with Parker Meggitt’s VibroSight® and VM600 MPSx software ecosystems, the Vibro-Meter VM600 ABE042 204-042-100-011 enables effortless system configuration, online diagnostics, and real-time vibration analysis. Meeting stringent international standards including CE, cCSAus, and EAC certifications, this system rack is globally trusted across power generation, oil and gas, and heavy industrial plants to safeguard high-value assets against catastrophic mechanical failures.
Alternative Names
VM600 ABE042 204 042 100 011 VM6OO ABEO42 204-042-100-011 VM600 ABE042 204-042-I00-0II VM600 ABE042 VM600 MPC4 200-510-070-113 VM600 MPC4 200-510-076-114 VM600 MPC4 200-510-041-021
Technical notes
The Vibro-Meter VM600 ABE042 204-042-100-011 requires strict adherence to slot-coding rules and cooling clearance guidelines to maintain system stability under full-rack loads. Unpopulated module slots must be sealed with appropriate 4 HP or multi-width blank panel kits to preserve electromagnetic compatibility (EMC) and proper internal airflow.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is VM600 ABE042 204-042-100-011 brand new?
Yes, all VM600 ABE042 204-042-100-011 units are brand new and factory tested.
Does the product come with a warranty?
Apter Power provides a 1-year warranty for VM600 ABE042 204-042-100-011 covering manufacturing defects.
What is the input voltage range of VM600 ABE042 204-042-100-011?
The module supports industrial voltage ranges to ensure consistent performance across multiple applications.
What communication protocols and bus architectures are natively supported by the Vibro-Meter VM600 ABE042 204-042-100-011 backplane?
The Vibro-Meter VM600 ABE042 204-042-100-011 features an integrated proprietary backplane that supports the standard VME bus for CPU-to-processor communication, alongside dedicated Tacho, Raw, and Open Collector (OC) buses for high-speed dynamic signal and vibration data sharing between modules.
How does electronic slot number coding function during the configuration of the Vibro-Meter VM600 ABE042 204-042-100-011?
The Vibro-Meter VM600 ABE042 204-042-100-011 utilizes hard-wired fixed slot number coding (ranging from slot 03 to 14 for front processing cards). This electronic keying mechanism ensures that rear input/output modules automatically align with software configurations defined in VibroSight or VM600 MPSx software, preventing misplacement errors.
What are the exact I/O and power supply slot allocations within the Vibro-Meter VM600 ABE042 204-042-100-011 chassis?
In the Vibro-Meter VM600 ABE042 204-042-100-011, front slots 00–01 handle rack controllers (e.g., CPUM/CPUx), slot 02 is reserved for application cards, and slots 03–14 manage processing cards. The rear accommodates up to 19 I/O slots (0–18) and up to 4 dedicated rear panel slots (17–20) for RPS6U power supply inputs.
