    Apter Power supports 5466-1035 quotations, documentation and installed-system compatibility review.

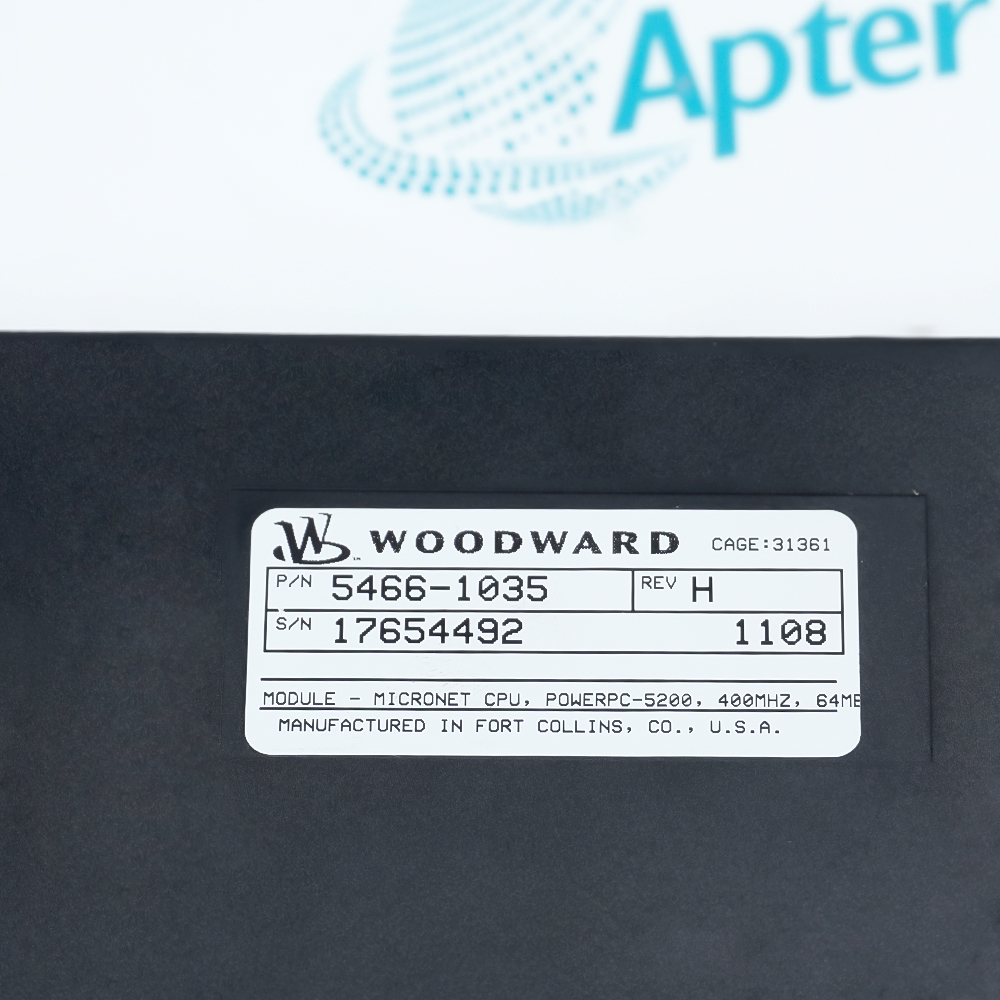

5466-1035

/ 4.9
1001 reviews | Need a Specific Revision?
Woodward 5466-1035 is a non-preferred CPU5200 spare for installed MicroNet Plus controls using Coder 4.06 through 5.04.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 5466-1035
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5466-1035

  • Manufacturer:
    Woodward
  • Part Number:
    5466-1035
  • Product Family:
    MicroNet Simplex
  • Product Type:
    MicroNet Plus CPU5200 Module
  • Stock:
    1
  • Platform:
    MicroNet Plus
  • Processor:
    Motorola MPC5200
  • Memory:
    128 MB DDR RAM; 64 MB flash
  • Customer Ethernet:
    2 ports
  • Real-time network:
    2 RTN ports
  • Additional interfaces:
    Serial, service and 2 CAN ports
  • Operating temperature:
    -40 to +85°C
  • Coder compatibility:
    4.06 to 5.04
  • Official status:
    Active, Non-Preferred
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals MicroNet System Fit CPU Hardware Networks & Diagnostics Product Applications

Features:

  • Control processor: Runs the GAP application in an installed MicroNet Plus chassis.
  • System interfaces: Provides Ethernet, RTN, serial, service and CAN communication.
  • Health monitoring: Front indicators report run, standby, IOLOCK, power, fault and watchdog states.
5466-1035 is the CPU5200 variant associated with MicroNet Plus Coder versions 4.06 through 5.04.

It can serve a simplex control or participate in a supported redundant CPU arrangement when the chassis and configuration match.

Woodward classifies the part as non-preferred, so it is suited to spare support for an installed system rather than a new control design.

Apter Power supports the Woodward 5466-1035 MicroNet Plus CPU5200 Module through quotations, official documentation and installed-system compatibility review.
Woodward 5466-1035 MicroNet Plus CPU5200 Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Primary platform: CPU5200 module for MicroNet Plus turbine-control systems.
  • Simplex position: The CPU occupies the first I/O slot in a simplex MicroNet Plus chassis.
  • Redundant position: A supported redundant system adds a CPU in the documented CPU2 location.
  • Coder range: Official PCN 06960 associates 5466-1035 with Coder 4.06 to 5.04.
  • Processor and memory: MPC5200 processor, 128 MB DDR RAM and 64 MB flash.
  • Timing: Battery-backed real-time clock with 10 ms resolution; the battery is not user-replaceable.
  • System bus: FPGA functions support VMEbus master/slave and redundant-system control.
  • Environment: Woodward rates the CPU5200 for -40 to +85°C operation.
  • Customer networks: Two Ethernet ports can be configured for the plant network.
  • Real-time network: Two RTN ports are reserved for Woodward real-time devices and expansion racks.
  • Configuration switch: CPU/RTN mode and RTN address family depend on the documented S2 switch settings.
  • Fault indication: LEDs identify CPU fault codes, IOLOCK, watchdog and local or VME power faults.
  • Turbine control: Executes the GAP application in installed MicroNet Plus gas or steam turbine controls.
  • Existing-system spare: Supports maintenance where the chassis and Coder release match 5466-1035.
  • Redundant control: Participates in supported dual-CPU arrangements with the documented CPU2 slot.
  • New-project limit: Woodward directs new installations to preferred CPU versions rather than this non-preferred part.
Description

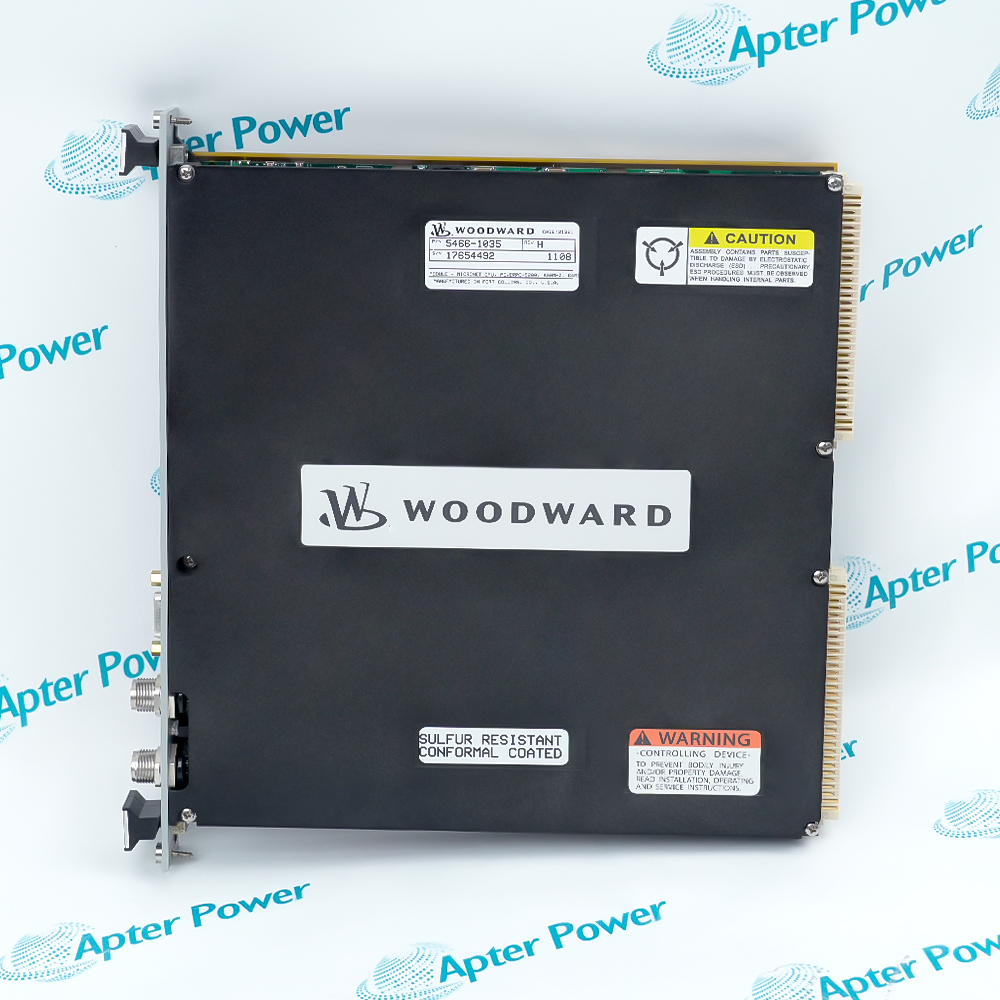

5466-1035 is a CPU5200 processing module for Woodward MicroNet Plus turbine-control systems. Its MPC5200 processor runs the GAP application and supervises the VME-based control chassis in simplex or supported redundant arrangements.

5466-1035 provides customer Ethernet, real-time network, serial, service and CAN interfaces together with onboard memory, clock and system-health functions. Front-panel indicators separate run state, network traffic, standby readiness, power faults, IOLOCK and watchdog conditions.

5466-1035 is officially classed as non-preferred: Woodward keeps it active for spares and repairs in existing systems but directs new projects to preferred CPU versions. Coder compatibility, chassis role, network settings and cybersecurity requirements must be checked before release.
Alternative Names
54661035 Woodward 5466-1035 CPU5200 5466-1035
Technical notes
Woodward PCN 06960 lists 5466-1035 as active but non-preferred for existing-system spares, with Coder 4.06–5.04. Security manual 26479 states that this CPU lacks secure-password, Achilles, SSH/firewall and SecureApp capabilities.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
A plant is replacing a failed CPU; which Coder range must match 5466-1035 before the GAP application is moved?
Woodward associates this part with Coder 4.06 through 5.04. Release the spare only after the installed project and recoverable application backup are confirmed within that range.
AppManager cannot reach 5466-1035 and customer Ethernet ports are inactive; what should commissioning check?
An S2 switch setting that places the module in RTN mode disables Ethernet ports 1 and 2. Compare the switches with the documented main-chassis CPU setting before changing network parameters.
What does CPU fault code 2-7 indicate after 5466-1035 is installed?
Fault code 2-7 identifies a CPU installed in the wrong slot. Compare the chassis position with the simplex or redundant CPU location before pursuing memory or application faults.
In a redundant MicroNet Plus chassis, what does a lit STANDBY indicator on 5466-1035 confirm?
A lit STANDBY indicator confirms that the backup CPU is ready to release or assume system-controller duties during a failover. Treat an unlit indication as a readiness issue requiring system diagnosis.
Can site maintenance replace the real-time-clock battery inside 5466-1035?
The CPU5200 real-time-clock battery is not user-replaceable. Plan module-level service through the appropriate repair channel instead of opening the CPU for a field battery change.
After a front-panel reset, when will 5466-1035 restart its previous GAP application automatically?
If the GAP application was running successfully at the time of reset, the CPU automatically starts and reinitializes the same application. A missing restart therefore calls for application and fault review, not a second blind reset.
