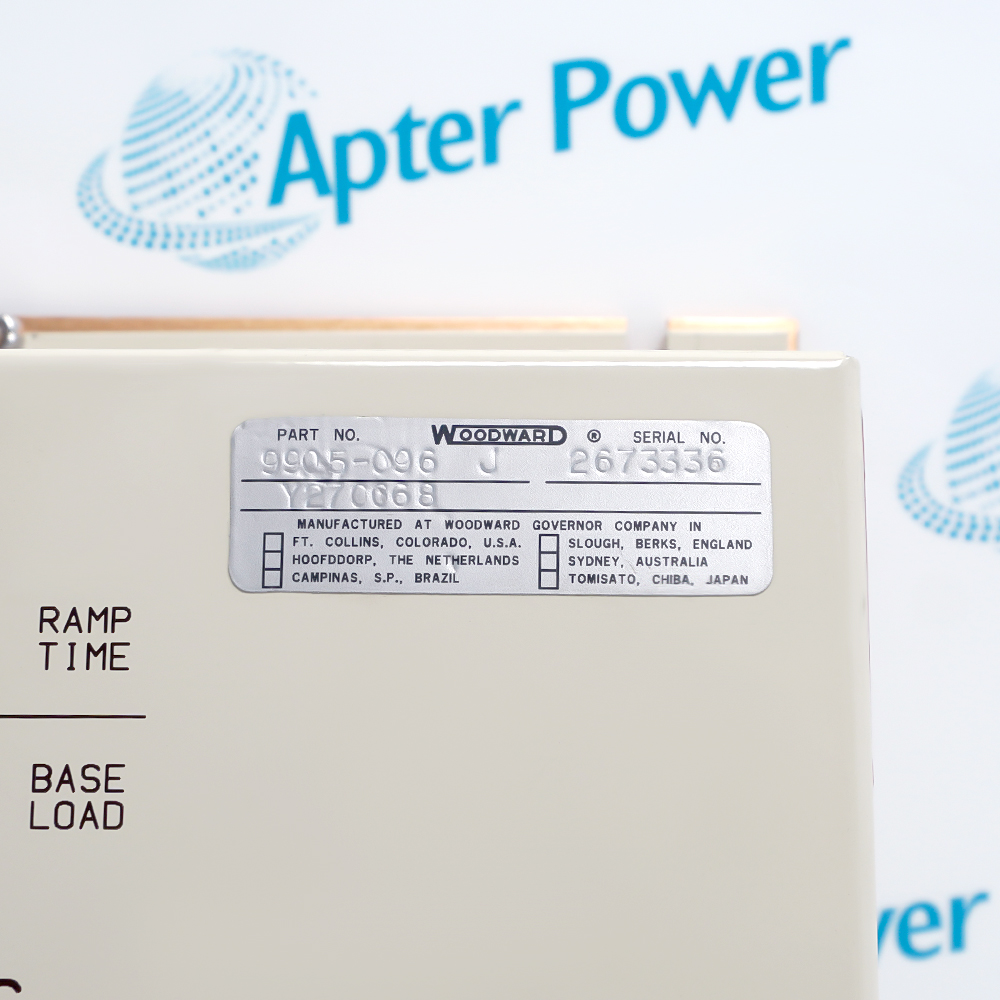

Woodward 9905-096 is an AGLC automatic generator loading control for controlled generator loading, unloading and base-load operation.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 9905-096
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 9905-096

  • Manufacturer:
    Woodward
  • Part Number:
    9905-096
  • Product Family:
    Woodward AGLC
  • Product Type:
    Automatic Generator Loading Control
  • Stock:
    1
  • Woodward part number:
    9905-096
  • Control family:
    AGLC
  • Documented functions:
    Automatic loading, unloading and base-load control
  • Listings:
    UL and CSA
  • Official manual:
    Woodward 82004 Rev D
  • Weight:
    1.06 kg
  • Estimated shipping dimensions:
    21.6x18.3x4.7cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Loading Sequence Control Interface Commissioning Product Applications

Features:

  • Loading sequence: ramps a connected generator into or out of load through the load-sharing path.
  • Base-load operation: maintains an adjustable load target after the approved breaker sequence.
  • Listed variant: official Woodward documentation identifies 9905-096 as the UL- and CSA-listed AGLC.
The exact 9905-096 part number identifies the listed AGLC variant used in the installed generator-loading circuit.

Breaker status, raise/lower commands and the connected speed-control system establish the behavior that must be retained during replacement.

A controlled checkout verifies ramp direction, base-load response and unloading before the generating set returns to automatic operation.

Apter Power supports exact-model review and quotation for Woodward 9905-096 Automatic Generator Loading Control.
Woodward 9905-096 Automatic Generator Loading Control Manuals,Datasheets,Link

Important Notice: Use the complete 9905-096 product model in every document request.

  • Breaker transition: auxiliary contact state tells the control when the generator has joined or left the bus.
  • Load ramp: adjustable ramp behavior limits the rate at which generator load rises or falls.
  • Base-load target: the control settles at the recorded load reference after the loading sequence.
  • Unload path: the reverse sequence reduces load before breaker release.
  • Speed-control path: AGLC output acts through the connected Woodward load-sharing or speed-control input.
  • Raise/lower commands: external contacts initiate controlled changes rather than direct breaker operation.
  • Load sensing: the generator-load signal closes the loop around the requested loading level.
  • Terminal record: exact field wiring and polarity remain part of the installed configuration.
  • Adjustment capture: record ramp and base-load settings before the old control is disturbed.
  • Sequence proof: test breaker status and loading commands in the approved operating order.
  • Stable target: confirm that generator load settles without hunting at the recorded setpoint.
  • Safe unload: verify load reduction precedes breaker opening under the site procedure.
  • Utility-parallel generator loading: controls the transition from unloaded operation to a scheduled base-load level.
  • Multiple-generator plants: works with the existing load-sharing arrangement while preserving the approved bus sequence.
  • Generator-set outage recovery: restores a documented AGLC position without redesigning the surrounding governor circuit.
  • Legacy control maintenance: supports exact-part replacement where terminal and adjustment records are available.
Description
9905-096 is the UL- and CSA-listed member of Woodward’s AGLC family. It coordinates generator loading and unloading through the speed-control load-sharing path, then holds an adjustable base-load level after breaker closure.

In a plant using 9905-096, the useful replacement boundary includes more than the module itself. Breaker auxiliary contacts, raise/lower commands, load-sensor wiring and ramp adjustments together determine how the generating set transfers into and out of load.

Before exchanging 9905-096, record every terminal, adjustment and operating sequence. Commissioning should reproduce the approved ramp direction, base-load setpoint and unload behavior while confirming that breaker status and load-sharing signals respond in the intended order.
Alternative Names
9905096 9905 096 9905–096 99O5-096 9905-O96 990S-096 Woodward 9905-096 AGLC 9905-096 P/N 9905-096 9905-096 AGLC
Technical notes
9905-096 is an AGLC, not a standalone speed governor. Preserve the connected Woodward speed-control/load-sharing arrangement, breaker auxiliary logic and adjustment positions; a correct part number alone does not recreate the installed loading sequence.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
A generator reaches the bus but will not pick up load after a 9905-096 exchange. What should commissioning check first?
Verify breaker-auxiliary feedback and the raise/load command path before changing adjustments; the AGLC cannot begin its ramp if the installed sequence is not proven.
Load rises in the wrong direction with 9905-096 installed. Should the ramp setting be increased?
No. Stop the test and reconcile output polarity, wiring and the connected speed-control input before altering a rate setting.
Can a technician replace 9905-096 without recording the front adjustments?
Do not proceed unless the approved settings or a validated commissioning method are available, because ramp rate and base-load behavior are site-dependent.
The replacement holds load but oscillates around the target. Where should diagnosis begin?
Compare the load-sensor signal, connected governor response and recorded gain/ramp settings; treating the AGLC alone can hide a loop interaction.
Can 9905-096 command the generator breaker directly?
Use the official plant sequence: the AGLC depends on breaker-status and loading logic and must not be assumed to replace the switchgear control circuit.
What closes receiving inspection for a spare 9905-096?
The complete part number, terminal arrangement, listing identity, physical condition and correspondence with the installed AGLC record must all agree.
