  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power supports legacy SA-1509-24 sourcing and installed-mechanism review before shipment.

SA-1509-24

/ 4.9
1001 reviews | Need a Specific Revision?

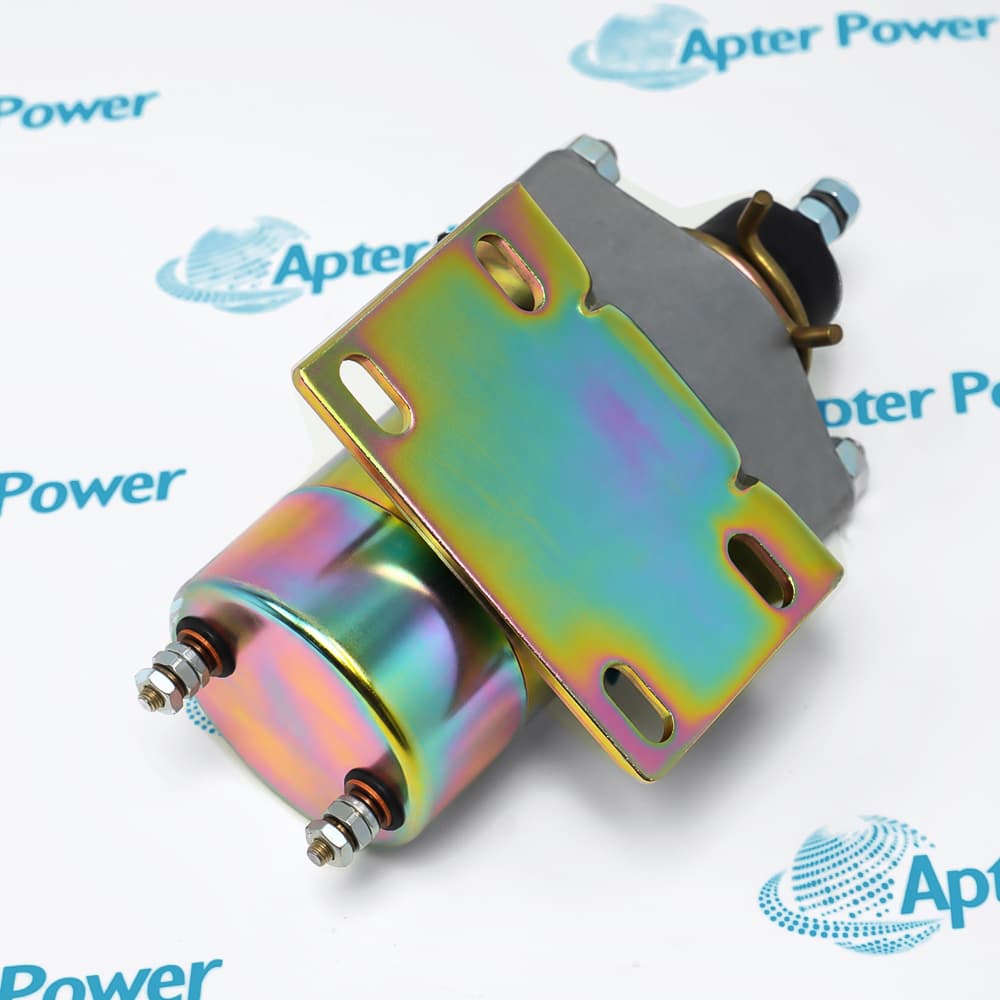

Woodward SA-1509-24 FME 24 VDC solenoid for exact-nameplate replacement.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SA-1509-24
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SA-1509-24

  • Manufacturer:
    Woodward
  • Part Number:
    SA-1509-24
  • Product Family:
    Woodward
  • Product Type:
    FME Solenoid
  • Stock:
    1
  • Model:
    FME
  • Part Number:
    SA-1509-24
  • Coil Voltage:
    24 VDC
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Identity Check Mechanical Fit Stroke Requirement Applications

Features:

  • Woodward FME solenoid identified by part number SA-1509-24.

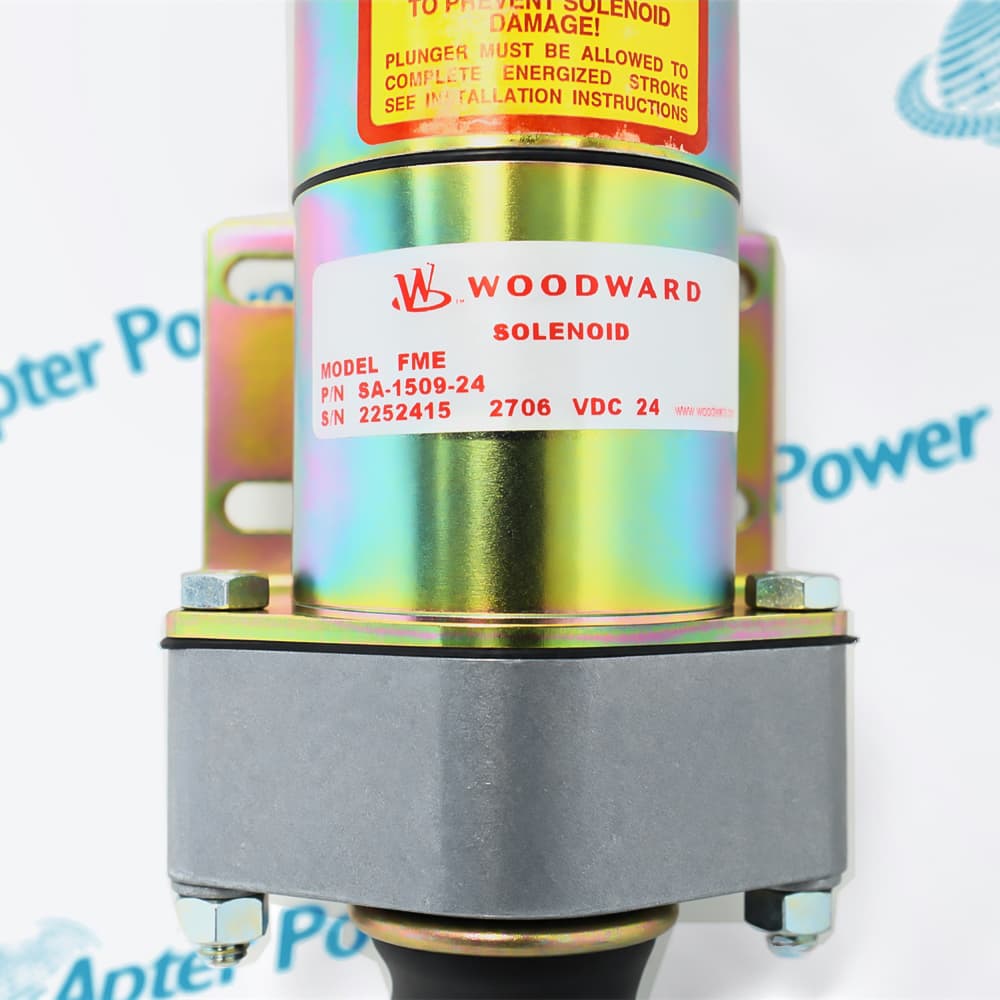

  • The coil nameplate states a 24 VDC electrical rating.
  • The product warning requires the plunger to complete its energized stroke.
The full part number and model marking establish the electrical identity of this legacy solenoid.

Mechanical suitability depends on the mounting base, plunger, linkage geometry, and travel available in the installed mechanism.

A controlled functional test is needed after installation because correct voltage alone does not prove complete movement or release.

For Woodward SA-1509-24 FME Solenoid inquiries, Apter Power can help review the nameplate and installed mechanical interface.
Woodward SA-1509-24 FME Solenoid Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, and related items are not included unless identified in the stock item description.
  • Use the complete hyphenated part number SA-1509-24 as the product identity.
  • Retain Model FME from the Woodward coil nameplate.
  • Confirm the 24 VDC coil value before connecting the replacement.
  • Treat SA1509-24 only as an alternative search format for the same unit.
  • Compare the mounting base and fastener arrangement with the removed solenoid.
  • Record plunger position and linkage geometry before disassembly.
  • Confirm that the installed mechanism provides the full required travel without binding.
  • Retain the original lead or connector routing and strain relief.
  • The plunger must complete its energized stroke to avoid solenoid damage.
  • Secure the driven mechanism before installation or alignment work.
  • Use a controlled energization test to observe full travel and release.
  • Stop the test if the plunger binds, stalls, impacts, or fails to return.
  • Legacy Woodward mechanisms already designed around the SA-1509-24 FME solenoid.
  • 24 VDC actuation paths that provide the required mounting and complete plunger travel.
  • Exact-nameplate maintenance replacements followed by controlled travel and feedback testing.
Description
SA-1509-24 is a Woodward FME solenoid identified by the complete coil nameplate and its 24 VDC electrical rating for an installed electromechanical actuation path.

SA-1509-24 must match the mounting base, plunger, linkage geometry, lead arrangement, and available travel because the visible warning requires a complete energized stroke.

SA-1509-24 returns to service only after isolated installation, controlled energization, full travel and release, and confirmation that the associated control feedback follows the mechanism correctly.
Alternative Names
SA1509-24
Technical notes
SA-1509-24 carries a 24 VDC coil, and its visible warning requires the plunger to complete the energized stroke. A mechanically blocked or shortened stroke can damage the solenoid even when the voltage matches. Replacement work must preserve mounting, linkage geometry, available travel, and the controlled test path.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should a buyer identify the required Woodward SA-1509-24 solenoid?
Use the complete hyphenated SA-1509-24 part number, Model FME marking, and 24 VDC coil value; SA1509-24 is only a search-format variant, not a different product.
Can SA-1509-24 be selected when only the 24 VDC coil value matches?
No. The mounting base, plunger, linkage geometry, connection arrangement, and available stroke must also match the installed mechanism before the solenoid is accepted.
What should maintenance record before removing SA-1509-24 from a linkage?
Record the mounting position, plunger extension, linkage orientation, available travel, lead or connector arrangement, and the mechanism's de-energized position before disassembly.
Why must SA-1509-24 complete its energized stroke?
The visible product warning links incomplete energized travel to solenoid damage, so the mechanism must allow full stroke without binding or impact.
What must be secured before wiring or mounting SA-1509-24?
Isolate the 24 VDC circuit and secure the driven mechanism against unexpected movement before electrical or mechanical work begins.
Which test should release SA-1509-24 after installation?
Use a controlled energization test to confirm full travel, release, and associated control feedback; stop if the plunger binds, stalls, or fails to return.
