1SAP250000R0001 AX522

/ 4.9
1001 reviews | Need a Specific Revision?

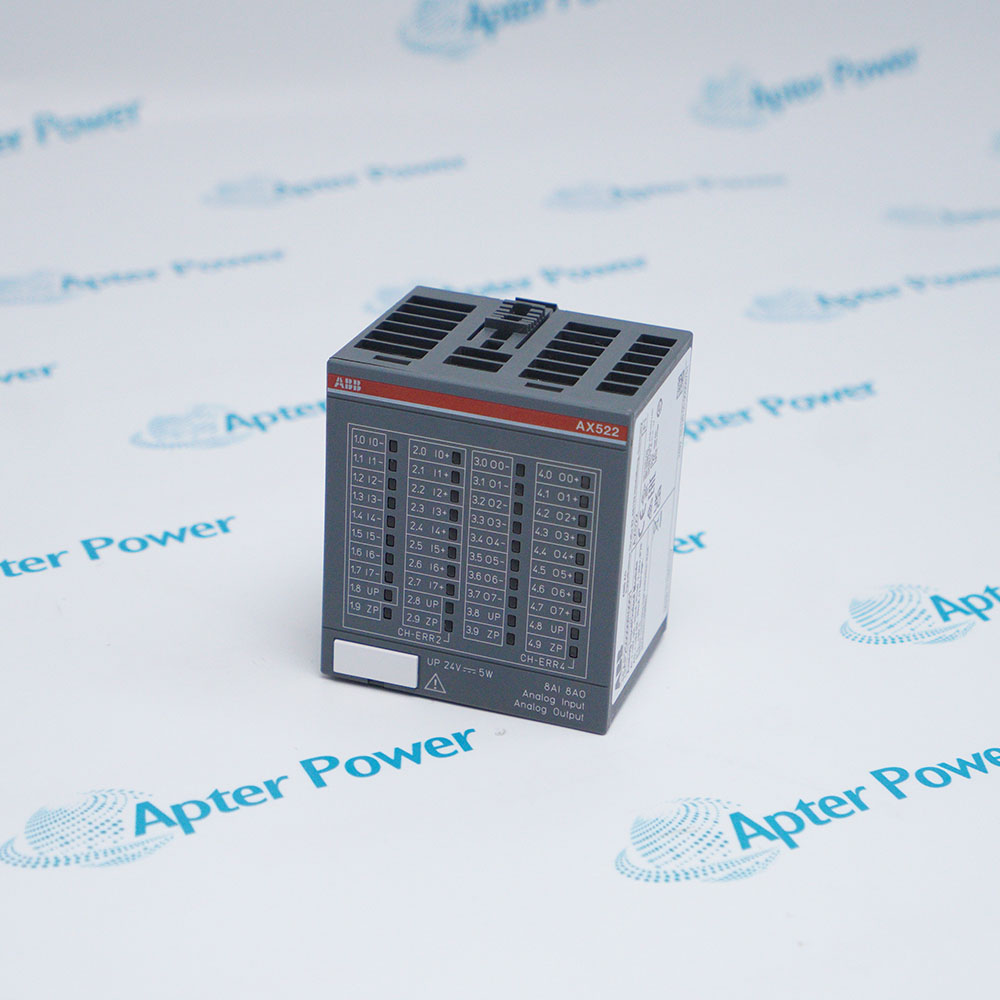

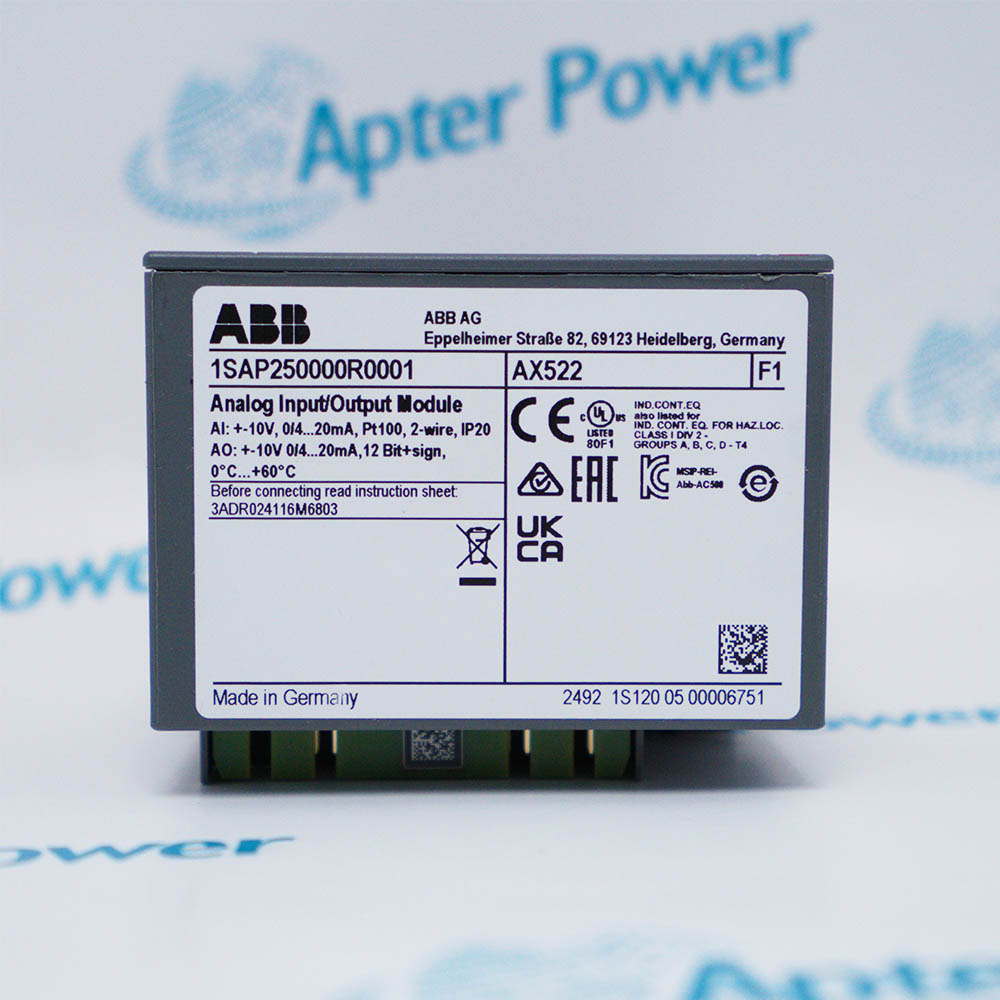

ABB AX522 1SAP250000R0001 is an active S500 analog I/O module with 8 analog inputs, 8 analog outputs, and 12-bit resolution including sign.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 1SAP250000R0001 AX522
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1SAP250000R0001 AX522

  • Manufacturer:
    ABB
  • Part Number:
    1SAP250000R0001 AX522
  • Product Family:
    ABB AC500
  • Product Type:
    Analog Input/Output Module
  • Stock:
    1
  • I/O Configuration:
    8 analog inputs / 8 analog outputs
  • Resolution:
    12 bits; bipolar ranges include sign
  • Input Signals:
    Voltage, current, Pt100, Pt1000, Ni1000, or 24 V DC digital input
  • Output Signals:
    8 voltage outputs; first 4 also configurable for current
  • Process Voltage:
    24 V DC (-15%, +20%)
  • Galvanic Isolation:
    Yes, per module
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    6.6x6.1x8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Configuration Installation

Features:

  • S500 analog input/output module for the ABB AC500 system
  • Order code: 1SAP250000R0001
  • 8 analog inputs and 8 analog outputs
  • Inputs support voltage, current, Pt100, Pt1000, and Ni1000
  • All outputs support voltage; the first 4 also support current
  • Resolution: 12 bits, including sign for bipolar ranges
AX522 1SAP250000R0001 is an ABB S500 I/O module for AC500 systems.

Use the complete catalog or order code and documented channel, signal, wiring, and terminal requirements when planning installation or replacement.

ABB AX522 1SAP250000R0001 Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the stock item description. All prices are shown in USD.
1SAP250000R0001 AX522 Technical Specifications

Technical Specifications

  • I/O Configuration8 analog inputs / 8 analog outputs
  • Resolution12 bits; bipolar ranges include sign
  • Input SignalsVoltage, current, Pt100, Pt1000, Ni1000, or 24 V DC digital input
  • Output Signals8 voltage outputs; first 4 also configurable for current
  • Process Voltage24 V DC (-15%, +20%)
  • Galvanic IsolationYes, per module

Applications

  • Acquisition of industrial voltage and current signals
  • Temperature measurement using Pt100, Pt1000, or Ni1000 sensors
  • Analog voltage or current output tasks
  • Central or distributed S500 I/O expansion with compatible AC500 components

Configuration

  • Process voltage: 24 V DC (-15%, +20%)
  • Module-wise galvanic isolation
  • Each analog input can be configured individually
  • All 8 outputs support voltage; outputs 0 to 3 also support current
  • Conversion cycle: 2 ms for 8 inputs and 8 outputs; 1 s for Pt/Ni inputs

Installation

  • Terminal units: TU515 screw type or TU516 spring type
  • Mounting rail: 35 mm top-hat rail, 7.5 mm or 15 mm depth
  • Horizontal or vertical mounting; observe the specified derating
  • Do not obstruct natural convection cooling in the control cabinet
Description
ABB AX522 1SAP250000R0001 is an S500 analog input/output module for the AC500 system. It provides eight analog inputs and eight analog outputs; all outputs support voltage, while the first four also support current.

The analog inputs can be configured for voltage, current, Pt100, Pt1000, Ni1000, or 24 V DC digital input signals. The module uses 24 V DC process voltage and provides module-wise galvanic isolation.

ABB specifies 12-bit resolution, including sign for bipolar ranges. AX522 requires a compatible S500 terminal unit and supports horizontal or vertical mounting subject to the applicable derating requirements.
Alternative Names
AX522 1SAP250000R0001 AX522 1SAP250000R0001 1SAP250000R0001 AX522 1SAP 250 000 R0001 AX522 1SAP 250 000 R0001 1SAP-250-000-R0001 AX522 1SAP250000R0001AX522 ABB AX522 Analog I/O Module
Technical notes
ABB AX522 1SAP250000R0001 provides 8 analog inputs and 8 analog outputs with 12-bit resolution. It supports voltage, current and resistance-temperature inputs for AC500 S500 I/O applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is ABB AX522 1SAP250000R0001?
ABB AX522 1SAP250000R0001 is an S500 analog input/output module for AC500 systems with eight analog inputs and eight analog outputs.
How many analog channels does AX522 provide?
AX522 provides eight analog inputs and eight analog outputs.
Which input signals does AX522 support?
The inputs support voltage, current, Pt100, Pt1000, Ni1000, and 24 V DC digital input configuration.
Which output signals does AX522 support?
All eight outputs support voltage; the first four outputs can also be configured for current.
Which terminal units are used with AX522?
ABB lists TU515 screw-terminal and TU516 spring-terminal units for AX522 installation.
What is the lifecycle status of 1SAP250000R0001?
ABB currently lists 1SAP250000R0001 as Active. Confirm availability and lead time with Apter Power when requesting a quotation.
Does ABB specify a replacement for AX522 1SAP250000R0001?
ABB lists the model as Active, and the current data sheet does not identify a replacement requirement.
How can I request the AX522 datasheet and a quotation?
Contact Apter Power with the complete order code to request the model-specific datasheet, compatibility review, and quotation support.
