    Apter Power assists with PM590-ETH 1SAP150000R0271 quotations, technical records, and system-integration review.

PM590-ETH 1SAP150000R0271

/ 4.9
1001 reviews | Need a Specific Revision?

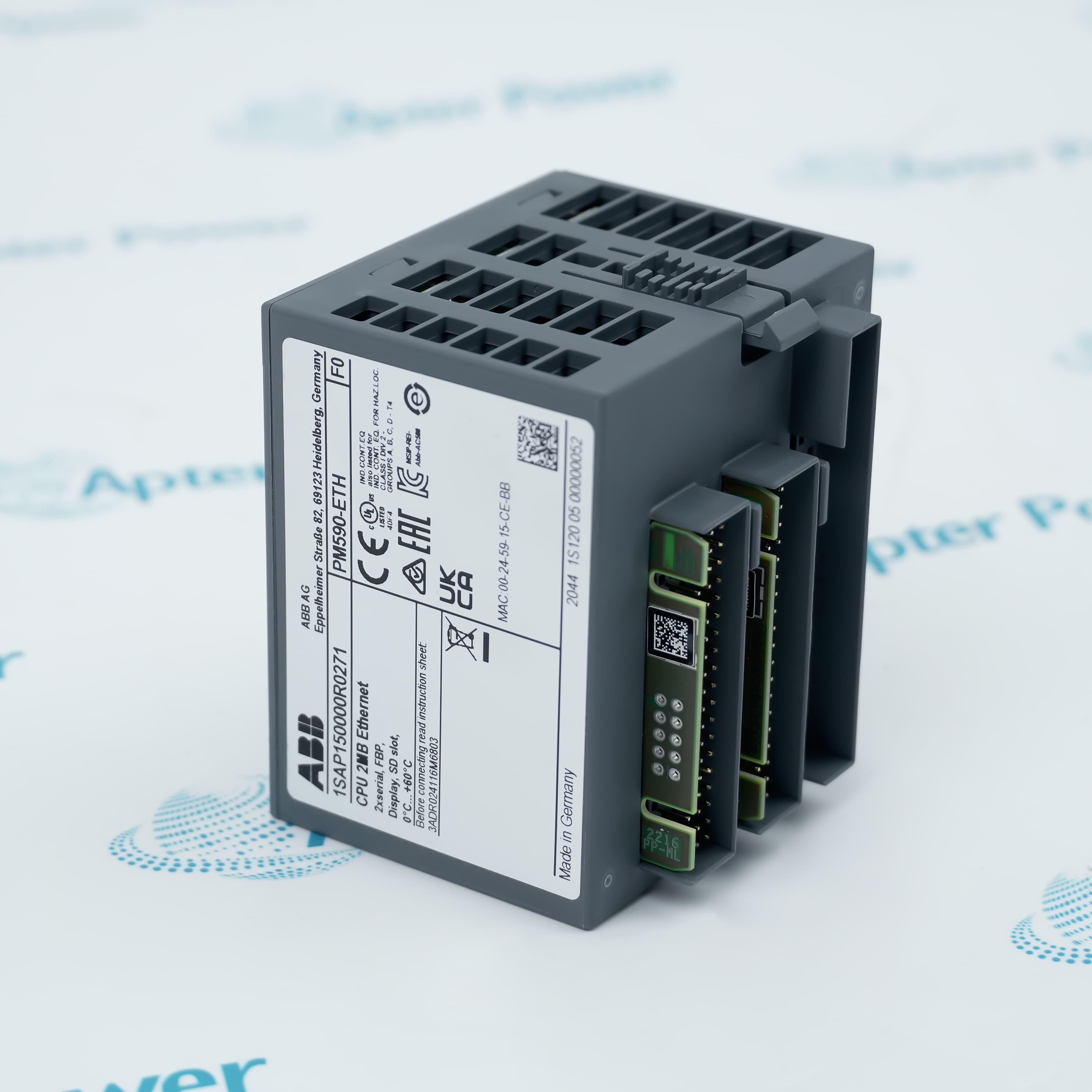

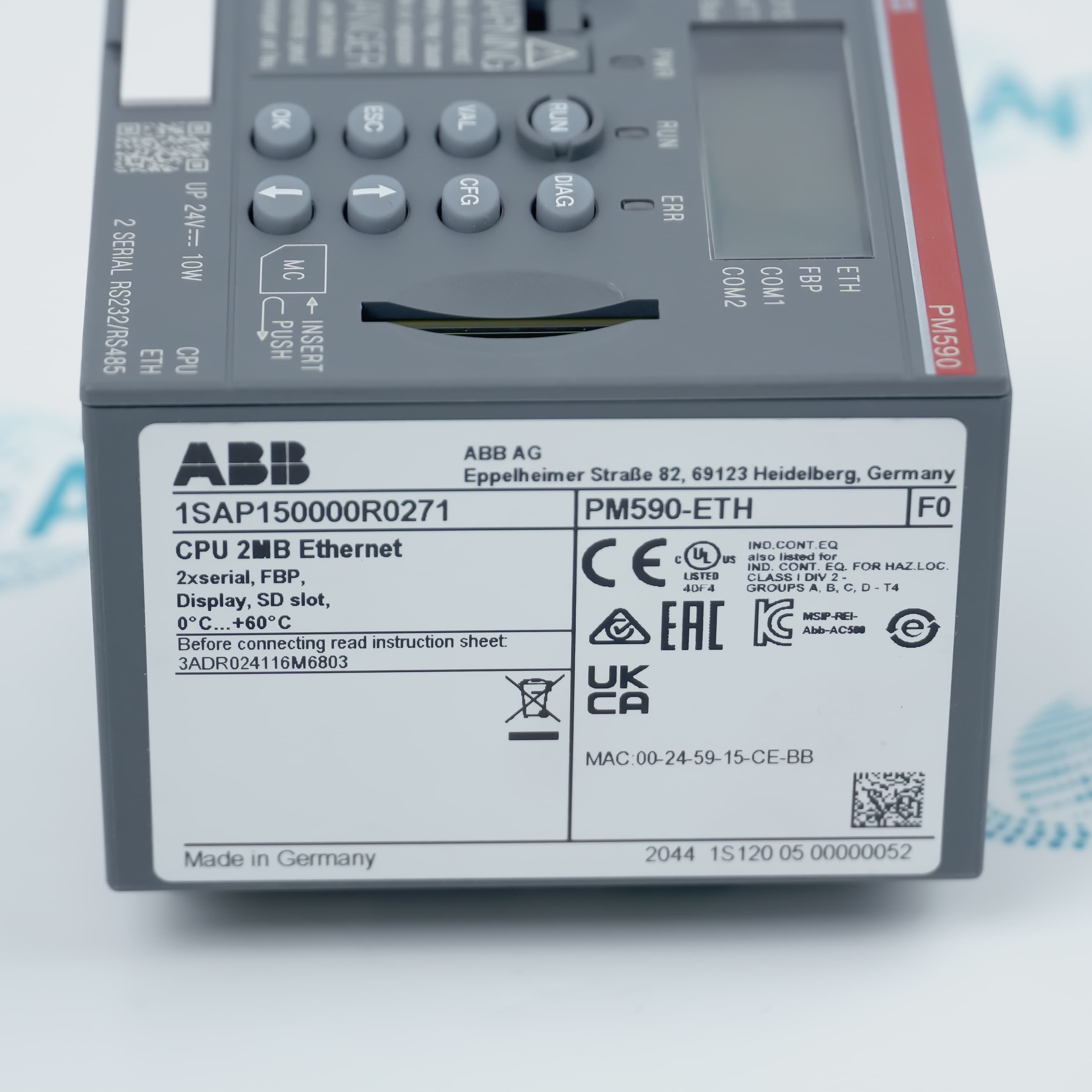

ABB PM590-ETH 1SAP150000R0271 is the AC500 PM590-ETH Processor Module for AC500. It executes AC500 applications with onboard Ethernet, two configurable serial interfaces and FBP connectivity.
In Stock
Ships by Friday, October 30
Get a quick price for PM590-ETH 1SAP150000R0271
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PM590-ETH 1SAP150000R0271

  • Manufacturer:
    ABB
  • Part Number:
    PM590-ETH 1SAP150000R0271
  • Product Family:
    ABB AC500
  • Product Type:
    PLC Processor Module
  • Stock:
    1
  • Program Memory:
    2048 kB
  • Integrated Data Memory:
    3072 kB including 1536 kB buffered
  • Ethernet:
    One onboard RJ45 interface
  • Serial Interfaces:
    Two configurable RS-232/485
  • FBP Interface:
    One
  • External Communication Modules:
    Up to four
  • Central I/O Modules:
    Up to ten
  • Display:
    LCD with eight function keys
  • Supply Voltage:
    20.4-28.8 VDC
  • Nominal Supply:
    24 VDC
  • Protection Rating:
    IP20
  • Web Server:
    Integrated
  • IEC 60870-5-104:
    Supported through onboard Ethernet
  • Bit Instruction Time:
    0.002 microseconds
  • Word Instruction Time:
    0.004 microseconds
  • Floating Instruction Time:
    0.004 microseconds
  • Memory Card:
    SD card support
  • Programming:
    AC500 engineering environment
  • Approximate Weight:
    0.150 kg
  • Order Code:
    1SAP150000R0271
  • Weight:
    0.331 lbs (0.15 kg)
  • Estimated shipping dimensions:
    8.4x7.2x7.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Controller Setup Performance

Features:

  • The module's program memory is 2048 kB.
  • The integrated data memory is 3072 kB including 1536 kB buffered.
  • Ethernet is set to One onboard RJ45 interface.
PM590-ETH 1SAP150000R0271 combines program memory of 2048 kB, integrated data memory of 3072 kB including 1536 kB buffered, and ethernet of One onboard RJ45 interface in the AC500 platform.

It executes AC500 applications with onboard Ethernet, two configurable serial interfaces and FBP connectivity. This role connects the AC500 PM590-ETH Processor Module to the surrounding AC500 architecture.

Before commissioning, match the terminal base and 24 VDC supply; preserve firmware, program, IP and serial settings; and verify installed communication modules and memory-card procedure.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for ABB PM590-ETH 1SAP150000R0271: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controls medium and large AC500 automation applications.
  • Connects supervisory Ethernet services while retaining serial field-device integration.
  • Supports modular controller stations that require local I/O and optional communication modules.
  • Two configurable RS-232/485 serial interfaces support local communication links.
  • One FBP interface is available for fieldbus integration.
  • IEC 60870-5-104 communication is supported through onboard Ethernet.
  • The selected web server specification is integrated.
  • For this hardware, the value for memory card is SD card support.
  • The operating design assigns AC500 engineering environment to programming.
  • The specification for bit instruction time is 0.002 microseconds.
  • For word instruction time, the selected value is 0.004 microseconds.
  • This configuration uses 0.004 microseconds for floating instruction time.
Description
ABB PM590-ETH 1SAP150000R0271 is an AC500 PM590-ETH Processor Module for the AC500 platform. It executes AC500 applications with onboard Ethernet, two configurable serial interfaces and FBP connectivity. Its integrated design supports consistent operation in industrial control systems.

The serial interfaces are Two configurable RS-232/485. The FBP interface is One. These features provide a clear fit for AC500 expansion, service, or lifecycle support.

The external communication modules is Up to four. The central I/O modules is Up to ten. Together, these characteristics support stable integration of the AC500 PM590-ETH Processor Module into AC500 systems.
Alternative Names
PM590-ETH 1SAP150000R0271 PM590 ETH PM590ETH 1SAP150000R0271 ABB PM590-ETH AC500 PM590-ETH ABB PM590-ETH 1SAP150000R0271 PM590 ETH 1SAP150000R0271
Technical notes
For PM590-ETH 1SAP150000R0271 service work, follow these controls: preserve firmware, program, IP and serial settings; match the terminal base and 24 VDC supply before installation or replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What program memory should be confirmed for PM590-ETH 1SAP150000R0271?
The module's program memory is 2048 kB. This characteristic separates the AC500 PM590-ETH Processor Module from visually similar hardware.
How should PM590-ETH 1SAP150000R0271 compatibility be established?
Confirm the AC500 architecture, then match the terminal base and 24 VDC supply. Compatibility depends on the installed interfaces and project configuration.
Which system function is served by PM590-ETH 1SAP150000R0271?
Supports modular controller stations that require local I/O and optional communication modules. The selected use must remain within the intended AC500 architecture.
What should a buyer submit for PM590-ETH 1SAP150000R0271 sourcing?
Provide clear nameplate photographs, required condition, quantity, destination, and the installed-system context. Apter Power can then review sourcing options.
What has to remain consistent when replacing PM590-ETH 1SAP150000R0271?
Do not assume a drop-in substitution. Preserve firmware, program, IP and serial settings. Compare mechanical, electrical, communication, and software dependencies before approval.
Where can the technical basis for PM590-ETH 1SAP150000R0271 be checked?
Use the model-specific PDF in Manuals and compare the serial interfaces are two configurable rs-232/485 and external communication modules is set to up to four with the installed equipment before requesting a quote.
