Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supports quotations, terminal-base checks, documentation, and communication review for PM573-ETH.

PM573-ETH 1SAP130300R0271

/ 4.9
1001 reviews | Need a Specific Revision?

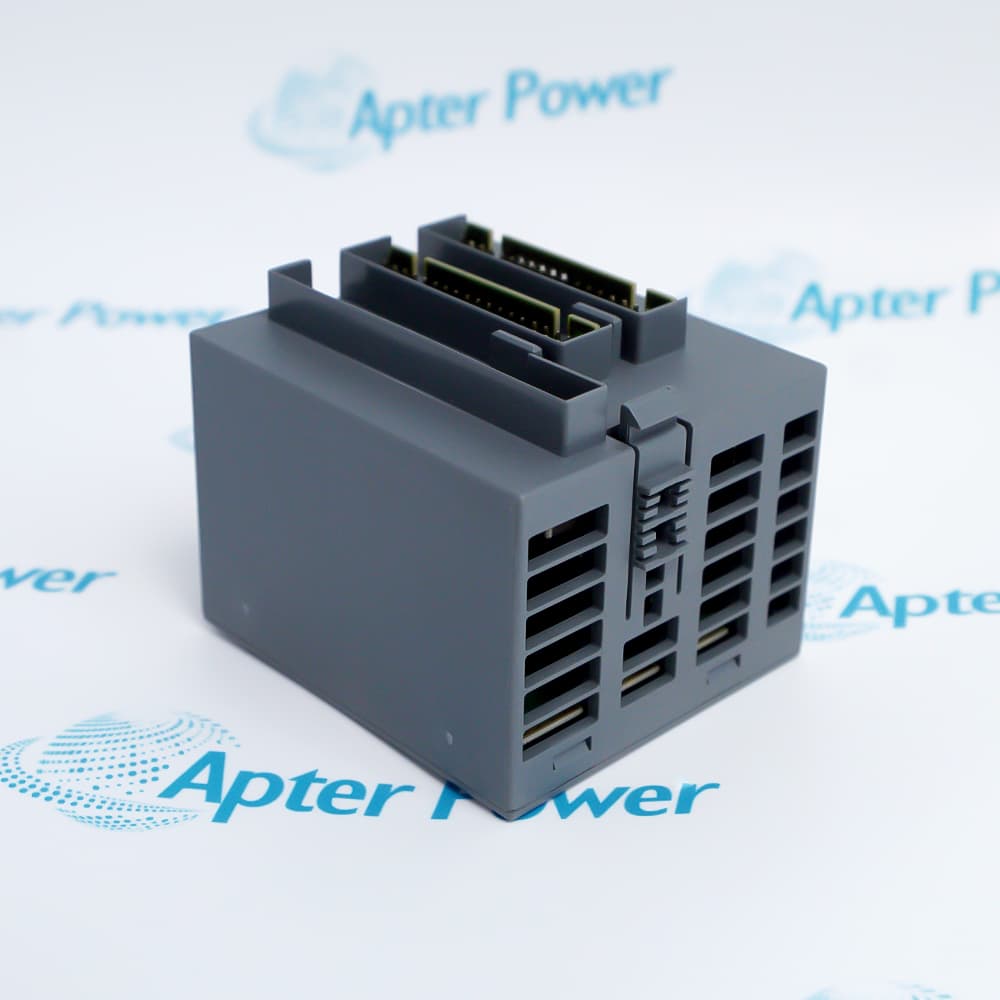

ABB PM573-ETH 1SAP130300R0271 is an AC500 processor module that provides centralized control, communication, and program execution for industrial automation systems.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PM573-ETH 1SAP130300R0271
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PM573-ETH 1SAP130300R0271

  • Manufacturer:
    ABB
  • Part Number:
    PM573-ETH 1SAP130300R0271
  • Product Family:
    ABB AC500
  • Product Type:
    AC500 Processor Module
  • Stock:
    1
  • Memory:
    512 kB
  • Supply Voltage:
    24 VDC
  • Communication Interface:
    Ethernet
  • Serial Ports:
    2 × RS232/485
  • Fieldbus Interface:
    FBP (FieldBusPlug)
  • Memory Expansion:
    SD Card Slot
  • Display:
    Integrated LCD Display
  • Operation Temperature:
    0 ... +60 °C
  • Storage Temperature:
    -40 ... +70 °C
  • CS31-Bus:
    1
  • Communication:
    Serial and Ethernet interfaces for communication and programming
  • Degree of Protection:
    IP20
  • Weight:
    0.135 kg
  • Estimated shipping dimensions:
    8.4x7.2x7.2cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany / United States / China / Finland
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Operation Standards

Features:

  • 512 kB AC500 CPU: The R0271 configuration provides 512 kB program memory.
  • Ethernet and serial communication: One Ethernet and two configurable RS-232/485 interfaces are documented.
  • Local display and FBP: The processor includes an FBP interface, memory-card slot, and display.
This order configuration is the Ethernet-equipped PM573 processor for the standard AC500 platform.

It executes the controller application while providing the documented Ethernet, serial, FBP, memory-card, and local display resources.

Match the terminal base, firmware, project, IP plan, serial protocols, and memory-card procedure before installation.

Availability is subject to Apter Power inventory and sourcing confirmation.
PM573-ETH 1SAP130300R0271 Manuals, Datasheets, and Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
PM573-ETH 1SAP130300R0271 AC500 Processor Module Specifications

General

  • ManufacturerABB
  • ModelPM573-ETH 1SAP130300R0271
  • ConditionNew and factory sealed
  • Product FamilyABB AC500
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Controller project: Confirm the application fits the documented CPU and memory.
  • Ethernet role: Record the configured network services and connected systems.
  • Serial devices: Identify every COM1 and COM2 connection and protocol.
  • FBP use: Verify the installed FieldBusPlug and approved fieldbus design.
  • Operating state: Record CPU state and diagnostics before maintenance.
  • Project backup: Save the verified application and communication settings.
  • Memory card: Document program, data, and firmware-update use.
  • Startup test: Validate communication, I/O, and application operation after replacement.
  • Product approvals: Use only the certificates applicable to the exact order code and installation.
  • Cabinet protection: Maintain the documented IP20 system conditions.
  • Environment: Check temperature, humidity, altitude, vibration, and EMC requirements.
  • Project records: Retain the applicable declarations and commissioning evidence.
Description

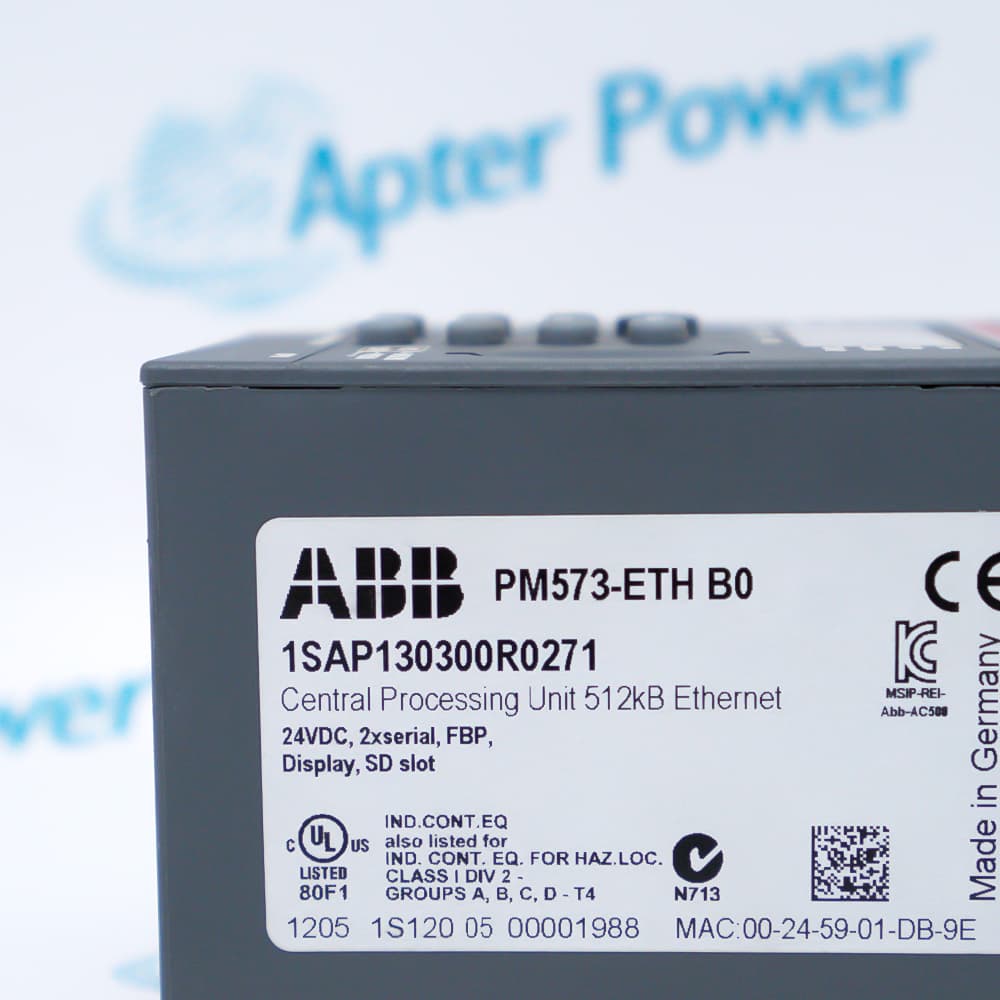

ABB PM573-ETH 1SAP130300R0271 is an AC500 processor module with 512 kB program memory, 24 V DC operation, onboard Ethernet, two configurable RS-232/485 interfaces, an FBP interface, and a display.

The communication resources of ABB PM573-ETH 1SAP130300R0271 support the ABB-documented programming, Modbus, CS31, web server, SNTP, and IEC 60870-5-104 functions according to the configured interface and project.

ABB PM573-ETH 1SAP130300R0271 also provides a memory-card slot and local status display. Before ordering, confirm the terminal base, firmware and project version, network and serial settings, memory-card plan, and complete order code.
Alternative Names
PM573-ETH 1SAP130300R0271 PM573-ETH PM573 ETH PM573ETH 1SAP130300R0271 ABB PM573-ETH AC500 PM573-ETH PM573 Ethernet PLC CPU
Technical notes
PM573-ETH 1SAP130300R0271 is the 512 kB AC500 processor with Ethernet, two configurable serial interfaces, FBP, and display. Verify the terminal base, project, and communication settings.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When is PM573-ETH suitable for an existing AC500 system?
Select it when the approved project requires this 512 kB Ethernet CPU with the documented serial and FBP communication paths.
Which terminal base should be checked for PM573-ETH?
Read the installed base label and compare supply terminals, communication connectors, module slots, and project documentation with ABB requirements.
What should be saved before replacing PM573-ETH?
Back up the controller project, firmware record, IP settings, serial parameters, memory-card contents, I/O architecture, and diagnostics.
Why might PM573-ETH Ethernet communication fail after installation?
Check project download, IP conflict, subnet and gateway, cable, switch port, enabled services, controller state, and error indications.
How should PM573-ETH serial communication be recommissioned?
Confirm RS-232 or RS-485 mode, protocol, baud rate, address, polarity, shielding, termination, and the connected device.
What should a PM573-ETH quotation request include?
Provide the full nameplate, terminal base, firmware, project version, quantity, condition, destination, and required delivery date.
Can PM573-ETH be exchanged with another AC500 CPU without review?
Do not assume direct interchange; compare memory, terminal base, Ethernet and serial resources, FBP, firmware, and project configuration.
