ABB PM866K01 3BSE050198R1
ABB PM866K01 3BSE050198R1
ABB PM866K01 3BSE050198R1
ABB PM866K01 3BSE050198R1
ABB PM866K01 3BSE050198R1
ABB PM866K01 3BSE050198R1
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supports quotations, version checks, package review, and PM866 documentation.

PM866K01 3BSE050198R1

/ 4.9
1001 reviews | Need a Specific Revision?

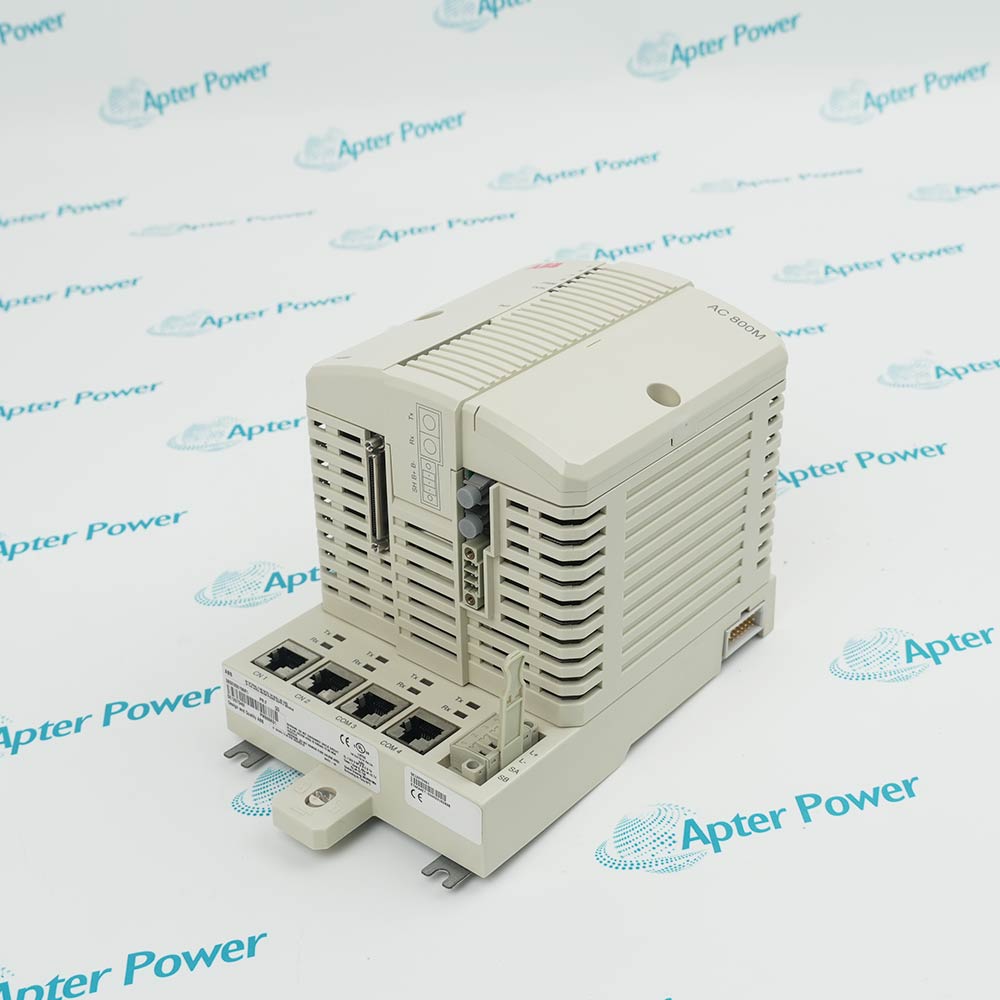

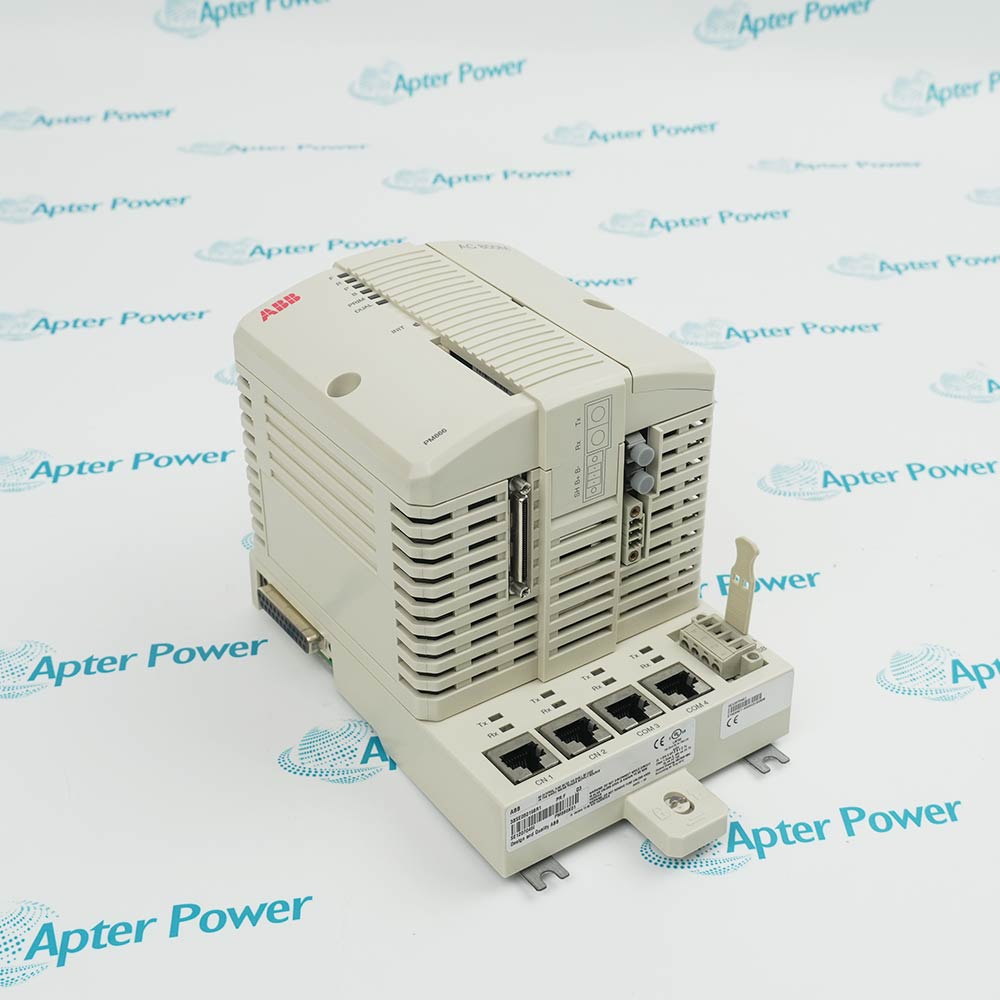

ABB PM866K01 3BSE050198R1 is a single-controller AC 800M processor unit package built around the original PM866 CPU.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PM866K01 3BSE050198R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PM866K01 3BSE050198R1

  • Manufacturer:
    ABB
  • Part Number:
    PM866K01 3BSE050198R1
  • Product Family:
    ABB Advant AC800M
  • Product Type:
    Processor Unit
  • Stock:
    1
  • Package Configuration:
    Single-controller K01 kit
  • Controller Version:
    PM866
  • Redundancy:
    No
  • High Integrity:
    No
  • Clock Frequency:
    133 MHz
  • Performance:
    0.09 ms per 1000 Boolean operations
  • Memory:
    64 MB
  • Application RAM:
    51.402 MB
  • CPU Redundancy Support:
    Yes
  • Ethernet Channels:
    2
  • Serial Channels:
    2 RS-232C
  • Included CPU:
    PM866
  • Included Baseplate:
    TP830
  • Included CEX-Bus Terminator:
    TB850
  • Included ModuleBus Terminator:
    TB807
  • Included RCU-Link Terminator:
    TB852
  • Memory Backup:
    Battery included
  • Operating Temperature:
    0 to +55 C
  • Relative Humidity:
    5-95%, non-condensing
  • Protection Rating:
    IP20
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    11.9 x 18.6 x 13.5 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Version Boundary Kit Review System Recovery

Features:

  • Original PM866 identity: This article is tied to PM866, not the later PM866A configuration.
  • Official K01 package: ABB lists the processor, baseplate, terminators, and backup battery.
  • Controller interfaces: Two Ethernet and two serial ports support the approved AC 800M design.
PM866K01 is the original PM866 single-controller package and must be distinguished from PM866A articles during procurement and migration review.
ABB’s official K01 list ties the PM866 CPU to TP830, TB850, TB807, TB852, and the memory-backup battery as one purchasing configuration.
Engineering approval should compare hardware identity, application and firmware support, baseplate and terminators, network and I/O architecture, backup records, and the offered kit contents.
The PM866K01 3BSE050198R1 ABB may be available from Apter Power subject to exact-article, condition and sourcing confirmation.

ABB PM866K01 3BSE050198R1 Processor Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB PM866K01 3BSE050198R1 Processor Unit Specs

General

  • ManufacturerABB
  • ModelPM866K01 3BSE050198R1
  • ConditionNew and factory sealed
  • Product FamilyAC 800M Controllers

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

PM866 versus PM866A checks

  • CPU nameplate: Confirm PM866 rather than PM866A.
  • ABB article: Keep the full K01 article with the installed record.
  • Firmware support: Check the approved controller and engineering releases.
  • Migration scope: Document every required hardware or software change.

Official package inventory

  • Baseplate: Confirm TP830 is included and serviceable.
  • Bus termination: Verify TB850 and TB807.
  • RCU termination: Confirm TB852 where required by the installed layout.
  • Backup battery: Check battery condition and site handling procedures.

Controlled restoration plan

  • Application archive: Use a verified project backup for the PM866 target.
  • Network records: Preserve both Ethernet and serial configurations.
  • Module inventory: Compare CEX-Bus and I/O hardware before download.
  • Acceptance testing: Validate controller, communication, I/O, alarms, and operator functions.
Description
The ABB PM866K01 3BSE050198R1 is a single-controller AC 800M processor unit package built around the original PM866 CPU.

Official ABB documentation for PM866K01 3BSE050198R1 states: ABB documents a 133 MHz PM866 CPU, 64 MB memory, CPU redundancy support, two Ethernet and two RS-232C ports, plus the official K01 accessories.

Before ordering PM866K01 3BSE050198R1, distinguish PM866 from PM866A, verify the installed software and firmware, controller base and terminators, application backup, and exact package inventory.
Alternative Names
PM866K01 3BSE050198R1 ABB PM866K01 3BSE050198R1 PM866K01 3BSE050198R1 PM866K-01 3BSE050198R1 PM866K01 3BSE 050198 R1 PM866K013BSE050198R1 ABB AC 800M PM866K01 PM866K01 Processor Unit
Technical notes
PM866K01 3BSE050198R1 must be matched by controller version and package configuration, not processor specifications alone. Distinguish PM866 from PM866A, verify the installed software and firmware, controller base and terminators, application backup, and exact package inventory.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can engineers distinguish ABB PM866K01 from a PM866A offer?
Compare the CPU nameplate and full ABB article; PM866 and PM866A are separate hardware identities and should not be conflated.
How should a buyer review an ABB PM866K01 offer with a different accessory scope?
Compare the offered inventory with ABB documentation and the installed cabinet record; do not approve omissions or substitutions by appearance.
What must be checked before replacing ABB PM866K01?
Verify software and firmware support, application target, base hardware, bus terminators, network settings, I/O tree, and tested backup.
Can ABB PM866K01 be converted into redundancy by adding a second K01?
Do not assume so. Use ABB’s documented redundant package and engineering architecture, including the required link hardware and configuration.
Why might ABB PM866K01 fail after a firmware or project transfer?
Review CPU identity, target firmware, application compatibility, restored hardware tree, network parameters, CEX termination, and diagnostic events.
What installation conditions apply to ABB PM866K01?
Confirm 24 V DC cabinet power, DIN-rail mounting, ventilation, IP20 enclosure protection, grounding, shielding, temperature, and humidity controls.
What should a buyer send for ABB PM866K01 procurement review?
Provide CPU and accessory nameplates, software release, package inventory, quantity, condition, destination, and delivery requirement.
