TK850V007 3BSC950192R1

/ 4.9
1001 reviews | Need a Specific Revision?

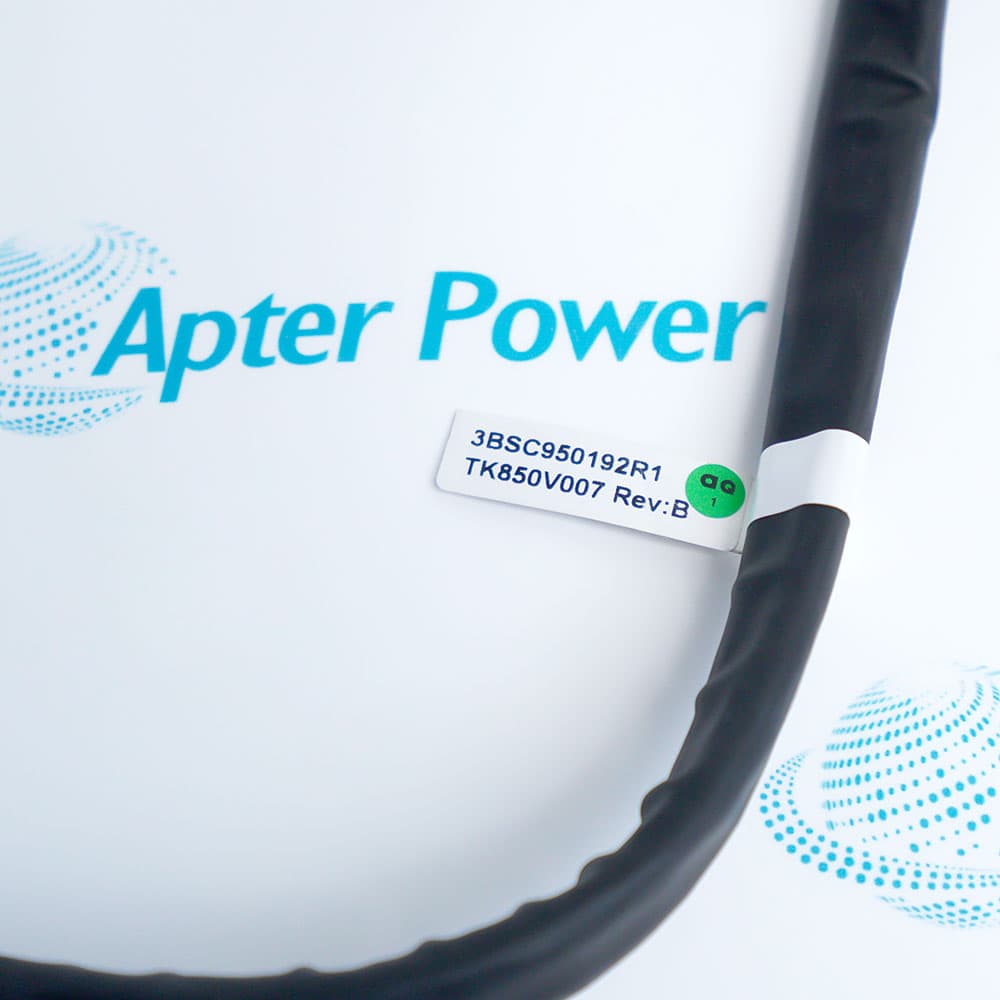

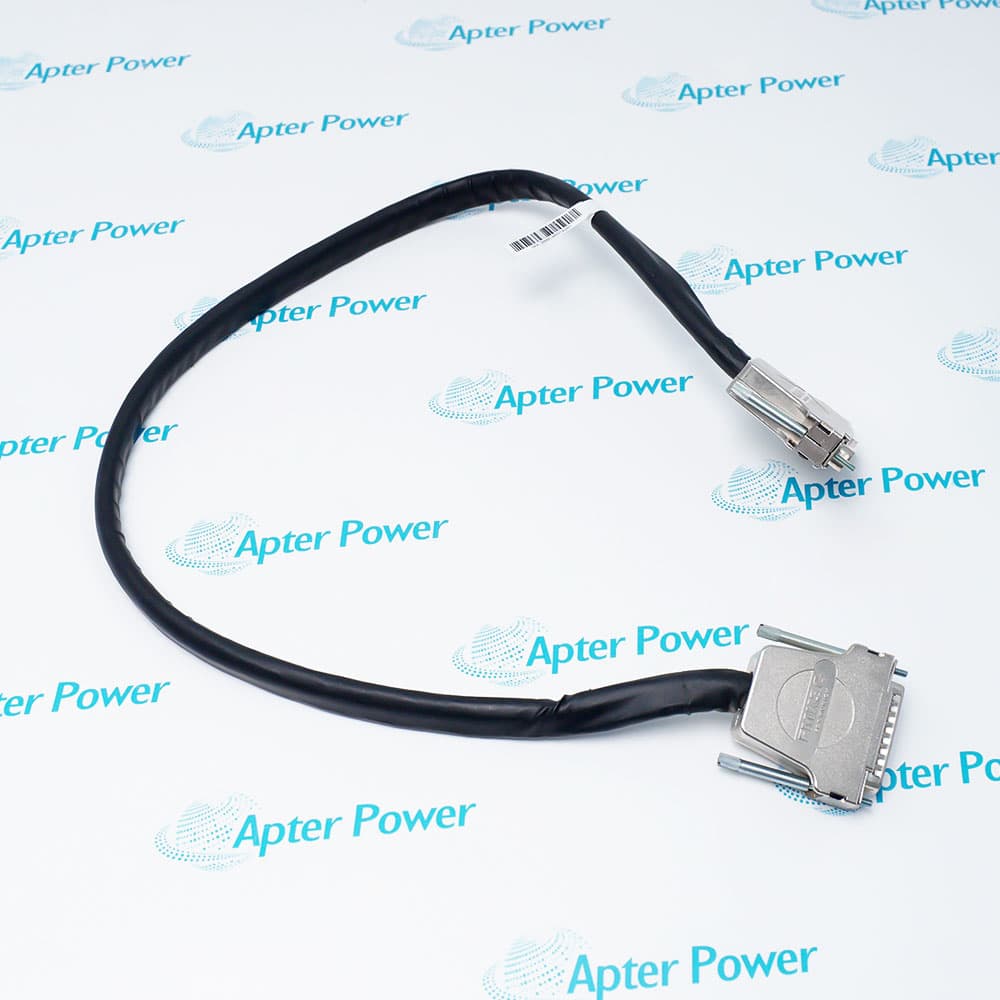

ABB TK850V007 3BSC950192R1 is listed as a 0.7 m CEX-Bus Extension Cable used with the TK851 CEX-Bus terminator in the System 800xA product catalog.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for TK850V007 3BSC950192R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK850V007 3BSC950192R1

  • Manufacturer:
    ABB
  • Part Number:
    TK850V007 3BSC950192R1
  • Product Family:
    ABB Advant AC800M
  • Product Type:
    CEX-Bus extension cable
  • Stock:
    1
  • Function:
    CEX-Bus extension
  • Length:
    0.7 m
  • Article number:
    3BSC950192R1
  • Associated terminator:
    TK851 CEX-Bus Terminator
  • Bus:
    CEX-Bus
  • Installation relation:
    communication-interface units mounted on adjacent DIN rails
  • Connector/termination requirement:
    TK851 termination as specified by the ABB catalog
  • System context:
    ABB System 800xA / AC 800M communication bus accessories
  • Tariff Code:
    8544421100
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Cable distinction Topology boundary Installation checks Application
  • ABB CEX-Bus extension cable for AC 800M and System 800xA installations
  • Exact model TK850V007, ABB article number 3BSC950192R1
  • Documented cable length of 0.7 m

TK850V007 3BSC950192R1 is an ABB CEX-Bus extension cable used with AC 800M communication equipment.

The cable supports CEX-Bus connections where communication-interface units are installed on separate or adjacent DIN rails. The extended bus must use the ABB-specified termination arrangement.

Before replacement, confirm the 0.7 m cable length, connector orientation, equipment arrangement, and required CEX-Bus terminator.

Availability, condition, price, and shipping time for TK850V007 3BSC950192R1 are confirmed during quotation.

ABB TK850V007 CEX-Bus Extension Cable Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • TK850V007 3BSC950192R1 is the documented 0.7 m CEX-Bus extension cable
  • It is not interchangeable with the 1.0 m TK851 interconnection cable
  • Do not substitute ModuleBus or RCU-Link cables solely because their connectors or lengths appear similar
  • TK850V007 3BSC950192R1 provides a short physical extension within the CEX-Bus layout
  • The cable does not replace a BC810 or BC820 CEX-Bus interconnection unit
  • Supported interface quantity, segmentation, and redundancy remain defined by the installed AC 800M controller architecture
  • Confirm the complete TK850V007 3BSC950192R1 article number and documented 0.7 m cable length.
  • Verify the CEX-Bus topology, adjacent-rail arrangement, connector orientation, routing and strain relief against the cabinet drawing.
  • Resolve the ABB catalog’s TB851/TK851 termination-name conflict against the installed project BOM or a current ABB engineering record before connection.
  • System 800xA CEX-Bus extension
  • Connection of AC 800M communication-interface units installed on adjacent DIN rails
  • Replacement of a matching 0.7 m TK850V007 CEX-Bus cable
Description
TK850V007 3BSC950192R1 is an ABB 0.7 m CEX-Bus extension cable for AC 800M and System 800xA communication equipment.

The ABB catalog identifies the exact cable and length, but its TK850V007 line names TK851 as the required terminator while separate accessory entries identify TB851 as the CEX-Bus terminator and TK851V010 as a 1.0 m connection cable.

Before ordering or installation, confirm the complete cable article number, connector orientation, cabinet topology and termination part number against the current project bill of materials, wiring drawing or a clarified ABB engineering record.
Alternative Names
TK850V007 3BSC950192R1 TK850 ABB TK850V007 ABB 3BSC950192R1 TK850V007 3BSC950192R1 ABB TK850V007 3BSC950192R1
Technical notes
TK850V007 3BSC950192R1 must be checked for exact 0.7 m length, CEX-Bus role, TK851 termination, connector orientation, and cable routing before replacement; cable construction and weight remain undocumented here.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that ABB TK850V007 3BSC950192R1 is the correct CEX-Bus extension cable for the intended System 800xA cabinet?
Match the complete model and article number to the approved topology, the communication-interface units, the adjacent-rail arrangement and the project bill of materials rather than purchasing by the TK850 name alone.
What should be checked regarding the TB851 CEX-Bus terminator before installing ABB TK850V007 3BSC950192R1?
Confirm that the documented CEX-Bus termination is present at the correct end of the bus, that the connector orientation agrees with the cabinet drawing, and that the cable route does not place strain on the interface units.
What installation mistake can cause CEX-Bus communication failure when using ABB TK850V007 3BSC950192R1?
Incorrect bus routing, an omitted or misplaced TK851 terminator, wrong connector orientation, excessive mechanical strain or a mismatch between the installed interface units and the project topology can all prevent reliable communication.
Does ABB TK850V007 3BSC950192R1 require a specific CEX-Bus termination arrangement?
Yes. ABB states that use of TK850V007 needs TK851 as the CEX-Bus terminator; do not replace the termination with an unverified generic connector.
Can any 0.7 m cable replace ABB TK850V007 3BSC950192R1 in a CEX-Bus installation?
No. The CEX-Bus electrical interface, connector/termination arrangement, routing, shielding practice and system compatibility must match the ABB installation documentation.
What should be checked when ABB TK850V007 3BSC950192R1 is used between communication-interface units mounted on adjacent DIN rails?
Confirm the communication-interface units, rail spacing, cable routing, strain relief, bend protection, TK851 termination and cabinet segregation before energizing the bus.
What installation evidence should be retained after installing ABB TK850V007 3BSC950192R1?
Retain the article/model labels, topology sketch, rail positions, cable length, TK851 location, continuity/communication test and the System 800xA catalog revision used for selection.
