        AI910N 3KDE175513L9100

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

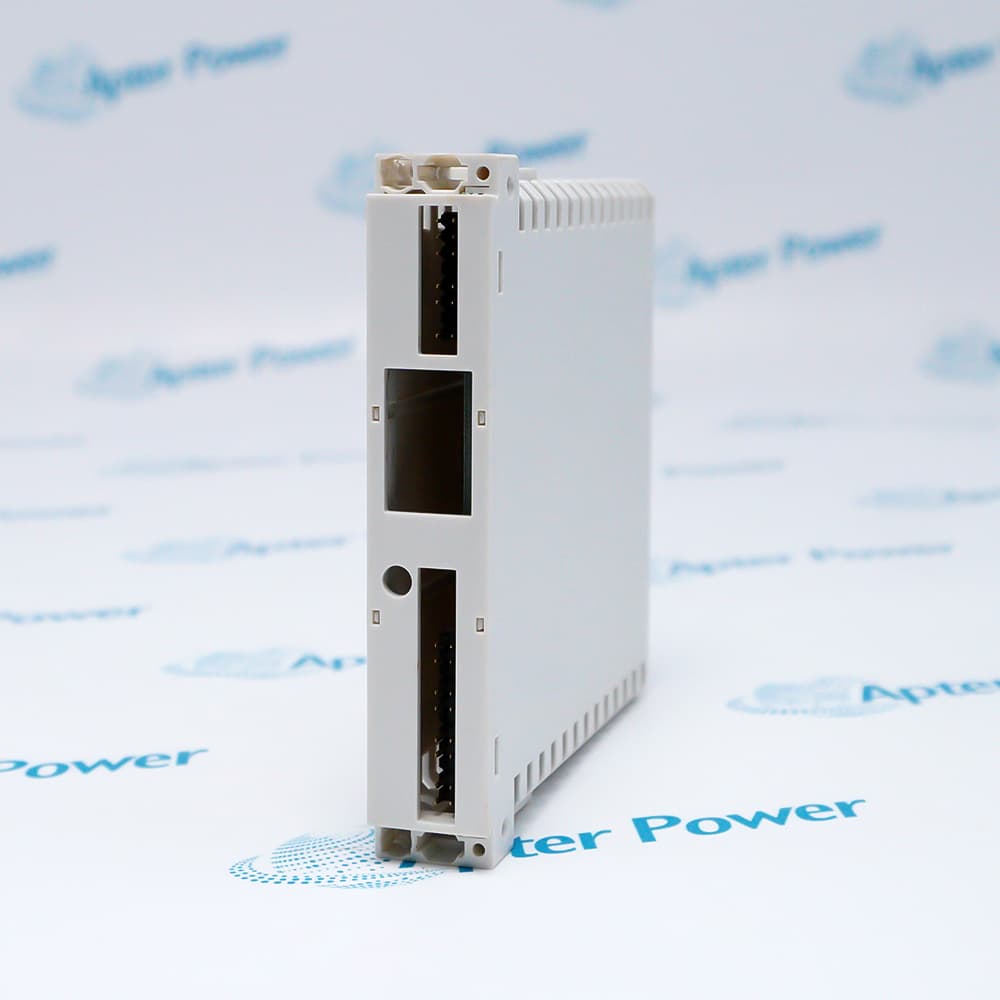

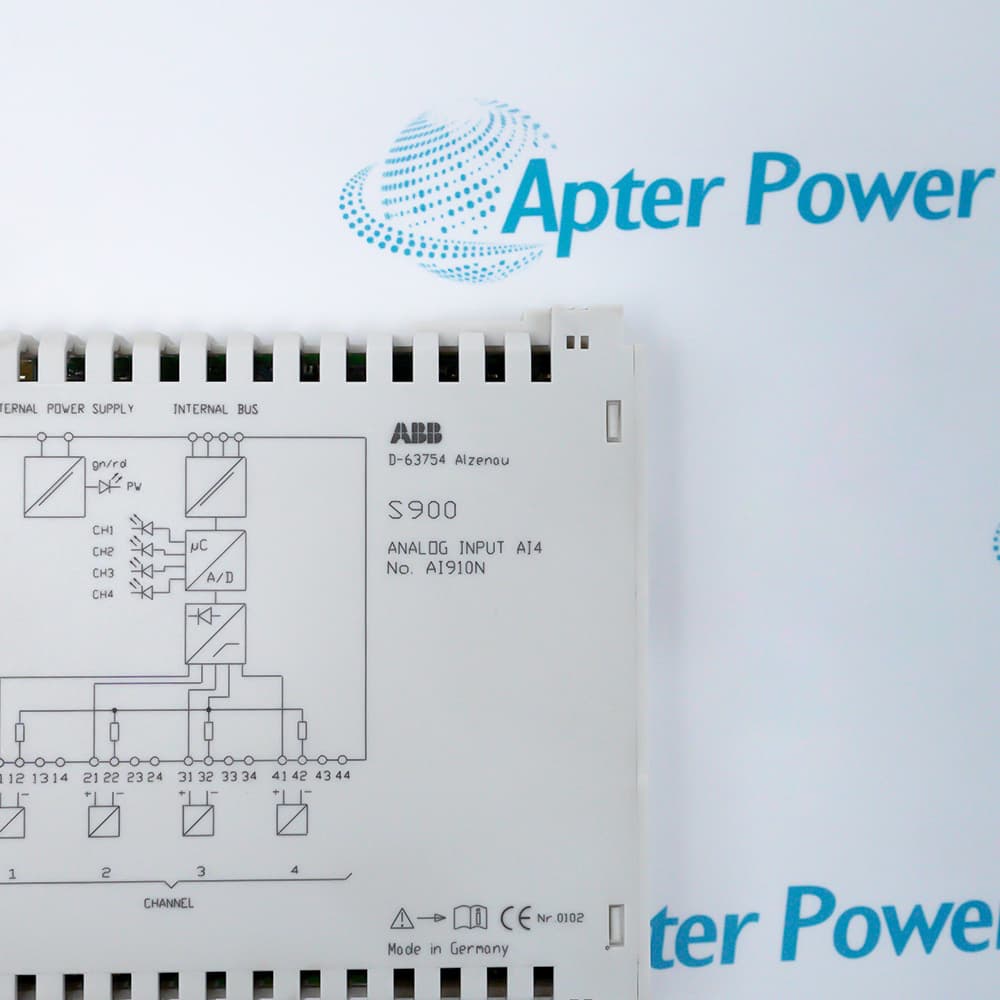

        The ABB AI910N 3KDE175513L9100 Analog Input Module is a high-performance component designed for the remote S900 I/O system type N, specifically engineered for installation in safe, non-hazardous areas.
        Get a quick price for AI910N 3KDE175513L9100
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for AI910N 3KDE175513L9100

        • Manufacturer:
          ABB
        • Part Number:
          AI910N 3KDE175513L9100
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Analog Input Module
        • Number of channels:
          4
        • Signal type:
          4...20 mA
        • HART:
          No
        • SOE:
          N/A
        • Redundancy:
          No
        • Intrinsic safety:
          No
        • Weight:
          0.13 kg
        • Estimated shipping dimensions:
          2x10.4x10.4cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Operating Environment Configuration & Programming

        Features:

        • Bridge Between Field 4...20 mA Transmitters and S900 I/O Backplane
        • Integrates Power Provision for 2-Wire Devices with Extended Fault Detection
        • Functions Alongside the Full S900 I/O Type N Module Range
        The ABB AI910N 3KDE175513L9100 serves as the dedicated Analog Input Module within the S900 I/O rack, delivering precise signal acquisition and regulated loop power to connected field transmitters. It continuously processes incoming 4...20 mA signals from loop-powered 2-wire devices while simultaneously providing the necessary excitation voltage, ensuring accurate data conversion and transmission across the PROFIBUS DP network to the control system level. Seamless signal integrity is inherent with the AI910N 3KDE175513L9100, and its built-in redundancy support for both power and communication pathways enables uninterrupted operation even when primary channels encounter disruption. The AI910N 3KDE175513L9100 has incorporated significant enhancements over conventional analog input designs, including comprehensive short and break detection alongside electrical isolation between input/bus and input/power interfaces.

        The AI910N 3KDE175513L9100 provides essential analog input functions distributed across four independent channels, serving as a vital element of the process measurement path and directly influencing the accuracy and reliability of the overall automation system. A single AI910N 3KDE175513L9100 module occupies one slot within the S900 I/O rack and delivers a common return for all four inputs, optimizing wiring topology and reducing installation complexity.

        For Dual Redundant Communication and Power applications, the S900 I/O system accommodates supplementary AI910N 3KDE175513L9100 modules or complementary redundancy-enabled units within the same rack architecture. Beyond standard single-module operation, the redundant configuration executes automatic failover protocols. The S900 I/O redundancy framework performs continuous health monitoring through integrated diagnostic circuitry specified in the system options. Employing this methodology, the redundant architecture perpetually evaluates the operational status of both primary and secondary pathways. Should the system identify that the primary AI910N 3KDE175513L9100 or its associated communication channel is no longer delivering stable performance (outside configured signal or tolerance thresholds), it will automatically reroute data through the secondary path and generate a corresponding entry in the Extended Diagnostic log.

        The AI910N 3KDE175513L9100 ABB Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB AI910N 3KDE175513L9100 Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB AI910N 3KDE175513L9100 Analog Input Module Specs

        General

        • Manufacturer ABB
        • Model AI910N 3KDE175513L9100
        • Condition New Original ready stock
        • Product Family AI930N 3KDE175513L9300,AI930S 3KDE175511L9300
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Distributed Processing Plants: Integrates with ABB System 800xA and Freelance Distributed Control Systems (DCS).
        • Field Marshalling Minimization: Aggregates regional field signals to reduce wiring, termination points, and copper cable costs.
        • Standard 2-Wire Transmitters: Measures continuous physical variables including pressure, temperature, level, and flow.
        • Continuous System Monitoring: Tracks diagnostic statuses for operations requiring high hardware availability and fault warnings.
        • Safe Area Installation: Engineered exclusively for non-hazardous locations (unlike intrinsically safe S-type modules).
        • Ambient Temperature Range: Operates continuously from -20 °C to 60 °C (-4 °F to 140 °F).
        • Relative Humidity Limits: Endures up to 93% humidity at 40 °C in non-condensing environments.
        • Corrosion Protection: Features standard G3 conformal coating to withstand harsh, polluted industrial atmospheres.
        • Galvanic Isolation: Separates channel inputs, internal system bus components, and external power circuits.
        • Bus Communication: Transmits data to the host controller using the PROFIBUS DP network protocol.
        • FDT/DTM Integration: Configures parameters and delivers online troubleshooting diagnostics through software device managers.
        • Hot Configuration in Run: Modifies channel parameters without stopping the master controller or system process.
        • Hot Swap Capability: Supports physical removal and replacement of the module under voltage during active operations.
        Description
        The ABB AI910N 3KDE175513L9100 Analog Input Module is a specialized component within the S900 I/O portfolio, purpose-built to handle the precise acquisition and conditioning of analog process signals from 4...20 mA loop-powered 2-wire transmitters. The AI910N 3KDE175513L9100 directly addresses the common industrial challenge of simultaneously powering field transmitters while maintaining signal integrity and detecting fault conditions. Equipped with four independent input channels featuring short and break detection, electrical isolation between input/bus and input/power, and a common return for all inputs, this module ensures reliable data capture and safe interfacing with loop-powered instrumentation in demanding automation environments.

        In terms of application domains, the AI910N 3KDE175513L9100 is ideally suited for process industries where continuous monitoring of pressure, flow, level, and temperature parameters is essential. Its robust design, complemented by G3-rated coating on all components, makes it highly effective in oil and gas facilities, chemical processing plants, and pharmaceutical manufacturing operations where exposure to harsh or corrosive atmospheres may occur. As an S900 I/O type N module, the AI910N 3KDE175513L9100 is specifically intended for installation in safe (non-hazardous) areas, providing a dependable signal conversion layer that bridges field instrumentation and higher-level control systems.

        For installation and system integration, the AI910N 3KDE175513L9100 leverages the flexible architecture of the S900 I/O system, which can be deployed in non-hazardous areas or directly within Zone 1 and Zone 2 hazardous areas depending on the selected system variant. Communication with the control system level is established via the PROFIBUS DP standard, enabling seamless data exchange and centralized management. By allowing the I/O system to be installed directly in the field, the AI910N 3KDE175513L9100 helps significantly reduce marshalling and wiring costs. Furthermore, the system’s sturdy, error-tolerant design and integrated disconnection mechanisms allow replacement of power supply units and modules during operation without interrupting the primary voltage, ensuring maximum uptime and simplified on-site serviceability.
        Alternative Names
        AI910N 3KDE175513L9100 AI91ON 3KDE175513L91OO AI9I0N 3KDEI755I3L9100 A1910N 3KDE175513L9100 AI910S 3KDE175511L9100 AI930N 3KDE175513L9300 AI930S 3KDE175511L9300
        Technical notes
        The AI910N 3KDE175513L9100 module solves the problem of traditional I/O systems requiring system shutdown or suffering from signal interference during maintenance. By integrating hot-swappable and hot-configurable capabilities, the AI910N 3KDE175513L9100 allows operators to replace components or change configurations during operation without interrupting the mains voltage or stopping the process.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What are the core functions of the ABB AI910N 3KDE175513L9100?
        The ABB AI910N 3KDE175513L9100 provides analog signal acquisition, loop power supply, and communication between field transmitters and the control system. It uses the PROFIBUS DP communication standard to enable reliable remote I/O integration and efficient field-level data transmission.
        How does the ABB AI910N 3KDE175513L9100 reduce installation costs?
        By supporting direct field installation and remote communication over PROFIBUS DP, the ABB AI910N 3KDE175513L9100 minimizes the need for extensive marshalling cabinets and long wiring runs, helping reduce both installation complexity and overall project costs.
        Does the ABB AI910N 3KDE175513L9100 support hot-swapping?
        Yes, the ABB AI910N 3KDE175513L9100 supports Hot Swap and Hot Configuration in Run functions. These features allow technicians to replace modules or modify configurations without shutting down the process or interrupting the primary system voltage.
        What diagnostic features are included in the ABB AI910N 3KDE175513L9100?
        The ABB AI910N 3KDE175513L9100 includes short-circuit detection, line break detection, and extended auto-diagnostic capabilities. These functions help operators quickly identify wiring faults and maintain stable signal transmission.
