    Engineering replacement: CI526V1

CI526

/ 4.9
1001 reviews | Need a Specific Revision?

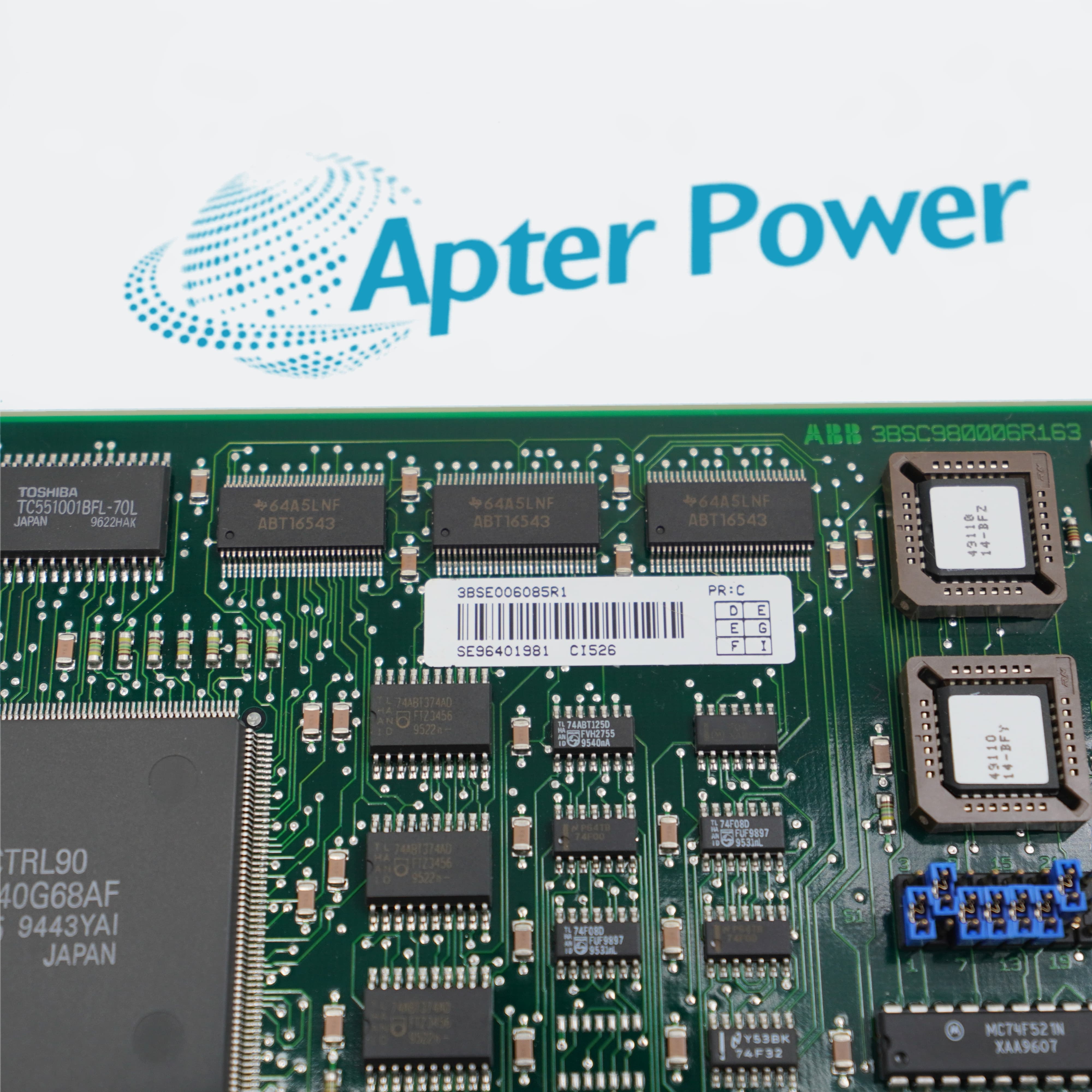

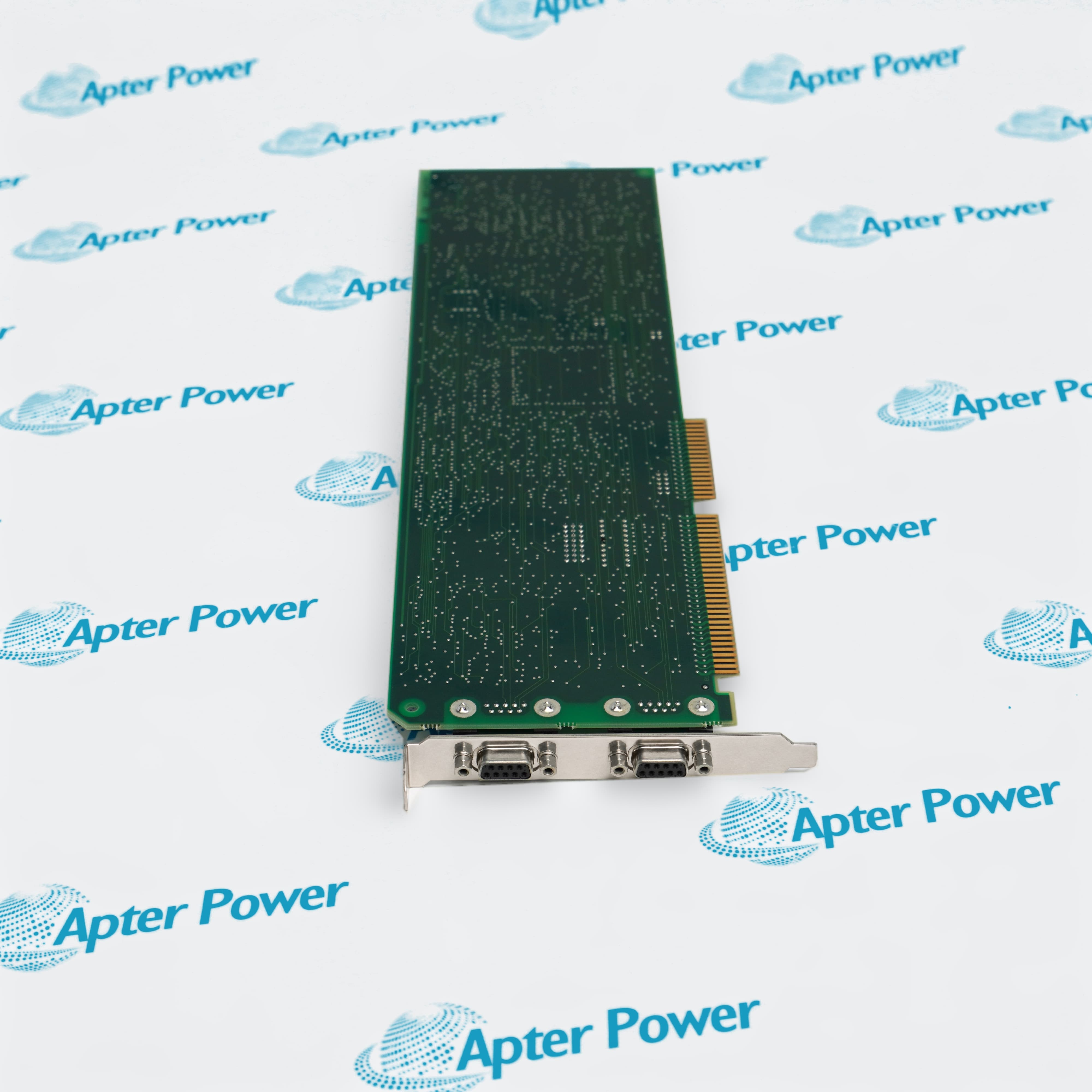

ABB CI526 is a full-length ISA communication interface that connects an AC 100 OPC Server personal computer to Advant Fieldbus 100 for operator-station, CDP, bus-administration and time-synchronization functions.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for CI526
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CI526

  • Manufacturer:
    ABB
  • Part Number:
    CI526
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Advant Fieldbus 100 ISA Communication Interface
  • Stock:
    1
  • Host platform:
    IBM PC AT full-length ISA slot
  • Primary role:
    AC 100 OPC Server PC interface to Advant Fieldbus 100
  • Communication data points:
    Up to 3999 CDPs
  • Legacy redundant-media limit:
    Coaxial media only; maximum 4 m cable-length difference between any two stations
  • Board connectors:
    X8 and X9, 9-pin female D-sub
  • Electrical interface:
    RS-485, GND
  • Input impedance:
    12 kΩ typical
  • Power consumption:
    3.7 W at +5 V
  • Coaxial modem:
    One or two TC625; separate hardware
  • Twisted-pair modems:
    TC512 or TC516; separate hardware
  • Single optical modem:
    TC630; separate hardware
  • Coaxial modem cable:
    TK549, 1.80 m; separate hardware
  • Twisted-pair modem cable:
    TK515, 1.80 m; separate hardware
  • Related support hardware:
    RA545 mounting plate and SB512 power supply; separate hardware
  • Tariff Code:
    8517629990
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Host Integration Media Hardware Bus Administration Application
  • Use CI526 only in the documented IBM PC AT ISA and AC 100 OPC Server architecture
  • Match each Advant Fieldbus 100 medium to its external modem, power supply and cable
  • Preserve CDP mappings, station identity, bus-master role and time-synchronization settings before removal

CI526 is an ABB Advant Fieldbus 100 ISA communication interface for the Advant Fieldbus 100 platform.

ABB CI526 is a full-length ISA communication interface that connects an AC 100 OPC Server personal computer to Advant Fieldbus 100 for operator-station, CDP, bus-administration and time-synchronization functions. CI526 identifies the legacy ISA interface board; external modems, modem power supply, mounting plate and connection cables are separate hardware, and CI526V1 is a later replacement interface rather than an alias.

Before installation or replacement, verify the complete nameplate, compatible companion hardware, wiring or network design, saved configuration and commissioning plan.

Availability, condition, price, and shipping time for CI526 are confirmed during quotation.

ABB CI526 Advant Fieldbus 100 ISA Communication Interface Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install CI526 only in a supported full-length ISA host slot
  • Restore the approved AC 100 OPC Server software and board resources
  • Verify all CDP mappings and operator-station connections before service
  • Use TC625 for documented coaxial connections
  • Use TC512 or TC516 for documented twisted-pair connections
  • Provide the matching TK549 or TK515 cable and external modem power hardware
  • Assign a unique station address and the approved bus-master role
  • Restore send and receive time-synchronization behavior
  • Test the permitted single or redundant media arrangement end to end
  • Connecting an AC 100 OPC Server PC to an Advant Fieldbus 100 process-control network
  • Providing PC-based operator-station access to as many as 3999 communication data points
  • Operating a PC node as an Advant Fieldbus 100 bus administrator, bus master or time-synchronization participant
Description
CI526 is an ABB Advant Fieldbus 100 ISA communication interface for the Advant Fieldbus 100 platform.

ABB CI526 is a full-length ISA communication interface that connects an AC 100 OPC Server personal computer to Advant Fieldbus 100 for operator-station, CDP, bus-administration and time-synchronization functions. CI526 identifies the legacy ISA interface board; external modems, modem power supply, mounting plate and connection cables are separate hardware, and CI526V1 is a later replacement interface rather than an alias.

Before installation or replacement, confirm the complete CI526 identity, compatible hardware, wiring, saved configuration, software release and system requirements.
Alternative Names
CI526 CI 526 ABB CI526 ABB CI 526 Advant Fieldbus 100 CI526 ABB Advant Fieldbus 100 CI526 CI526 Communication Interface AC 100 OPC Server CI526
Technical notes
CI526 is the legacy full-length ISA interface for an AC 100 OPC Server PC; its external modems and cables are separate. CI526V1 is the documented replacement, so verify host, driver and media-redundancy compatibility before substitution.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can CI526V1 replace CI526 without changing the fieldbus design?
Not automatically. CI526V1 is the documented replacement, but verify ISA host support, drivers, modem cables, station configuration and the media-redundancy design before migration.
Which external hardware is required to connect CI526 to Advant Fieldbus 100?
Select the documented modem for the installed medium and provide its matching cable, mounting plate and power supply; these items are not part of the CI526 interface board.
Does using two CI526 connectors create a redundant interface pair?
No. X8 and X9 support single or redundant bus cabling through external modems; that media redundancy is not the same as a primary/backup pair of communication-interface boards.
Why can a replacement PC detect CI526 but fail to exchange CDPs?
Check ISA resources, board strappings, the supported AC 100 OPC Server software and driver, station address, bus-master configuration, modem power, cable assignment and network termination.
Can CI526 act as the Advant Fieldbus 100 bus master?
Yes, when configured for that role. Confirm that the network contains one valid bus-administration design and that station addresses and timing settings do not conflict.
What should be archived before servicing CI526?
Archive OPC configuration, all CDP mappings, station and bus-master settings, time-sync role, ISA resource settings, modem type, cable routing and current network diagnostics.
How should CI526 be validated after installation?
Verify host detection and modem power, then confirm bus participation, bidirectional CDP transfer, operator-station data quality, time synchronization and both media paths where redundancy is used.
