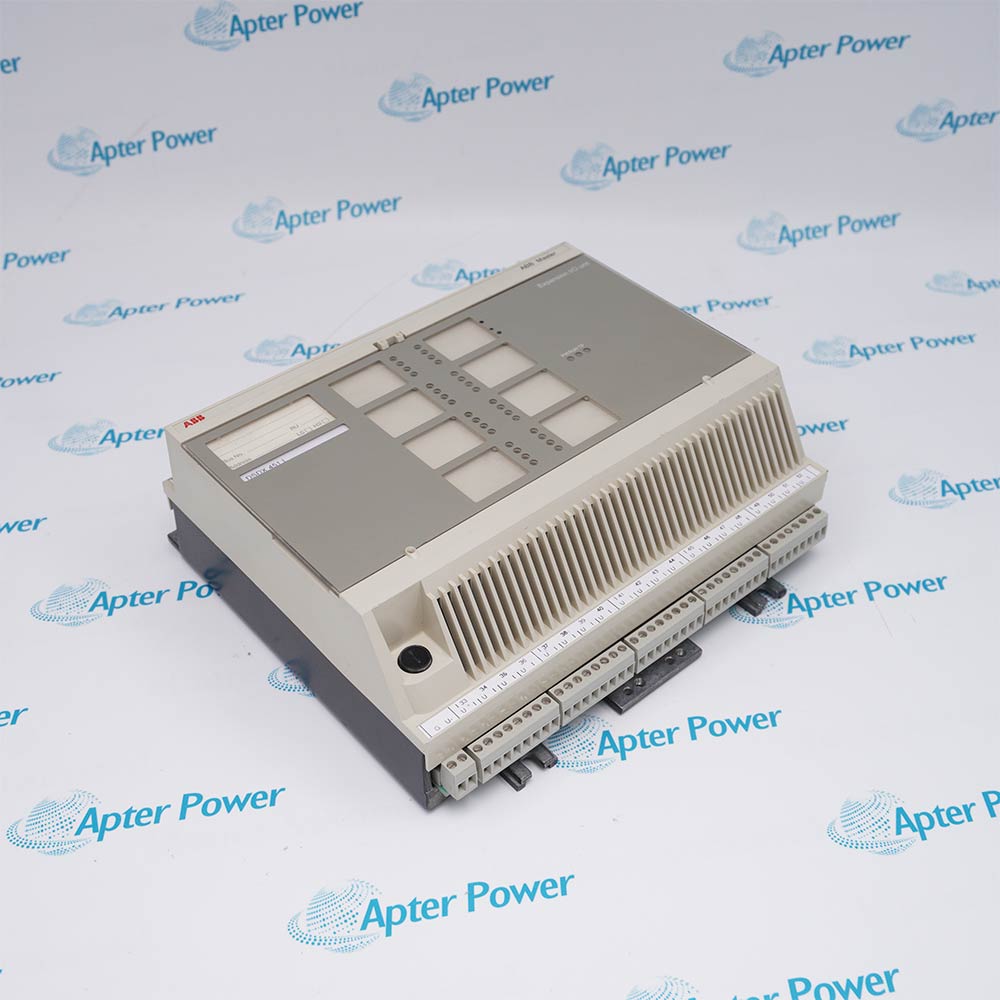

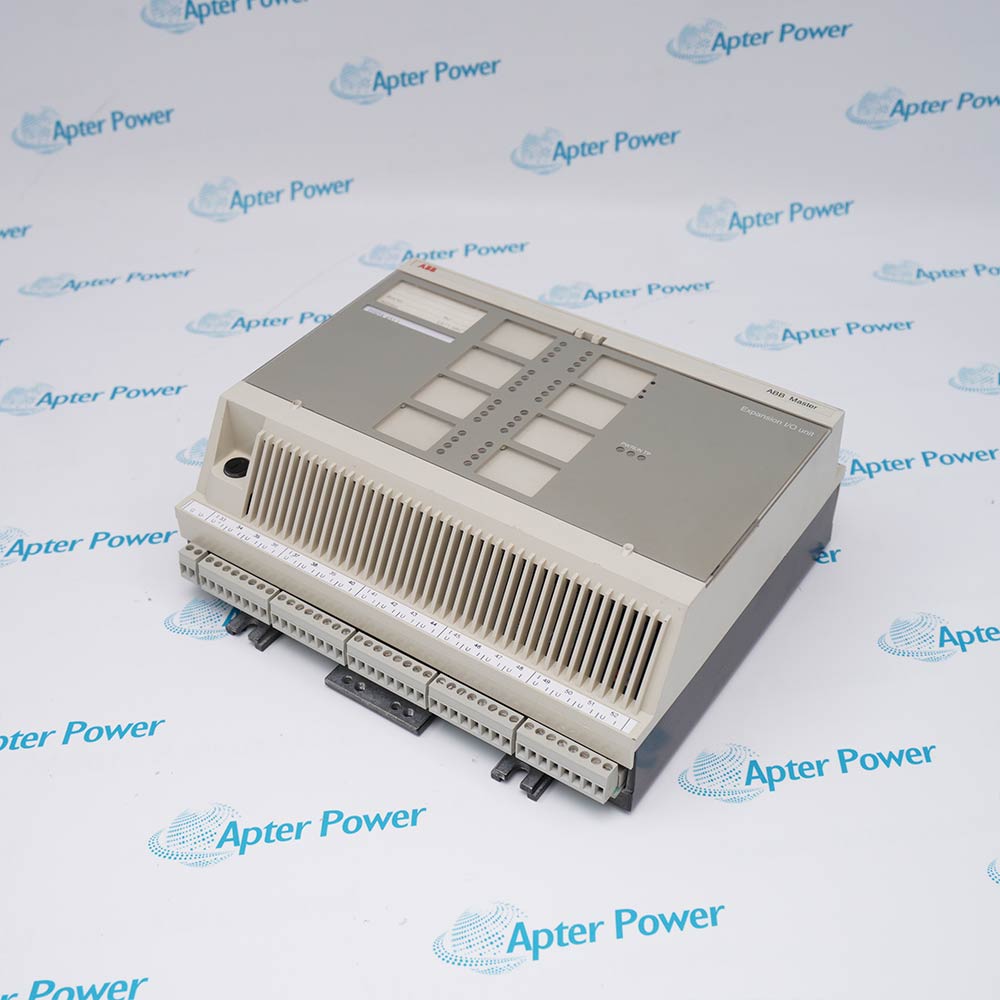

ABB DSDX451L is an S400 remote I/O expansion unit combining 20 digital inputs with 12 low-current relay outputs for documented Advant Controller installations.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSDX451L
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSDX451L

  • Manufacturer:
    ABB
  • Part Number:
    DSDX451L
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Remote I/O Expansion Unit
  • Stock:
    1
  • Digital Inputs:
    20
  • Input Voltage:
    24 V DC
  • Digital Outputs:
    12 relay outputs
  • Output Isolation:
    Completely separated relay contacts
  • Output Circuit Range:
    24 to 240 V AC or DC
  • Low-current Contact Version:
    L suffix
  • Maximum Contact Load:
    200 mA
  • Recommended Minimum Contact Load:
    5 mA or 0.05 VA
  • AC Supply:
    120 / 220 (230) / 240 (230) V AC, 50/60 Hz
  • Documented Migration Termination Unit:
    TU407 when used in the applicable S400 assembly combination
  • Dimensions:
    23.7 × 21.8 × 8.7 cm
  • Weight:
    2.72 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Contact Limits Assembly Fit Migration Application
  • ABB identifies DSDX451L as an S400 digital expansion unit.
  • It combines 20 digital 24 V DC inputs with 12 separated relay outputs.
  • The L suffix denotes the low-current relay-contact version with model-specific load limits.

DSDX451L is an ABB remote I/O expansion unit for documented Advant Controller 450 S400 assemblies.

Its mixed I/O arrangement extends the companion digital basic unit while retaining 24 V input service and isolated low-current relay switching.

Before installation or replacement, verify the companion basic unit, expansion connection, L-suffix contact loading, field supply, rack wiring, and controller channel map.

Availability, condition, price, and shipping time for DSDX451L are confirmed during quotation.

ABB DSDX451L Remote I/O Expansion Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The L version uses relay contacts intended for low-current output circuits.
  • The documented maximum is 200 mA, subject also to the applicable 5 VA or 5 W limit.
  • The recommended minimum load is 5 mA or 0.05 VA, which must be considered during troubleshooting.
  • DSDX451L operates as an expansion unit rather than a standalone S400 basic unit.
  • The companion unit supplies the documented expandable mixed-I/O arrangement.
  • Expansion connectors, terminal references and saved channel assignments must remain aligned with the installed pair.
  • ABB lists TU407 for specific S400 mixed-I/O combinations that include DSDX451L.
  • The migration unit is designed to retain the existing S400 field-wiring connectors and footprint.
  • Verify the complete basic-plus-expansion combination before selecting the S800 termination assembly.
  • Expansion of 24 V digital input capacity in ABB S400 I/O stations.
  • Low-current relay switching for isolated 24 to 240 V AC or DC control circuits.
  • Mixed digital input and relay-output service in documented Advant Controller 450 assemblies.
Description
DSDX451L is an ABB S400 remote I/O expansion unit used with documented Advant Controller 450 digital I/O assemblies.

The unit combines 20 digital 24 V DC inputs with 12 completely separated low-current relay outputs for 24 to 240 V AC or DC circuits.

Before installation or replacement, confirm the L suffix, companion basic unit, output load, field supply, connector set, rack wiring, and the applicable S400-to-S800 migration arrangement.
Alternative Names
DSDX451L DSDX 451L DSDX-451L ABB DSDX451L ABB DSDX 451L ABB DSDX-451L EXC5716075-AH DSDX451L EXC5716075-AH
Technical notes
DSDX451L is the low-current S400 expansion version; verify its companion basic unit, 24 V input wiring, relay burden, L-suffix contact limits, and migration termination before replacement.
