DSTA180 57120001-ET/2

/ 4.9
1001 reviews | Need a Specific Revision?

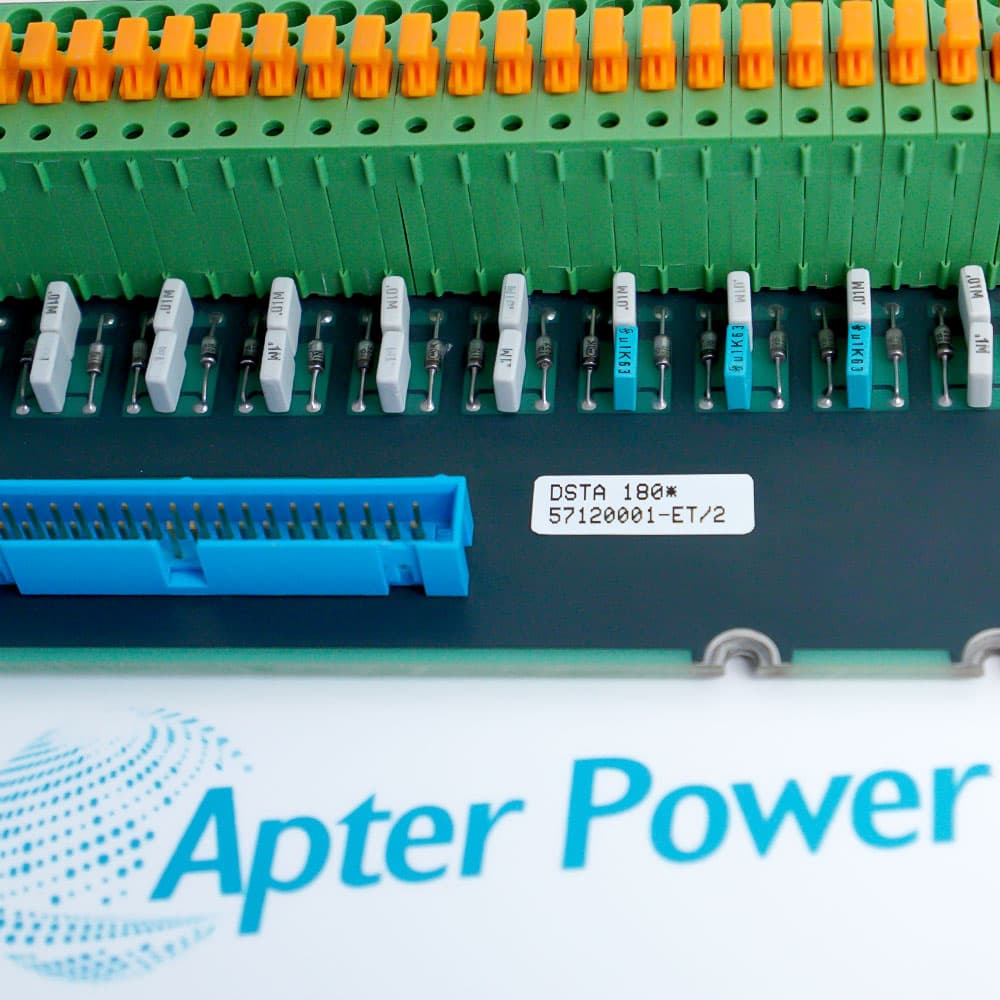

ABB DSTA180 57120001-ET/2 is a connection unit for a 16-channel analog output unit, with DSRA 110 listed as the possible mounting bar.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTA180 57120001-ET/2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTA180 57120001-ET/2

  • Manufacturer:
    ABB
  • Part Number:
    DSTA180 57120001-ET/2
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Connection Unit
  • Stock:
    1
  • ABB Product ID:
    57120001-ET
  • Signal Role:
    Field connection for an analog output unit
  • Compatible Mounting Bar:
    DSRA 110 / 21660559-H
  • Application:
    Analog output field termination
  • Supported Channels:
    16 analog output channels
  • Weight:
    0.31 kg
  • Estimated shipping dimensions:
    23.4 x 9.9 x 3.15 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Role Mounting Dimensions & Fit Product Applications

Features:

  • Product role: connection unit for a 16-channel analog output unit.
  • ABB identity: DSTA 180 with product ID 57120001-ET.
  • Mounting option: DSRA 110, order number 21660559-H.
ABB identifies the component as a field connection unit rather than the analog output electronics.

The sixteen-channel role defines the channel schedule that must be matched in the installed cabinet.

The listed mounting-bar relationship adds a second physical identity check for maintenance planning.

Apter Power supports document review, quotation, and procurement for the ABB DSTA180 57120001-ET/2 Connection Unit.
ABB DSTA180 57120001-ET/2 Connection Unit Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminates the field connections for a 16-channel analog output unit.
  • Forms the connection-unit layer associated with the analog output hardware.
  • Uses DSTA 180 as the ABB type designation and 57120001-ET as the product identifier.
  • Keeps the sixteen-channel termination role distinct from the electronic output function.
  • ABB lists DSRA 110 as the possible mounting bar for DSTA 180.
  • The related DSRA 110 order number is 21660559-H.
  • The official physical envelope is 234 × 99 × 31.5 mm.
  • Cabinet planning must match the bar identity as well as the available mounting space.
  • ABB lists a depth of 234 mm for cabinet-space planning.
  • The listed width is 99 mm across the connection-unit body.
  • The listed height is 31.5 mm for the exact DSTA 180 product record.
  • The listed weight is 0.31 kg for receiving and handling checks.
  • Field connection for a 16-channel ABB analog output unit.
  • Legacy spare-part service in ABB Advant Master Process Control System cabinets.
  • Cabinet installations that specify the DSRA 110 mounting-bar arrangement.
Description
DSTA180 57120001-ET/2 is ABB's connection unit for a 16-channel analog output unit. It gives maintenance teams a distinct field-termination component to trace when the output wiring must be serviced without confusing the connection hardware with the associated electronics.

DSTA180 57120001-ET/2 can use the DSRA 110 mounting bar, order number 21660559-H. Matching that bar as well as the connection unit helps keep a mechanically similar assembly from being planned for a cabinet built around a different mounting arrangement.

DSTA180 57120001-ET/2 keeps the DSTA 180 designation and the 57120001-ET identity together for a specific ABB legacy-system spare. Recording both identifiers in stores and service records makes future enquiries clearer than relying on the product type or sixteen-channel description alone.
Alternative Names
ABB DSTA180 57120001-ET/2 DSTA 180 57120001-ET/2 DSTA180 57120001 ET/2 DSTA180 57120001-ET2 DSTA18O 5712OOO1-ET/2 DSTA180 5712 0001-ET/2 DSTA180 57120001 ET2 DSTA180 57120001-ET-2
Technical notes
ABB lists DSRA 110, order number 21660559-H, as the possible mounting bar for DSTA180 57120001-ET/2. The bar is a mounting dependency, not part of the connection-unit identity. A cabinet using a different bar or damaged mounting points can invalidate the mechanical fit, so stop before rewiring if the installed arrangement cannot be matched.
