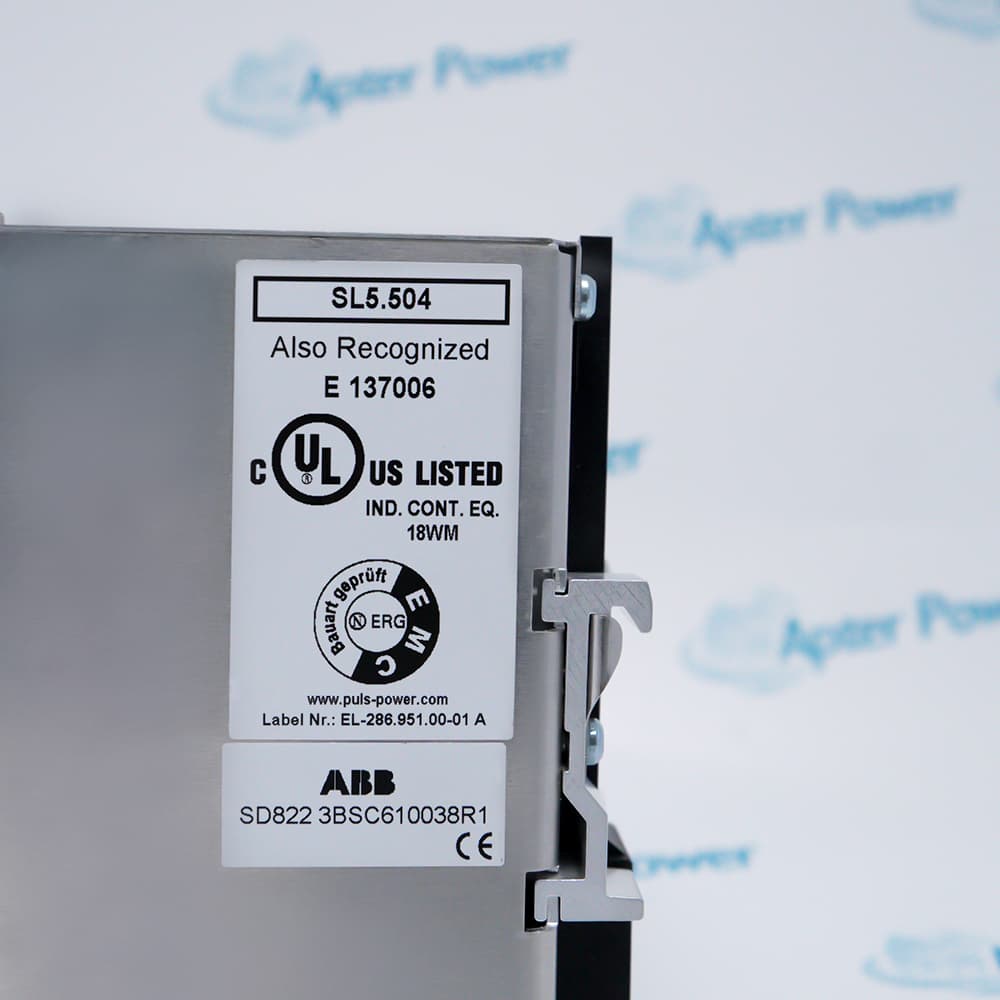

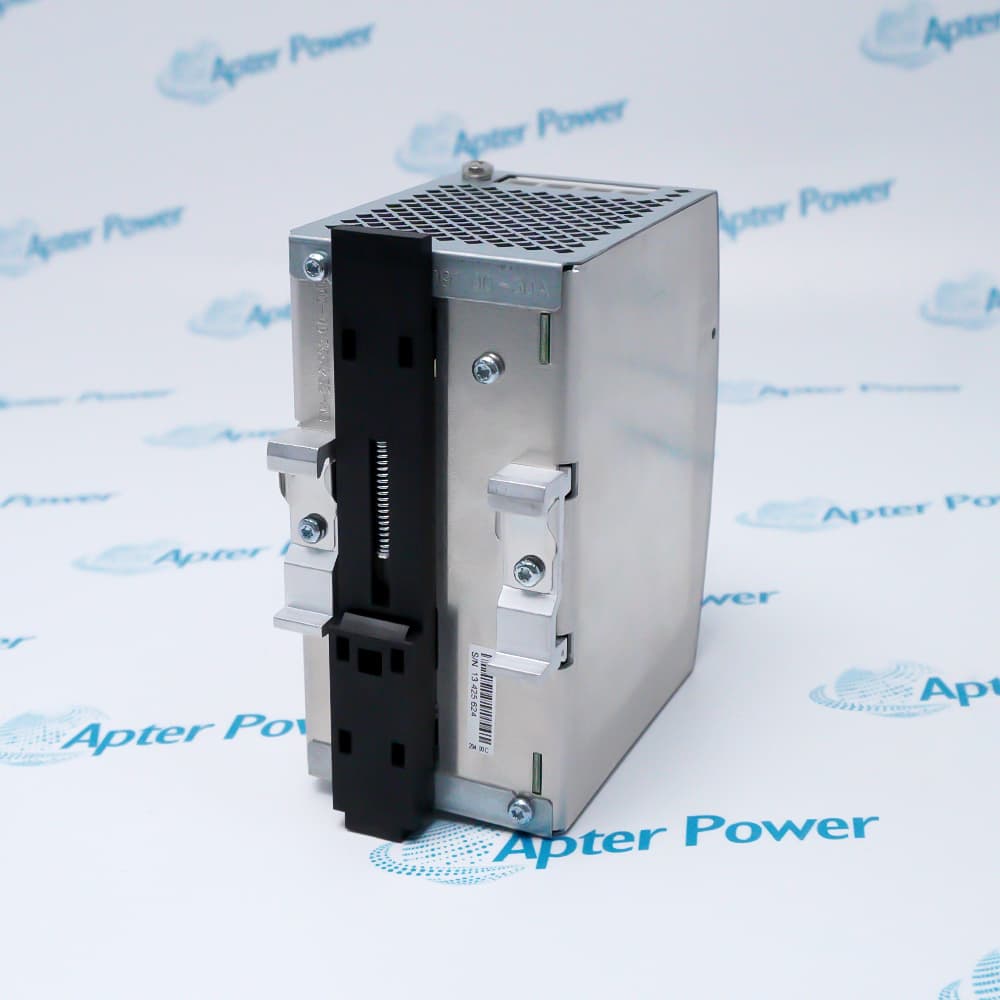

        ABB SD822 3BSC610038R1
        ABB SD822 3BSC610038R1
        ABB SD822 3BSC610038R1
        ABB SD822 3BSC610038R1
        ABB SD822 3BSC610038R1
        ABB SD822 3BSC610038R1
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Active / Available from OEM
          Acquiring authentic ABB automation power supplies via Apter Power delivers trusted performance, supporting continuous uptime and electrical stability across your industrial operations.

        SD822 3BSC610038R1

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The ABB SD822 3BSC610038R1 is a DIN-rail mounted, switch-selectable AC/DC power supply providing 24V DC at 5A for ABB AC 800M controllers and S800 I/O systems in critical industrial applications.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for SD822 3BSC610038R1
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for SD822 3BSC610038R1

        • Manufacturer:
          ABB
        • Part Number:
          SD822 3BSC610038R1
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Power Supply Device
        • Stock:
          1
        • Input Voltage:
          115 / 230 V AC (switch selectable)
        • Input Voltage Type:
          AC
        • Max Input Current:
          15 A
        • Output Voltage:
          24 V DC
        • Max Output Current:
          5 A
        • Number of Outputs:
          1
        • Output Power:
          120 W
        • Redundancy Support:
          Yes (requires SS822 Voting Unit)
        • Mounting Type:
          DIN rail
        • Weight:
          0.6 kg
        • Estimated shipping dimensions:
          6.3x10.5x13.1cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Operating Environment Safety & Compliance

        Features:

        • Field-Switchable Input Voltage for Global Deployment
        • Clean 24V DC Output with Integral Protection
        • Designed for High-Availability Redundant Systems
        The ABB SD822 3BSC610038R1 features a physical selector switch for 115V or 230V AC input, allowing the same stock-keeping unit (SKU) to be deployed across North American, European, and Asian facilities. This reduces inventory complexity for multinational integrators and simplifies field replacement.

        Delivering 5A of regulated 24V DC, the ABB SD822 3BSC610038R1 provides ripple-free power essential for analog I/O accuracy and processor stability. Built-in overcurrent, overvoltage, and short-circuit protection prevent a downstream fault from damaging the power supply itself, minimizing unplanned downtime.

        When paired with the SS822 Voting Unit, the ABB SD822 3BSC610038R1 enables true 1+1 redundant power architecture. In the event of a primary supply failure, the voting unit automatically switches to the redundant unit without disturbing controller operation—a non-negotiable feature for SIL 2/3 applications and continuous process industries.

        The SD822 3BSC610038R1 ABB Power Supply Device may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB SD822 3BSC610038R1 Power Supply Device Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB SD822 3BSC610038R1 Power Supply Device

        General

        • Manufacturer ABB
        • Model SD822 3BSC610038R1
        • Condition New Original ready stock
        • Product Family SD821 3BSC610037R1,SD832 3BSC610065R1,SB512 3BSE002098R1
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • AC 800M Controller & S800 I/O Powering:The ABB SD822 3BSC610038R1 is the recommended power supply for ABB's AC 800M controllers and S800 distributed I/O panels. It ensures clean, stable DC power for processor execution, backplane communication, and module health monitoring.
        • High-Availability Redundant Power Architectures:Using two ABB SD822 3BSC610038R1 units plus the SS822 Voting Unit, system integrators build 1+1 redundant power systems for continuous processes such as refinery cracking units, pharmaceutical fermenters, and pipeline compressor stations.
        • Retrofit & Legacy System Support:For existing 800xA and Compact Product Suite installations, the ABB SD822 3BSC610038R1 directly replaces older power supplies without requiring cabinet rework. Its identical footprint and wiring scheme minimize downtime during plant turnarounds.
        • Multi-Voltage International Projects:With its built-in 115V/230V AC selector switch, the ABB SD822 3BSC610038R1 simplifies global procurement. One part number serves both 60 Hz (North America) and 50 Hz (Europe/Asia) grids, reducing warehouse SKUs for EPCs.
        • DIN Rail Mounting in Enclosed Cabinets:The ABB SD822 3BSC610038R1 is designed for vertical or horizontal mounting on standard 35mm DIN rails inside IP20 or better enclosures. Allow convective airflow; do not enclose in a sealed box without ventilation.
        • Industrial Temperature Range (Non-Condensing):Rated for ambient temperatures typical of unheated control rooms or sheltered outdoor kiosks (refer to official manual for exact limits: expected -25°C to +70°C). Avoid direct sunlight or proximity to large variable frequency drives (VFDs) without thermal separation.
        • Pollution Degree 2 Environments:Suitable for factory floors and process areas where only non-conductive contamination occurs occasionally. For Pollution Degree 3 (conductive dust, condensation), the ABB SD822 3BSC610038R1 must be installed in a clean, purged, or pressurized enclosure.
        • Vibration & Shock Resistance:While not rated for heavy machine-mount applications (e.g., directly on a stamping press), the ABB SD822 3BSC610038R1 withstands typical control cabinet vibration levels per IEC 60068-2-6. For marine or on-vehicle installations, use additional shock mounts.
        • CE Marking & Low Voltage Directive (LVD) 2014/35/EU:The ABB SD822 3BSC610038R1 complies with European LVD and EMC directives, ensuring legal sale and installation within the EU. Declaration of Conformity is available from ABB upon request.
        • UL 508 Recognized Component:Listed under UL 508 (Industrial Control Equipment), the ABB SD822 3BSC610038R1 meets North American safety requirements. This facilitates panel certification by third-party inspection bodies (e.g., CSA, ETL).
        • RoHS Compliant (Restriction of Hazardous Substances):The ABB SD822 3BSC610038R1 is manufactured without lead, mercury, cadmium, or other restricted substances, making it acceptable for sale in environmental regulatory zones including China (RoHS 2) and the EU.
        • Overvoltage Category II (IEC 60364-4-443):Suitable for industrial fixed installations where transient overvoltages are moderate (e.g., not directly connected to outdoor lines). For locations with frequent lightning strikes, install external surge protection at the distribution panel feeding the ABB SD822 3BSC610038R1.
        Description
        The ABB SD822 3BSC610038R1 converts 115/230V AC input (user-selectable) to a regulated 24V DC output at 5A, providing clean and reliable power to ABB's AC 800M hardware and S800 I/O modules. Its compact 65mm width design optimizes DIN rail space in crowded control cabinets, making it an ideal choice for greenfield projects or retrofit applications where panel real estate is limited.

        For high-availability processes such as continuous chemical production or turbine control, the ABB SD822 3BSC610038R1 supports redundant power configurations when paired with the SS822 Voting Unit. This architecture eliminates single points of failure, ensuring that a single power supply fault does not interrupt controller or I/O operation—a critical requirement for SIL-rated loops and 24/7 plant operations.

        Manufactured in ABB's ISO-certified facilities (Country of Origin: CN), the ABB SD822 3BSC610038R1 carries a customs tariff number 85044082 and UNSPSC code 39120000, facilitating smooth international logistics. Its robust design supports industrial environments without derating, and the unit features built-in overcurrent, overvoltage, and short-circuit protection to safeguard downstream field devices.
        Alternative Names
        SD822 3BSC610038R1 SD822 3BSC61OO38R1 SD822 3BSC6I0038RI SD821 3BSC610037R1 SD832 3BSC610065R1 SB512 3BSE002098R1 SD812F 3BDH000014R1
        Technical notes
        The ABB SD822 3BSC610038R1 requires an external SS822 Voting Unit for true 1+1 redundant power applications. Additionally, the optional cover for the power plug (part number 5FSE707630-103) is recommended to prevent accidental disconnection in high-vibration environments.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What safety certifications does ABB SD822 3BSC610038R1 carry for global projects?
        The ABB SD822 3BSC610038R1 complies with IEC 60950-1 (safety of IT equipment) and UL 508 (industrial control equipment). It is CE marked for Europe and meets RoHS. For ATEX or IECEx hazardous area use, the power supply must be installed in a certified Ex e or Ex d enclosure outside the hazardous zone.
        How do I physically install ABB SD822 3BSC610038R1 on a DIN rail, and what is the correct wiring sequence?
        To install the ABB SD822 3BSC610038R1 : (1) Hook the top of the unit onto the 35mm DIN rail, (2) Press downward and snap the bottom clip, (3) Wire AC input (L, N, PE) using 1.5-2.5 mm² stranded wire, (4) Wire DC output (+) and (-) using 2.5 mm² wire, (5) Set voltage selector switch (115 or 230) before powering on. Always disconnect mains before wiring.
        Can I wire ABB SD822 3BSC610038R1 directly to a 24V sensor without additional protection?
        Yes, but with caution. The ABB SD822 3BSC610038R1 has short-circuit protection on its output, but for field sensors exposed to harsh environments (moisture, vibration), ABB recommends adding an external 1A or 2A circuit breaker per sensor group to isolate faults without tripping the main 5A supply.
        Does ABB SD822 3BSC610038R1 support PROFIBUS or Ethernet power delivery?
        No. The ABB SD822 3BSC610038R1 is a pure DC power supply. It does not inject communication signals. Fieldbus power (e.g., for PROFIBUS PA) requires separate segment couplers. This unit powers the controller and I/O backplane only.
        What is the exact output rating of ABB SD822 3BSC610038R1, and how does it affect I/O module selection?
        The ABB SD822 3BSC610038R1 provides 24V DC at 5A (120W). This capacity supports up to 16 S800 I/O modules (depending on module type) plus an AC 800M controller. Always calculate the sum of backplane current draw; exceeding 5A will trigger overcurrent protection.
