BRC400 / SPBRC400

/ 4.9
1001 reviews | Need a Specific Revision?

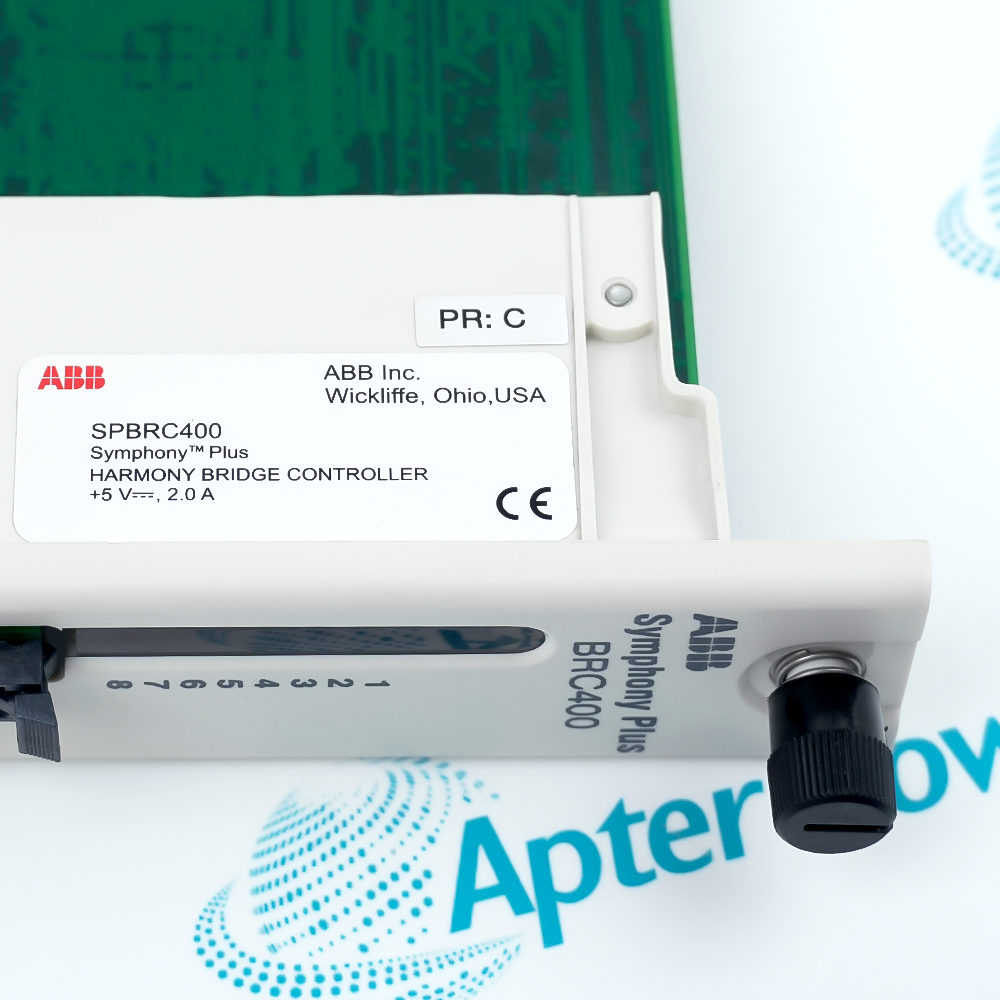

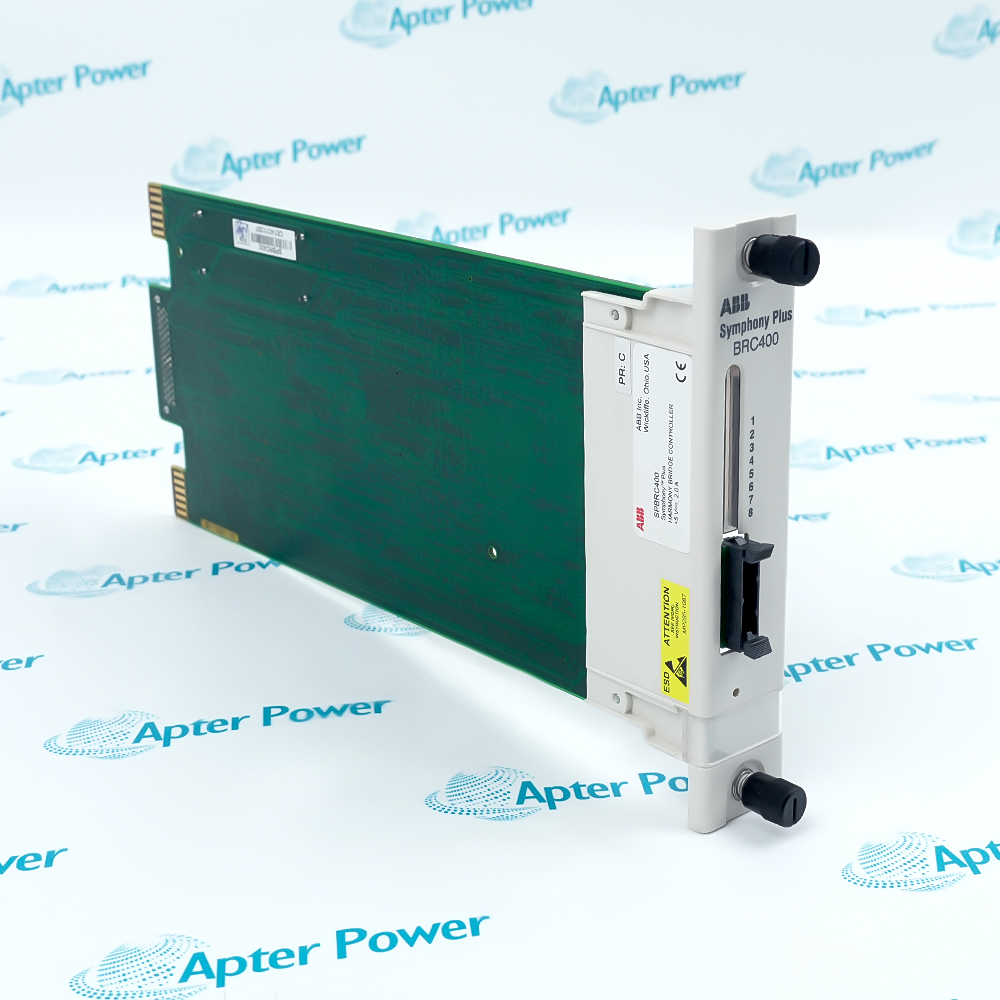

ABB BRC400 / SPBRC400 is a Symphony Plus Harmony Rack bridge controller built around a 160 MHz processor for large control applications. It coordinates HR Series, SD Series, block and S800 I/O through the documented controller architecture.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for BRC400 / SPBRC400
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BRC400 / SPBRC400

  • Manufacturer:
    ABB
  • Part Number:
    BRC400 / SPBRC400
  • Product Family:
    ABB Bailey
  • Product Type:
    Symphony Plus Harmony Rack Bridge Controller
  • Stock:
    1
  • Processor:
    32-bit ColdFire
  • Processor clock:
    160 MHz
  • Nonvolatile memory:
    2 MB NVRAM
  • Application capacity:
    Up to 30,000 function blocks
  • Online configuration:
    Flexible online changes supported
  • Control language:
    Harmony function-code architecture
  • Supported rack I/O:
    HR Series
  • Supported distributed I/O:
    SD Series
  • Supported field I/O:
    S800 I/O
  • Controller class:
    Harmony Rack bridge controller
  • Weight:
    0.24 kg
  • Estimated shipping dimensions:
    3.5x32x17.6cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Compatibility Configuration & Programming

Features:

  • A 160 MHz processor executes large Symphony Plus control applications.
  • HR Series, SD Series, block and S800 I/O can be coordinated through supported paths.
  • The controller preserves established Harmony Rack field interfaces during modernization.
BRC400 and SPBRC400 denote the requested Harmony Rack bridge-controller assembly.

Its processing and communication resources link the control database with multiple ABB I/O architectures.

Back up the application, identify I/O paths and confirm firmware, address and redundancy details before transfer.

SPBRC400 condition and delivery are verified for the requested system configuration.
Verified resources for ABB BRC400 / SPBRC400:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Executing large function-block strategies in Symphony Plus control nodes.
  • Bridging established Harmony Rack I/O into a controller upgrade project.
  • Coordinating mixed HR, SD, block and S800 I/O resources.
  • Controlway provides the controller-side communication path within supported Harmony rack process-control units.
  • HN800 and PDP800 interfaces extend the controller to SD Series I/O and PROFIBUS device networks.
  • HART and PROFIBUS DP V0, V1 and V2 device data can be integrated through the supported I/O architecture.
  • HR Series, earlier rack generations, SD Series, block I/O and S800 I/O remain available through their documented interfaces.
  • Existing function-code strategies, custom programs and foreign-device interfaces can be preserved during a validated controller migration.
  • Modbus TCP through the controller Ethernet port is a BRC410-only function and must not be assigned to the BRC400 configuration.
  • S+ Engineering and Automation Architect provide visual creation, editing, monitoring and tuning of function-block control strategies.
  • More than 150 predefined control algorithms support continuous, sequential, batch and advanced control applications.
  • C programming, batch functions and flexible online configuration extend the standard Harmony function-code environment.
Description
BRC400 / SPBRC400 is the bridge controller used in ABB Symphony Plus Harmony Rack systems where a substantial function-block application must execute beside legacy and current I/O. Its 160 MHz processing platform provides the controller resources associated with this SPBRC generation.

The controller exchanges plant data with HR Series and SD Series I/O while also supporting documented block and S800 integration paths. This breadth makes it useful when an upgrade must retain established field termination yet move execution into a Symphony Plus control strategy.

A controller swap requires more than matching the faceplate. Archive the configuration, identify every I/O communication path, check memory and firmware requirements, verify rack addressing and review the approved redundancy procedure before transferring control.
Alternative Names
SPBRC400 BRC400 BRC 400 SPBRC 400 ABB SPBRC400 ABB BRC400 bridge controller Symphony Plus SPBRC400 Harmony Rack BRC400 controller
Technical notes
SPBRC400 migration must preserve the controller database, rack address, I/O communication paths and redundancy state. Do not assign BRC410-only Modbus TCP capability to a BRC400 installation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which I/O architectures can ABB SPBRC400 coordinate in a Symphony Plus migration?
HR Series, SD Series, block and S800 I/O are supported through the applicable Harmony controller interfaces.
What control workload is ABB SPBRC400 intended to execute?
Its 160 MHz platform is positioned for large function-block applications within the Harmony Rack controller environment.
How should an ABB SPBRC400 database be transferred without losing the live plant context?
Use the approved engineering backup, confirm controller addressing and I/O paths, stage the download, and execute the site redundancy or outage plan.
Does the ABB SPBRC400 specification include the Modbus TCP feature associated with BRC410?
No. ABB distinguishes the BRC410 enhancement; a BRC400 project should not be documented as having that model-specific function.
What does the lifecycle statement for ABB SPBRC400 mean for delivery planning?
It describes the product status used on this page, while Apter Power confirms the offered unit, condition and shipment date for each order.
Which records help Apter Power quote ABB SPBRC400 for an installed Harmony rack?
Send the controller label, firmware and memory details, rack and redundancy arrangement, I/O families, quantity, destination and required date.
