    Apter Power confirms NTAI06 cable type, SPASI pairing, condition, and termination evidence before procurement.

NTAI06

/ 4.9
1001 reviews | Need a Specific Revision?

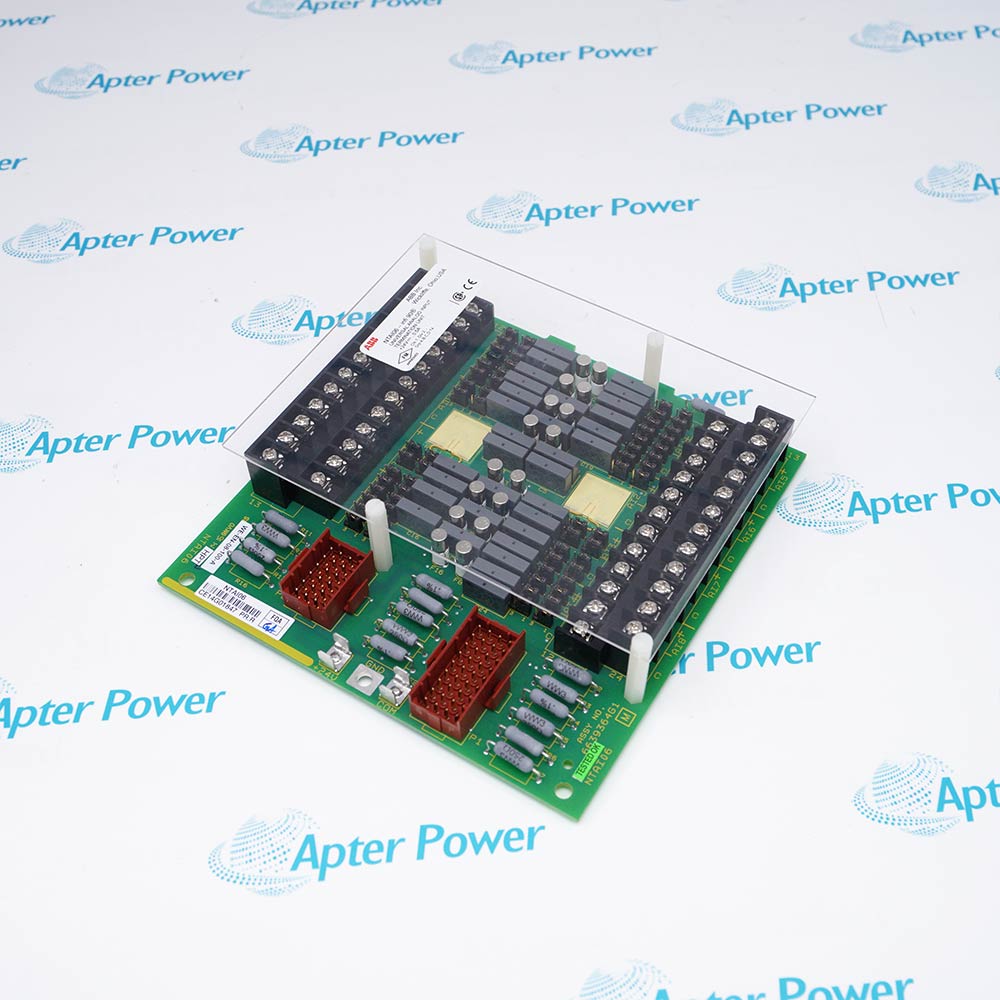

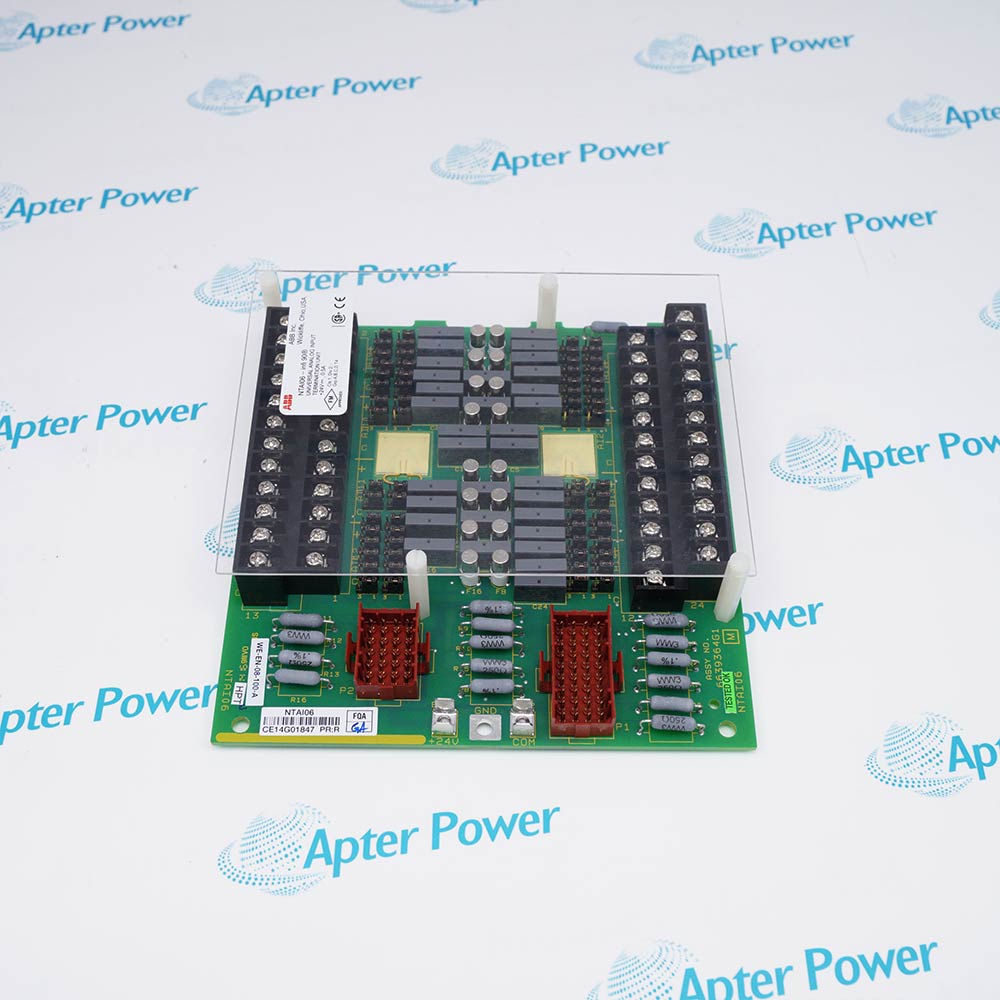

ABB NTAI06 routes sixteen field analog-input signals to an SPASI module through the split-connector NKAS cable assembly.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for NTAI06
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NTAI06

  • Manufacturer:
    ABB
  • Part Number:
    NTAI06
  • Product Family:
    ABB Bailey
  • Product Type:
    Symphony Plus Analog Input Termination Unit
  • Stock:
    1
  • Signal paths:
    16 analog field inputs
  • Paired I/O module:
    SPASI analog input module
  • PVC cable:
    NKAS01
  • Non-PVC cable:
    NKAS11
  • Cable topology:
    One module-end connector; two termination-unit-end connectors
  • Maximum cable length:
    Up to 100 ft
  • Weight:
    0.635 kg
  • Estimated shipping dimensions:
    9.652x23.622x21.844cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Signal Routing Cable Selection Cabinet Checks

Features:

  • Sixteen field paths: Consolidates one SPASI module’s analog input terminations.
  • Split cable interface: Uses one module connector and two TU-side connectors.
  • Insulation choice: Supports PVC NKAS01 or non-PVC NKAS11 cabling.
ABB NTAI06 belongs at the field-termination boundary rather than the signal-processing layer of the I/O system.

Its practical value is the organized transfer of sixteen circuits from cabinet terminals to the associated SPASI hardware.

Cable branching, insulation and length are therefore primary selection factors, not secondary accessories after the termination unit is chosen.

For ABB NTAI06 sourcing, identify the SPASI module, NKAS insulation type, required cable length and both TU-side connections.
ABB NTAI06 Symphony Plus Analog Input Termination Unit Manuals, Datasheets, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB NTAI06 Symphony Plus Analog Input Termination Unit Specs

General

  • Manufacturer ABB
  • Model NTAI06
  • Condition New Original ready stock
  • Product Family Symphony Harmony / INFI 90
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Field-to-Module Path:

  • Field side: Sixteen analog input circuits terminate at the unit.
  • Transfer cable: NKAS carries the signals toward the rack.
  • Processing side: SPASI performs the analog input function.

NKAS Assembly Choices:

  • NKAS01: PVC insulation.
  • NKAS11: Non-PVC insulation.
  • Length range: Available in ordered lengths up to 100 ft.

Before and After Replacement:

  • Identification: Label all sixteen field circuits.
  • Branch control: Photograph and mark both TU-side connectors.
  • Verification: Confirm continuity and SPASI channel response after reconnection.
Description
At the boundary between field wiring and rack I/O, ABB NTAI06 provides sixteen analog signal paths to an SPASI module as a Symphony Plus termination unit. It centralizes cabinet-side connections while leaving signal processing to the connected I/O hardware.

The dedicated NKAS01 or NKAS11 cable links ABB NTAI06 to SPASI with one connector at the module end and two connectors at the termination-unit end. ABB offers PVC-insulated NKAS01 and non-PVC NKAS11 variants in lengths up to 100 ft for routing between the rack and termination panel.

When selecting ABB NTAI06, confirm all sixteen field circuits, both termination-unit cable branches, insulation requirement and ordered length. The unit should not be evaluated as a standalone active analog-input module, and unrelated NTAI termination products must not supply its channel or cable data.
Alternative Names
ABB NTAI06 Analog Input TU Bailey Sixteen-Channel Input Termination Unit Symphony Plus SPASI Termination Board INFI 90 Analog Field Termination Unit
Technical notes
Treat ABB NTAI06 as a 16-channel termination unit, not as an active input module. It must interface with SPASI through NKAS01 or NKAS11; the cable uses one module-end connector and two termination-unit connectors, so confirm cable type, ordered length, branch identification and continuity before cabinet work.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which I/O module is designed to connect with NTAI06?
ABB specifies the SPASI analog input module; the termination unit provides field signal paths and does not perform the module’s signal processing.
How many field inputs terminate through NTAI06?
The official product catalog identifies sixteen analog input signal paths between the field and the paired SPASI module.
Why does the NTAI06 cable have two connectors at the termination-unit end?
NKAS01 and NKAS11 split one module-end connection into two TU-end connectors, matching the termination-unit cabling arrangement.
Which cable should be ordered for a non-PVC NTAI06 installation?
Use the NKAS11 variant. NKAS01 is the PVC-insulated version, so the insulation requirement must be specified before ordering.
What is the maximum documented cable length for NTAI06?
ABB lists NKAS01 and NKAS11 in lengths up to 100 ft; the exact ordered length must suit the rack-to-termination-panel route.
Can NTAI06 be tested as a standalone analog input module?
No. It is a termination unit. Functional testing must include the SPASI module, the correct split cable and the field signal path.
What should be checked before replacing NTAI06?
Label all sixteen field circuits, photograph both cable branches, confirm SPASI, record the insulation and length code, and verify termination continuity after installation.
