Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

     Discontinued / Obsolete by OEM
    Apter Power guarantees authentic ABB drive diagnosis kits, providing a reliable source for hard-to-find legacy communication field tools.

3AFE64547992

/ 4.9
1001 reviews | Need a Specific Revision?
The ABB 3AFE64547992 DriveWindow with Hardware Field Kit is a comprehensive, specialized hardware and software solution engineered for online drive commissioning, diagnostic monitoring, and advanced maintenance tasks.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 3AFE64547992
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3AFE64547992

  • Manufacturer:
    ABB
  • Part Number:
    3AFE64547992
  • Product Family:
    ABB Drives
  • Product Type:
    DriveWindow with Hardware Field Kit
  • Stock:
    1
  • Software Component:
    DriveWindow install CD
  • Connection Interface:
    PCMCIA card
  • Communication Medium:
    High-speed fiber optic cable
  • Fiber Optic Cable Length:
    10 meters
  • Drive Requirement:
    Optional RDCO-0x card for fiber optic connection support
  • Supported Operating Systems:
    Microsoft Windows NT4, Windows 2000, Windows XP
  • Signal Trending Capacity:
    Up to 6 signals simultaneously
  • Hardware Kit Contents:

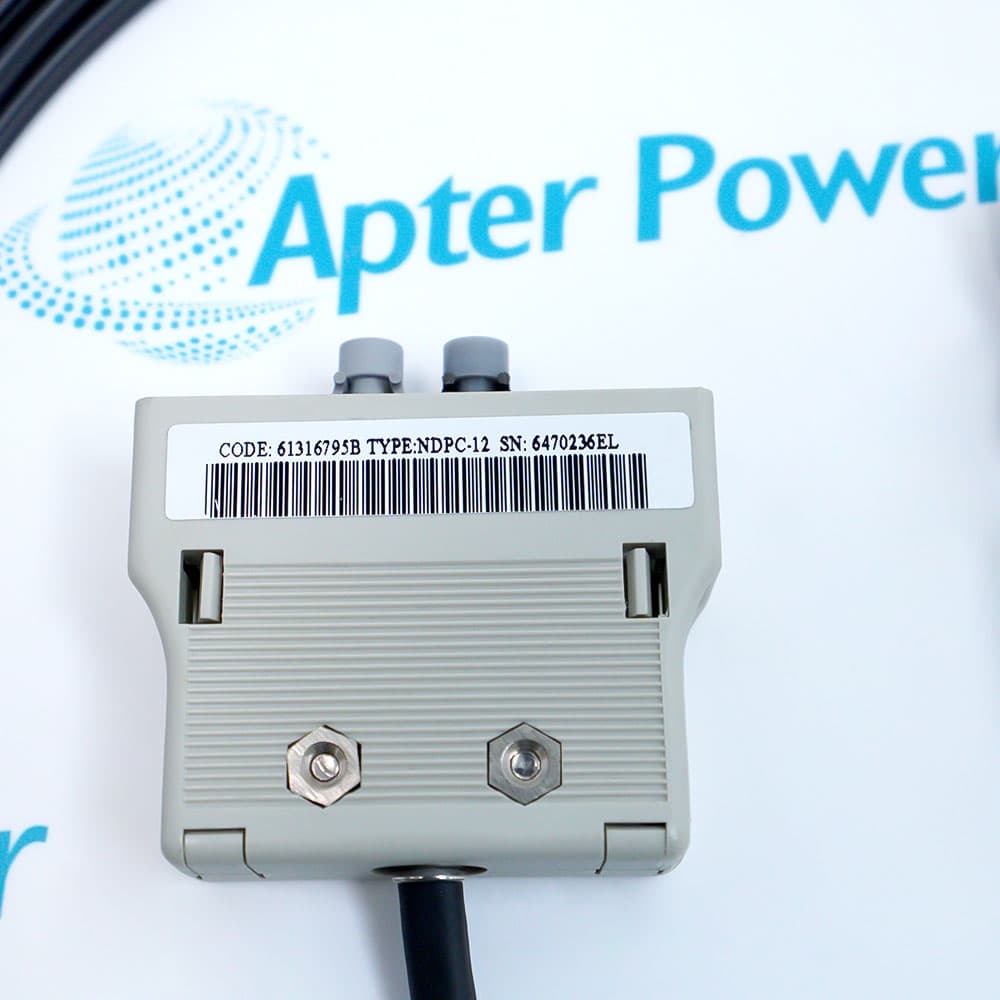

    PCMCIA card, fiber optic connector, 10m fiber optic cable
  • Weight:
    1.36 kg
  • Estimated shipping dimensions:
    24.0 × 18.0 × 4.0 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Firmware & Updates Diagnostics & Protection

Features:

  • Interface Between the Drive and Host Computer via PCMCIA and Fiber Optic Connection
  • Combines DriveWindow Software Capability with Hardware Connection Kit for Online Commissioning and Maintenance
  • Operates in Conjunction with ABB Drives Equipped with Optional RDCO-0x Card
The ABB 3AFE64547992 DriveWindow with Hardware Field Kit operates as a comprehensive software and hardware solution for online drive commissioning and maintenance purposes. It establishes connection to the drive through a PCMCIA card and high-speed fiber optic cable, while the drive requires an optional RDCO-0x card to support the fiber optic connection.

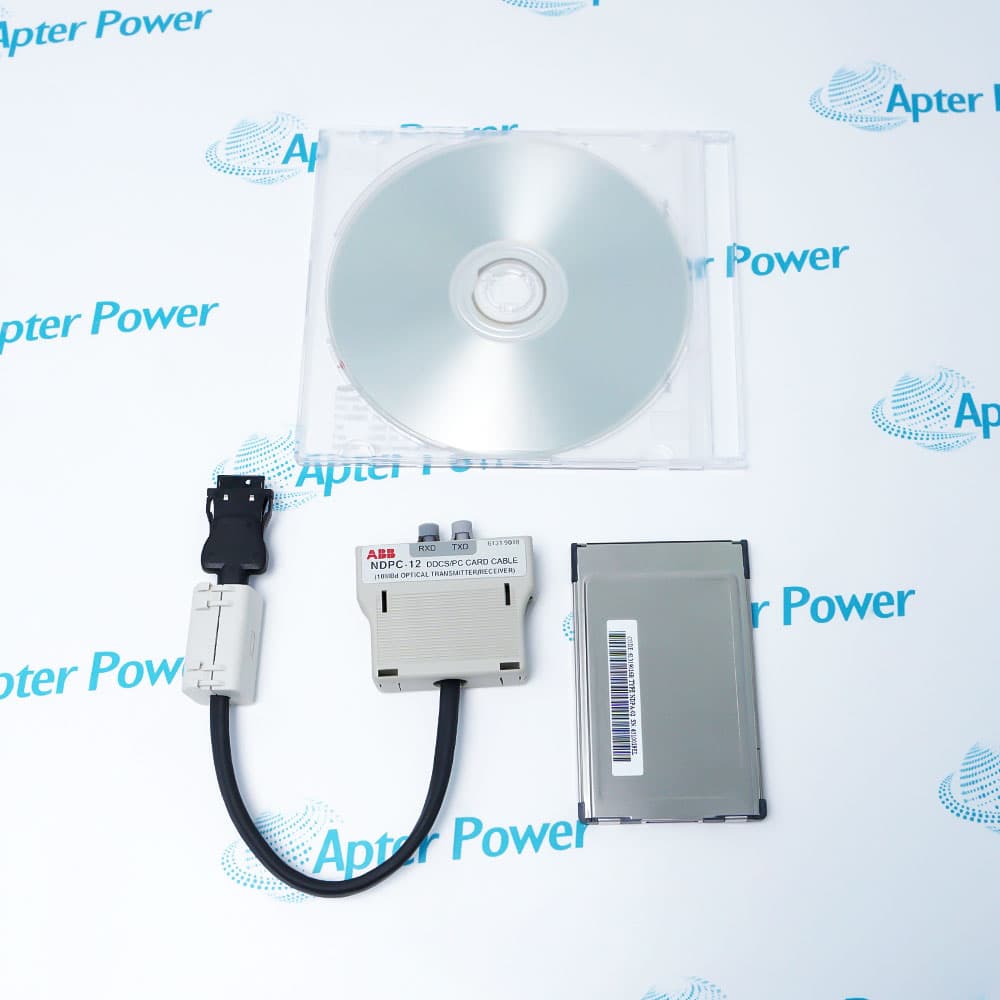

The 3AFE64547992 DriveWindow with Hardware Field Kit provides essential functions for drive commissioning and maintenance, and is a critical tool for the monitoring and configuration path, directly affecting the proper setup and ongoing operation of ABB drive systems. The 3AFE64547992 package includes the DriveWindow install CD and a complete PCMCIA connection kit, which consists of a PCMCIA card, a fiber optic connector, and a 10-meter fiber optic cable.

For parameter management applications, the 3AFE64547992 DriveWindow with Hardware Field Kit supports upload and download of drive parameter files, save and copy functions, and file comparison capabilities. In addition to standard parameter editing, the 3AFE64547992 also performs trending of up to six signals simultaneously and provides drive control functionality for commissioning and test purposes. The 3AFE64547992 DriveWindow with Hardware Field Kit continually monitors drive parameters and signals during operation.

The 3AFE64547992 ABB DriveWindow with Hardware Field Kit may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3AFE64547992 DriveWindow with Hardware Field Kit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 3AFE64547992 DriveWindow with Hardware Field Kit Specs

General

  • Manufacturer ABB
  • Model 3AFE64547992
  • Condition New Original ready stock
  • Product Family 3AFE64532871,3AFE64554476
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Multi-Drive Commissioning: Configure and startup multiple drives simultaneously over DDCS networks.
  • Parameter Management: Upload, download, backup, and compare complex drive parameter sets.
  • Direct Local Control: Override plant networks to issue local start, stop, and speed commands.
  • Loop Performance Tuning: Adjust Direct Torque Control (DTC) variables and motor nameplate configurations.
  • Configuration Safeguarding: Backup parameters before executing firmware flashes to prevent data loss.
  • OS Environment Constraints: Native software support targets 32-bit Windows NT4, 2000, and XP.
  • Software Coexistence: Works alongside DriveAP and DriveLoader utilities via shared fiber links.
  • Modern Migration: Current application standards rely on Drive Composer for newer drive generations.
  • High-Voltage Isolation: Fiber optic connection insulates PC hardware from industrial electrical noise.
  • Multi-Channel Trending: Graphical monitoring of up to six real-time signals simultaneously.
  • Fault Data Extraction: Retrieve timestamped internal fault histories and operating metrics during trips.
  • High-Speed Data Logging: Configure and download internal drive logger samples for intermittent errors.
Description
The 3AFE64547992 DriveWindow with Hardware Field Kit is designed to address the challenges of complex drive parameter management and real-time monitoring during commissioning and troubleshooting processes. This 3AFE64547992 solution solves the problem of time-consuming manual parameter configuration and lack of visibility into drive performance, enabling engineers to efficiently edit and monitor parameters, upload and download drive parameter files, save and copy configurations, and compare files for consistency checks. The 3AFE64547992 DriveWindow with Hardware Field Kit also supports trending of up to six signals simultaneously and provides drive control capabilities for commissioning and testing purposes.

The 3AFE64547992 DriveWindow with Hardware Field Kit finds extensive application across industrial automation sectors, including manufacturing plants, process industries, material handling systems, and power generation facilities. It is particularly valuable in environments where ABB drives are deployed and require regular maintenance, parameter optimization, or fault diagnosis. The 3AFE64547992 package is widely used by maintenance technicians, automation engineers, and system integrators who need reliable tools for drive setup and ongoing system support.

For installation and integration, the 3AFE64547992 DriveWindow with Hardware Field Kit includes the DriveWindow install CD and a complete PCMCIA connection kit, which consists of a PCMCIA card, a fiber optic connector, and a 10-meter fiber optic cable. To integrate the 3AFE64547992 system, users should first install the DriveWindow software on a compatible Windows-based laptop or PC, then insert the PCMCIA card into the computer's PCMCIA slot. The fiber optic cable should be connected between the PCMCIA card's fiber optic connector and the RDCO-0x module installed in the drive. Proper grounding and cable routing practices should be observed during installation to ensure reliable communication and prevent signal interference.
Alternative Names
34FE64547992 3AFE6A5A7992 3AFE64547968 3AFE64510304 3AFE64532871 3AFE64554476 3AFE64554468
Technical notes
At the heart of the ABB 3AFE64547992 kit is the DriveWindow software application, which establishes a high-speed, reliable communication link with compatible ABB industrial drives.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication interfaces does the ABB 3AFE64547992 use?
The ABB 3AFE64547992 communicates through a PCMCIA interface and a high-speed fiber optic connection. To establish communication with the drive, an optional RDCO-0x communication card must be installed on the target drive.
Which operating systems are compatible with the ABB 3AFE64547992?
The software supplied with the ABB 3AFE64547992 is designed for legacy Microsoft Windows platforms, including Windows NT4, Windows 2000, and Windows XP.
What problem does the ABB 3AFE64547992 solve?
The ABB 3AFE64547992 simplifies drive commissioning and maintenance by replacing time-consuming manual parameter adjustments with real-time configuration, monitoring, and troubleshooting capabilities.
Can the ABB 3AFE64547992 edit drive parameters while the drive is operating?
Yes. The toolkit allows engineers to perform live parameter editing and instantly monitor drive responses, making commissioning and optimization much faster.
