The ABB SDCS-AMC-DC Control Board delivers precise control and communication for DCS 600 drives with onboard regulation, optical channels, and PC tool support.
Discover how Apter Power helps customers source hard-to-find automation parts,overcome delivery challenges and keep production moving.VIEW OUR SUCCESS STORIES >>
Technical specifications for SDCS-AMC-DC
Manufacturer:
ABB
Part Number:
SDCS-AMC-DC
Product Family:
ABB Drives
Auxiliary voltage:
230 V
Transmission speed:
4Mb
Optical Components Ch 0/3:
10 Mb
Optical Components Ch 2:
5 Mb
Channel 0 used for:
other interfaces
Driver current CH0, CH2, CH3:
30 mA
Communication CH0:
DDCS
Controller:
Onboard, 2 software sections
Weight:
0.1 kg
Estimated shipping dimensions:
16.3x8.3x2cm
Tariff Code:
8537101190
Country of origin:
Sweden
Place of shipment:
Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

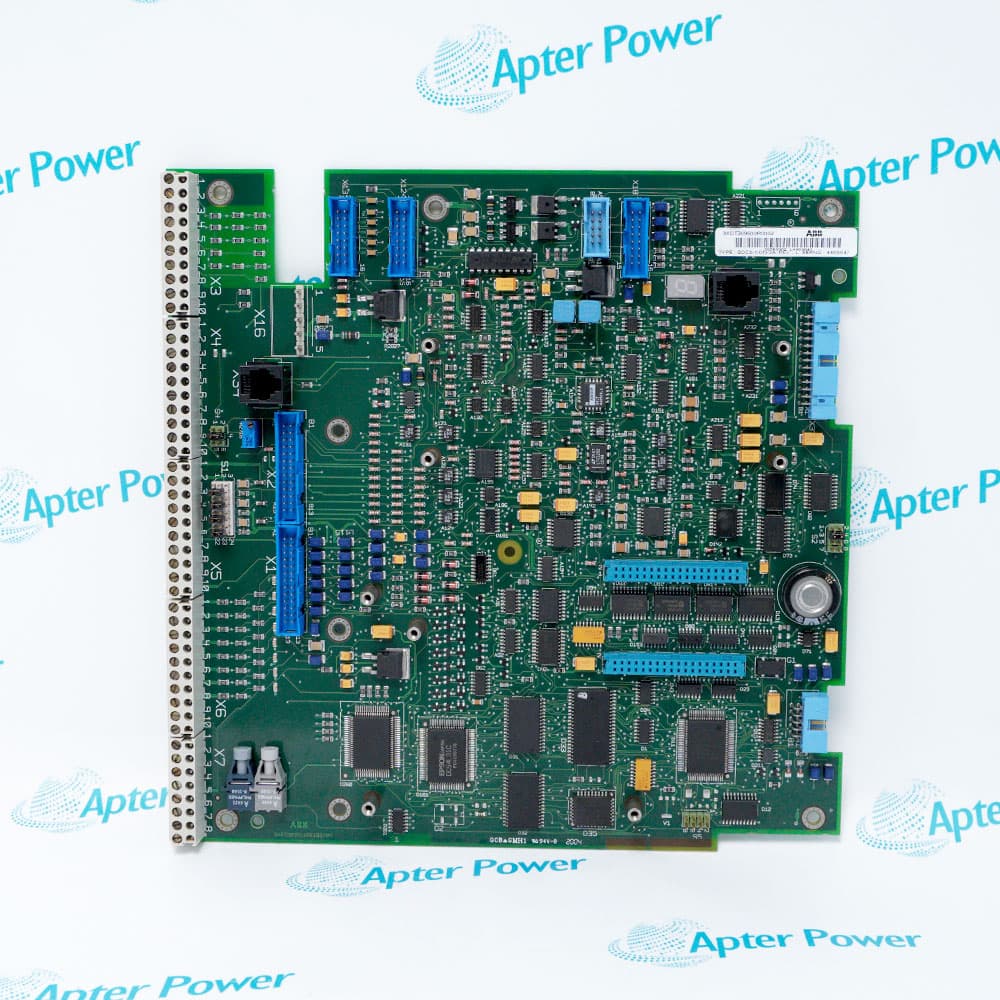

The ABB SDCS-AMC-DC Control Board is a critical control component engineered exclusively for DCS 600 modules, requiring mandatory pairing with the SDCS-CON-2 board (equipped with software S15. xxx) to ensure full functionality. At its core is an onboard controller divided into two specialized software sections: the first encompasses a speed regulator and supplementary functions to generate precise torque references, while the second section offers customizable programming for tailored control and regulation characteristics. This dual-structure design enables the board to evaluate incoming data, produce torque references for the SDCS-CON-2, and process actual values from the CON-2 for retransmission to overriding control systems.
Equipped with three high-performance optical channels, the SDCS-AMC-DC supports versatile communication and operational needs. Channel 0 (DDCS protocol) facilitates data exchange between overriding controls (e.g., FCI, APC2, AC80, AC800M, or fieldbus adapter modules) and the DCS 600 drive, while Channel 2 enables Master-Follower operation for synchronized control of multiple interdependent drives. Channel 3 is dedicated to connecting the DriveWindow PC tool for commissioning and maintenance tasks. The board boasts a standard transmission speed of 4 Mb per optical channel, with enhanced speeds of 10 Mb for Channels 0/3 and 5 Mb for Channel 2, complemented by a 30 mA driver current for CH0, CH2, and CH3, and an auxiliary voltage of 230 V.
Designed for industrial reliability, the SDCS-AMC-DC integrates communication, control, and customization capabilities to optimize DCS 600 drive performance, supporting seamless integration into complex automation systems and ensuring precise, synchronized operation across multiple drives.
