ACS355-03E-05A6-4

/ 4.9
1001 reviews | Need a Specific Revision?

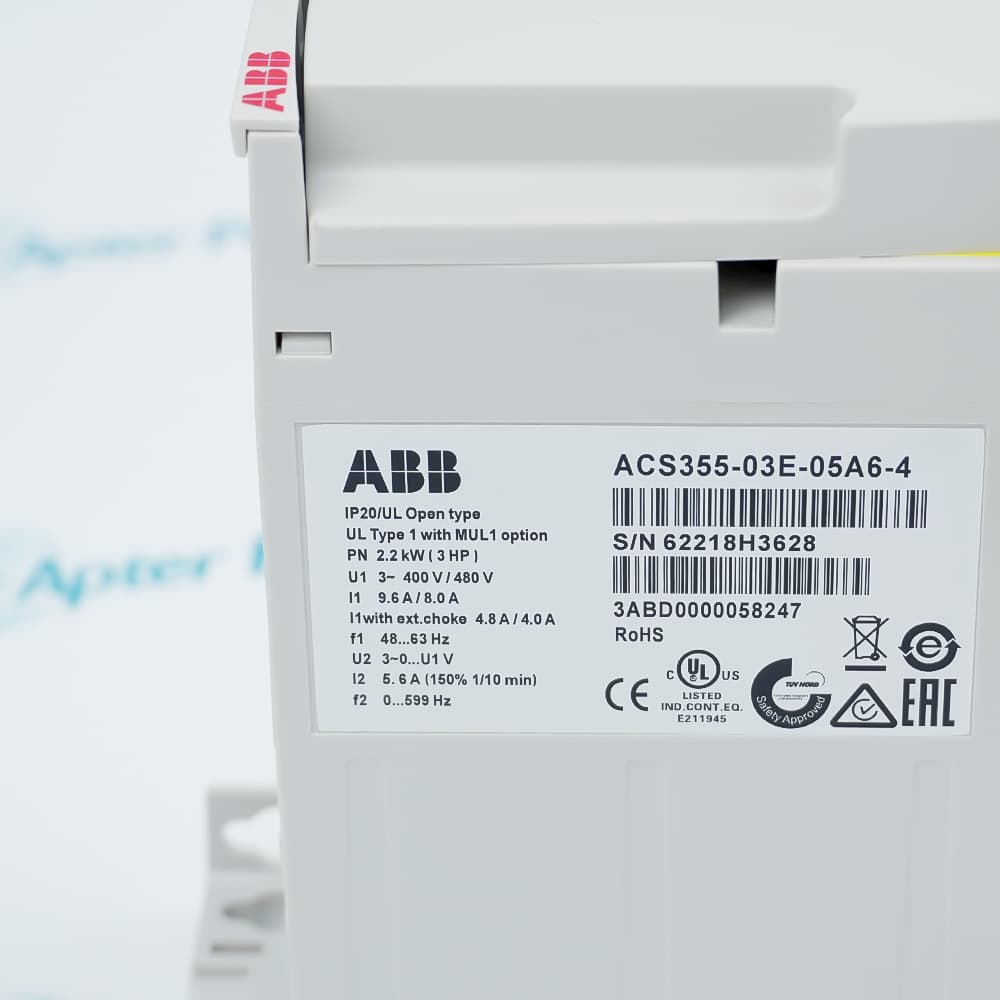

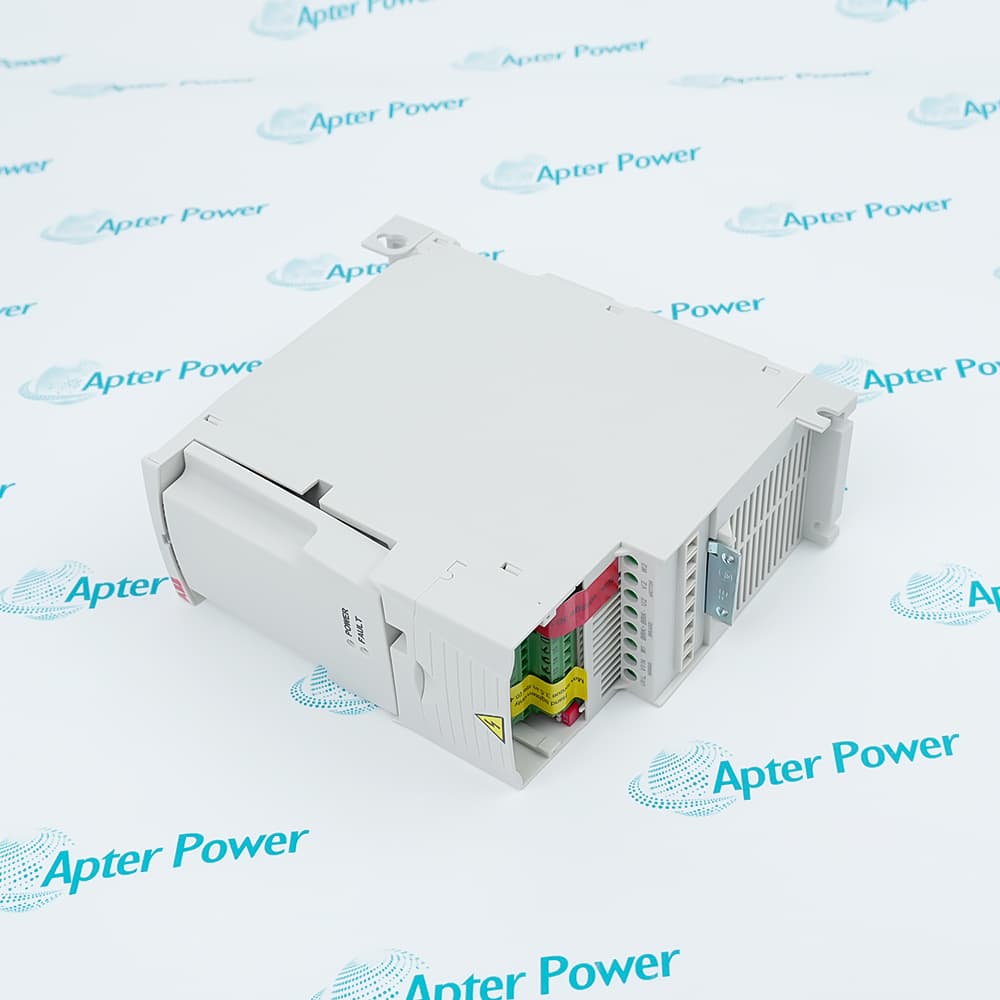

ABB ACS355-03E-05A6-4 is a 2.2 kW, 5.6 A R1 machinery drive distinguished by its compact format, connected EMC filter, and macro-based machine control.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for ACS355-03E-05A6-4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ACS355-03E-05A6-4

  • Manufacturer:
    ABB
  • Part Number:
    ACS355-03E-05A6-4
  • Product Family:
    ABB Drives
  • Product Type:
    ACS355 Machinery Drive
  • Stock:
    1
  • ABB Product ID:
    3AUA0000058187
  • Input Voltage:
    3-phase 380 ... 480 V AC +/-10%
  • Input Frequency:
    48 ... 63 Hz
  • Rated Output Current:
    5.6 A
  • Typical Motor Power:
    2.2 kW
  • Frame Size:
    R1
  • Degree of Protection:
    IP20
  • Output Frequency:
    0 ... 599 Hz
  • Overload Capacity:
    150% for 1 minute every 10 minutes
  • Switching Frequency:
    4 ... 16 kHz selectable
  • Brake Chopper:
    Built-in as standard
  • Safe Torque Off:
    Standard
  • Heat Dissipation:
    90 W
  • Cooling Air Flow:
    19 m3/h
  • IEC Fuse Basis:
    16 A gG
  • UL Fuse Basis:
    15 A Class T
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    16.9 x 7.0 x 16.1 cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications R1 Cooling I/O Plan STO Wiring

Features:

  • 2.2 kW machinery-drive rating with 5.6 A output
  • R1 enclosure with 19 cubic metres per hour cooling airflow
  • Sensorless vector control, application macros, and Safe Torque Off
ACS355-03E-05A6-4 adds the 5.6 A duty point to ABB's compact R1 ACS355 platform.

Its value in a machine cell comes from combining motor control with reusable macros, programmable signals, standard STO, and the option to engineer dynamic stopping through the built-in chopper.

Panel acceptance should connect the exact Product ID to motor data, EMC earthing, airflow, signal ownership, STO proof testing, braking calculations, and an archived parameter backup.

Availability is subject to Apter Power's current inventory and sourcing confirmation.
ABB ACS355-03E-05A6-4 ACS355 Machinery Drive Manuals, Datasheets, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB ACS355-03E-05A6-4 ACS355 Machinery Drive Specs

General

  • ManufacturerABB
  • ModelACS355-03E-05A6-4
  • ConditionNew Original ready stock
  • Product FamilyABB ACS355 Machinery Drives
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Thermal preparation for the 5.6 A rating

  • Heat loss: Allow for the documented 90 W dissipation at the selected duty.
  • Airflow: Maintain an unobstructed path for the specified 19 cubic metres per hour.
  • Clearance: Keep the required 75 mm above and below the drive free.
  • Maintenance: Prevent contamination and inspect the fan path during planned service.

Machine-signal ownership

  • Reference: Define analog, pulse, panel, or serial speed-reference ownership.
  • Commands: Map run, direction, enable, reset, and constant-speed functions.
  • Feedback: Assign relay, transistor, and analog outputs to the approved controller logic.
  • Failure response: Document behavior for lost reference, serial timeout, and external trips.

Safe Torque Off integration

  • Two channels: Use both STO inputs within the validated safety circuit.
  • Restart control: Prevent an unintended restart after the safety demand is removed.
  • Proof test: Verify the machine response and diagnostics during commissioning.
  • Isolation: Use safe electrical isolation for service because STO does not remove hazardous voltage.
Description
Designed for compact machine panels, ACS355-03E-05A6-4 provides 2.2 kW and 5.6 A from ABB frame R1 on a three-phase 380-480 V supply. The E construction uses a connected EMC filter and 50 Hz default frequency in an IP20 cabinet-mounted enclosure.

ACS355-03E-05A6-4 supports sensorless vector control for induction and permanent-magnet motors, eight application macros, programmable I/O, and a standard Safe Torque Off interface. These functions suit machines that need a defined sequence of references, interlocks, status signals, and stopping behavior rather than a simple across-the-line starter.

A replacement or new design using ACS355-03E-05A6-4 should preserve the exact Product ID, motor data, signal ownership, macro, STO circuit, and accepted settings. R1 ventilation, EMC earthing, motor-cable practice, braking energy, and any resistor selection also require an installation-specific check.
Alternative Names
ACS355 03E 05A6 4 ACS35503E05A64 3AUA0000058187 ABB ACS355-03E-05A6-4 ABB 3AUA0000058187 ACS355 5.6 A 2.2 kW drive ABB ACS355 R1 machinery drive
Technical notes
ACS355-03E-05A6-4 uses a connected EMC filter and standard Safe Torque Off, so verify the supply earthing and both STO channels before commissioning. Keep the 5.6 A motor duty, R1 cooling path, selected application macro, signal ownership, and external brake-resistor requirement aligned with the approved machine design.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which motor details should be reviewed before ACS355-03E-05A6-4 is selected?
Compare voltage, nameplate current, frequency, speed, insulation, torque demand, duty cycle, cable length, ambient conditions, and whether sensorless vector control is suitable for the load.
How can ACS355-03E-05A6-4 application macros shorten commissioning?
A suitable macro provides a documented starting arrangement for commands and I/O. Engineers must still review every terminal, limit, motor value, interlock, and failure response against the actual machine design.
What causes unstable speed when ACS355-03E-05A6-4 uses an analog reference?
Inspect signal type and scaling, common and shield connections, cable routing, electrical noise, minimum and maximum limits, filtering, motor data, and whether another reference source has control priority.
Can ACS355-03E-05A6-4 control a permanent-magnet motor?
ABB lists sensorless vector control for permanent-magnet motors in the ACS355 family. The exact motor data, speed range, torque profile, identification procedure, and machine acceptance criteria must still be validated.
What should maintenance capture after ACS355-03E-05A6-4 reports repeated faults?
Retain fault codes, timestamps, current, speed, command source, process state, temperature, and recent wiring or parameter changes before resetting. That record helps separate load, motor, supply, cooling, and control causes.
What information should accompany an ACS355-03E-05A6-4 replacement inquiry?
Send the complete type code and Product ID, nameplate images, motor and load profile, control and safety signals, braking scope, panel conditions, quantity, destination, inspection requirements, and schedule.
