D2D160-CE02-11

/ 4.9
1001 reviews | Need a Specific Revision?

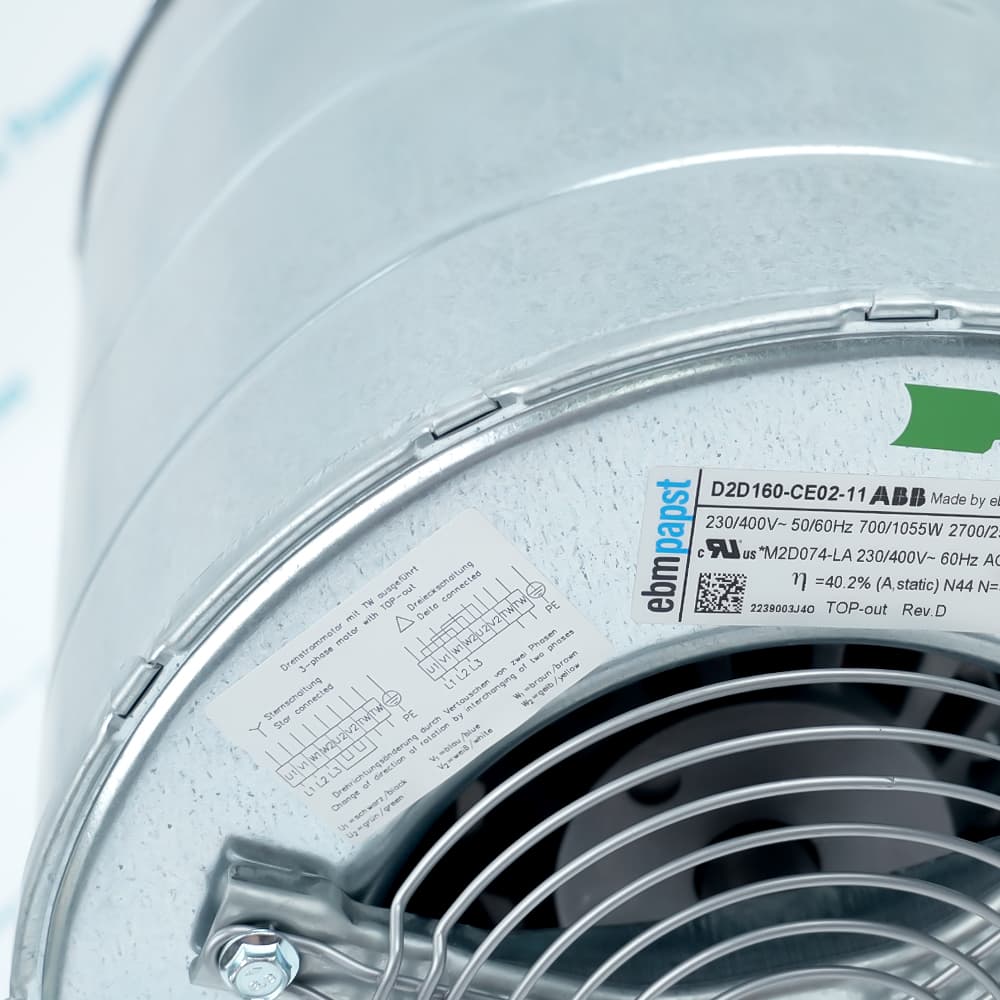

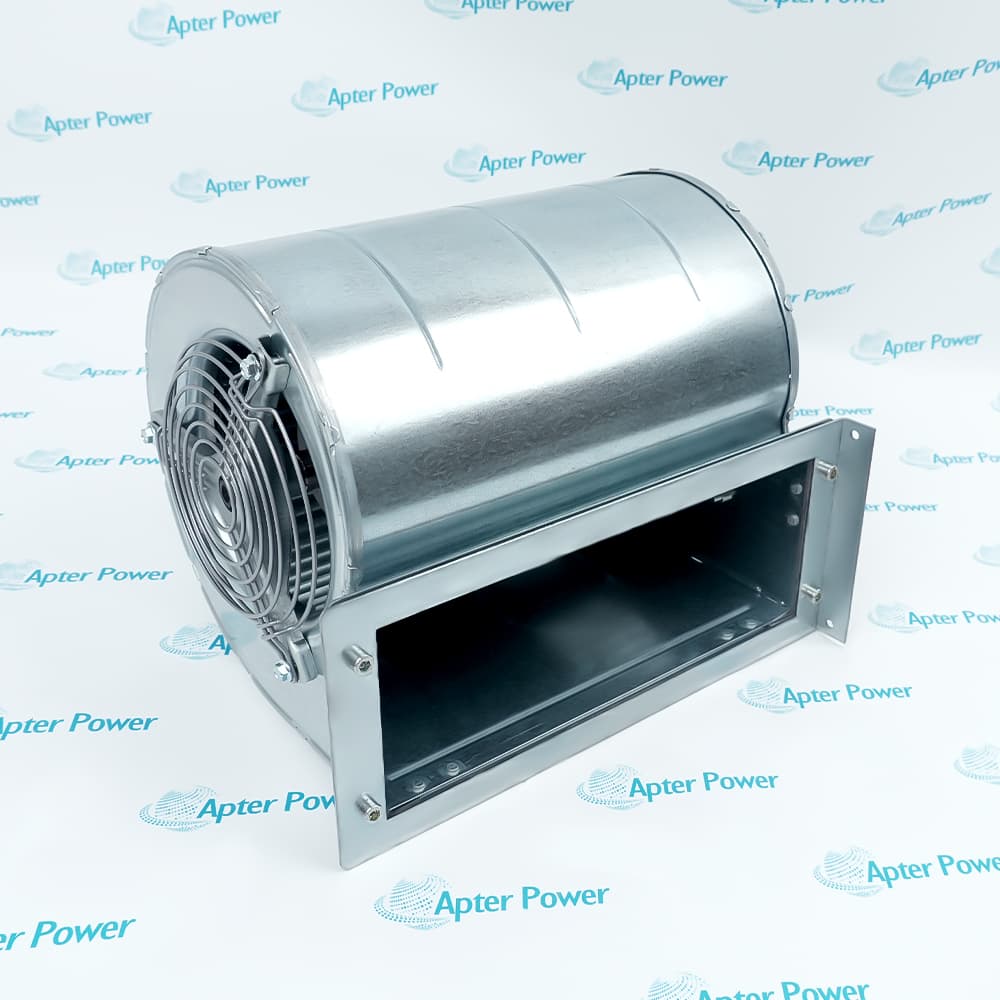

ABB D2D160-CE02-11 is a long-life centrifugal fan used to cool documented ABB ACS800-67 converter modules.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for D2D160-CE02-11
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for D2D160-CE02-11

  • Manufacturer:
    ABB
  • Part Number:
    D2D160-CE02-11
  • Product Family:
    ABB Drives
  • Product Type:
    Long-Life Centrifugal Converter Cooling Fan
  • Stock:
    1
  • Documented equipment:
    ACS800-67 converter module
  • Function:
    Module cooling fan
  • Documented positions:
    U1 and U11.1-2
  • Nominal supply:
    400 V AC
  • Power consumption:
    2274 W
  • ABB description:
    LONG-LIFE FAN, CENTRIFUGAL
  • Recommended replacement interval:
    9 years, according to the drive-specific preventive maintenance schedule
  • Fan designation:
    Long-life centrifugal fan
  • Tariff Code:
    8414593000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Electrical Supply Mechanical Fit Cooling Function Application
  • Uses ABB item code 64650424
  • Provides centrifugal cooling for documented ACS800-67 converter modules
  • Requires verification of 400 VAC supply and mechanical fit

ABB D2D160-CE02-11 is the documented long-life centrifugal module fan for specific ABB drive hardware.

Selection must be based on both the fan model and ABB item code because mechanical fit, connector, airflow and electrical supply must match the installed converter.

Before replacement, isolate the drive, complete the documented DC-bus discharge procedure and record the original fan orientation, wiring and airflow direction.

Availability, condition, price, and shipping time for D2D160-CE02-11 are confirmed during quotation.

ABB D2D160-CE02-11 Long-Life Centrifugal Converter Cooling Fan Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Verify the documented 400 VAC fan supply
  • Confirm connector and lead arrangement before energizing
  • Test protective grounding and insulation under the drive procedure
  • Match ABB item code 64650424 and fan model D2D160-CE02-11
  • Preserve mounting orientation and airflow direction
  • Check impeller clearance and cable routing before closing the converter
  • Clear the complete converter air path before fitting the fan
  • Confirm free rotation before initial start
  • Monitor temperature and fan sound during the controlled first run
  • Cooling documented ABB ACS800-67 converter modules
  • Long-life replacement of the matching D2D160-CE02-11 module fan
  • Maintaining forced airflow through compatible ABB drive converter cabinets
Description
这个ABB D2D160-CE02-11 is a long-life centrifugal cooling fan supplied under ABB item code 64650424.

In documented ACS800-67 hardware it serves as a 400 VAC module fan for the converter module positions identified in the drive manual.

It is used to maintain converter airflow and thermal performance when the exact fan identity, supply, rotation, connector, mounting and air path match the installed drive.
Alternative Names
D2D160-CE02-11 D2D160 CE02 11 D2D160CE0211 ABB D2D160-CE02-11 ABB D2D160 CE02 11 64650424 ABB 64650424 64650424 D2D160-CE02-11 ABB 64650424 D2D160-CE02-11
Technical notes
ABB D2D160-CE02-11 corresponds to ABB item code 64650424 and is documented as a long-life centrifugal module fan. Confirm the exact converter position, electrical supply and airflow direction before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB D2D160-CE02-11 be selected by fan diameter alone?
No. Match the complete fan model, ABB item code 64650424, nominal supply, connector, mounting arrangement, rotation and airflow direction.
How often should ABB D2D160-CE02-11 be replaced?
ABB recommends replacing long-life fans every nine years according to the applicable drive-specific maintenance schedule.
Can ABB D2D160-CE02-11 be replaced while the converter is energized?
No. Follow the ABB safety procedure, isolate the converter and all auxiliary power supplies, allow the DC bus to discharge and verify the absence of voltage before accessing the fan.
Why can ABB D2D160-CE02-11 run but provide poor converter cooling?
Check its rotation and airflow direction, blocked filters or ducts, incorrect mounting, impeller damage and whether the cabinet airflow path is assembled correctly.
What should be inspected before reusing ABB D2D160-CE02-11?
Inspect the impeller, bearings, housing, connector, leads, mounting points and signs of overheating, contamination or contact with the surrounding shroud.
What should be recorded before replacing ABB D2D160-CE02-11?
Record ABB item code 64650424, fan orientation, connector wiring, mounting hardware, airflow direction and the converter position served.
How should ABB D2D160-CE02-11 be tested after installation?
Verify the connector and mounting hardware, confirm that the impeller rotates freely, then check the supply, airflow direction, abnormal noise and converter temperature during a controlled run before restoring full load.
