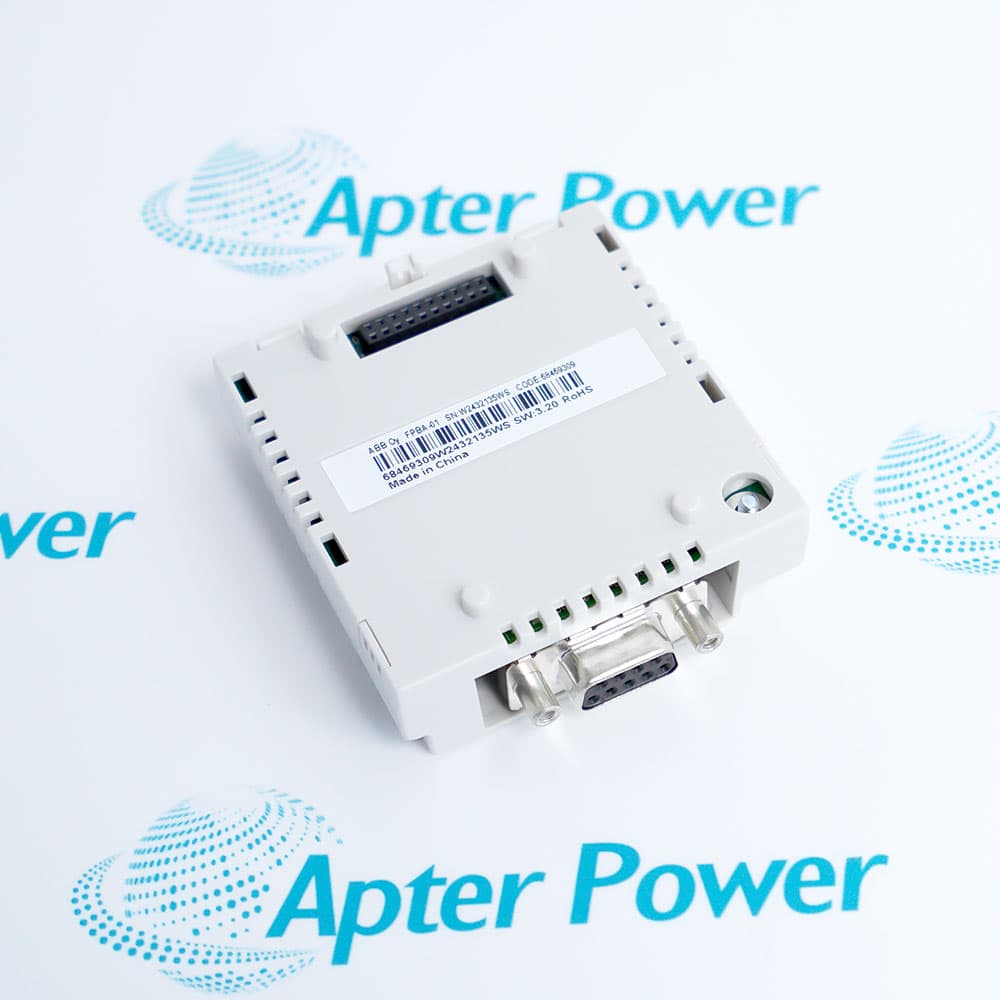

ABB FPBA-01 is an optional PROFIBUS DP adapter module that connects a supported ABB drive as a PROFIBUS network slave.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for FPBA-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FPBA-01

  • Manufacturer:
    ABB
  • Part Number:
    FPBA-01
  • Product Family:
    ABB Drives
  • Product Type:
    PROFIBUS DP Adapter Module
  • Stock:
    1
  • Mounting:
    Drive option slot
  • Protection Rating:
    IP20
  • Diagnostic Indicators:
    Three bicolor LEDs: HOST, MODULE, and NETWORK
  • Drive Connector:
    20-pin connector X2
  • Bus Connector:
    9-pin D-sub connector X1
  • Drive-Supplied Power:
    +3.3 V ±5%, 450 mA maximum
  • Termination Supply:
    Isolated +5 V, 30 mA maximum
  • EMC Standard:
    EN 61800-3:2004
  • Bus Isolation:
    Functionally isolated from the drive
  • Circuit Board:
    Coated
  • Network Medium:
    Shielded twisted-pair RS-485
  • Network Termination:
    220 ohm or active termination at each trunk end; not built into FPBA-01
  • Network Topology:
    Trunk line with permitted drop lines
  • Maximum Nodes:
    126 with repeaters; 31 nodes plus repeater per section
  • Maximum Transfer Rate:
    12 Mbit/s, automatically detected
  • Communication Type:
    Asynchronous half-duplex RS-485
  • Protocol:
    PROFIBUS DP
  • PROFIBUS Services:
    DP-V0 and DP-V1
  • Supported Telegrams:
    PPO messages 1–8 and standard telegrams 1–2
  • Communication Profiles:
    PROFIdrive, ABB drives, Transparent 16-bit, and Transparent 32-bit
  • ABB-Listed Drives:
    ACS355, ACS380, ACS480, ACS580, ACH580, ACQ580, ACS880, DCS880, and DCT880
  • Weight:
    0.04 kg
  • Estimated shipping dimensions:
    6.3x7x2.6cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications PROFIBUS Network Drive Interface Ordering Review

Features:

  • PROFIBUS DP connection: The module connects a supported ABB drive as a network slave.
  • Automatic rate detection: The documented maximum transfer rate is 12 Mbit/s.
  • Isolated RS-485 interface: The bus interface is functionally isolated from the drive.

FPBA-01 carries cyclic control, reference, status, actual-value, parameter, and fault-reset data permitted by the connected drive.

The adapter is installed in a drive option slot; supported commands still depend on the exact ABB drive and its documentation.

Network review should record the node address, cable segment, repeater plan, termination locations, and drive commissioning parameters.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

ABB FPBA-01 PROFIBUS DP Adapter Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB FPBA-01 PROFIBUS DP Adapter Module Specs

General

  • ManufacturerABB
  • ModelFPBA-01
  • ConditionNew and factory sealed
  • Product FamilyABB Drives Fieldbus Adapters

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Bus design checks

  • Medium: Use a PROFIBUS-approved shielded twisted-pair RS-485 cable.
  • Topology: Plan a trunk line and use drop lines only within the documented limits.
  • Termination: Terminate both physical ends; FPBA-01 has no built-in bus termination.
  • Node count: Keep each segment within the official node and repeater limits.

Drive-side integration

  • Option slot: Confirm the selected ABB drive accepts FPBA-01.
  • Drive connector: The module uses its 20-pin X2 connection to the drive.
  • Diagnostics: Use the HOST, MODULE, and NETWORK indicators during commissioning.
  • Parameter scope: Verify each required command against the exact drive manual.

Identity and configuration checks

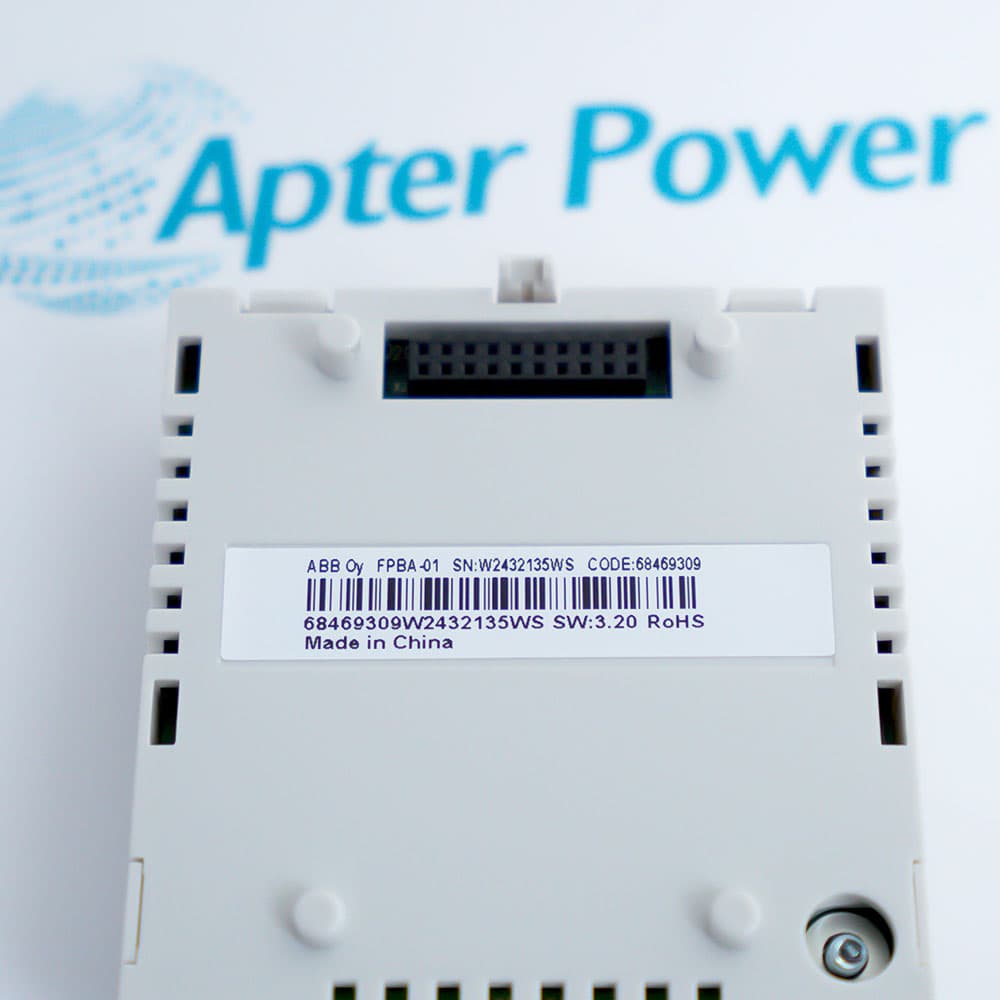

  • Model: Match FPBA-01 on the module label and project documentation.
  • Bus connector: Confirm the 9-pin D-sub field connection.
  • Address record: Preserve the installed node address before replacement.
  • Project backup: Save the drive and PLC configuration before changing the adapter.
Description

The ABB FPBA-01 is an optional PROFIBUS DP adapter module for supported ABB drives, where the drive operates as a PROFIBUS slave.

Official documentation for FPBA-01 specifies an isolated RS-485 bus interface, a 9-pin D-sub connector, automatic rate detection up to 12 Mbit/s, and three diagnostic LEDs.

Before ordering FPBA-01, verify the ABB drive option slot, PROFIBUS address, cable type, network termination, and required drive parameter setup.

Alternative Names
ABB FPBA-01 FPBA-01 ABB FPBA 01 FPBA 01 FPBA01 ABB Drives FPBA-01 FPBA-01 PROFIBUS DP Adapter Module ABB PROFIBUS DP FPBA-01
Technical notes
ABB FPBA-01 mounts in a drive option slot and provides an isolated PROFIBUS DP interface over RS-485. Confirm the drive option-slot support, bus connector, address, cable, and termination plan.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is ABB FPBA-01 used for?
It connects a supported ABB drive to a PROFIBUS DP network as a slave. Confirm the exact drive and supported command set before ordering.
Which product family includes FPBA-01?
FPBA-01 belongs to ABB drive fieldbus adapter options. The installed drive manual determines option-slot and command support.
What physical interface does FPBA-01 use?
It uses a 9-pin D-sub PROFIBUS connector and shielded twisted-pair RS-485 cable. The drive connection is a separate 20-pin option-slot connector.
Does FPBA-01 include network termination?
No. ABB specifies external 220 ohm or active termination at each end of the trunk cable.
Is FPBA-01 active or discontinued?
The reviewed ABB product and manual pages do not state that FPBA-01 is discontinued. Current supply still requires sourcing confirmation.
Is there an official direct replacement for FPBA-01?
No direct replacement is claimed on this page. Verify the drive, PROFIBUS design, firmware, and ABB documentation before substitution.
Where can I get the FPBA-01 datasheet and a quote?
Open the verified PDF in Manuals, then send Apter Power the drive model, quantity, destination, condition, and required date.
