        NTAC-02

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

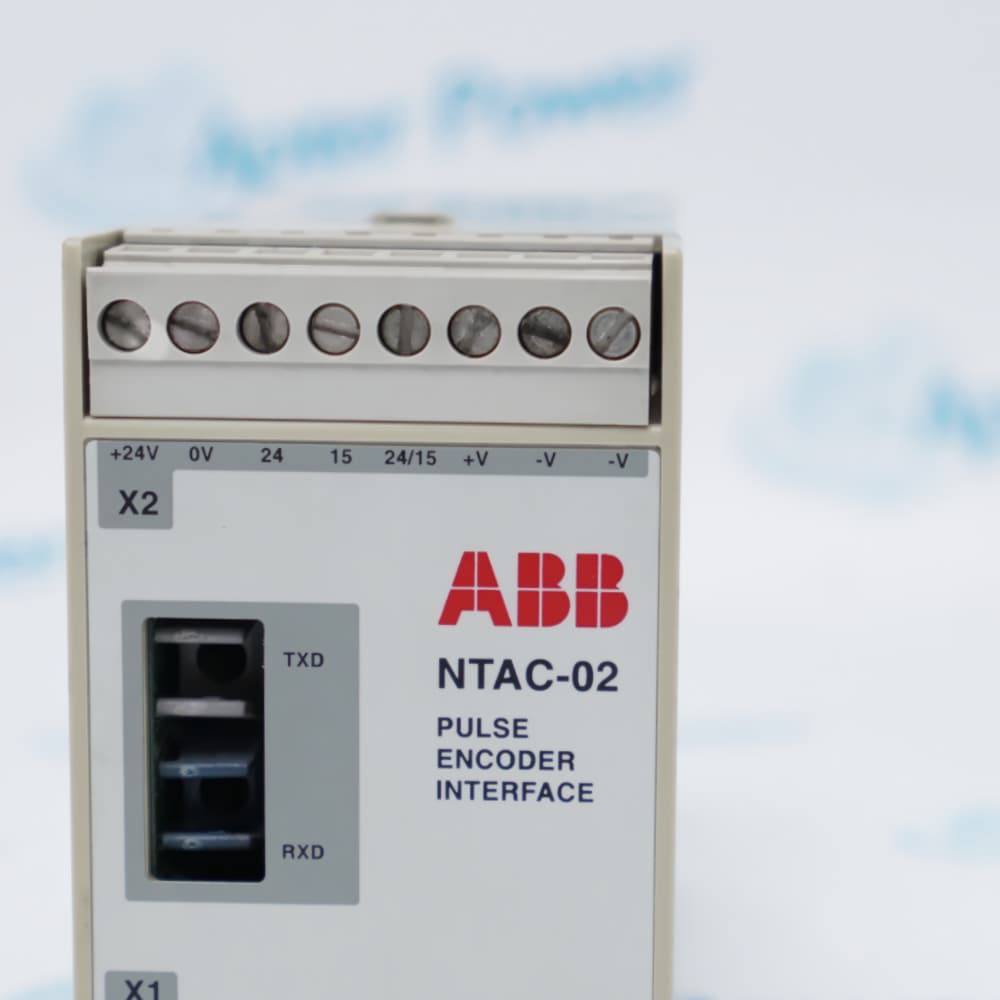

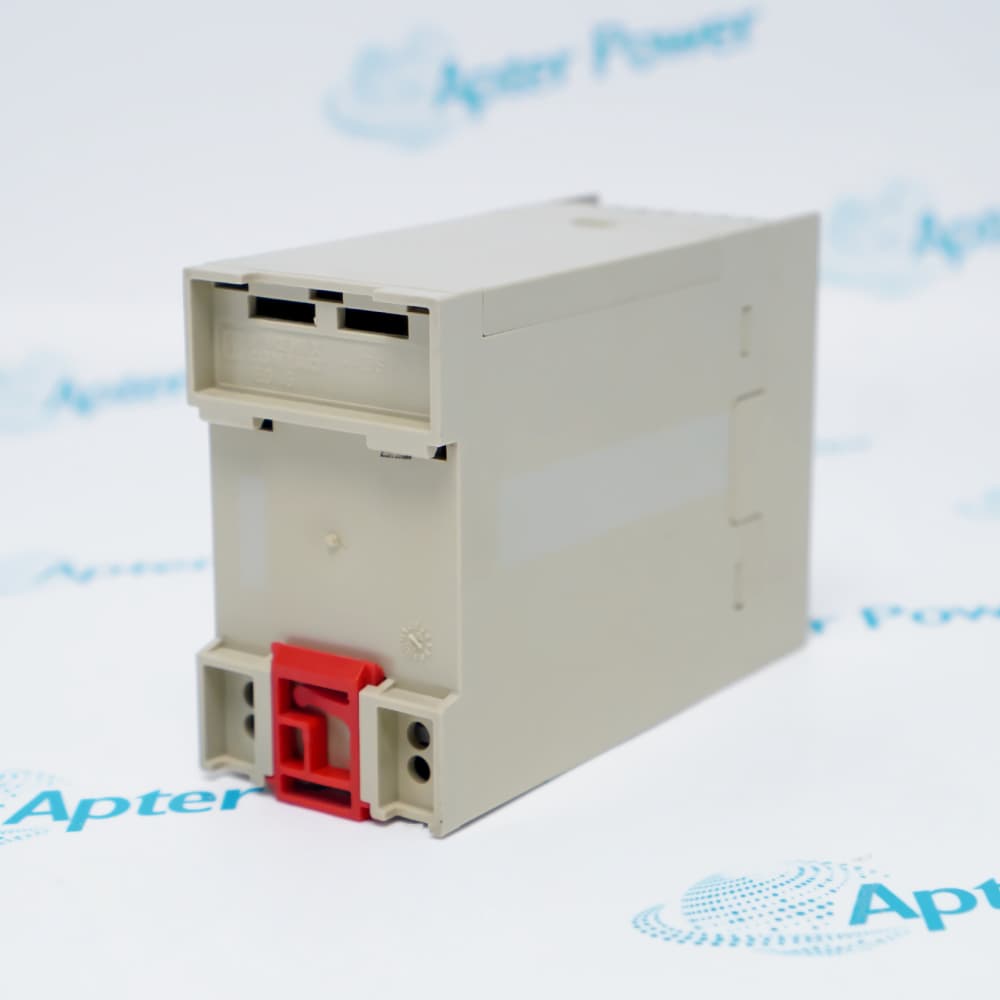

        ABB NTAC-02 links a quadrature pulse encoder to an ACS 600 drive through a node-addressed DDCS optical interface.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for NTAC-02
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for NTAC-02

        • Manufacturer:
          ABB
        • Part Number:
          NTAC-02
        • Product Family:
          ABB Drives
        • Product Type:
          Pulse Encoder Interface Module
        • Stock:
          1
        • Drive platform:
          ACS 600
        • Communication:
          DDCS optical link to NAMC channel 1
        • Maximum modules per NAMC channel:
          2
        • Recommended encoder output:
          Push-pull, 40 mA
        • Node address:
          Seven DIP switches; factory default 16
        • Mounting:
          35 × 7.5 mm DIN rail
        • Ingress protection:
          IP20
        • Operating temperature:
          0 to 50 °C
        • Relative humidity:
          5 to 95%, non-condensing
        • Dimensions:
          4.5 × 7.5 × 10.5 cm
        • Speed feedback resolution:
          0.00305% (15 bits)
        • Logic thresholds at 24 V supply:
          Logic 1 above 12.2 V; Logic 0 below 8 V
        • Logic thresholds at 15 V supply:
          Logic 1 above 7.6 V; Logic 0 below 5 V
        • Maximum encoder signal frequency:
          100 kHz
        • Encoder supply:
          15 V DC or 24 V DC, selected by jumper
        • Weight:
          0.22 kg
        • Tariff Code:
          8543709990
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Drive Compatibility Encoder Interface Commissioning Application
        • Pulse-encoder interface for supported ACS 600 speed and position feedback applications
        • A/B/Z inputs support single-ended or differential encoder signals up to 100 kHz
        • Uses a jumper-selected 15 or 24 V DC encoder supply and a DDCS link to NAMC channel CH1

        ABB NTAC-02 connects a digital pulse encoder to supported ACS 600 applications that require accurate motor-shaft speed or position feedback.

        Its quadrature inputs accept channels A and B with a 90-degree phase shift, while channel Z supplies one reference pulse per revolution for positioning.

        Selection and commissioning require compatible application software, a suitable encoder output stage, the correct supply jumper, a unique DDCS node address and cable length appropriate to the encoder output type.

        Availability, condition, price, and shipping time for ABB NTAC-02 are confirmed during quotation.

        ABB NTAC-02 Pulse Encoder Interface Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • Use with ACS 600 application software versions explicitly listed in the ABB manual.
        • Standard Application 5.0 and later requires NTAC-02 rather than NTAC-01.
        • Confirm the installed NAMC channel and application program before replacement.
        • Use a digital pulse encoder with 90-degree channel displacement.
        • ABB recommends a push-pull output capable of 40 mA for the documented installations.
        • Confirm encoder supply, A/B/Z channels, cable shield, and terminal allocation before wiring.
        • Set an unused DDCS node address before energizing the interface.
        • Check the optical transmitter/receiver pair and fibre routing between NTAC-02 and NAMC.
        • Verify speed direction and feedback stability before returning the drive to normal control.
        • Closed-loop motor-speed feedback in supported ACS 600 drive applications
        • Position or shaft-angle feedback using quadrature A/B signals and the channel-Z reference pulse
        • ACS 600 master-follower systems that require pulse-encoder feedback on mechanically coupled shafts
        Description
        ABB NTAC-02 provides a digital pulse-encoder interface for supported ACS 600 applications requiring accurate shaft-speed or position feedback.

        It connects to NAMC channel CH1 through a DDCS optical link and accepts single-ended or differential A/B/Z encoder signals with a jumper-selected 15 or 24 V DC encoder supply.

        Before commissioning, verify application-software compatibility, encoder output type and frequency, cable length, node address, fibre pairing, shielding, feedback direction and drive parameter settings.
        Alternative Names
        NTAC-02 NTAC 02 ABB NTAC-02 ABB NTAC 02
        Technical notes
        ABB NTAC-02 requires an ACS 600-compatible application version, a correctly powered quadrature encoder, a unique DDCS node address, and a verified NAMC fibre connection.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Which ACS 600 software versions can use ABB NTAC-02?
        Use only the application versions listed in the ABB manual: Standard Application 5.0 or later, System Application 4.2 or later, Crane Application 5.0 or later, and all Template Application versions; verify the actual drive software before ordering.
        What encoder output should be checked before selecting ABB NTAC-02?
        Confirm a digital quadrature encoder with 90-degree phase displacement and an output stage suitable for the documented interface. ABB recommends a push-pull output able to supply 40 mA in the stated arrangements.
        Can ABB NTAC-02 be treated as a direct replacement for NTAC-01?
        No. ABB states that NTAC-01 and NTAC-02 are not interchangeable in every application, and Standard Application 5.0 or later specifically requires NTAC-02. Check software, supply, wiring, and node configuration.
        How can ABB NTAC-02 receive its 24 V DC encoder supply?
        The official manual permits supply through the NIOC arrangement up to the documented current limit or from a suitable external source. Match the selected supply method to the encoder load and grounding plan.
        What causes a DDCS addressing conflict with ABB NTAC-02?
        A conflict occurs when two interfaces on the same NAMC channel use the same node address. Set the DIP switches before power-up and document the address used by each installed module.
        What should be inspected in the fibre connection for ABB NTAC-02?
        Confirm the correct transmitter-to-receiver pairing, clean connector ends, minimum bend radius, undamaged fibres, and the documented NAMC channel. Reversed or damaged fibres prevent valid feedback communication.
        How should ABB NTAC-02 feedback be checked after installation?
        With the drive in a controlled commissioning state, verify encoder direction, stable pulse feedback, expected speed scaling, status indication, and absence of DDCS or feedback faults before enabling normal operation.
