RETA-02

/ 4.9
1001 reviews | Need a Specific Revision?

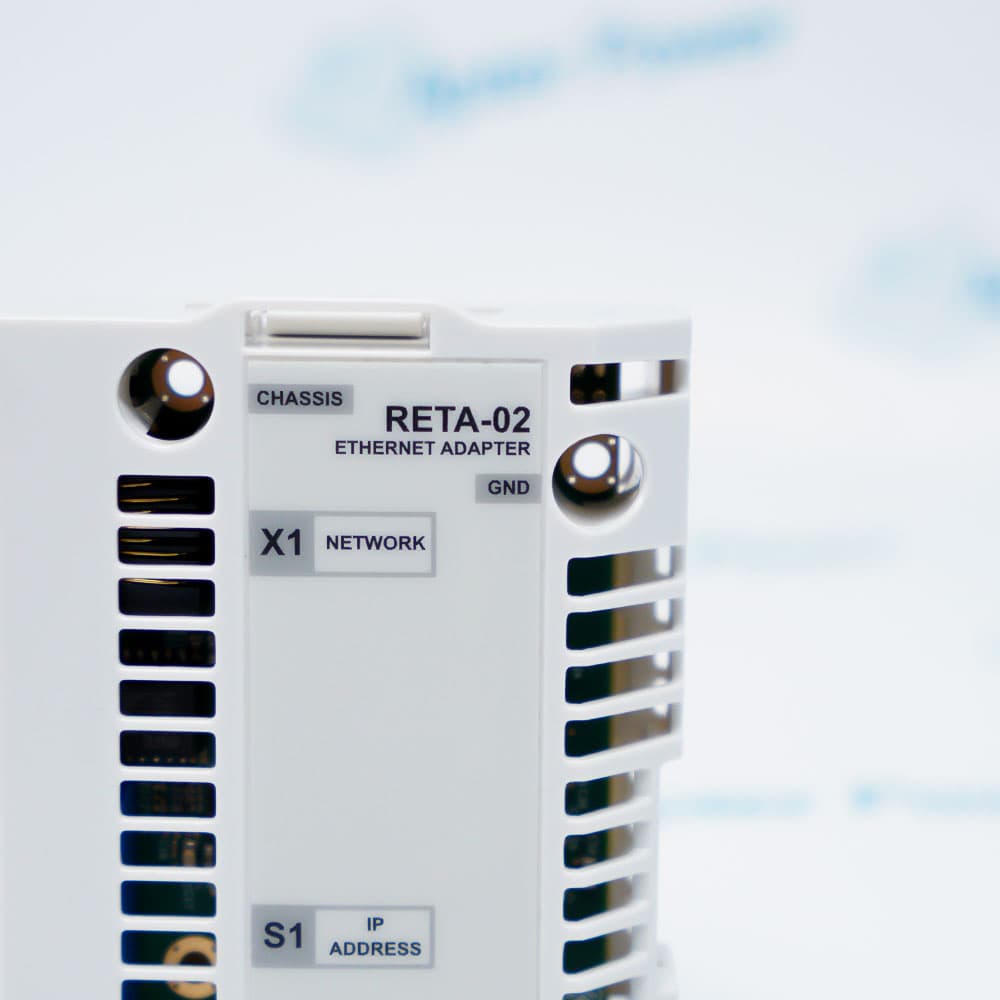

The ABB RETA-02 Ethernet Adapter Module enables seamless Ethernet connectivity for ABB drives, supporting control, monitoring, and parameter adjustment over Modbus/TCP and PROFINET networks.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for RETA-02
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RETA-02

  • Manufacturer:
    ABB
  • Part Number:
    RETA-02
  • Product Family:
    ABB Drives
  • Product Type:
    Adapter module
  • Stock:
    1
  • Mounting:
    Into the option slot on the control board of the drive.
  • Degree of protection:
    IP20
  • Settings:
    Parameters (set through the drive), 8-way DIP switch for intranet IP address selection
  • Connectors:
    34-pin parallel bus connector, RJ-45 connector
  • Current consumption:
    380 mA average (5 V), supplied by the control board of the drive
  • Estimated min. lifetime:
    100 000 h
  • Compatible devices:
    Ethernet standard IEEE 802.3 and 802.3u devices
  • Medium:
    10base-TX or 100base-TX
  • Connector:
    RJ-45
  • Maximum segment length:
    100 m
  • Topology:
    Bus, star
  • Serial communication type:
    Half and full Duplex
  • Transfer rate:
    10/100 Mbps
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    9.3x6.1x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Use Cases Performance & Efficiency Certifications & Standards

Features:

  • Ethernet Bridge Connecting ABB Drives to Modbus/TCP and PROFINET IO Networks
  • Supports Up to Eight Simultaneous Modbus/TCP IP Client Connections
  • Implements Modbus/TCP Protocol per Specification 1.0 Standards
The ABB RETA-02 Adapter module serves as the communication gateway for ABB drives, enabling integration into Modbus/TCP and PROFINET IO industrial networks. It implements Modbus messaging over Ethernet using TCP/IP protocols according to the Modbus/TCP Specification 1.0, allowing the RETA-02 to function as an Ethernet bridge for drive control and supervision. The RETA-02 supports up to eight simultaneous IP connections, ensuring robust connectivity for multiple client devices. In addition to Modbus/TCP, the module supports the PROFINET IO protocol, providing flexible network compatibility for diverse automation architectures. The RETA-02 has been designed to deliver reliable protocol conversion and network interfacing within the drive system.

The RETA-02 provides essential communication functions for the drive and is a critical component of the network control path, directly affecting the proper, normal operation of the overall drive system. One RETA-02 module is required per drive for network connectivity. The RETA-02 is designed for direct installation onto compatible ABB drive units, occupying a compact form factor that integrates with the drive housing.

For applications requiring robust multi-client communication, the RETA-02 Adapter module supports up to eight simultaneous Modbus/TCP IP connections to the drive. In addition to standard single-connection operation, the multi-client configuration allows multiple supervisory systems to access the drive concurrently. The RETA-02 manages each connection independently using the internal protocol stack specified in the Modbus/TCP implementation.

The RETA-02 ABB Adapter module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB RETA-02 Adapter module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB RETA-02 Adapter module Specs

General

  • Manufacturer ABB
  • Model RETA-02
  • Condition New Original ready stock
  • Product Family RETA-01,RECA-01,REPL-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Drive Compatibility: Integrates with ACS550, ACH550, and ACS800 drives.
  • Factory Automation: Connects industrial drives to central PLC networks.
  • HVAC Control: Manages building climate systems via Modbus TCP.
  • Water Treatment: Links high-power pumping stations to SCADA software.
  • Process Industries: Controls heavy conveyor belts and mixing equipment.
  • Network Speed: Operates at 10/100 Mbps data rates.
  • Auto-Negotiation: Adjusts transmission speeds automatically based on network.
  • Multi-Connection: Handles up to 8 simultaneous IP connections.
  • Low Power: Consumes less than 3 Watts during operation.
  • Temperature Range: Withstands extreme temperatures from -40°C to +70°C.
  • Distance Limit: Supports cable segments up to 100 meters.
  • Protocol Standards: Complies with Modbus/TCP Specification 1.0 protocols.
  • Fieldbus Profiles: Meets official PROFINET IO engineering standards.
  • Drive Profiles: Supports ABB Drives and PROFIdrive communication modes.
  • Hardware Rating: Features an IP20 industrial ingress protection rating.
  • IEEE Compliance: Meets IEEE 802.3 and 802.3u network criteria.
Description
The ABB RETA-02 Ethernet Adapter Module is an optional add-on designed to integrate ABB drives into Ethernet networks, allowing the drive to function as a slave device. With this module, users can send control commands such as Start, Stop, and Run enable, as well as provide motor speed or torque references directly to the drive. It also enables interaction with the PID controller by feeding process actual values or process references.

Through the RETA-02, operators can read real-time status information, monitor actual drive values, change drive parameter settings, and reset drive faults, providing a flexible and efficient interface for industrial automation tasks. The module supports both Modbus/TCP and PROFINET protocols, making it compatible with a wide range of Ethernet-enabled automation devices.

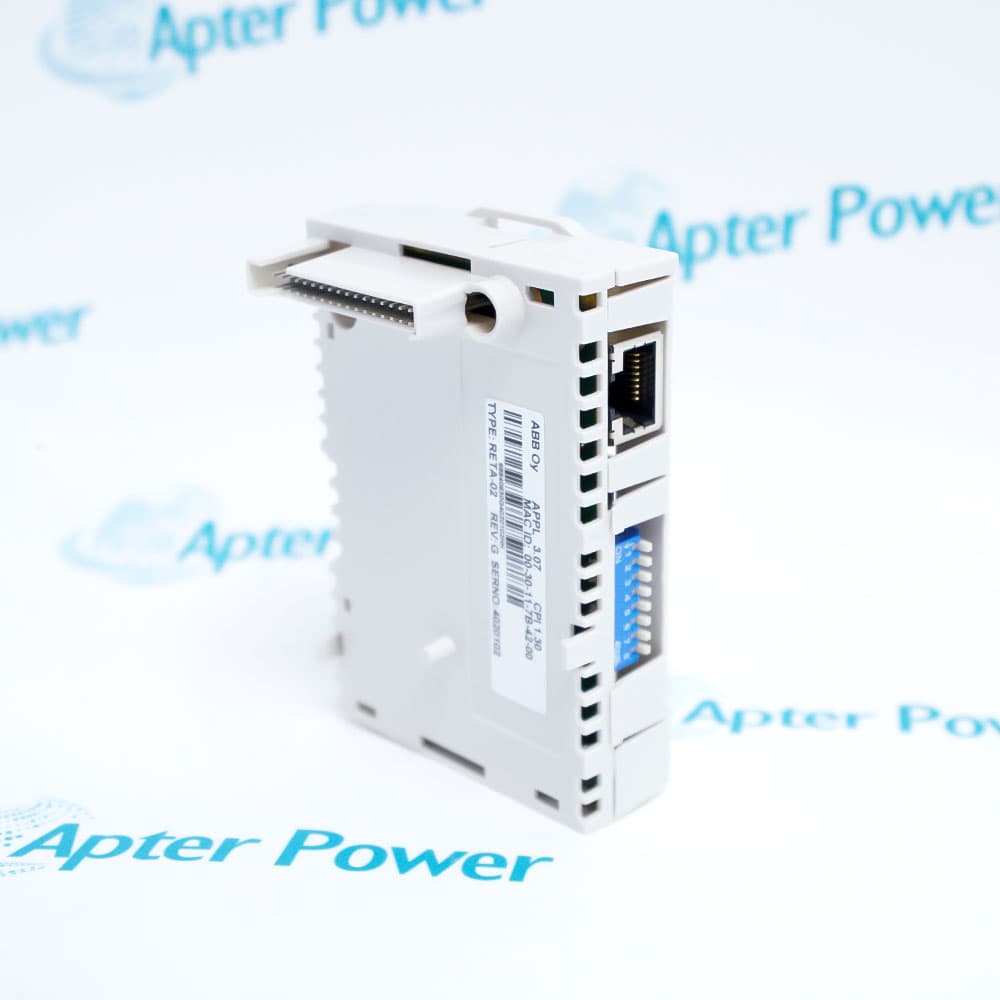

The RETA-02 adapter module is installed into an optional slot on the drive’s motor control board. It features a robust IP20 degree of protection, a 34-pin parallel bus connector, and an RJ-45 connector for Ethernet, supporting both 10base-TX and 100base-TX media. The module supports both half and full-duplex serial communication at transfer rates of 10/100 Mbps, with a maximum segment length of 100 meters.

Designed for long-term reliability, the RETA-02 has an average current consumption of 380 mA at 5 V and an estimated minimum lifetime of 100,000 hours. Configuration is straightforward, with drive parameters set through the drive itself and an 8-way DIP switch for intranet IP address selection. This makes the RETA-02 a practical and durable solution for expanding ABB drives into networked automation systems.
Alternative Names
RETA-O2 RETA-0Z RETA02 RETAO2 RETA0Z RETA-01 RECA-01 REPL-02 RPBA-01
Technical notes
The ABB RETA-02 adapter module uses standard Ethernet hardware, implements a client-server Modbus architecture using standard TCP port 502, and supports advanced industry standards to meet the needs of time-critical PROFINET IO applications.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What devices is the RETA-02 compatible with?
Compatible with Ethernet devices following IEEE 802.3 and 802.3u standards.
What are the supported network topologies and maximum segment length?
Supports bus and star topologies with a maximum segment length of 100 meters.
How quickly can the RETA-02 be shipped and is it in stock?
For items in stock, we can ship within 2–3 business days. Please contact us for current inventory.
What are the power requirements for the RETA-02?
Average current consumption is 380 mA at 5 V, supplied directly by the drive control board.
Which Ethernet protocols does the RETA-02 support?
It supports Modbus/TCP and PROFINET communication protocols for network integration.
