    For RLON-01 64606883, Apter Power assists with pricing requests, sourcing, and access to official ABB documentation.

RLON-01 64606883

/ 4.9
1001 reviews | Need a Specific Revision?

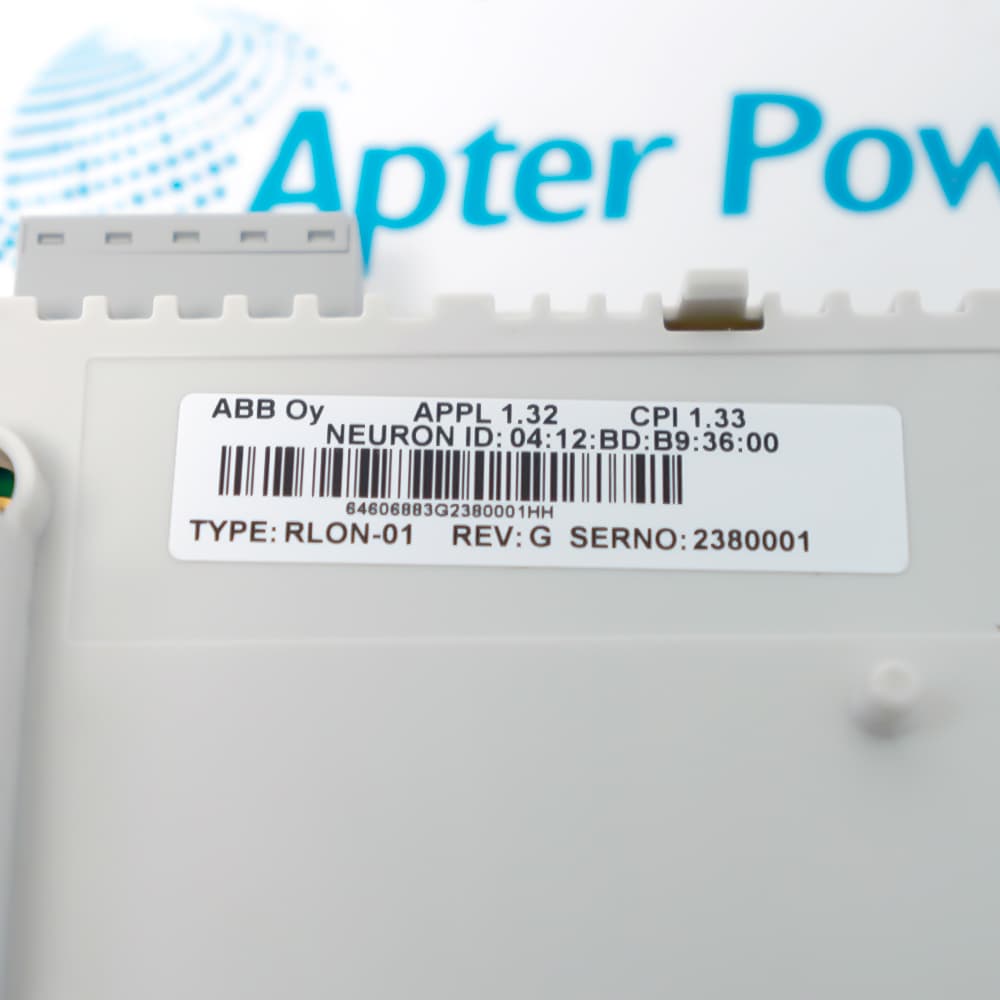

ABB RLON-01 64606883 is an optional LonWorks adapter module for connecting compatible ABB drives to a LonWorks network.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for RLON-01 64606883
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for RLON-01 64606883

  • Manufacturer:
    ABB
  • Part Number:
    RLON-01 64606883
  • Product Family:
    ABB Drives
  • Product Type:
    LonWorks Adapter Module
  • Stock:
    1
  • Network:
    LonWorks
  • Transceiver:
    FT-X1
  • Transmission Rate:
    78 kbit/s
  • Cable:
    Twisted pair
  • Topology:
    Free topology bus, star, or loop
  • Functional Profile:
    LonMark Variable Speed Motor Drive v1.1
  • Protection Class:
    IP20
  • Current Consumption:
    160 mA maximum at 5 V
  • Estimated Minimum Lifetime:
    100,000 h
  • Estimated shipping dimensions:
    95 x 62 x 20 mm
  • Tariff Code:
    8504909090
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Network Data Drive Control Commissioning

Features:

  • FT-X1 LonWorks transceiver with a 78 kbit/s channel
  • Free-topology twisted-pair network wiring
  • LonMark Variable Speed Motor Drive Functional Profile version 1.1
RLON-01 64606883 is an internal option module that links a compatible ABB drive to a LonWorks control network through an FT-X1 transceiver.

The adapter transfers drive commands, references, process variables, status information, actual values, parameter changes, and fault-reset functions through LonWorks network variables.

Confirm the drive model, application-program version, node addressing, termination, and option-slot instructions before commissioning the adapter.

The ABB RLON-01 64606883 LonWorks Adapter Module may still be available for quotation, documentation, and drive-system matching through Apter Power beyond OEM discontinuation.
ABB RLON-01 64606883 LonWorks Adapter Module Manuals, Datasheets, Links Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB RLON-01 64606883 LonWorks Adapter Module Specs

General

  • ManufacturerABB
  • ModelRLON-01 64606883
  • ConditionNew Original ready stock
  • Product FamilyABB Drives
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

LonWorks Channel Characteristics

  • Transceiver: The adapter uses an FT-X1 interface compatible with FTT-10A transceivers.
  • Data rate: The twisted-pair LonWorks channel operates at 78 kbit/s.
  • Topology: Free-topology wiring permits bus, star, and loop arrangements within the documented limits.
  • Termination: Network termination must match the selected free-topology or doubly terminated bus configuration.

Supported Network Variable Functions

  • Commands: LonWorks variables can carry drive control commands and speed or frequency references.
  • Process values: PID reference and actual values can be exchanged through the adapter.
  • Monitoring: Drive status and actual-value information are available to the network.
  • Service actions: The interface supports parameter changes and drive-fault reset functions.

Installation and Start-Up Checks

  • Option slot: Install the module only in the internal slot specified for the compatible drive.
  • Drive software: Verify the required application-program version before enabling fieldbus control.
  • Node setup: Set the documented LonWorks node and configuration parameters before network service.
  • Cabling: Route the shielded twisted-pair cable and connect the five-pole terminal according to the manual.
Description
RLON-01 64606883 is an optional LonWorks adapter module that connects compatible ABB drives to a LonWorks network. It uses an FT-X1 transceiver and supports a 78 kbit/s free-topology channel over twisted-pair cabling.

Through network variables, RLON-01 64606883 can convey control commands, speed or frequency references, PID process values, status data, actual values, drive parameters, and fault-reset commands. The module follows the LonMark Variable Speed Motor Drive Functional Profile version 1.1.

The internal option-slot design of RLON-01 64606883 is documented for ACS550, ACH550, and ACS800 drives with the specified application-program requirements. Network termination, cable routing, node addressing, and drive parameter settings must follow the applicable drive and adapter instructions.
Alternative Names
ABB RLON-01 64606883 ABB RLON01 64606883 RLON 01 64606883 RLON0164606883 64606883 RLON-01 ABB 64606883 LonWorks adapter RLON-01 material 64606883 ACS800 RLON-01 64606883
Technical notes
RLON-01 64606883 uses an FT-X1 transceiver for a 78 kbit/s twisted-pair LonWorks channel and supports free-topology network wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which ABB drive families can use RLON-01 64606883?
RLON-01 64606883 is documented for ACS550, ACH550, and ACS800 drives subject to the applicable drive software requirements.
How should a free-topology LonWorks cable be terminated for RLON-01 64606883?
RLON-01 64606883 uses one 52.3-ohm termination unit at any point on a free-topology segment, following the documented network limits.
Which drive data can RLON-01 64606883 exchange through network variables?
RLON-01 64606883 can exchange commands, references, PID values, status, actual values, parameter changes, and fault-reset functions.
Which drive parameters are relevant when starting RLON-01 64606883?
RLON-01 64606883 requires fieldbus-adapter activation; ACS800 commissioning also uses the documented communication-profile and parameter-group settings.
Which checks help diagnose an offline RLON-01 64606883 node?
For RLON-01 64606883, check option-slot power, module and network indicators, node installation, twisted-pair continuity, and the required termination.
Which LonMark objects are implemented by RLON-01 64606883?
RLON-01 64606883 implements a node object and a drive object using the Variable Speed Motor Drive Functional Profile version 1.1.
Which connectors and supply conditions apply to RLON-01 64606883?

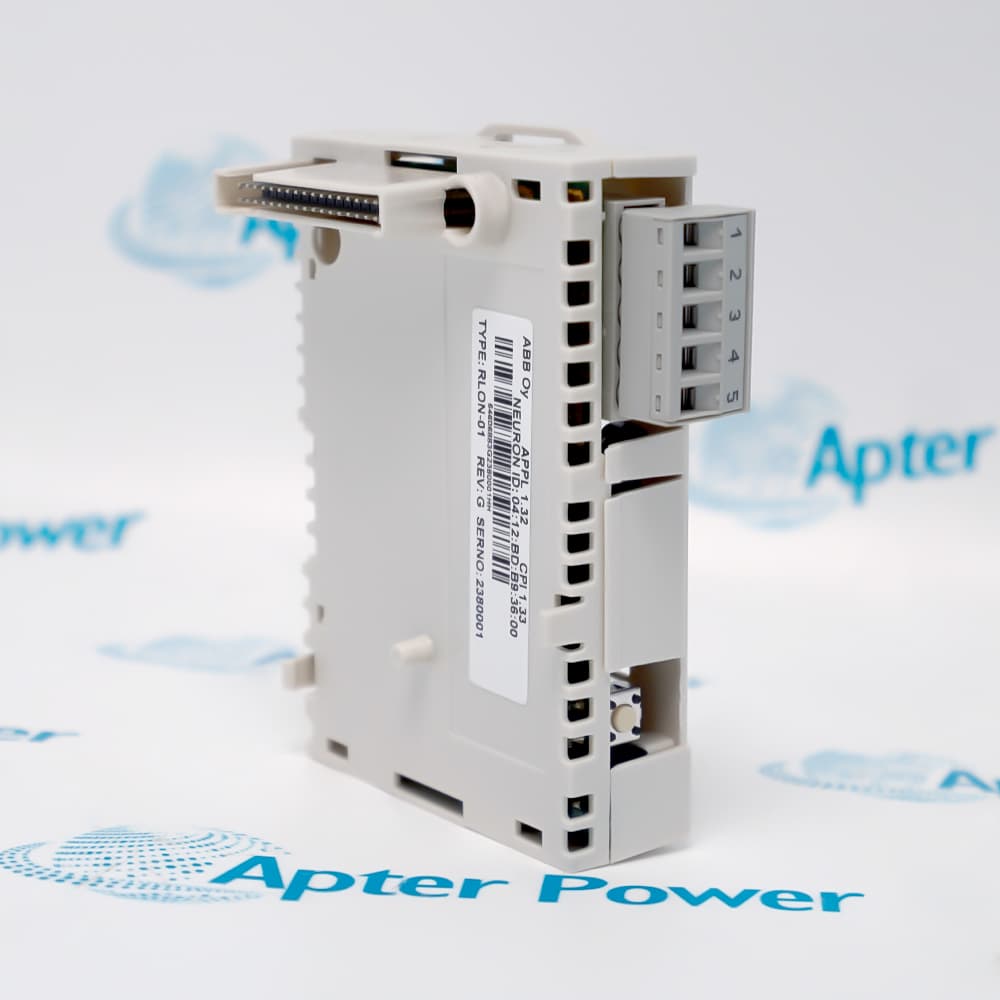

RLON-01 64606883 uses a 34-pin drive interface and a five-pole screw terminal, with 5 V power supplied by the drive control board.
