SAFT171PAC

/ 4.9
1001 reviews | Need a Specific Revision?

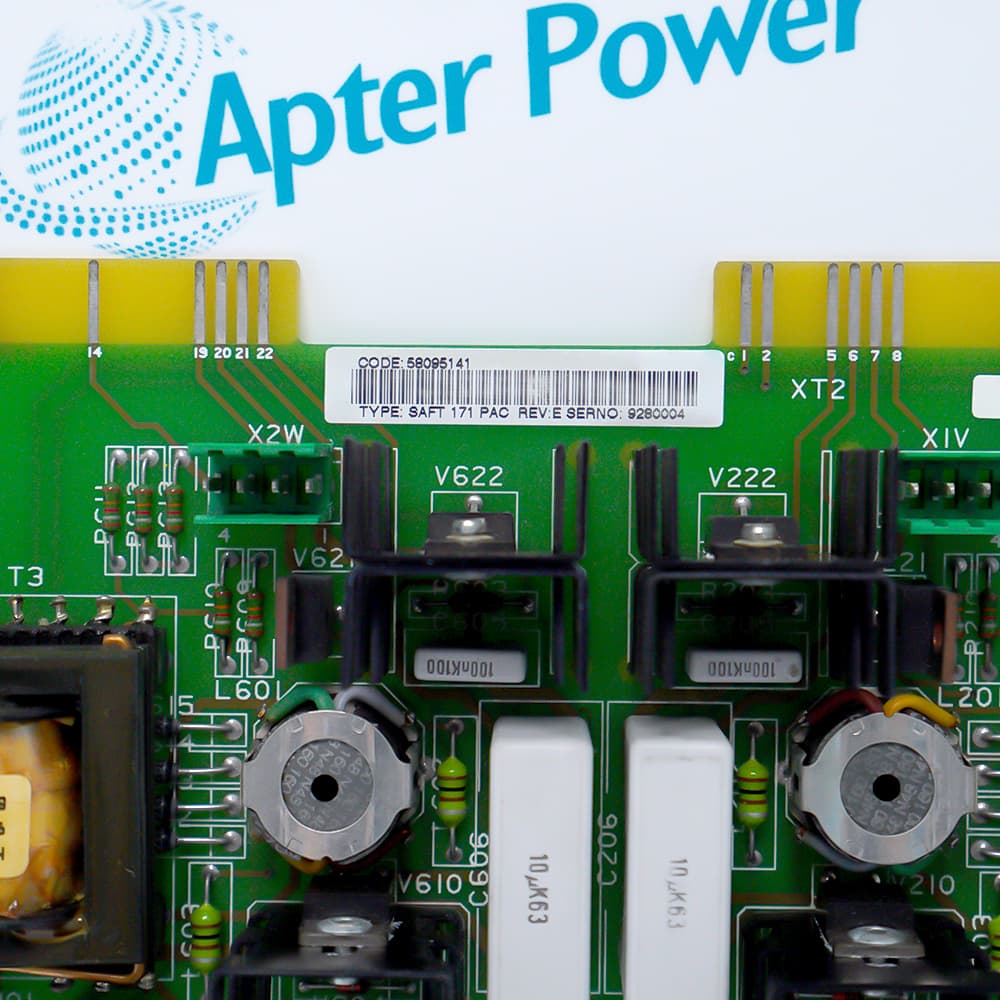

ABB SAFT171PAC pulse amplifier board amplifies low-level control pulse signals and provides stable power conversion for ABB Stromberg drives.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SAFT171PAC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SAFT171PAC

  • Manufacturer:
    ABB
  • Part Number:
    SAFT171PAC
  • Product Family:
    ABB Drives
  • Product Type:
    Pulse Amplifier Board
  • Stock:
    3
  • Input voltage range:
    100V ~ 240V AC
  • Input frequency:
    50 / 60 Hz
  • Operating temperature range:
    -10℃ ~ +55℃
  • Enclosure protection rating:
    IP20
  • Compatibility:
    ABB Stromberg drives
  • Weight:
    0.92 kg
  • Estimated shipping dimensions:
    43x19x3.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Environment Safety

Features:

  • Amplifies low-level control pulses to accurately drive high-power semiconductor switching devices.
  • Converts 100-240 V AC input into stable DC power for the board and associated control circuits.
  • Separates control and power circuits to improve system protection during overload and short-circuit conditions.
ABB SAFT171PAC plays an important role in industrial drive control systems by providing the interface between the central controller and the power switching stage. Pulse signals generated by the controller are typically too weak to operate high-power semiconductor devices directly. The board strengthens these signals before they reach the output stage, allowing stable and accurate switching performance. This function supports dependable operation in demanding industrial automation applications.

Beyond signal amplification, ABB SAFT171PAC combines power supply functionality within the same board. A wide input voltage range of 100 V to 240 V AC at 50/60 Hz allows installation across different industrial power systems without requiring additional input voltage adaptation. The converted DC output supplies the board and nearby control circuits with reliable operating power, helping simplify the overall system architecture.

ABB SAFT171PAC is intended for use with ABB Stromberg drives and incorporates electrical isolation between high-power and low-power sections. This design helps reduce the possibility of damage to the central control unit if overload or short-circuit faults occur in the drive system. With an operating temperature range of -10°C to +55°C and an IP20 protection rating, the board is well suited for installation inside protected industrial control cabinets where long-term operational reliability is required.

The SAFT171PAC ABB Pulse Amplifier Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SAFT171PAC Pulse Amplifier Board Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SAFT171PAC Pulse Amplifier Board Specs

General

  • Manufacturer ABB
  • Model SAFT171PAC
  • Condition New Original ready stock
  • Product Family SAFT170PAC,SAFT168PAC,SAFT169PAC
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Heavy Industrial Drives: Speed ​​control of steel mill rolling mills (high-frequency pulse amplification for precise control).
  • Large Paper Production Lines: Synchronous drive of multiple motors in paper machines (provides high-interference-resistant drive power).
  • Power Plant Frequency Converters: Large high-voltage rectifier cabinets for fans and pumps (ensuring core control signals are not distorted).
  • System Spare Parts Library: Maintenance of early SAMI STAR drive systems (emergency replacement of old original cabinets).
  • Operating Temperature: -10℃ ~ +55℃ (Ensuring continuous and stable operation in heavy industrial environments).
  • Storage Temperature: -40℃ ~ +70℃ (Adaptable to long-term storage environments).
  • Enclosure Protection: IP20 rating (Rack-mounted, protects against accidental electric shock).
  • Vibration Resistance Standard: Complies with IEC 60068-2 (Withstands vibrations from large drive cabinet operation).
  • Installation Method: EN50022 standard (Supports rack-mounted installation of drive systems).
  • Electrical Isolation: High-voltage isolation protection (complete isolation between high-voltage drive and low-voltage control terminals).
  • Overload Protection: Built-in current limiting circuit (prevents downstream component failures from burning out the motherboard).
  • Short Circuit Protection: Hardware-level instant cut-off (automatic pulse locking when an abnormal short circuit occurs at the output).
  • Compliance Certification: Complies with CE/Industrial EMC standards (strictly limits electromagnetic radiation and interference resistance).
Description
ABB SAFT171PAC pulse amplifier board serves as a key interface between the central control unit and the power switching stage in ABB Stromberg drives. Weak pulse signals generated by the control system are amplified to a level capable of driving high-power semiconductor switching devices such as IGBT, GTO, or thyristor components with greater precision and stability.

In addition to pulse amplification, ABB SAFT171PAC functions as a power supply board. It accepts a wide AC input voltage range from 100 V to 240 V at 50/60 Hz and converts the incoming power into stable DC voltage required by the board and surrounding control circuits. This integrated design supports reliable operation under different industrial power conditions.

Electrical isolation is another important function of ABB SAFT171PAC. The board separates the high-voltage drive section from the low-voltage control system to improve operational safety. During overload or short-circuit conditions, the isolation function helps protect the central controller from damage. With an operating temperature range of -10°C to +55°C and an IP20 protection rating, the board is suitable for installation inside industrial control cabinets used with ABB Stromberg drives.
Alternative Names
SAFTI7IPAC SAFT 171 PAC SAFT170PAC SAFT168PAC SAFT169PAC SAFT120PAC SAFT121PAC SAFT123PAC
Technical notes
Optimize your system uptime with the ABB SAFT171PAC pulse amplifier board, designed specifically for rapid rack-mount replacement in heavy-industry drive cabinets. Weighing exactly 0.92 kg, this compact IP20-rated electronic module delivers robust protection and precise gate-driving signals to prevent expensive manufacturing line downtime.
